Help Center400 Micron Stainless Steel 316 Wire Mesh Price per Square Meter
Related Products
-
Plastic Window Screen,window NetUS$ 8 - 10MOQ: 200 Rolls -
Aluminum Window Screen Powder Coated MeshUS$ 3 - 60MOQ: 10 Rolls
-
ELECTRO GALVANIZED WIRE WINDOW SCREENUS$ 8 - 10MOQ: 200 Rolls
-
Stainless Steel Screen Windows/stretch Window ScreenUS$ 8 - 10MOQ: 200 Rolls
-
FIBERGLASS WINDOW SCREENUS$ 0.35 - 0.55MOQ: 10 Square Meters
Stainless Steel Wire Mesh | |
| Weave Style | Plain Weave,Plain Dutch Weave,Twill Weave,Twill Dutch Weave,Reverse Dutch Weave |
Martiral | Stainless Steel Wire, 304, 304L, 316, 316L,321 and 430 etc |
Width | 0.9144m,1.0m,1.22m,1.524m,1.83m,etc. any width available at request. |
| Wire diameter | 2.03-0.0203mm / 0.08-0.008 inch |
| Aperture | 23.37-0.0203 mm/ 0.92-0.0008 inch |
| Open area | 84.6-25 |
| Roll length | 30m,30.48m or as your request |

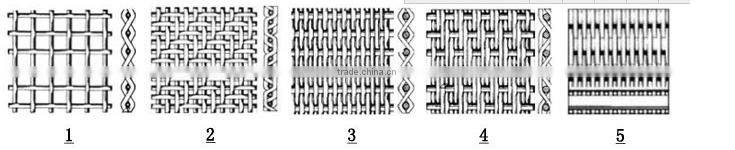

1. Plain Weave: also called tabby weave, linen weave or taffeta weave, is the most basic type of weaves. In plain weave, the warp and weft are aligned so they form a simple criss-cross pattern. Each weft thread crosses the warp threads by going over one, then under the next, and so on. The next weft thread goes under the warp threads that its neighbor went over, and vice versa.
2. Twill Weave: In a twill weave, each weft or filling yarn floats across the warp yarns in a progression of interlaces to the right or left, forming a distinct diagonal line. This diagonal line is also known as a wale. A float is the portion of a yarn that crosses over two or more yarns from the opposite direction.
3. Plain Dutch Weave: similar with plain weave, just the weft and warp wire have different wire diameter and different mesh size.
4. Twill Dutch Weave: similar with twill weave, just the weft and warp wire have different wire diameter and different mesh size.
5. Reversed Dutch Weave: difference from standard Dutch weave lies in the thicker warp wires and less weft wires.
Normal mesh size:
plain weave: 0.5X0.5mesh to 635X635 mesh;
twill weave:20x20mesh to 400x400mesh;
plain dutch weave:10X64mesh to 80X700mesh;
twill dutch weave:20x250mesh to 400X2800mesh;
reversed dutch weave: 48x10mesh to 720x150mesh.
