Specifications
1.30 year's manufacture experience2. ISO 9001:2008 Certificate
3.Best price,fast delivery,high quality
4.One year warranty
Specifications for tie rod hydraulic cylinder:
Working Pressure: 2500PSI (21MPa) ~ 4000PSI (28MPa).
Working Temperature: -20oC ~ 100oC.
Size for tie rod hydraulic cylinder:
Bore Size -- 2" ~ 10"
Stroke-------- 2" ~ 300"
Rod size-----1"~10"
General material for tie rod hydraulic cylinders:
Gland----High grade ductile iron
Tube-----Cold drawn honed tubing
Tube seal---O-ring with anti-exthusion backup washer
Tir rod------High tensile steel
Piston rod----Chrome plated C1045 steel
Rod clevis----Ductile iron
End caps-----High grade ductile iron
Piston--------High grade ductile iron,precision machined
Piston wear ring---Glass filled nylon wear ring
Rod wiper----Metal encased nitrile rubber
Rod seal------Urethane
Oil port-------2TNPT,3TSAE
Paint color----Semi-gloss black,or other customized colors

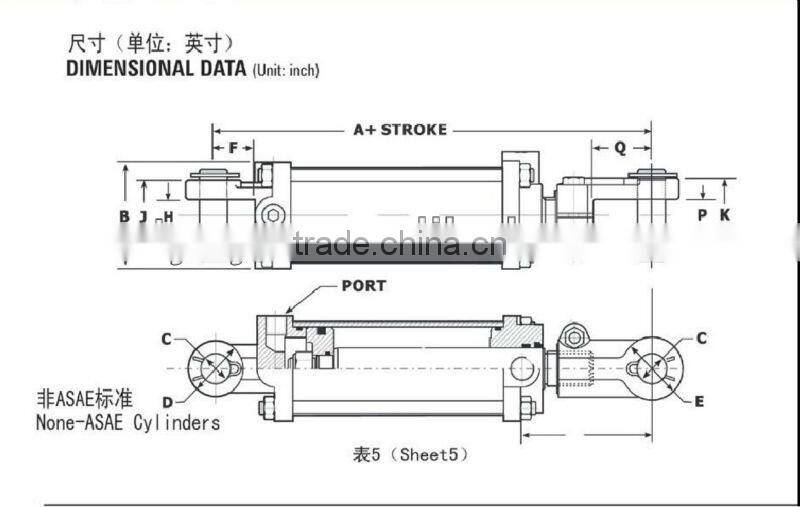

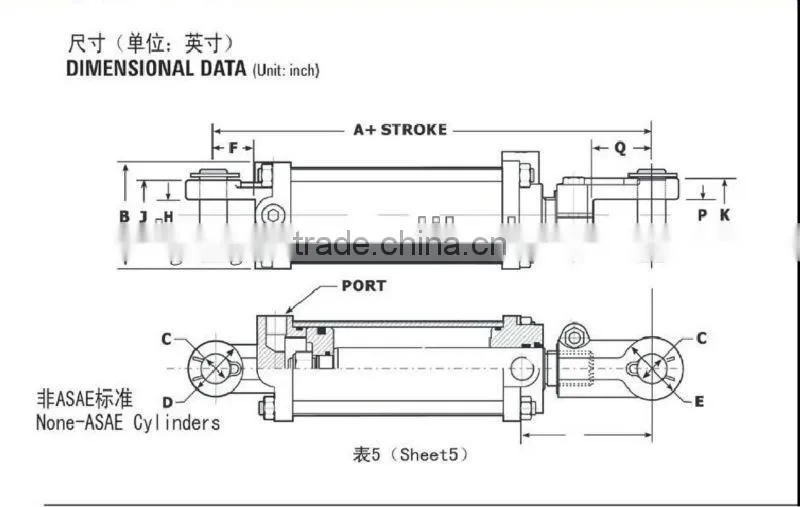

Tie rod hydraulic cylinder drawing:

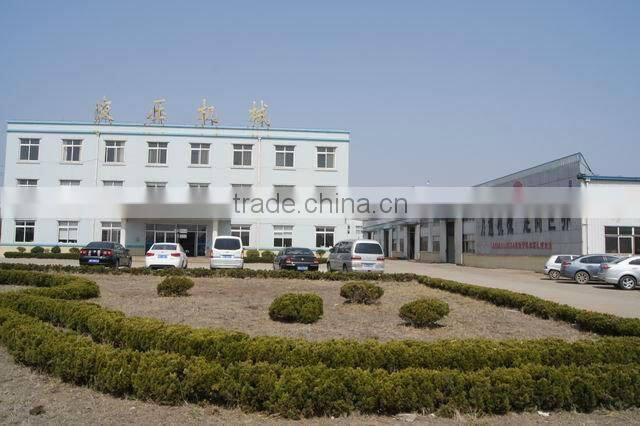

Our factory for tie rod hydraulic cylinder introduction:
1) We are a professional hydraulic cylinder manufacturer in Tie Rod hydraulic cylinders,welded cylinders,plunger type cylinders and OEM cylinders.they are used for construction,mining, forestry, marine, demolition, military, material handling, agricultural machinery,farm equipment, truck and trailer, loader, utility and waste management.
2)With countless hours of testing, you can be assured that our products have long life, superior performance and high reliability.

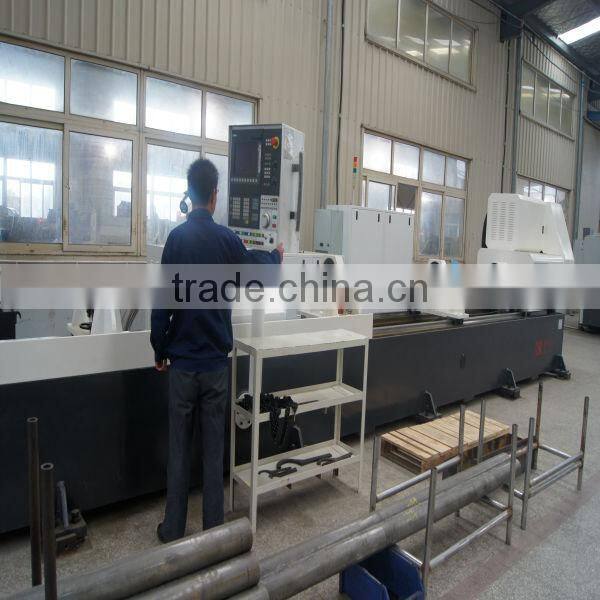

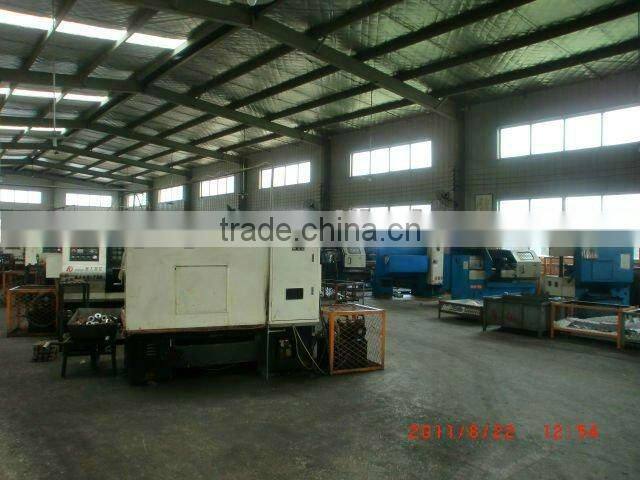

Our processing machines for tie rod hydraulic cylinder for agricultural machinery,farm equipment:

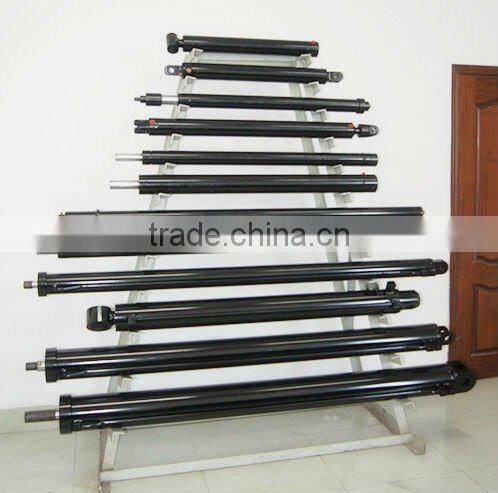

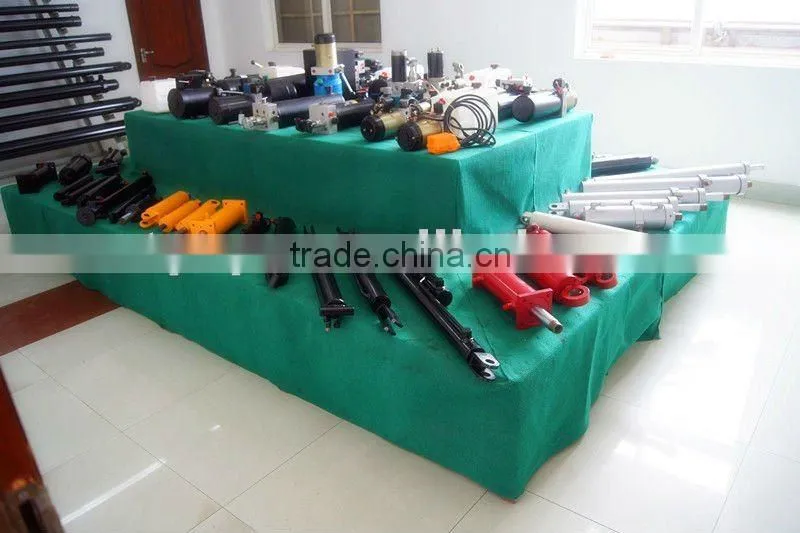

Our sample room:
If you are interested in our tie rod hydraulic cylinder for agricultural machinery,farm equipment, please kindly let me know:
My Skype is fiona6201
