professional Tie-rod ram small metal hydraulic cylinder

Specifications

Tie-rod hydraulic cylinder
1)Hydraulic Tie-rod cylinder

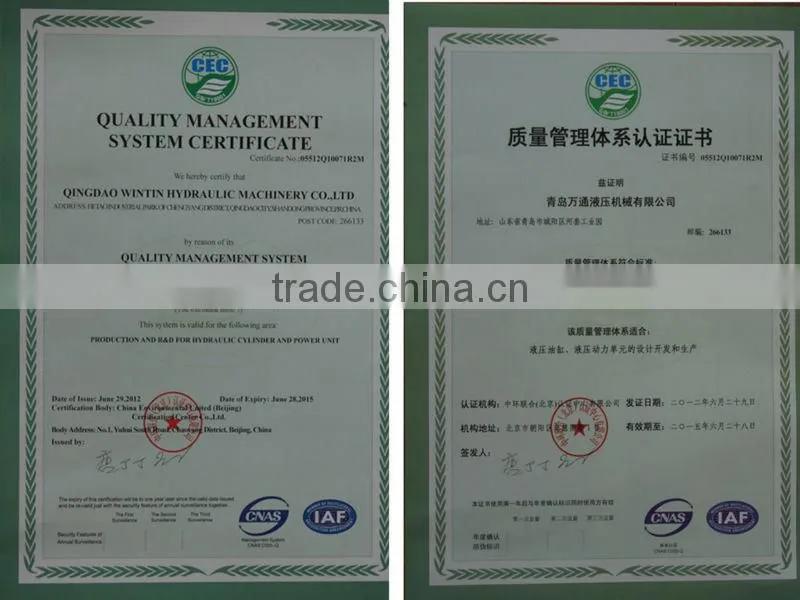

2)ISO9001:2008 quality certificate
3)High quality OEM
4)26 years

Tie-rod hydrualic cylinder



2T series

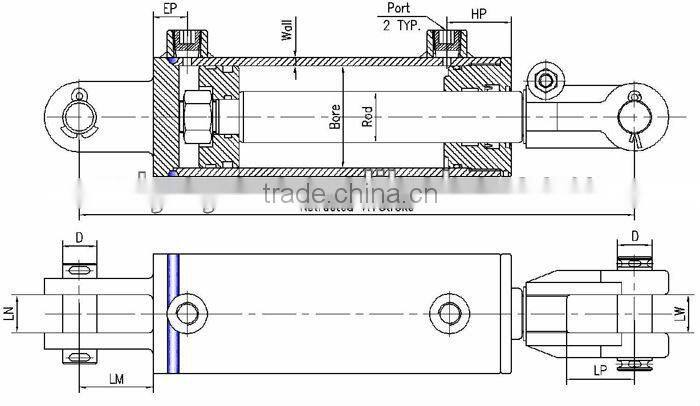

Dimension

(Unit: inch)

Non-ASAE Models

Bore

A

B

C

D

E

F

G

H

J

K

P

Q

Port

Tie Rod

Rod Thread

2"

10 1/4"

2 3/4"

1 1/64"

2.0"

2.0"

2 1/16"

4 3/16"

1 1/8

2 1/2

2 1/2

1 1/8

2 1/8

3/8"NPTF

3/8"

1 1/8-12UNF

2.5"

10 1/4"

3 1/8"

1 1/64"

2.0"

2.0"

2 1/16 "

4 3/16"

1 1/8

2 1/2

2 1/2

1 1/8

2 1/8

3/8"NPTF

3/8"

1 1/8-12UNF

3"

10 1/4"

3 3/4"

1 1/64"

2.0"

2.0"

2  1/16

3 15/16"

1 1/8

2 5/8

2 5/8

1 1/8

2 1/8

1/2"NPTF

1/2"

1 1/4-12UNF

3.5"

10 1/4"

4 1/2"

1 1/64"

2.0"

2 1/4"

2  1/16

3 15/16"

1 1/8

2 5/8

2 5/8

1 1/8

2 1/8

1/2"NPTF

5/8"

1 1/4-12UNF

4"

10 1/4"

5 1/8"

1 1/64"

2 1/4"

2 1/4"

2 1/16"

3 7/8 "

1 1/8

2 5/8

2 5/8

1 1/8

2 1/8

1/2"NPTF

5/8"

1 1/4-12UNF

4.5"

10 1/4"

5 1/4"

1 1/64"

2 1/4"

2 5/8"

2 1/16"

3 7/8"

1 1/4

3

3 1/2

1 1/4

2 1/8

1/2"NPTF

5/8"

1 1/4-12UNF

5"

12 1/4"

6.0"

1 1/64"

2 7/8"

2 5/8"

2 1/4"

4 11/16"

1 1/4

3

3 1/2

1 1/4

2 1/8

1/2"NPTF

3/4"

1 1/4-12UNF



ASAE Models (The dimensions listed below are different from non-ASAE cylinders)
Bore	A	A	C	C	G	G
	(ASAE-8)	(ASAE-16)	(ASAE-8)	(ASAE-16)	(ASAE-8)	(ASAE-16)
2"	12 1/4"	15 1/2"	1 1/64"	1 17/64"	6 3/16"	9 7/16"
2.5"	12 1/4"	15 1/2"	1 1/64"	1 17/64"	6 3/16"	9 7/16"
3"	12 1/4"	15 1/2"	1 1/64"	1 17/64"	5 15/16"	9 3/16"
3.5"	12 1/4"	15 1/2"	1 1/64"	1 17/64"	5 15/16"	9 3/16"
4"	12 1/4"	15 1/2"	1 1/64"	1 17/64"	5 7/8"	9 1/8"
4.5"	12 1/4"	15 1/2"	1 1/64"	1 17/64"	5 5/8"	8 7/8"
5"	12 1/4"	15 1/2"	1 1/64"	1 17/64"	4 11/16"	7 15/16"







We are established in 1985year,our company holds the business tenet of 'talents as motivation ,technology as basis,management for benefits and quality for market',with the quality principle  of 'satisfying and exceeding clinets' requirements'and enterprise spirit of 'working hard,competition,unity&corporation,dedication'.with abundant production experience,advanced business tenet,standard management system and high technology,our company is a specializing designer and manufacturer of hydraulic power unit and hydraulic pressure cyliner of varieties of specifications.



Welcome you visit our factory,we can design the product based on your drawing.

Or call me;008615966901802

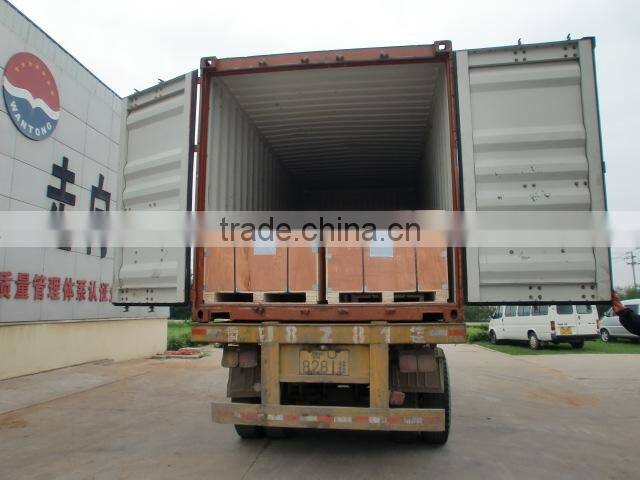

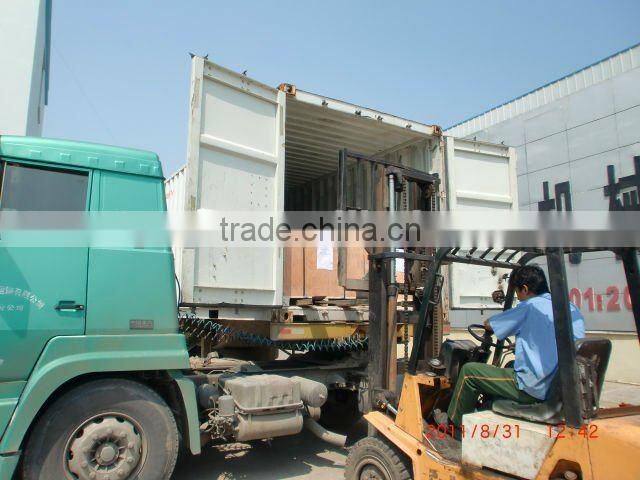

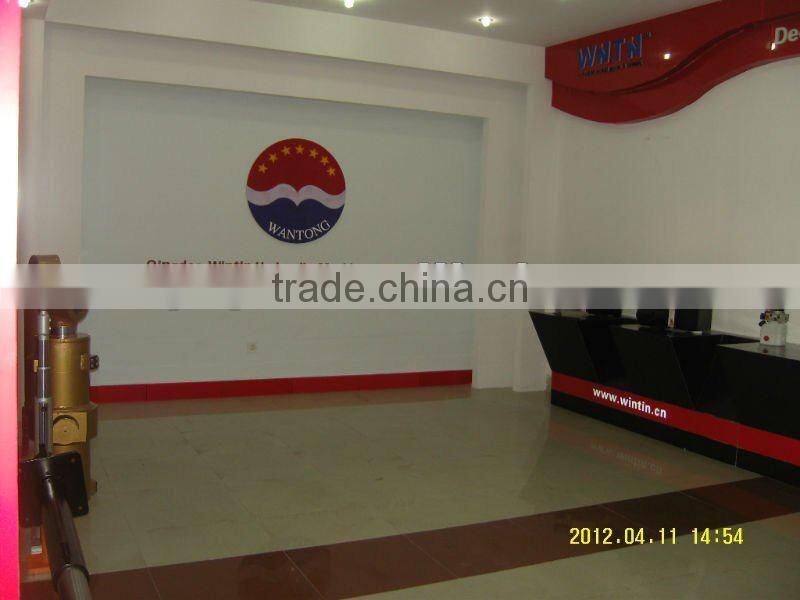

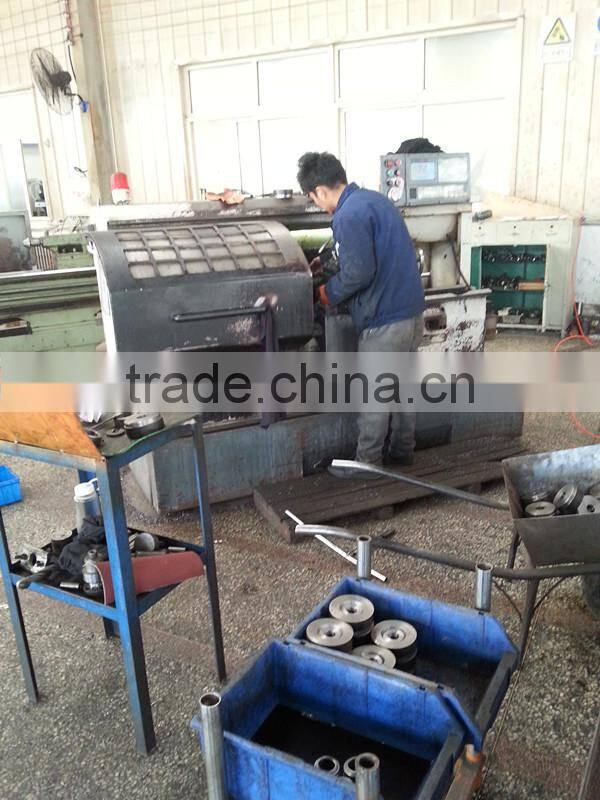

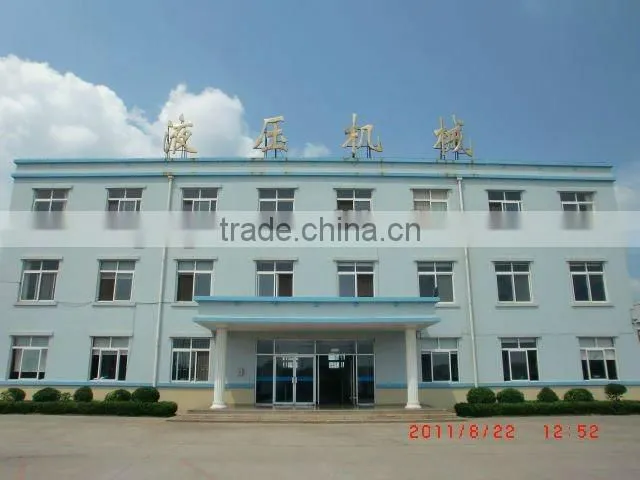

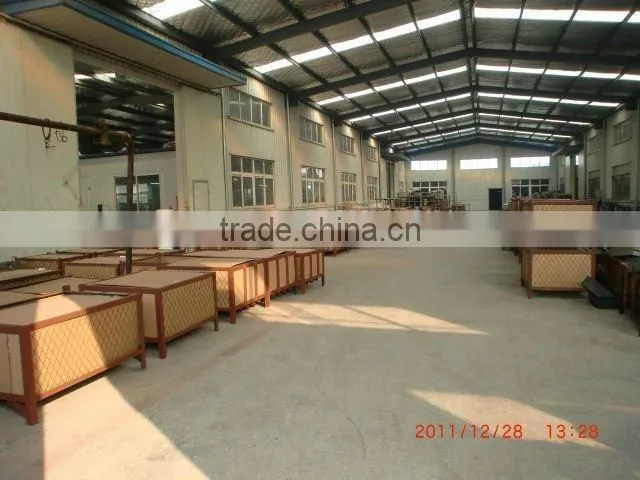

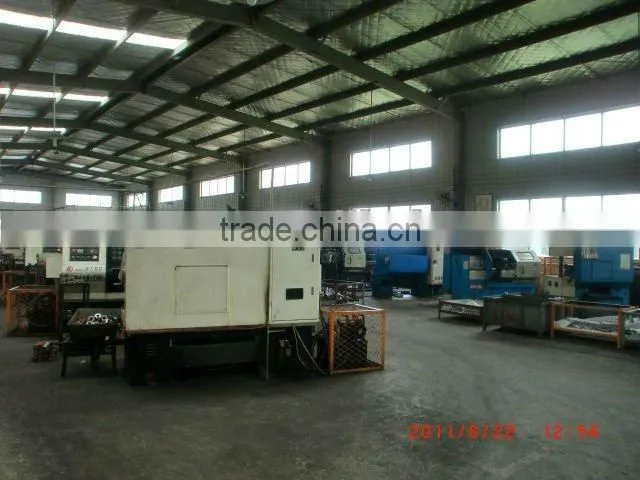

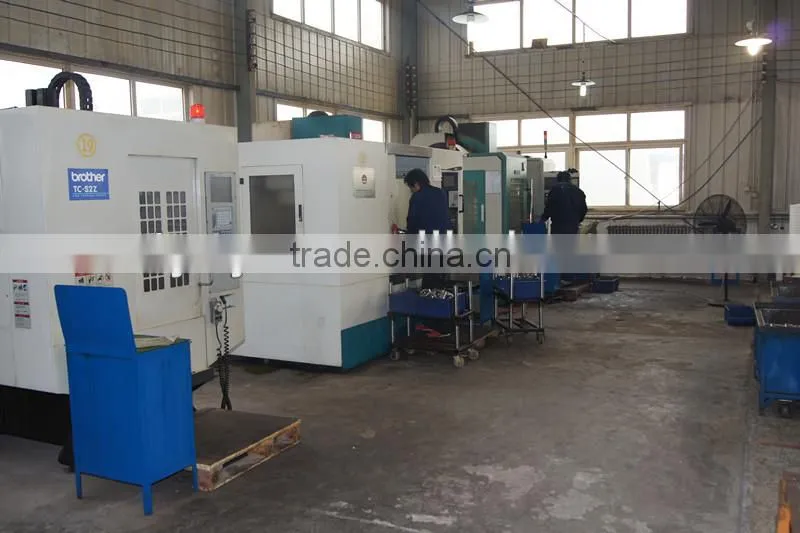

below is our factory pic.for your ref:



my skype:ms.paddy1

tel;15966901802(wechart)
