Specifications
1.Type:TL2.Pattern: TRC-03S
3.Rim size: 16.00x22.5 10/335/281 08/275/221
4.Brand: Multistar
5.Delivery:10 days from stock.
1.Certificate:REACH
2.Pattern:TRC-03,TRC-03S
3.Bias tyre
4.Low ground pressure and good traction
5.Rim assembly service
Delivery: within 10 days (immediate delivery is available on stock normally).
Quarantee: 1 year for tyres and 2 years for rims.
Rim with reinforced ring is also available.

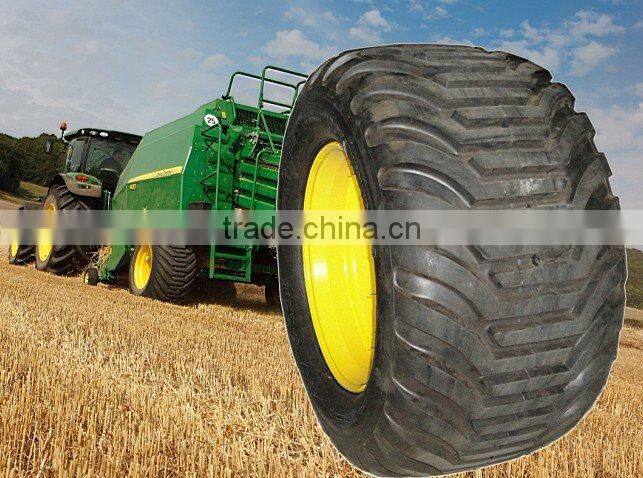

Pioneer and leader in flotation tires. Multistar Flotation tires are engineered and designed to provide exceptional flotation properties on various terrains and are suitable for a wide range of machines and implements that need high load capacity, yet cause minimal soil disturbance and crop damage. Multistar has the widest range of Flotation tires in Radial and Bias construction that provide optimized solutions for all kinds of applications and terrains due to their large range of tread patterns.
| SIZe | Pattern | TT/TL | PR / LI | RIM | O.D / S.W | LOAD | PRESSURE | KM/H |
| 550/45-22.5 | TRC-03S | TL | 16 | 16.00x22.5 | 1080x542mm | 4.375kg | 2.8bar | 40km/h |
| 600/50-22.5 | TRC-03S | TL | 16 | 20.00x22.5 | 1170x600mm | 4.375kg | 2.0bar | 40km/h |
Supply Flotation Implement tire sizes:
500/60-22.5
550/60-22.5
600/50-22.5
650/50-22.5
600/55-22.5
600/55-26.5
700/55-22.5
Ply: 10; 12; 14; 16; 18
Type: TL
Environmentally friendly flotation tyre for large agricultural machines and trailers
1. This low-profile and sturdy tyre endures speed well, resulting in quick transportation
2. Thanks to the large contact patch, ts load-bearing capacity is good even on soft soil
3. Low ground pressure and good traction
4. Good self cleaning qualities

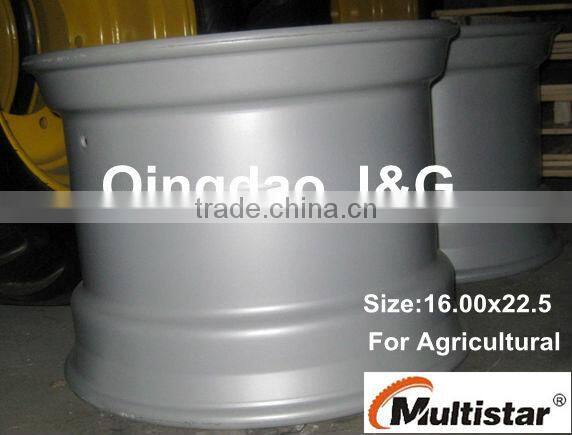

Agricultural Wheel / Tractor Wheel Rim / WDC Wheel Rim / DW Series Steel Wheel Rim
12" : 4.00Bx12, 12X4j, , 5.00s-12, 7.00-12,
13" : 13x4 1/ 2J, 13x4J
14" : 14x4 1/ 2J
15" : 15x6J, 15x5 1/ 2J, 15x6J, 15x8JJ, 7.00T-15
15.3" : 9.00x15.3
15.5" : 13.00x15.5, 15.5x16.00
16" : 16x6 1/ 2J, 16x7J, 16x8J, 11x16
16.5": 16.5x8.25, 16.5x9.75
17": 17x7J, 17x8J, 13x17, 16x17
18": 18x8J, 18xW9, 9x18, 11x18, 13x18
19.5": 19.5x13.00, 19.5x14.00
20": 9.00x20, 11.00x20, 13.00x20, 14.00x20, 16.00x20
20.5": 20.5x14.00,
22": 8.00x22, 8.00-22
24" : 11x24, 13x24, 14x24, 16x24
25" : 12.00x25, . 14.00x25
22.5" : 22.5x11.75, 22.5x16.00, 22.5x20.00
26.5": 26.5X24.00, 26.5X20.00
About us
We would like to introduce our company's profile as below for your reference. Our company--Qingdao J&G is specialize in flotation implement tyre and wheel.
1.Markets and OE experience: Our prducts export more than 70 countries and 60% is for OE market. Such as in Canada, New Zealand, South Africa, European etc. Our OE customers from worldwide.
2. Storage: We have big warehouse in Qingdao Port, it will be easy to provide assembly tyre and wheel and make prompt shipment.
3. Quality: We are the dealer of Trelleborg and Alliance in China. We follow their technica to improve our quality of tyres. Our quality is proven to be good!

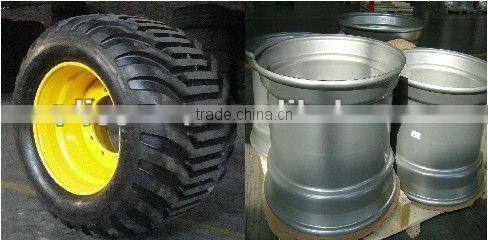

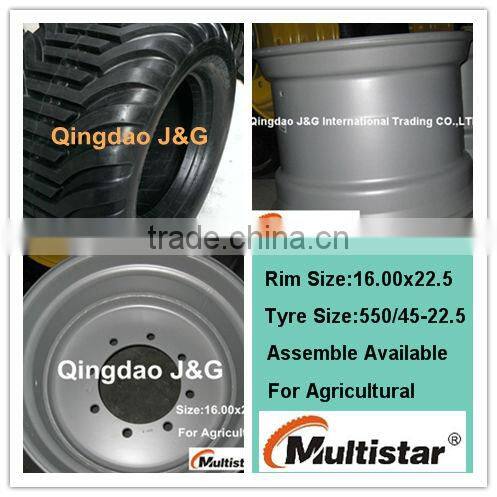

Some pictures for your information
1.Excellent traction patterns to drive wheels, are suitable for on and off-the-road agricultural service on trailers, tractiors and large implements in all weather conditions.
2.Tubeless flotation tire with good self cleaning characteristics, suitable for agricultural implements, and particular, for towed vehicles. High load capacity at low inflation pressures prevent damage to fields and crops.
3.Strong nylon construction and compounds ensure long life.
Should any of these be of interest to you, or if you have any questions, pls don't hesitate to contact us.
Vivian from Qingdao J&G International Trading Co.,Ltd.
