500/60-22.5 Tractor Parts Supplier

Qingdao J & G International Trading Co., Ltd.
500/60-22.5 Tractor Parts Supplier thumbnail-1
500/60-22.5 Tractor Parts Supplier photo-1
US$ 400 - 508 MOQ: 12 Pieces
Key Specifications
Get Latest Price
Type:
Tires
Use:
Harvesters
Place of Origin:
Shandong, China
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Tires
Use Harvesters
Place of Origin Shandong, China
Brand Name Multistar
Model Number 500/60-22.5

Specifications

1.Type: TL
2.Brand: Multistar
3.Pattern :TRC-03
4.Rim size: 16.00x22.5 10/335/281 ET.0

SizePlyTyre ApplicationO. D. (mm)S. W. (mm)TT/TLRim
500/60-22.516Flotation Implement  1170500TL16.00x22.5

 500/60-22.5 Tractor parts supplier



SIZE

Rim

550/45-22.5

16.00x22.5

500/60-22.5

16.00x22.5

550/60-22.5

20.00x22.5

600/50-22.5

20.00x22.5

400/60-15.5

13.00X15.5

13.0/55-16

11.00x16

14.0/60-16

11.00X16

15.0/55-17

13.00x17

19.0/45-17

16.00x17

500/50-17

16.00x17

13.0/65-18

11.00x18

15.0/70-18

13.00X18

7.00-12

5.50Fx12

10.0/80-12

9.00x12

10.0/75-15.3

9.00x15.3

11.5/80-15.3

9.00x15.3

12.5/80-15.3

9.00x15.3

10.5/80-18

9.00x18

12.5/80-18

9.00x18

13.0/65-18

11.00x18







Stocked rims can be deliveried immediately







22.5" Agricultural Wheel Size:







Wheel SizeFitted TyreBolt HoleP.C.DCentre Hole Dia.ThicknessOffset
NumberDia.RimDisc
22.5x11.75385/65R22.5
385/55R22.5		10273352816.5120/120
816.5203.2152.56.51222
22.5X13.00415/45R22.51027335281712.50
22.5x14.00415/45R22.5
425/65R22.5		1027335281712.50/20/175.5
1032.5285.75221.5716117
22.5x15.00455/40R22.51027335281712.50
22.5x16.00500/60-22.5
550/60-22.5
550/45-22.5		621.52051616.5120
821.52752216.5120/-30
10273352817140/-50
22.5x20.00600/50-22.5
600/55-22.5
650/50-22.5		8272752217150/-50
10273352817150/-50
1020.6285.75223.77150
22.5x24.00700/40-22.5
750/45-22.5		8272752217150/-50
10273352817150/-50











Tyre 600/50-22.5, 650/50-22.5



Tyre: tubeless
Pattern: TRC-03S
Rim size: 20.00x22.5
Brand: Multistar




Pattern: TRC-03



1.Flotation Tubeless tyres developed with high inner volume ensures low specific ground pressure preventing damages to fields & crops.



2.Tough Nylon casing can withstand the severe deflection in service.



3.High strength bead wires coupled with design of contour & insulation compound withstands high stress in the bead region.
4.Suitable for both on and off road agricultural service.







TRC-03 TRC-03S Pattern for your information.



Low section implement tyres, offering high load capacity with minimum soil compaction.



Ideal tyres for modern faming, suitable for both on and off-the-road applications.



500/60-22.5 Tractor parts supplier500/60-22.5 Tractor parts supplier



Specifications



1.Type:TL
2.Pattern: TRC-03S
3.Rim size: 16.00x22.5 10/335/281 08/275/221
4.Brand: Multistar
5.Delivery: 10days from stock





Specially designed for high load capacities at low inflation pressures, minimizing soil compaction and preventing damage to crops

Ideal tyres for modern farming, suitable for both on and off-the-road applications

MAIN APPLICATION: Agricultural trailer, Implement, Mixer and Tanker etc



SizePatternTT/TLPR / LIRIMO.D / S.WLOADPRESSUREKM/H
550/45-22.5TRC-03STL16 16.00x22.51080x542mm 4.375kg 2.8bar 40km/h
600/50-22.5TRC-03STL16 20.00x22.51170x600mm4.375kg 2.0bar40km/h



Supply Flotation Implement tire sizes:



SizePLYPatternTypeBrandRimQuantity 1x40'HQ
400/60-15.514TRC-02TLMultistar13.00x15.5282 PCS
400/60-15.514IMP-01TLMultistar13.00x15.5282 PCS
400/60-15.514IMP-04TLMultistar13.00x15.5282 PCS
400/60-15.516IMP-04TLMultistar13.00x15.5282 PCS
IMP-05
500/50-1714IMP-05TLMultistar16.00x17160 PCS
500/50-1718IMP-05TLMultistar16.00x17160 PCS
19.0/45-1714IMP-05TLMultistar16.00x17210 PCS
15.0/55-1718IMP-05TLMultistar13.00x17280 PCS
15.0/55-1714IMP-05TLMultistar13.00x17280 PCS
 14.0/65-1614IMP-05TLMultistar11.00x16360 PCS
IMP-01
 13.0/65-1816IMP-01TLMultistar11.00x18390 PCS
10.0/80-1210IMP-01TLMultistar7.00x12700 PCS
10.0/75-15.310IMP-01TLMultistar9.00x15.3620 PCS
11.5/80-15.314IMP-01TLMultistar9.00x15.3420 PCS
12.5/80-15.314IMP-01TLMultistar9.00x15.3380 PCS
 10.5/65-1610IMP-01TLMultistar9.00x16550 PCS
TRC-03
650/50-22.516TRC-03TLMultistar20.00x22.590 PCS
600/50-22.510TRC-03TLMultistar20.00x22.596 PCS
550/60-22.510TRC-03TLMultistar16.00x22.5100 PCS
600/50-22.514TRC-03TLMultistar20.00x22.599 PCS
550/45-22.514TRC-03TLMultistar16.00x22.5116 PCS
500/60-22.516TRC-03TLMultistar16.00x22.5108 PCS

 500/60-22.5 Tractor parts supplier

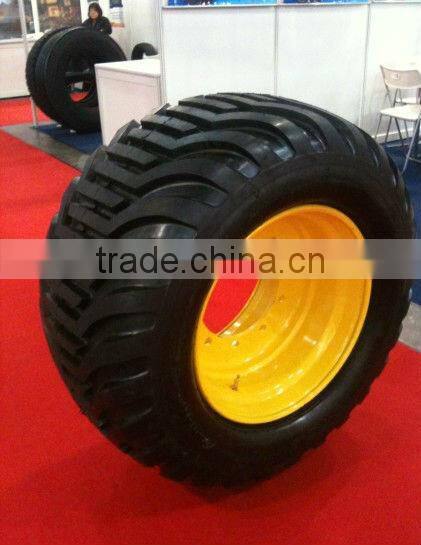

Environmentally friendly flotation tyre for large agricultural machines and trailers
1. This low-profile and sturdy tyre endures speed well, resulting in quick transportation
2. Thanks to the large contact patch, ts load-bearing capacity is good even on soft soil
3. Low ground pressure and good traction
4. Good self cleaning qualities

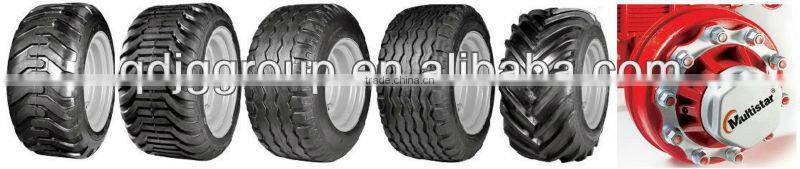

Which type of Tyres we can offer:

Flotation implement tyre, agricultural tyre, Forklift tyre etc..

500/60-22.5 Tractor parts supplier



Which Advantagement we have:

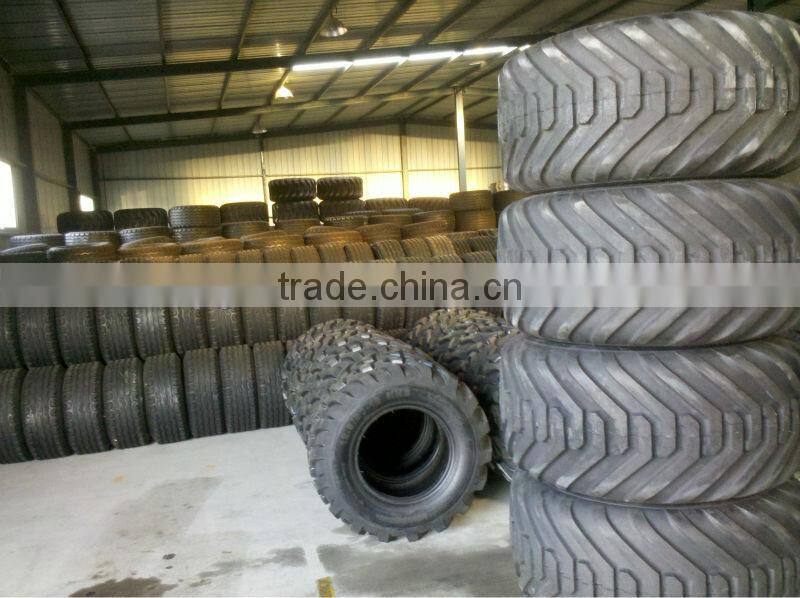

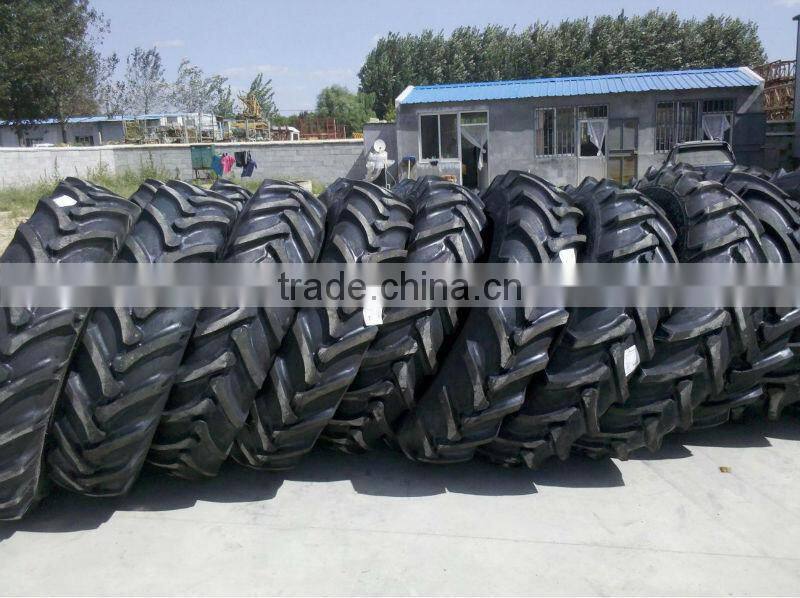

1. Storage—We keep stock in our warehouse for promptly shipment

500/60-22.5 Tractor parts supplier 500/60-22.5 Tractor parts supplier

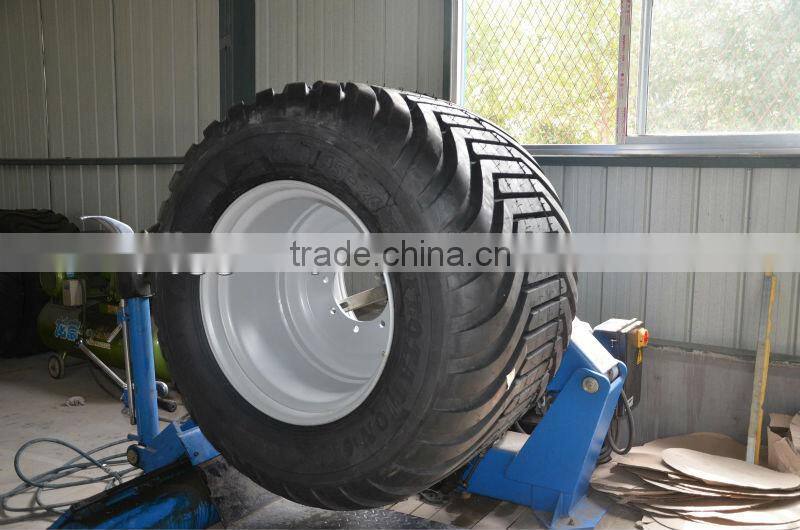

2.Assembly—we provide assembly service, supply both tire and wheel

500/60-22.5 Tractor parts supplier 500/60-22.5 Tractor parts supplier

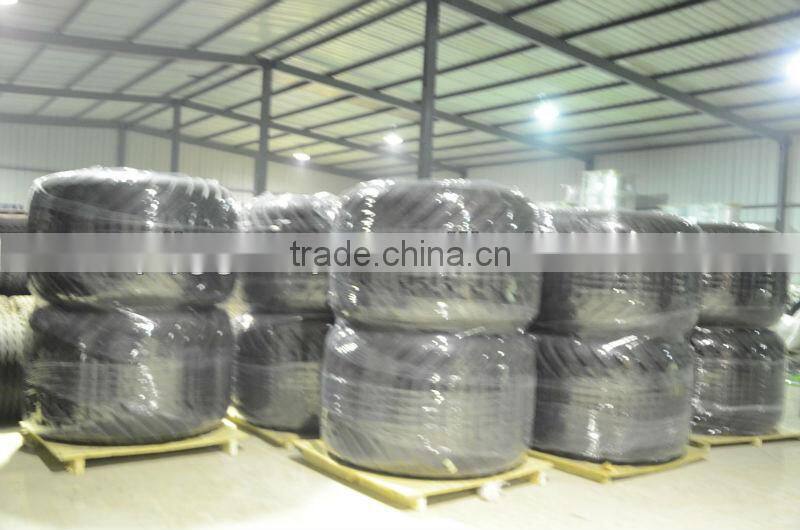

3.Packing— we will provide packing for our OE customer to make sure our tyre clean and avoiding damage.

500/60-22.5 Tractor parts supplier500/60-22.5 Tractor parts supplier

500/60-22.5 Tractor parts supplier



4.Quality--- all our tyres pass Quality Test of QTC; Up to DOT CCC ISO standard

500/60-22.5 Tractor parts supplier



5.Strong Partners—we are authorized distributor in China of Trelleborg, Alliance, BKT. We follow their technology to improve our tyres

500/60-22.5 Tractor parts supplier



6. Trust--Over the years J&G has helped in increasing the base of loyal customers and winning over new customers.  With time, the Multistar brand has drawn loyal and passionate customers in 77 countries



500/60-22.5 Tractor parts supplier















Should any of these be of interest to you, or if you have any questions, pls don't hesitate to contact us.







Vivian/Qingdao J&G International Trading Co.,Ltd.
