Specifications
1.All the wheels are confirmed with DOT,TUV,ISO/TS16949.2.All the wheels are strictly comply with TRA standard.
3.Shelf life.

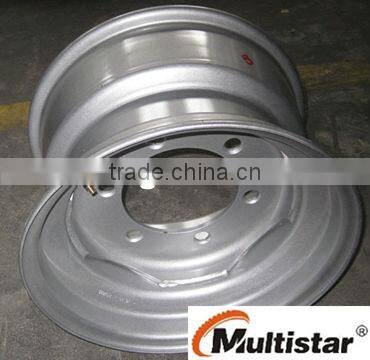

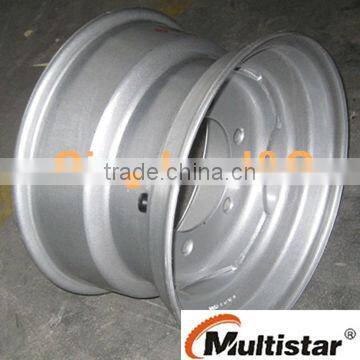

1.Rim Size:9.00x15.3
2.Tyre Size:10.0/75-15.3
3.Agricultural Wheel Rim Assemble Available
4.ISO Certification
5.DOT Certific
Specialized in manufacturing and exporting all kinds of tyres and wheels to all over the world. And we can supply wheel rims and tires,and are especially professional in truck wheel,agricultural wheel and assemblies and components for OTR wheel and engineering wheel with multi-pieces for earthmover.
We are specialized in the assembled wheels (tyres and rims) for farming and forestry machines and trailers. We have been supplying OEM products to Sweden, Norway,New Zealand,Australia and Canada for several years. We began to enter China's local market at the beginning of 2010. We also supply our wheels to the aftermarkets at home and abroad.
The detail of 9.00x15.3 as below,more information about this rim,welcome to contact with us.
| Wheel Size | Fitted Tyre | Bolt Hole | P.C.D | C.B.D. | Thickness | Offset | ||
| Number | Dia. | Rim | Disc | |||||
| 9.00x15.3 | 10.0/75-15.3 11.5/80-15.3 12.5/80/15.3 | 6 | Φ20.5 | Φ205 | Φ161 | 4 | 8 | 0 |
| 9.00x15.3 | 6 | Φ20.5 | Φ205 | Φ161 | 4 | 8 | -50 | |
| 9.00x15.3 | 5 | Φ18.5 | Φ140 | Φ161 | 4 | 8 | 0 | |
Except 9.00x15.3 ,all the sizes of below Implement Agricultural Wheel Rims can be supplied by us.
7.00x15
8LBx15
10LBx15
13x15
9.00x15.3
13.00x15.5
16.5x8.25
16.5x9.75
16.00x17
13.00x17
9.00x18
11.00x18
13x18
13x20
DW20x26
DW25x26
DW27x32
DW27x31
11.75x22.5
13.00x22.5
14.00x22.5
15.00x22.5
16.00x22.5
20.00x22.5
24.00x22.5
16.00x26.5
20.00x26.5
24.00X26.5
28.00x30.5
Some detail of these rims for your reference.
| Wheel Size | Fitted Tyre | Bolt Hole | P.C.D | Thickness | Offset | ||
| Number | Dia. | Rim | Disc | ||||
| 9.00x18 | 10.5/80-18 12.5/80-18 | 6 | 21.5 | 205 | 4 | 8 | 0 |
| 8 | 27 | 275 | 4 | 8 | 0 | ||
| 11.00x18 | 13.0/65-18 | 8 | 17 | 203.2 | 5 | 10 | -55 |
| 13.0/65-18 | 6 | 21.5 | 205 | 5 | 10 | 0 | |
| 13.00x18 | 15.5/60-18 405/70-18 | 6 | 21.5 | 205 | 5 | 10 | 0/-40 |
| 8 | 27 | 275 | 5 | 10 | 0/-40 | ||
| Wheel Size | Fitted Tyre | Bolt Hole | P.C.D | Thickness | Offset | ||
| Number | Dia. | Rim | Disc | ||||
| 30.5x28.00 | 800/45-30.5 | 10 | 27 | 335 | 7 | 15 | 0/-50 |
| Wheel Size | Fitted Tyre | Bolt Hole | P.C.D | Thickness | Offset | ||
| Number | Dia. | Rim | Disc | ||||
| DW27x32 | 30.5L-32 | 10 | 27 | 335 | 7 | 16 | 0/74/98 |
| DW27x31 | 24.5-32 | 10 | 27 | 335 | 7 | 16 | 0 |

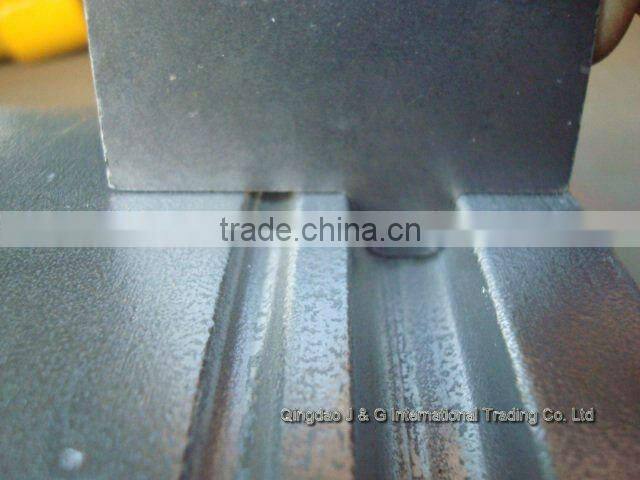

We pay attention to every detail of wheel rims.
4.50Ex16, 5.50Fx16, W8x16, W9x18, W14Cx16.1, 13x15.5, W13x20, W7x24, W8x24, W9x18, W10x24, W12x24, W10x38, W7x48, W8x32, W10x32, DW12x38, DW15x38, W14x30, W15x34, W13x48, W16x38, DW20x24 are also available.
DW20x26
DW25x26
DW27x32
DW11x38
DW15Lx24
DW15Lx28
W13x20
W13x24
W14Lx24
W15Lx24
7.00x12
11.00x18
13.00x18
13.00x17
16.00x17
13.00x15.5
16.00x22.5
20.00x22.5
24.00x26.5
are also available.
