99.9% pure small diameter copper pipe price meter for air conditioner
---Wuxi Boro Special Steel Company
1. | Item | 99.9% pure small diameter copper pipe price meter for air conditioner | |
2. | Standard | ASTM,DIN,EN,ISO,JIS,GB | |
3. | Material | T1,T2,C10100,C10200,C10300,C10400,C10500,C10700,C10800,C10910, C10920,TP1,TP2,C10930,C11000,C11300,C11400,C11500,C11600,C12000, C12200,C12300,TU1,TU2,C12500,C14200,C14420,C14500,C14510,C14520, C14530,C17200,C19200,C21000,C23000,C26000,C27000,C27400,C28000, C33000,C33200,C37000,C44300,C44400,C44500,C60800,C63020, C68700,C70400,C70600,C70620,C71000,C71500,C71520,C71640,etc | |
4. | Shape | Round, square, rectangular, etc | |
5. | Specifications | Round | Wall thickness: 0.2mm~120mm |
Outside Diameter: 2mm~910mm | |||
Square | Wall thickness: 0.2mm~120mm | ||
Size: 2mm*2mm~1016mm*1016mm | |||
Rectangular | Wall thickness: 0.2mm~120mm | ||
Size: 2mm*4mm~1016mm*1219mm | |||
6. | Length | 5.8m,6m,11.8m,12m,or as required | |
7. | Hardness | 1/16 hard,1/8 hard,3/8 hard,1/4 hard,1/2hard,full hard,soft,etc | |
8. | Surface | mill,polished,bright,oiled,hair line,brush,mirror,sand blast,or as required | |
9. | Price Term | Ex-work,FOB,CFR,CIF,etc | |
10. | Payment Term | T/T, L/C, Western Union, etc | |
11. | Delivery Time | According to order's quantity | |
12. | Package | Export standard package: bundled wooden box, suit for all kinds of transport or be required. | |
13. | Export to | Singapore,Indonesia,Ukraine,Thailand,Viet Nam,Saudi Arabia,Brazil,Venezuela, Canada,USA, Egypt, Iran,Kuwait,Peru,Mexico, Iraq,Russia, Malaysia, etc | |
14. | Application | Copper pipe is the first choice of residential housing water pipes, heating, cooling pipes installed. Copper products are widely used in aviation, aerospace, ships, military industry, metallurgy, electronics, electrical, mechanical, transportation, construction and other fields of the national economy | |
Standard size (Inch) | |||||||
Standard | Copper Alloy No. | Chemical Composition | Mechanical Properties | ||||
CU% | P% | Temper | Tensile Strength (Mpa) | Elongation(%) | Grain Size (mm) | ||
ASTM B88 | C11000 | 99.90 | - | 60 | 200 | - | 0.040 |
50 | 200 | - | 0.025 | ||||
C12200 | 99.90 | 0.015~0.040 | H58 | 250 | - | - | |
JIS H3300 | C1100 | 99.90 | 0.015~0.040 | O | 205 | 40 | - |
L | 245~325 | - | - | ||||
H | 265 | - | - | ||||
C1220 | 99.90 | 0.015~0.040 | 0 | 205 | 40 | 0.025~0.060 | |
L | 205 | 40 | 0.040 | ||||
1/2H | 245~325 | - | - | ||||
H | 255 | - | - | ||||
ASTM B75 | C11000 | 99.90 | - | 60 | 205 | - | 0.040 |
50 | 205 | - | 0.040 | ||||
C12200 | 99.90 | 0.015~0.040 | H58 | 250 | - | - | |
H80 | 310 | - | - | ||||
EN 1057 |
| 99.90 | 0.015~0.040 | R220 | 220 | 40 | - |
R250 | 250 | 30 OR 20 | - | ||||
R290 | 290 | 3 |
| ||||
Product Photos

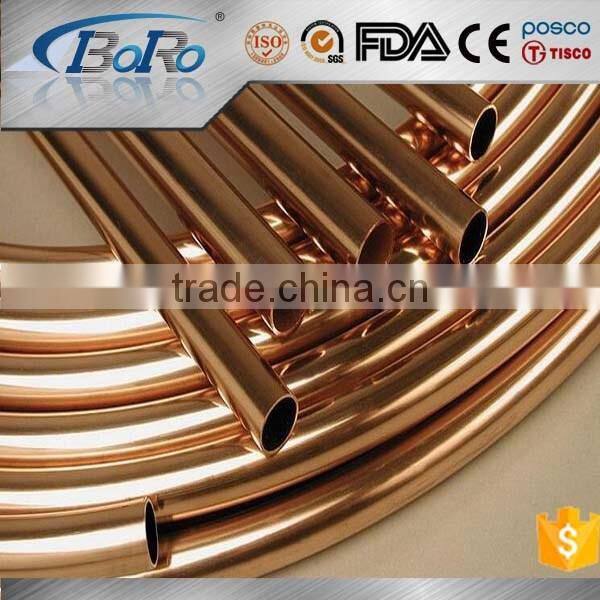

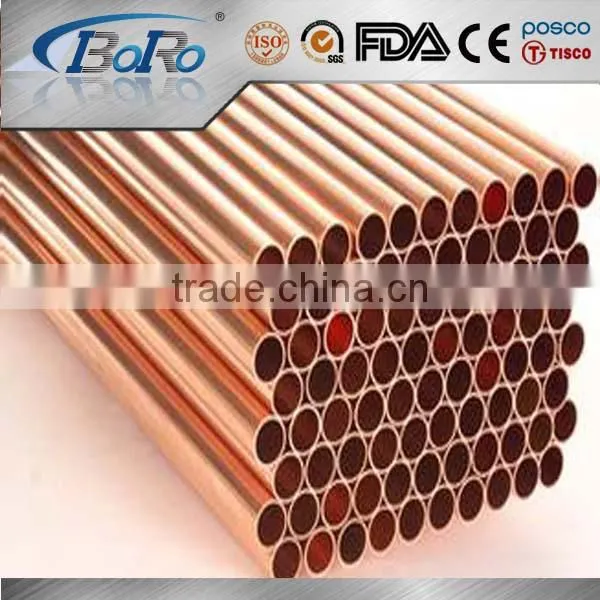

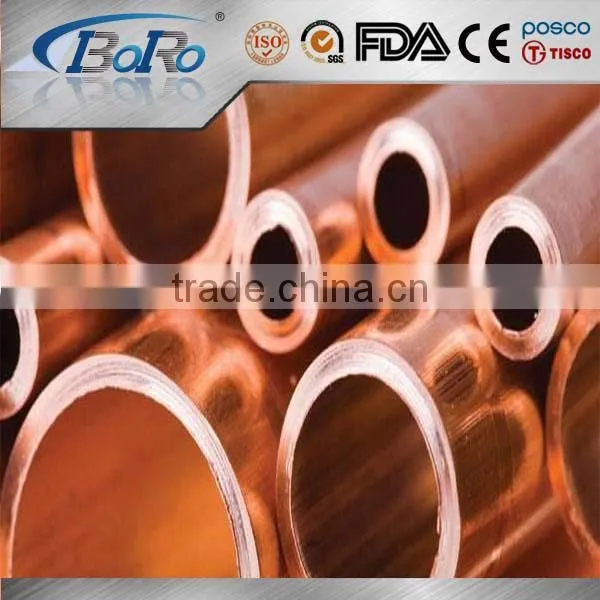

1. Straight copper pipe/tube

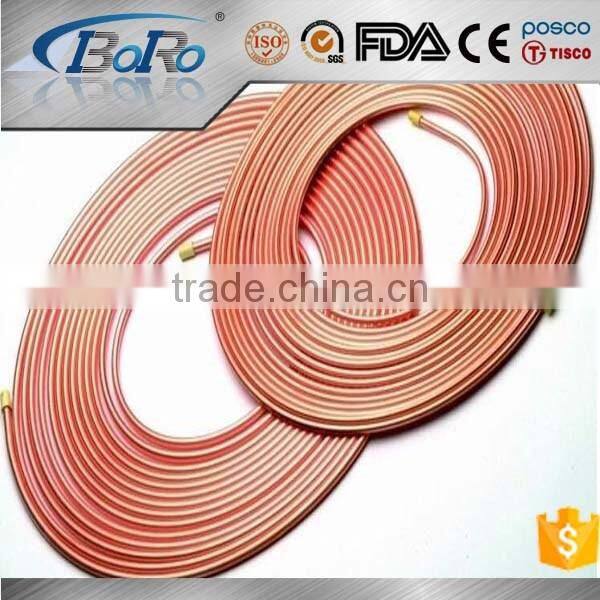

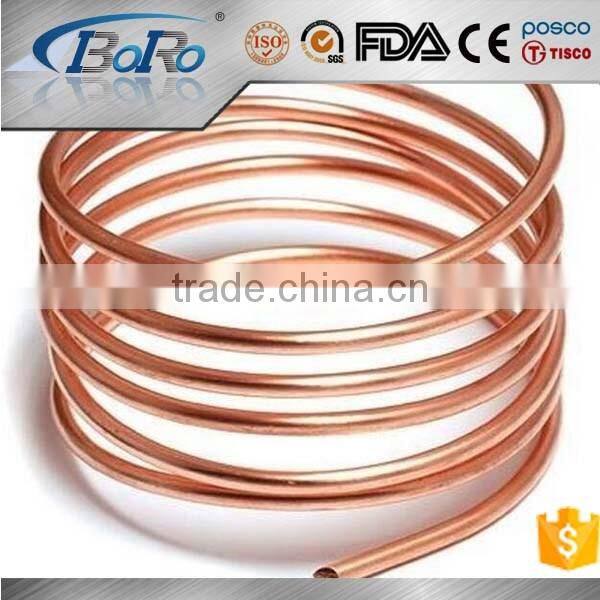

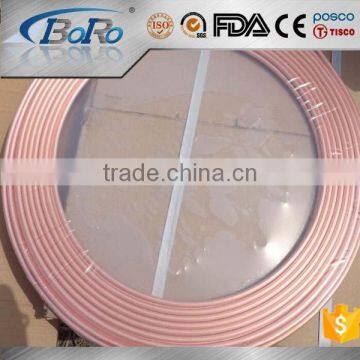

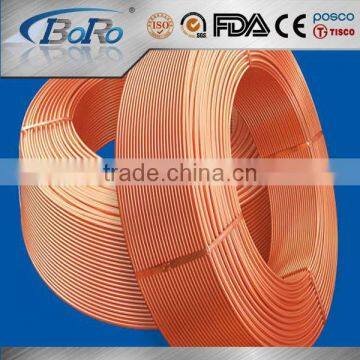

2.Pancake coil copper pipe/tube
Standard and detail of copper pipe/tube:
Standard | GB/YB | ASTM/CDA | JIS | DIN |
Grade | T2 | C1100 / 110 | C1100 | Ecu-58 |
TV1 | C10200 / 102 | C1020 | OF-Cu | |
H85 | C23000 / 230 C23030 / 230 | C2300 | CuZn15 | |
H80 | C24000 / 240 | C2400 | CuZn20 | |
H70 | C26000 / 260 C26100 | C2600 | CuZn30 | |
H68 | C26200 / 260 | C2680 | CuZn33 | |
H65 | C26800 / 268 C27000 / 270 | C2700 | CuZn36 | |
H62 | C28000 / 280 | C2800 | CuZn4Pb2 | |
H60 / H59 | C28000 / 280 | C2801 | CuZn40 | |
HPb60-2 | C36000 | C3713 / C3604 | CuZn38 | |
HPb59-1 | C37800 | C3710 | CuZn40Pb | |
Mechanical property | Easily cutting and good electrical conductivity and anti-corrosion resistance and so on | |||
Application | Air conditioner, Refrigerator,oil cooler pipe,water tuber,water heater | |||
