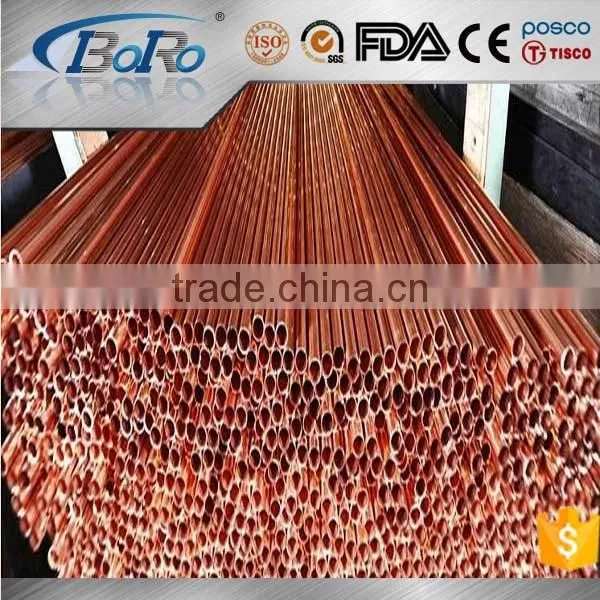

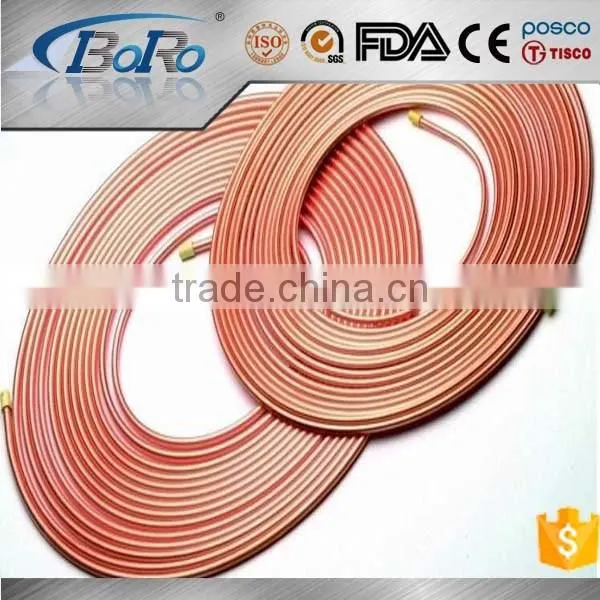

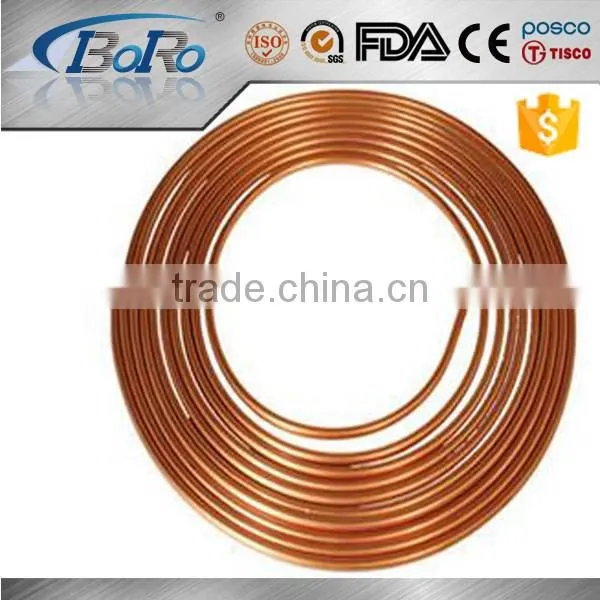

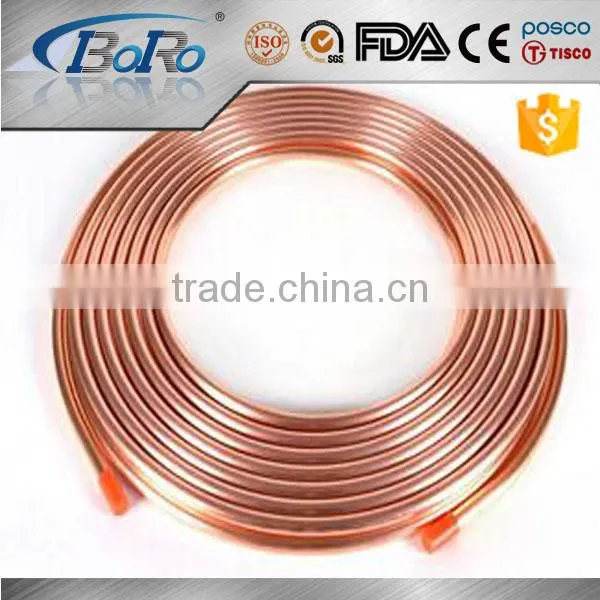

Small diameter copper capillary tube for air conditioner and heat exchange
---Wuxi Boro Special Steel Company
Specifications of Capillary copper tube:
1 Grade:C10200 C12200 etc.
2 Outside diameter: 1.6mm-5mm
3 Thickness: 0.27mm-2.0mm
4 Coil weight: 5kg/20kg/30kg/50kg
5 Process Method: cold drawn and cold rolled
6 Surface: pickled or sand blasting
| Specifications | Unit weight | O.D | I.D | Bottom Wall Thickness TW | Fin Groove Depth HF | TotalWallThickness | Apex Angle | Helix Angle | Number of Tooth |
| Φ5.00×0.20+0.15-18° | 33 | 5.00 | 4.30 | 0.2 | 0.15 | 0.35 | 40 | 18 | 40 |
| Φ7.00×0.25+0.10-15° | 52 | 7.00 | 6.30 | 0.25 | 0.10 | 0.35 | 40 | 15 | 65 |
| Φ7.00×0.25+0.18-18° | 57 | 7.00 | 6.14 | 0.25 | 0.18 | 0.43 | 40 | 18 | 50 |
| Φ7.00×0.25+0.22-16° | 58 | 7.00 | 6.06 | 0.25 | 0.22 | 0.47 | 22 | 16 | 54 |
| Φ7.00×0.27+0.15-18° | 60 | 7.00 | 6.16 | 0.27 | 0.15 | 0.42 | 53 | 18 | 60 |
| Φ7.94×0.25+0.18-18° | 65 | 7.94 | 7.08 | 0.25 | 0.18 | 0.43 | 40 | 18 | 50 |
| Φ7.94×0.25+0.20-18° | 66 | 7.94 | 7.04 | 0.25 | 0.20 | 0.45 | 40 | 18 | 50 |
| Φ7.94×0.26+0.17-18° | 66 | 7.94 | 7.08 | 0.26 | 0.17 | 0.43 | 40 | 18 | 50 |
| Φ7.94×0.28+0.20-18° | 72 | 7.94 | 6.98 | 0.28 | 0.20 | 0.48 | 40 | 18 | 50 |
| Φ7.94×0.30+0.20-18° | 76 | 7.94 | 6.94 | 0.3 | 0.20 | 0.50 | 40 | 18 | 50 |
| Φ9.52×0.27+0.16-18° | 82 | 9.52 | 8.66 | 0.27 | 0.16 | 0.43 | 30 | 18 | 70 |
| Φ9.52×0.28+0.12-15° | 80 | 9.52 | 8.72 | 0.28 | 0.12 | 0.40 | 53 | 15 | 65 |
| Φ9.52×0.28+0.15-18° | 83 | 9.52 | 8.66 | 0.28 | 0.15 | 0.43 | 53 | 18 | 60 |
| Φ9.52×0.28+0.15-25° | 88 | 9.52 | 8.66 | 0.28 | 0.15 | 0.43 | 90 | 25 | 65 |
| Φ9.52×0.28+0.20-18° | 85 | 9.52 | 8.56 | 0.28 | 0.20 | 0.48 | 25 | 18 | 55 |
| Φ9.52×0.28+0.20-18° | 88 | 9.52 | 8.56 | 0.28 | 0.20 | 0.48 | 40 | 18 | 60 |
| Φ9.52×0.30+0.20-18° | 90 | 9.52 | 8.52 | 0.3 | 0.20 | 0.50 | 30 | 18 | 60 |
| Φ9.52×0.30+0.20-18° | 94 | 9.52 | 8.52 | 0.3 | 0.20 | 0.50 | 53 | 18 | 60 |
| Φ9.52×0.34+0.15-25° | 104 | 9.52 | 8.54 | 0.34 | 0.15 | 0.49 | 90 | 25 | 65 |
| Φ9.52×0.40+0.25-18° | 123 | 9.52 | 8.22 | 0.4 | 0.25 | 0.65 | 40 | 18 | 60 |
| Φ12.00×0.36+0.25-18° | 140 | 12.00 | 10.78 | 0.36 | 0.25 | 0.61 | 40 | 18 | 70 |
| Φ12.70×0.35+0.25-18° | 155 | 12.70 | 11.50 | 0.35 | 0.25 | 0.60 | 53 | 18 | 70 |
| Φ12.70×0.40+0.25-18° | 170 | 12.70 | 11.40 | 0.4 | 0.25 | 0.65 | 53 | 18 | 70 |
| Φ12.70×0.50+0.25-18° | 201 | 12.70 | 11.20 | 0.5 | 0.25 | 0.75 | 53 | 18 | 75 |
| Φ12.75×0.36+0.21/0.25-20° | 150 | 12.75 | 11.53 | 0.36 | 0.25 | 0.61 | 48 | 20 | 70 |
| Remark:These are common sizes which the company is making,and unusaal sizes with special requirement can be tailor-made against order. | |||||||||
Inspection for Capillary copper tube :
Chemical Analysis -- Component Analysis--- Spectroscopic Analysis--- Physical Property Inspection--- Eddy Current Inspection - Ultrasonic Inspection
Mill Test Certificate is supplied with shipment
Third Part Inspection is acceptable
Features of Capillary copper tube:
1) Small external diameter
2) High precision
3) Smooth internal and external surface
Applications of Capillary copper tube:
1) Air Conditioner and Refrigerator
2) Water Tube service and Distribution
3) Fire Protection, Solar, Fuel/Fuel Oil
4) Natural Gas, Liquefied Petroleum (LP) Gas
5) HVAC, Snow Melting, Drain, Waste, Vent Piping
6) Heat Exchange
