Mechanical Parts Gearboxes NMRV30 to NMRV90

Mechanical Parts Gearboxes NMRV30 to NMRV90 thumbnail-1
Mechanical Parts Gearboxes NMRV30 to NMRV90 photo-1
US$ 1 - 1,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
JYGD
Model Number:
NMRV30 to NMRV90
Contact Supplier Request Quote Chat Now
Jiangyin Golden Machinery Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name JYGD
Model Number NMRV30 to NMRV90
Gearing Arrangement Bevel / Miter
Output Torque 2.6 to 479 N.M
Rated Power 0.06 to 4 KW
Input Speed 1400 rpm
Output Speed 14 rpm to186 rpm

Product Description

Gearboxes NMRV30 to NMRV90

Specifiction:

Type: Worm Gear Speed Reducer
Model: NMRV030-90
Ratio: 1:7.5,10,15,20,25,30,40,50,60,80,100
Color: Blue/Silver Or On Customer Request
Material: Housing-Aluminum Alloy
Worm Gear-Copper-10-3#
Worm-20CrMn Ti with carburizing and quenching, surface harness is 56-62HRC
Shaft-chromium steel-45#
Packing: Carton and Wooden Case
Bearing: Brand "RenBen" Bearing
Seal: NAK Seal from Taiwan
Warranty: 1 Year
Input Power: 0.55KW,0.75KW,1.1KW,1.5KW,2.2KW,4KW,5.5KW,7.5KW
Usages: Industrial Machine: Food Stuff, Ceramics,CHEMICAL,Packing,Dyeing,
Woodworking,Glass..
IEC Flange: 56B5,63B5,71B5,80B5,90B5,100B5,112B5,132B5,160B5,180B5,200B5
Lubricant: Synthetic&Mineral

Allowed radial loading force on output shaft of deducer(N)



The table below is the allowed loading force on the midpoint of output shaft.



When the reducer is with double output shafts,the resultant radial power at the dege of shaft should not

exceed the values specified as in above table.



The max allowed axoal thrust is 1/5 of radial force while the radial force and axial force effected together.





i n2 RV030 RV040 RV050 RV063 RV075 RV090 RV110 RV130
7.5 186 691 1325 1829 2378 2799 3098 3908 5112
10 140 758 1454 2007 2609 3072 3400 4288 5610
15 94 868 1665 2298 2988 3518 3893 4910 6424
20 70 954 1829 2525 3283 3865 4277 5395 7057
25 56 1033 1981 2735 3556 4187 4633 5844 7645
30 47 1088 2087 2881 3745 4410 4880 6155 8052
40 35 1204 2309 3188 4145 4880 5401 6812 8912
50 28 1296 2485 3431 4461 5252 5812 7331 9590
60 24 1381 2649 3658 4756 5599 6196 7815 10224
80 18 1516 2907 4014 5218 6144 6799 8576 11219
100 14 1638 3142 4338 5639 6639 7348 9268 12124



Mechanical Parts Gearboxes NMRV30 to NMRV90Mechanical Parts Gearboxes NMRV30 to NMRV90Mechanical Parts Gearboxes NMRV30 to NMRV90Mechanical Parts Gearboxes NMRV30 to NMRV90

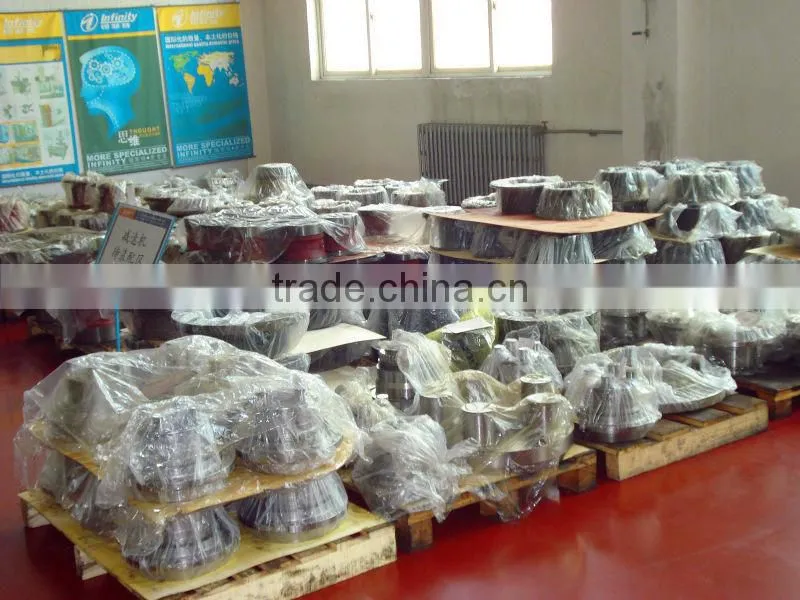

Packaging & Shipping

   Gearboxes NMRV30 to NMRV90

Packaging Detail: per customer's request
Delivery Detail: about 35 days from order



Mechanical Parts Gearboxes NMRV30 to NMRV90Mechanical Parts Gearboxes NMRV30 to NMRV90Mechanical Parts Gearboxes NMRV30 to NMRV90




Our Services

Gearboxes NMRV30 to NMRV90



We can give the customer needs to visit the sample



Or customized according to your needs
And we can guarantee our quality and service

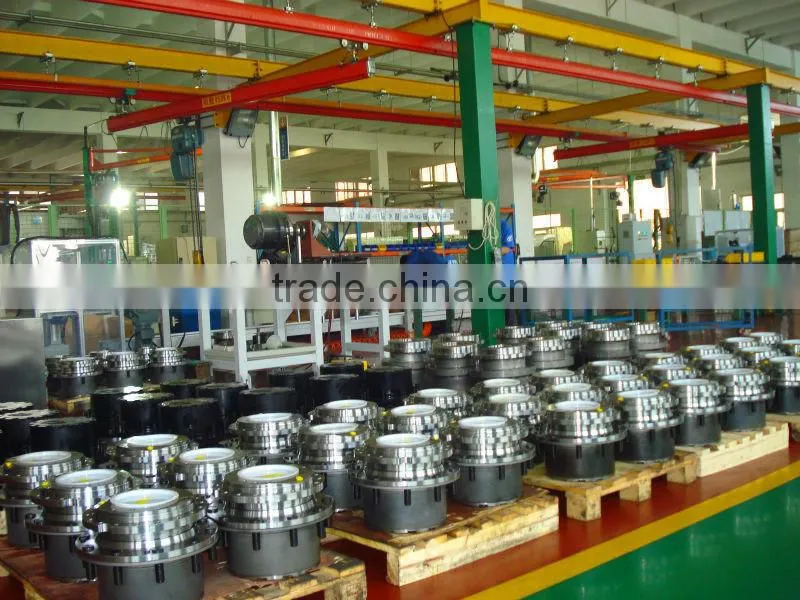

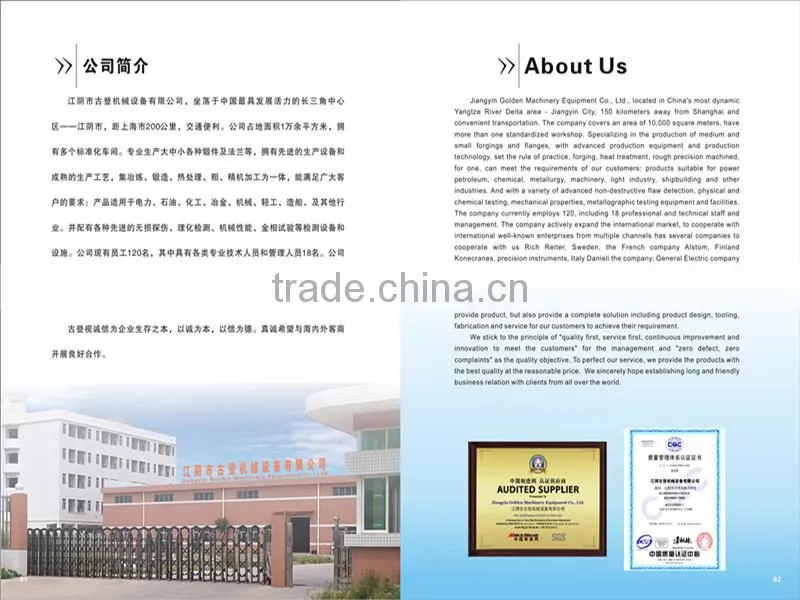

Company Information

Gearboxes NMRV30 to NMRV90

Mechanical Parts Gearboxes NMRV30 to NMRV90



Mechanical Parts Gearboxes NMRV30 to NMRV90Mechanical Parts Gearboxes NMRV30 to NMRV90Mechanical Parts Gearboxes NMRV30 to NMRV90Mechanical Parts Gearboxes NMRV30 to NMRV90








FAQ

   Gearboxes NMRV30 to NMRV90



1.Trade term:FOB/CIF/CFR.

2.Payment term:T/T or L/C.

3.Inquiry: Please show me drawings and detail technical specifications

4.Delivery Detail:about 35 days from order
