Forging Steel Shaft Stainless Steel Forged

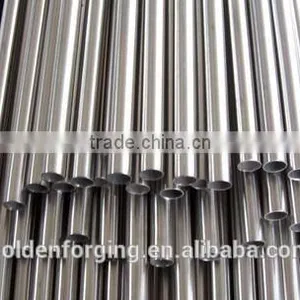

Forging Steel Shaft Stainless Steel Forged thumbnail-1
Forging Steel Shaft Stainless Steel Forged thumbnail-2

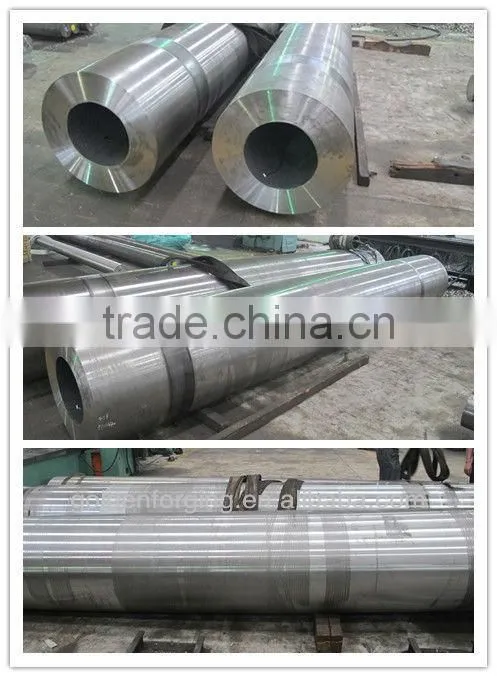

Forging Steel Shaft Stainless Steel Forged photo-1

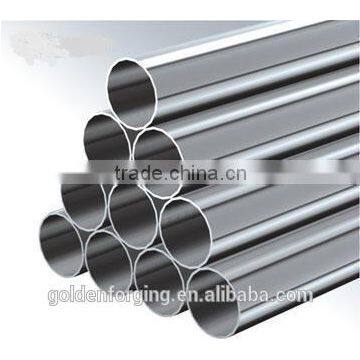

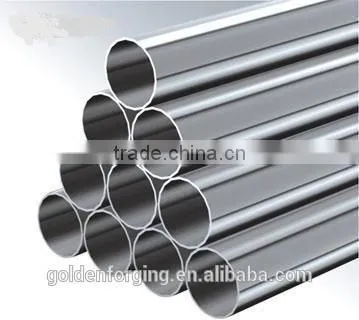

Forging Steel Shaft Stainless Steel Forged photo-2
US$ 1 - 500 MOQ: 1 Piece
Key Specifications
Get Latest Price
Structure:
Flexible
Material:
Stainless Steel
Coatings:
Black Oxide
Contact Supplier Request Quote Chat Now
Jiangyin Golden Machinery Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Structure Flexible
Material Stainless Steel
Coatings Black Oxide
Torque Capacity 500mm
Length 1000mm
Model Number various
Place of Origin Shanghai, China
Brand Name JYGD




Product Description



Specifications




1.Certificates:ISO9001-2008,SGS,PED

2.Main Shaft:45#, 40Cr,GCr15,65Mn,20CrMnTi,20Mn2B,20Cr or as per customer special requirement.
3.20 years experience.

4.Materials: Carbon , Alloy steel and stanless steel
5.Diameter: less than 2,500mm
6.Length:less than 20,000mm

7. Material: 18CrNiMo7-6, SAE 4340, 4140, S355JR, 8660
     34Cr2Ni2MoA/34CrNI3MoA
8.Certificates:ISO9001-2008,SGS,PED



Detailed Description:
1) Product Name: Forged Shaft, Shaft Forging
2) Material: 4130, 4140, 4317, 4142, 4340, UNS440, 34CrNi3Mo, 25Cr2Ni4MoV, 18CrNiMo5, 30CrMo, 9Cr2Mo, 9Cr2W, 9Cr3Mo, 60CrMoV etc.
3) Max weight: 60ton.
4) MOQ: 20ton.
5) FOB Port: Shanghai Port, China.
6) Delivery Time: 60ton in 30 days.
7) Delivery Condition: Rough Machined, Heat Treated, Fine Machined + EN10204: 3.1B
8) Payment: 30% T/T in advance, Balanced C.A.D.; or 100% L/C.

***

Mill Frequently Used Steel Materials:
1) Wind Power Shaft: 42CrMo4V, 34CrNiMo6; Wind Power Flange: S355NL, C22, 16Mn, 20Mn, 42CrMo, F304.
2) Forged Pipe Fittings: SA106 CL B, SA106 CL C, WB36, 12Cr1MoV, SA335 P11, P12, P22, P91, SA182 Gr.F1, Gr.F5, Gr.F11 CL2, Gr.F12 CL2, Gr.F22 CL3, SA350 Gr.LF1, Gr.LF2,
Gr.LF3.
3) Pressure Vessel Forgings: SA105, SA350 LF2, 16Mn, 20MnMo, 15MnMo, 12Cr2Mo1, 14Cr1Mo, F304, F316, 17-4PH.
4) Shaft Related Forgings: 25CrMo4, 42CrMo4, 40CrNiMo, 34CrNi3Mo, 25Cr2Ni4MoV, 18CrNiMo5, 30CrMo, 4130, 4140.
5) Gear Related Forgings: 35CrMo, 34CrMo4, 4137, 42CrMo, 4140, SCM440, 20CrMnMo, 40CrNiMo, 20CrNi2Mo, 20Cr2Ni4A, 34CrNi3Mo.
6) Copper Forgings: C10100, C10200, C10300, C10700, C12000, C12200.



Forging & Heat Treatment Equipment List





Name & Description Forging Handling Capacities    Quantity
6000 Tons Free Forging Press Max. Single Forging in 45 Tons 1
5000mm Diameter Rolling Forging Machine   Max. Single Forging in 16 Tons 1
800 Tons Free Forging Press Max. Single Forging in 7.5 Tons  1
 60 Tons Forging Handling Operator   Max. Single Forging in 45 Tons   1
10 Tons Forging Handling Operator  Max. Single Forging in 7.5 Tons    1
80 Tons Crane Max. Single Ingot in 80 Tons  1
60/30 Tons Crane Max. Single Ingot in 60 Tons  1
30/10 Tons Crane 30/10 Tons  5
Trolley Heat Furnace 5000*1500*1200 mm   3
Trolley Heat Furnace 8000*2000*1600 mm   3
Trolley Heat Furnace 6500*1500*1200 mm   4
Vertical Heat Furnac Ø2500*10000 mm 2
  Total Forging Equipment Quantity 24



Forging Production Flow

  1. Enquiry With Drawing In Details

  2. Confirm Steel Material, Chemical Compositions, Mechanical Properties, Tolerances

  3. Confirm Payment Terms, Order Materials or Check Material in Stock

  4. Check Material Chemical Compositions, Material Weight, Dimensions

  5. Cut Materials, Record Weight, Pre-Heating For Forging

  6. Forging Ratios, Heat Treatment After Forging, Dimension Check

  7. Rough Machining, UT Test, Heat Treatment

  8. Fine Machining, UT & PT Test, Dimensions Inspection, Mechanical Properties Test

  9. Customer Inspection at Site, Packing, Delivery Arrangement

  10. Balance Payment Confirmation, Dispatch Forgings or Castings

  11. Bill of Loading Confirmation, MTC Dispatch, Customs Clearances

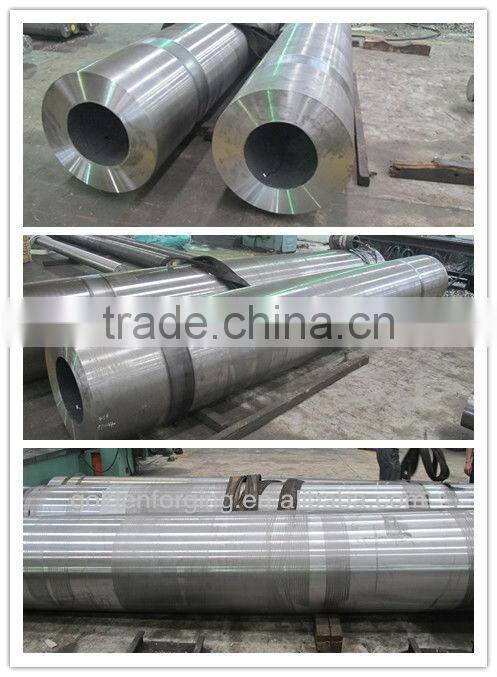

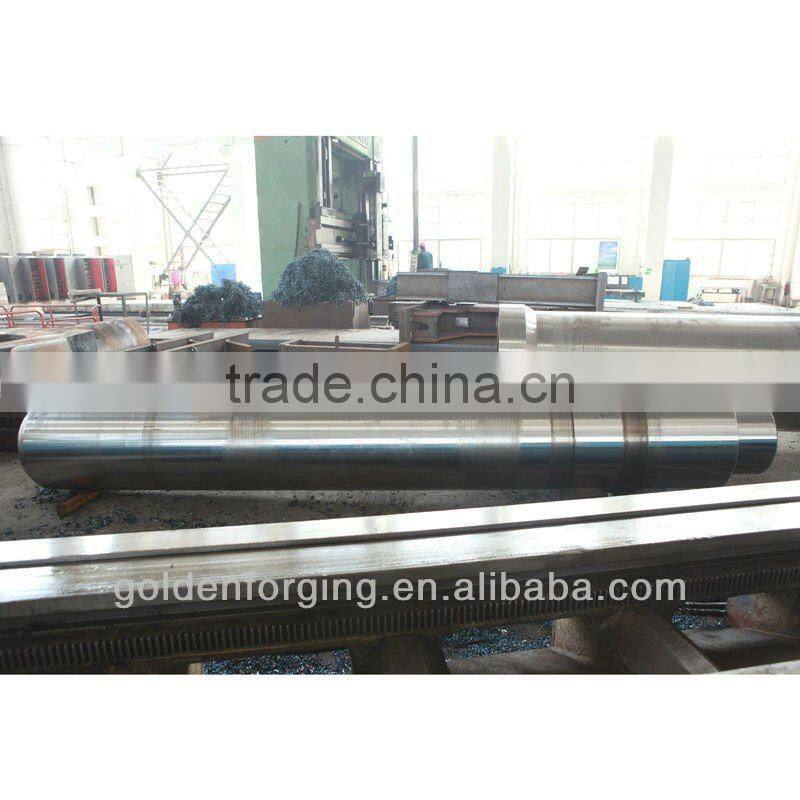

  12. Order Accomplished!forging steel shaft stainless steel Forgedforging steel shaft stainless steel Forgedforging steel shaft stainless steel Forged

  13.
    Packaging & Shipping



    Packaging Detail: per customer's request
    Delivery Detail: about 35 days from order

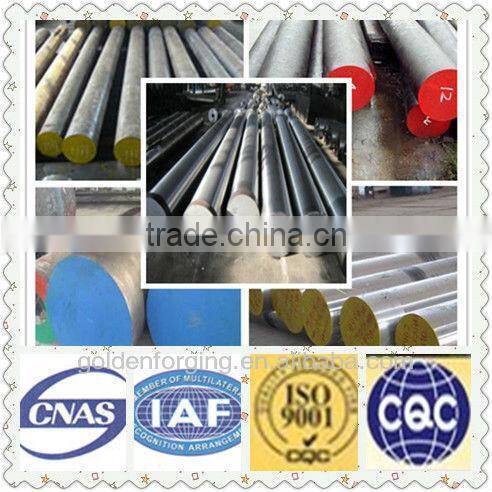

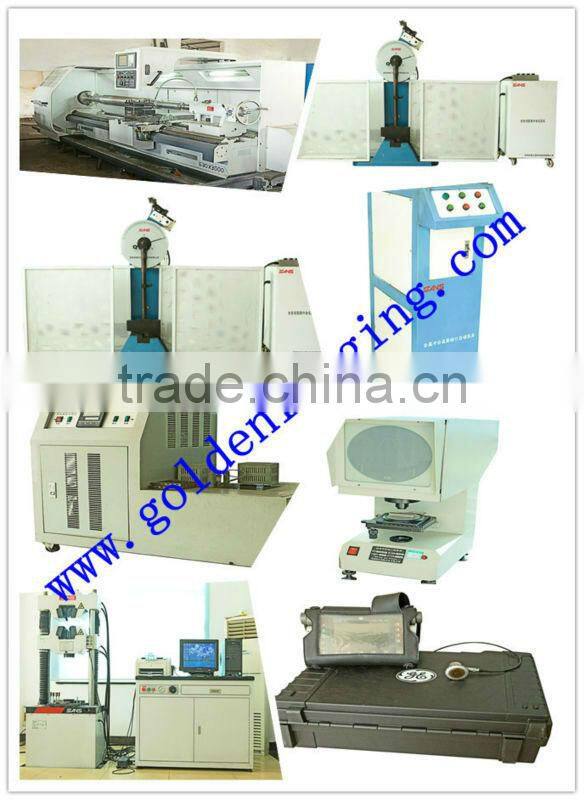

forging steel shaft stainless steel Forgedforging steel shaft stainless steel Forgedforging steel shaft stainless steel Forged

  1.
    Our Services



We can give the customer needs to visit the sample
Or customized according to your needs
And we can guarantee our quality and service

Company Information

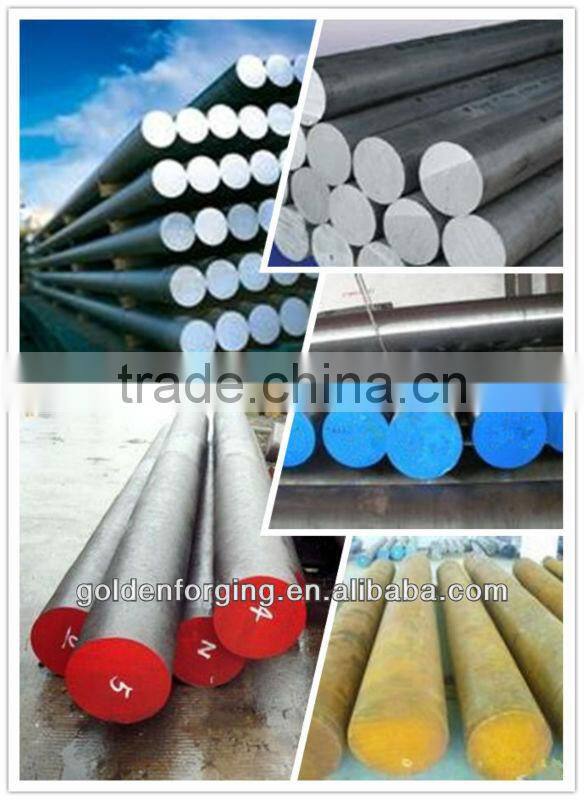

forging steel shaft stainless steel Forgedforging steel shaft stainless steel Forged

FAQ



1.Trade term:FOB/CIF/CFR.

2.Payment term:T/T or L/C.

3.Inquiry: Please show me drawings and detail technical specifications

4.Delivery Detail:about 35 days from order
