Home > Products > New Products > tachometer digital gauge BC-GT33
tachometer digital gauge BC-GT33
- 1000 Piece / Pieces per Month
- Chongqing
- T/T Credit Card PayPal
Product Details
Place of Origin: | Chongqing, China | Brand Name: | BOCE | Model Number: | GT33, GT-33 |
Product Description

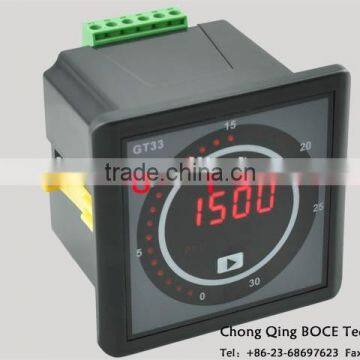

tachometer digital gauge BC-GT33
BC-GT33 is a small and light module with low price used for checking and demonstrationg RPM,Frequency and Accumulation hours of the genset. The switch on its back can adjust and set parameters in order to meet different requests from users. Besides, it uses the European-style teminals for connection which is more convenient for installation and detachment.
Main Features:
- ØLED circuit can demonstrate rough RPM
- Ø4-digital tube can demonstrate RPM,Frequency and Accumulating Hours (Optional)
- ØThree double-color LED display;
- ØFlywheel theeth and alarm value settings through Buttons;
- ØRPM,Frequency can be switched.
- ØOver-speed Alarm output and demonstration.
- ØDial switch setting and parameters modification.
Parameter
- ØEngine RPM
- ØGenerator Frequency
- ØHours
Range and Accuracy
- ØRPM:0-3000RPM(RPM/min),RANK:1.0
Specification
- ØPower:DC 8~36V
- ØConsumption Power: MAX:1 W
- ØOperation Temperature:-20℃~ 65℃
- ØSize(W * H * D):78mm * 75mm * 76mm
- ØInstallation Size(W * H):67mm * 67mm
- ØNet Weight: 110G
Advantages:
1, Attractive appearance, innovative features, digital and bar-graph display;
2, Accurate measurement,through the LED displays AC current, Voltage, Frequency,Current working time and Accumulating time;
3, Lower price, save nearly half the cost than the old mechanical meter;
4, With over-voltage, under-voltage electricity, over-current, over frequency, low frequency protection function;
5, Through setting can be adapted to various power , various brands of engines.
More Products we supply:
Other Models you may be interested in :
BC-GV13R | AC voltage/frequency/running hours (hours calculated each time, datas cleared once shutdown) |
BC-GV13F | AC frequency |
BC-GV13V | Voltage (single phase) |
BC-GV13H | Hour Meter |
BC-GV23 | AC voltage/frequency/Current |
BC-GV23F | AC Frequency |
BC-GV23V | AC Voltage(single phase) |
BC-GV23A | AC Current (single phase) |
BC-GV23VH | AC voltage/frequency/running hours |
BC-GV23VS | voltage (single phase) with protections of over/under voltage. output can be off,10A |
BC-GV23AT | Three phases Current Meter |
BC-GV24 | AC voltage/4-digital current/frequency/running hours (4 in 1) |
BC-GV25 | AC voltage/current/frequency/power/power ratio COS (5 in 1) |
BC-GT30 | digital display RPM meter |
BC-GM40 | oil pressure/oil temperature/water temperature/ voltage (4 in 1) |
BC-GM40H | |
BC-GV50 | Voltage/current/frequency(3 phases) with protections |
Why Choose Us?
1.Gold Supplier on Alibaba for 5 Years → Reliable Supplier with Good Reputation
2.Factory Direct Sale → Competitive Price & Full Stock
3.Quality Control → High Quality
4.Low MOQ → Accept Small Order
5.Accept OEM → Produce Products as Customers' Requirements
6.Fast Delivery → Delivery within 3 Working Days
7.Various Payment Methods → Easy to Pay
8.Changing or Refunding → Accept Returns
OEM service is acceptable.
Payment Term
1.We accept L/C,D/P,D/A, Alipay, West Union, TT. Cash.
2.All major Credit cards are accepted through secure payment processor ESCROW.
Shipment Term
Guarantee
1. Guarantee:1 year after selled.
2. During guarantee,the items share free repairs or replacement.
3. Customer is responsible for the freight come-and-go,and the custom tax.
4. You may consider to send the defective item with a economical way,and we send back the repaired items with your new order together.
5. To save the cost,pls send the item back without packing.
6. Pls provide the defective appearance and related invoice number.
7.We do not repair or replace item with an expired warranty.
8.All emails will be answered within 1 business day. If you do not receive our reply, please kindly re-sent your email or give us a call any time.
