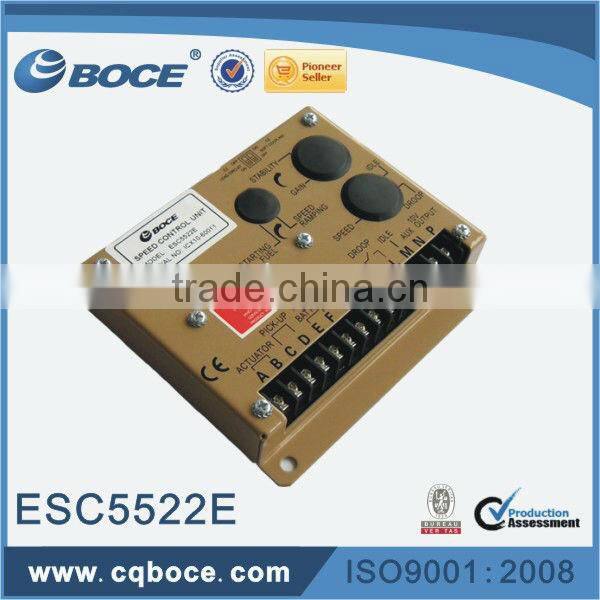

Speed Adjustor ESD5522E for Diesel Generator
Engine Type: |
normally closed |
Application Range: |
engine below 300 kva |
Rated Operational Voltage: |
24 V |
Working Temperature: |
15-125°C |
Response Time: |
20 ms |
No-load Current: |
0.9-1.1 A; Voltage: 3-9 V |
Full-load Current: |
1.1-1.5 A; Voltage: 10-12 V |
Engine Type: |
normally closed |
Application Range: |
engine above 400 kva |
Rated Operational Voltage: |
24 V |
Working Temperature: |
15-125°C |
Response Time: |
20 ms |
Engine Type: |
normally open |
Application Range: |
engine below 300 kva |
Rated Operational Voltage: |
24 V |
Working Temperature: |
15-125°C |
Response Time: |
20 ms |
PERFORMANCE : | |
RPM Stability: |
<±0.25% |
Speed Range: |
1KHz ~ 7.5KHz |
Speed Drift with Temperature: |
Max ±1% |
IDLE adjustment: |
160 ± 20Hz ~ 95% of set speed |
DROOP Regulation: |
Minimum 15Hz ±6Hz/ 1 Amp change |
Maximum: 400Hz ±75Hz/ 1 Amp change | |
Speed Trim Range: |
± 200Hz (external 1KΩ) |
AUX Input Sensitivity: |
148Hz / 1V., ± 10Hz, Impedance 1MΩ |
START FUEL Regulation: |
160 ± 20Hz ~ 70% of set speed |
RAMP Regulation Time: |
1.5 ~ 20Sec. |
Output Current at 10V: |
20mA Max. |
ENVIRONMENT: | |
Operating temperature range: |
-40 °c ~ 85 °c |
Working Humidity Range: |
Maximum 95% |
Stocking Temp: |
-55 ~ 90 °C |
Shocking: |
20-100HZ 500mm/Sec. |
INPUT POWER SUPPLY: | |
Voltage: |
12V or 24V DC Battery Systems |
Grounding Pole: |
Negative pole |
Power Consumption: |
50mA |
Actuator Current Range(25°c)-(Inductive Load): |
Min. 2.5A; Max. 10A continuous |
MPU: | |
Signal: |
0.5 ~ 120 RMS |
