Generator Controller 5110 With Factory Price

Generator Controller 5110 With Factory Price thumbnail-1
Generator Controller 5110 With Factory Price thumbnail-2
Generator Controller 5110 With Factory Price thumbnail-3
Generator Controller 5110 With Factory Price thumbnail-4
Generator Controller 5110 With Factory Price photo-1
Generator Controller 5110 With Factory Price photo-2
Generator Controller 5110 With Factory Price photo-3
Generator Controller 5110 With Factory Price photo-4
US$ 10 - 85 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Chongqing, China
Brand Name:
BOCE, BOCE
Model Number:
5110, 5110
Contact Supplier Request Quote Chat Now
Chongqing Boce Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
chongqing
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Chongqing, China
Brand Name BOCE, BOCE
Model Number 5110, 5110

Generator Controller 5110 with factory price



Generator Controller 5110 with factory priceGenerator Controller 5110 with factory price

Product Description

 Generator Controller 5110 with factory price

The module has the ability to monitor under speed, over speed, charge failure, emergency stop, low oil pressure, high engine temperature, fail to start, fail to stop and loss of the speed sensing signal.

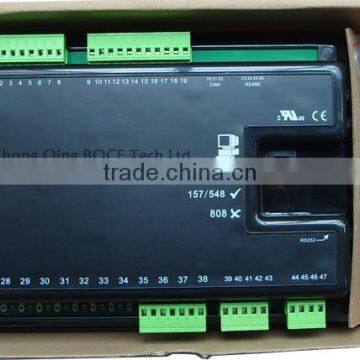

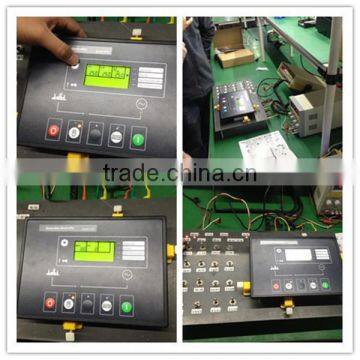

The Model 5110 is an automatic engine control module. The module is used to automatically start and stop the engine, indicating the operational status and fault conditions by means of an LCD display and a flashing LED on the front panel.



 Specification

Power Supply

8 to 35 Vdc Continuous

Cranking Dropouts:

Able to survive 0 V for 50 mS, providing supply was at least 10 V
before dropout and supply recovers to 5V.

Max Current

Operating 425mA at 12 V & 215mA at 24 V; Standby 250 mA at 12 V & 125 mA at 24 V.

Start Relay Output:

16 Amp DC at supply voltage.

Fuel Relay Output:

16 Amp DC at supply voltage.

Auxiliary Relay Outputs:

5 Amp DC at supply voltage.

Charge Fail / ExcitationRange

0 V to 35 V

Maximum operating current

320ma at 12V, 215ma at 24v

Maximum operating current

175ma at 12V, 95ma at 24v

AlternatorInputRange:

15V(L-N) to 333V AC (L- N) absolute maximum

Alternator Input Frequency:

50 - 60 Hz at rated engine speed (Minimum: 15V AC Ph-N)

Magnetic Pick-upVoltageInputRange:

+/- 0.5 V to 70 V Peak

Magnetic Input Frequency:

10,000 Hz (max) at rated engine speed

MAINS (UTILITY) SENSING INPUT RANGE

(5220 only)
15V (L-N) to 333V AC (L-N) absolute maximum

MAINS(UTILITY)SENSINGINPUTFREQUENCY

(5220 only)
50-60 Hz

MAINS (UTILITY) & GENERATOR LOADING
RELAY OUTPUT

(5220 only)
8A AC 250V

Generator loading Relay Output:

8 Amp AC 250V.

Mains loading Relay Output:

8 Amp AC 250V

Panel Cutout:

220mm x 160mm ( 8.7" x 6.3")





Main features:



micro-computer control;



automatically activated, the shutdown;



real-time display unit operating status and parameters;



visualization of the police state of graphics and logo;



quick information display unit;



LED and LCD alarm instructions;



common custom settings, can be used for import and domestic models and other.







Control Features:



emergency parking control



automatic car plate



start delay control



local manually start / shutdown



remote automatic start / shutdown



start the motor from the automatic control



control of warm-up



warm Control



Cold Control



Parking / Idle Speed Control







Protection:



lubricants to protect lower



charger fail rechargeable



emergency generating units down



generating units of public alarm



generator over-voltage under-voltage over-current protection



high cooling water temperature protection



engine overspeed protection



failure of the engine shutdown



start the engine failure





Besides, we also provide more Parts:



Generator controller
NO Name Model No
1 Generator controller GC30D
2 Generator controller BC118
3 Generator controller BC168
4 Generator controller BC180
5 Generator controller DC20D
6 Generator controller DC40D
7 Generator controller BC501K
8 Generator controller BC520A
9 Generator controller BC3000
10 Generator controller BC5110
11 Generator controller BC5110-(PC Connector)
12 Generator controller BC5120
13 Generator controller BC5210
14 Generator controller BC5220
15 Generator controller BC701MS
16 Generator controller BC701K-AS
17 Generator controller BC702MS-HC
18 Generator controller BC702AS-HC
19 Generator controller BC703
20 Generator controller BC704
21 Generator controller BC705
22 Generator controller BC710(PC Connector)
23 Generator controller BC720(PC Connector)
24 USB P810
25 Step Speed controller ESM3012
26 Actuator  ASM5676
27 Actuator ASM5654
28 Engine Control Box BX341
29 Engine Control Box BX40
30 Generator set Control Box BX5XXX ORIGINAL VERSION
31 Engine interface card EIM630-465/466



 Generator Controller 5110 with factory price



Our Services

  Why Choose Us?



1.Gold Supplier on Alibaba for 5 Years → Reliable Supplier with Good Reputation



2.Factory Direct Sale → Competitive Price & Full Stock



3.Quality Control → High Quality



4.Low MOQ → Accept Small Order



5.Accept OEM → Produce Products as Customers' Requirements



6.Fast Delivery → Delivery within 3 Working Days



7.Various Payment Methods → Easy to Pay



8.Changing or Refunding → Accept Returns



 Note:

1. Any inquiries will be replied within 24 hours

2. Professional manufacturer

3. OEM available.

4. High quality, reasonable & competitive price, fast lead time.

5. After-sale service



1) All products will have been strictly quality checked in warehouse before packing.



2) All our products will be well packed before shipping.



3) All our products have 1 year warranty, and we sure the product will be free from maintenance within warranty period.

6. Faster delivery:



Sample order in stock, and 3-7days for bulk production.

7. Payment



You can pay for the order via: TT, Western union, aliexpress.

8. Shipping



We have strong cooperation with DHL,TNT,UPS,FEDEX,EMS,China air post.
