Auto Start Generator Control Panel 5220 for Diesel Generator
Auto Start Generator Control Panel 5220 for Diesel Generator

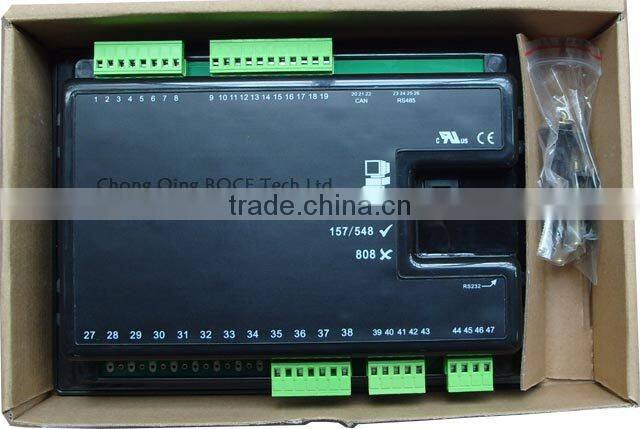

Packing:
Brief Introduction:
The 5220 generator controller is an automatic mains failure control module designed to provide advanced
load share functionality for diesel and gas generating sets that include nonelectronic/
electronic engines. The module also provides excellent engine monitoring and protection
features. The module monitors the mains (utility) supply and upon detection of a loss in
power automatically starts the generating set.
SPECIFICATION :
| Power Supply | 8 to 35 Vdc Continuous |
| Cranking Dropouts: | Able to survive 0 V for 50 mS, providing supply was at least 10 V Before dropout and supply recovers to 5V. This is achieved Without The need for internal batteries. |
| Max Current | Operating 425mA at 12 V & 215mA at 24 V; Standby 250 mA at 12 V & 125 mA at 24 V. |
| Start Relay Output: | 16 Amp DC at supply voltage. |
| Fuel Relay Output: | 16 Amp DC at supply voltage. |
| Auxiliary Relay Outputs: | 5 Amp DC at supply voltage. |
| Charge Fail / Excitation Range | 0 V to 35 V |
| Mains Supply Input Range: | 15V(ph-N) to 300(ph-N) 3 Phase 4wire AC (+20%) |
| Mains Supply Input Frequency: | 50 - 60 Hz at rated engine speed (Minimum: 15V AC Ph-N) |
| Magnetic Pick-up Voltage Input Range: | +/- 0.5 V to 70 V Peak |
| Magnetic Input Frequency: | 10,000 Hz (max) |
| Operating Temperature Range: | -30 to +70°C |
| Mains Sensing Input Range | 15V(ph-N) to 277V(ph-N) AC (+20%) |
| Mains Sensing Input Frequency: | 50 - 60 Hz |
| Generator loading Relay Output: | 8 Amp AC 250V. |
| Mains loading Relay Output: | 8 Amp AC 250V |
| Panel Cutout: | 220mm x 160mm ( 8.7” x 6.3” |
Diagram
Besides, we provide many other models of generator controllers
| NO | Name | Model No |
| 1 | Generator controller | GC30D |
| 2 | Generator controller | BC118 |
| 3 | Generator controller | BC168 |
| 4 | Generator controller | BC180 |
| 5 | Generator controller | DC20D |
| 6 | Generator controller | DC40D |
| 7 | Generator controller | BC501K |
| 8 | Generator controller | BC520A |
| 9 | Generator controller | BC3000 |
| 10 | Generator controller | BC5110 |
| 11 | Generator controller | BC5110-DS |
| 12 | Generator controller | BC5120 |
| 13 | Generator controller | BC5210 |
| 14 | Generator controller | BC5220 |
| 15 | Generator controller | BC701MS |
| 16 | Generator controller | BC701K-AS |
| 17 | Generator controller | BC702MS-HC |
| 18 | Generator controller | BC702AS-HC |
| 19 | Generator controller | BC703 |
| 20 | Generator controller | BC704 |
| 21 | Generator controller | BC705 |
| 22 | Generator controller | BC710 |
| 23 | Generator controller | BC720 |
| 24 | USB | P810 |
| 25 | Step Speed controller | ESM3012 |
| 26 | Actuator | ASM5676 |
| 27 | Actuator | ASM5654 |
| 28 | Engine Control Box | BX341 |
| 29 | Engine Control Box | BX40 |
| 30 | Generator set Control Box | BX5XXX ORIGINAL VERSION |
| 31 | Engine interface card | EIM630-465/466 |
Why Choose Us?
1.Gold Supplier on Alibaba for 7 Years → Reliable Supplier with Good Reputation
2.Factory Direct Sale → Competitive Price & Full Stock
3.Quality Control → High Quality
4.Low MOQ → Accept Small Order
5.Accept OEM → Produce Products as Customers' Requirements
6.Fast Delivery → Delivery within 3 Working Days
7.Various Payment Methods → Easy to Pay
8.Changing or Refunding → Accept Returns

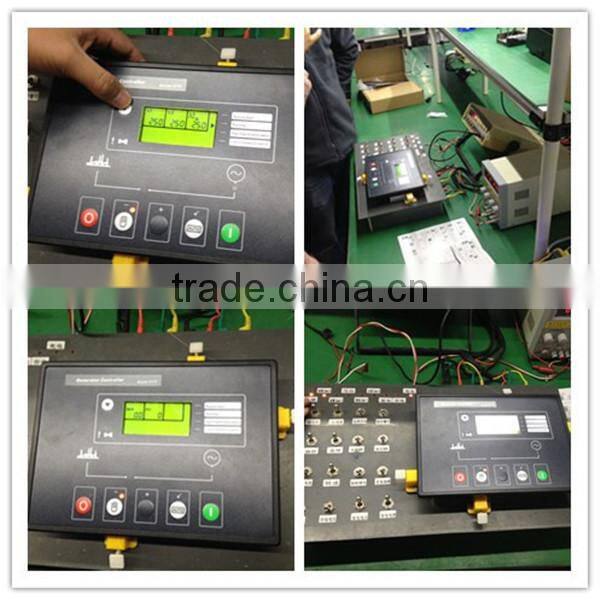

Producing Process:
OEM service is acceptable.
Payment Term
1.We accept L/C,D/P,D/A, Alipay, West Union, TT. Cash.
2.All major Credit cards are accepted through secure payment processor ESCROW.
Shipment Term
Guarantee
1. Guarantee:1 year after selled.
2. During guarantee,the items share free repairs or replacement.
3. Customer is responsible for the freight come-and-go,and the custom tax.
4. You may consider to send the defective item with a economical way,and we send back the repaired items with your new order together.
5. To save the cost,pls send the item back without packing.
6. Pls provide the defective appearance and related invoice number.
7.We do not repair or replace item with an expired warranty.
8.All emails will be answered within 1 business day. If you do not receive our reply, please kindly re-sent your email or give us a call any time.
More Products photos:
Factory Scenery and certificates:
We are expecting the long time and mutual benefit cooperation with you!
