Vibrator Motor

Vibrator Motor with Continuous Duty Rated

Vibrator motor is the vibration source for some automatic machinery which needs vibratory force. Centrifugal force is generated by rotating centrifugal weight fixed at the axes of the electric motor. Each vibrator's force can be designed to be adjustable on customers' demands. Vibration motor is a kind of pure copper motor, has good safety performance, wide range of applications, small size, light weight, high efficiency and high amplitude. It is suitable for vibrating rod, bin, hopper, chute, feeder, screener, shaker, vibrating crusher, vibrating molding machine, etc.

An orange vibrator motor is in the shape of cylinder and a cuboid on the cylinder.

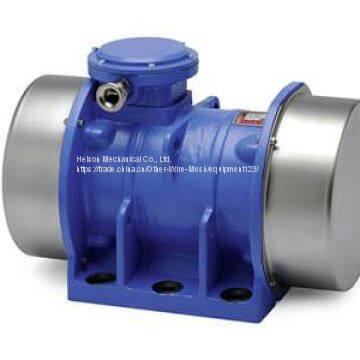

VM-1: Vibrator motor is pure copper motor and is safe to operator.A cylinder vibration motor has two stainless steel ends and middle part is blue.

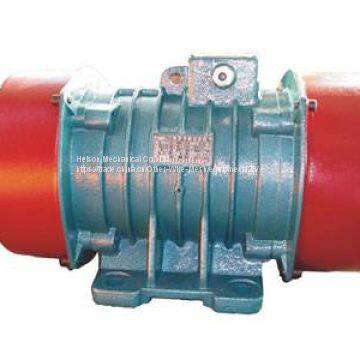

VM-2: Vibration motor is in small size and light weight.A cylinder vibration motor has two red ends and middle part is blue.

VM-3: Vibratory motor has low noise, low consumption and low maintenance.A cylinder vibration motor has two stainless steel ends and middle part is purple.

VM-4: Vibrator motor can be used in vibrating rod, shaker and vibrating molding machine.

Specification

Motor type: single phase or three phase.

Specification of vibrator motor

Model Rotating speed (r/min) Pole Volt Phase Cycle

VMS-1 3600 115 1 60

VMS-2 3600 2 230/460 3 60

VMS-3 1800 4 230/460 3 60

VMS-4 1200 6 230/460 3 60

VMS-5 900 8 230/460 3 60

A gray vibrator motor on the black board, and some letters mark the dimension schematic diagram.

Specification of vibrator motor

Model A B C D E F φ G H I L M N

VMS-6 178 113 110 50 88 10 7 50 40 105 80 100

VMS-7 230 150 150 110 120 13 11 79 43 124 137 153

VMS-8 245 182 152 90 125 29.5 13 73 47 127 117 135

VMS-9 255 190 155 110 120 15 11 100 55 147 135 147

VMS-10 275 176 170 110 120 13 13 92 72 150 140 140

VMS-11 320 188 200 110 140 13 13 98 90 165 160 155

VMS-12 320 188 200 110 140 13 13 98 88 165 160 140

VMS-13 360 188 200 110 140 13 13 98 90 165 160 155

VMS-14 420 216 225 140 170 15 13 104 90 195 160 155

VMS-15 420 216 225 140 170 15 13 104 90 195 160 185

VMS-16 420 216 225 140 170 15 13 104 95 195 194 185

Specification of vibrator motor

Model Excitation force (kN) Power (kW) Electricity (A) Weight (kg)

VMS-17 1.5 0.15 0.38 19

VMS-18 2.5 0.25 0.58 24

VMS-19 2.5 0.25 0.58 27

VMS-20 5 0.4 1.15 37

VMS-21 5 0.4 1.15 43

VMS-22 5 0.4 1.15 48

VMS-23 8 0.75 1.84 53

VMS-24 8 0.75 1.84 61

VMS-25 8 0.75 1.84 65

VMS-26 10 1 2.3 65

VMS-27 10 1 2.3 75

VMS-28 12 1 2.1 82

VMS-29 16 1.5 3.48 75

VMS-30 16 1.5 3.48 107

VMS-31 17 0.75 1.8 28

VMS-32 20 2 4.1 135

VMS-33 20 2 4.1 142

VMS-34 30 2.5 5.75 168

VMS-35 30 2.5 5.75 180

VMS-36 50 3.7 7.4 168

VMS-37 50 3.7 7.4 200

VMS-38 75 5.5 11 370

Feature

Pure copper motor, good safety performance, wide range of applications, small size, light weight, high efficiency, high amplitude.

Easy to carry, easy to fix and fit, easy to use, low maintenance, low consumption, totally enclosed, dust tight housing.

Shorten engineering time effectively.

Advanced technology design, beautiful appearance, reliable quality, low noise, stable vibrating frequency, water-proof.

Long service life, force adjustment, continuous duty rated.

Application

Vibrator motor can be used for vibrating rod, bin, hopper, chute, feeder, screener, shaker, vibrating crusher, vibrating molding machine, vibrating sand mixer, vibrating buffing machine, block-proof device, vibrating test-bed. It also can be used in conveying applications in food, chemical industries, power plant, metallurgy, railway, port, etc.
