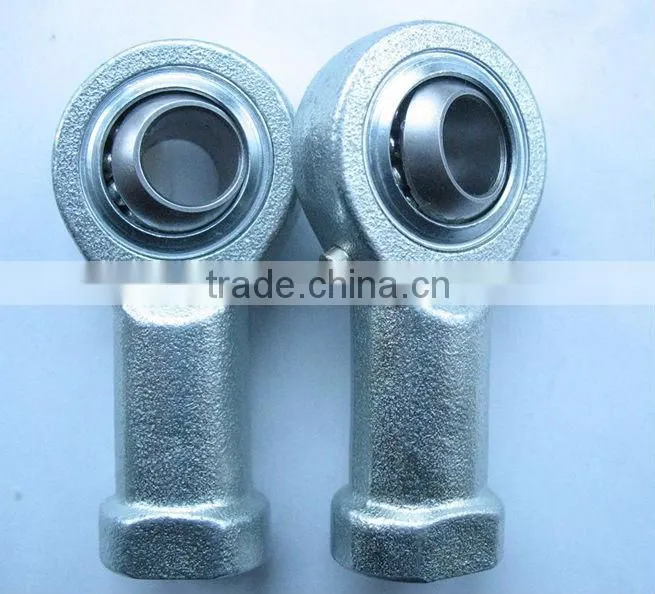

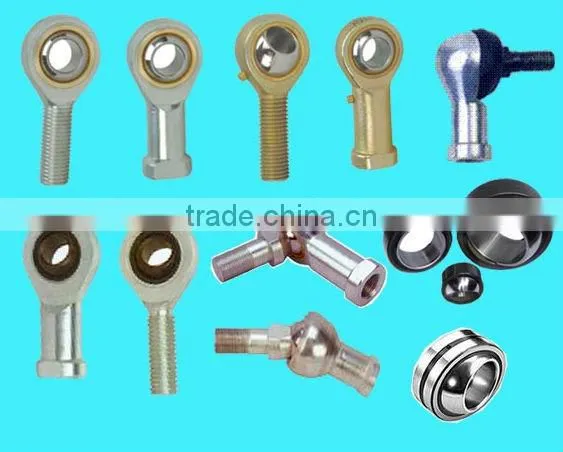

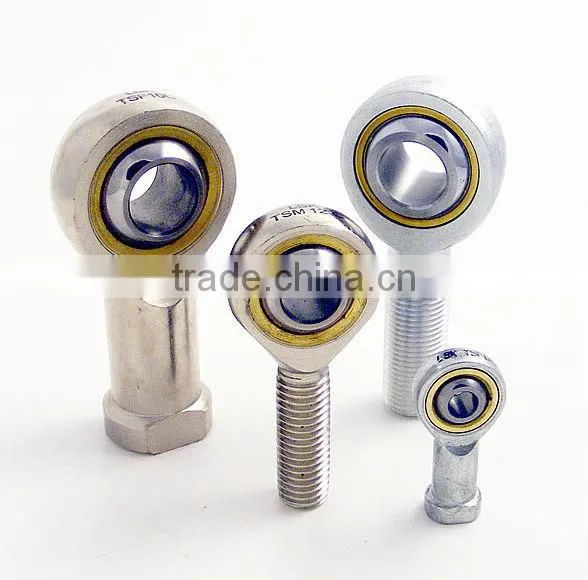

Female rod end bearings PHS16
Rod End Bearings
1. Best price
2. High quality
3. Low noise and
4. High speed
5. Low vibration
roducts name |
PHS16.SI16T/K Rod End bearing |
Brand name |
CLUNT and other Imported brand or customized to the customer's brand |
Series |
PHS16 |
ID size |
16*38*15mm |
Cage material |
rubber , steel |
Precision |
PO P6 |
Sealing |
Open |
Quality standard |
ISO9001:2000 standard |
Service |
OEM &ODM service |
Delivery date |
Normally ready goods and stock within 5-20 days |
Payment terms |
A:100%TT B: 30% T/T in advance .70% against copy of B/L C.30% T/T in advance .70% against L/C D.Western union |
Application |
Auto, tractor ,machine tool, electric machine, water pump, agricultural machinery and textile machinery |
Package |
Industrial package or according to buyers’ requirement |
Details |
it is a registered world famous trademark, a technology development and technology -based manufacturer of industrial parts, bearings and needle-like products in order to guide the main bearings. the company's product quality has become a representative of the brand-name products through a global marketing network for the convenience of users, efficient service commitment. |
Contact |
Tel:15662631069 |
rod end bearings PHS16 specification
Rod End Bearing PHS16
Introduction:

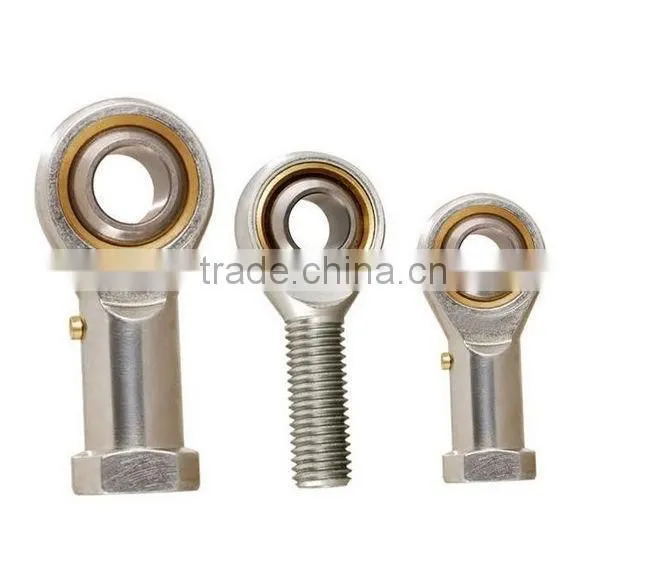

1 .Rod end bearings are used on the ends of cylinders,linkages,rods and shafts.To take up angular misalignment between connected parts.They attach to rods and shafts via a male stud with external threads,or a female housing with internal threads.
2.They consist of rod body,a spherically-shaped inner ring,and a cylindrical bore for shaft mounting.
3.They can be maintenance-free with PTFE liner,or housing with a lubrication hole,grease nipple.Injection nylon inside also ok.
4.Load capacity and maximum angular misalignment are the most important spec to consider.In most cases,bearings motion is symmetrical,and the maximum angular misalignment is half of the total side-to-side range.
(A)Rod End bearing PHS16 DETAILS
| Number | Dimensions mm | Load ratings KN | Weight ≈kg |
|||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d | d3 | B | C1 max |
W | l3 min |
d2 max |
l4 max |
h1 | l5 max |
d4 max |
d5 max |
dk | α° ≈ |
C | Co | |||
| PHS16 | 16 | M16 | 21 | 15 | 24 | 33 | 40 | 84 | 64 | 8 | 22 | 28 | 28.575 | 15 | 21.6 | 28.5 | 0.22 | |
Description:

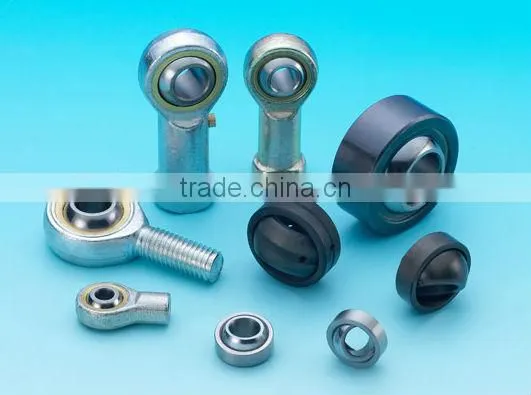

Rod ends consist of an eye-shaped head with integral shank which forms a housing for a standard spherical plain bearing..

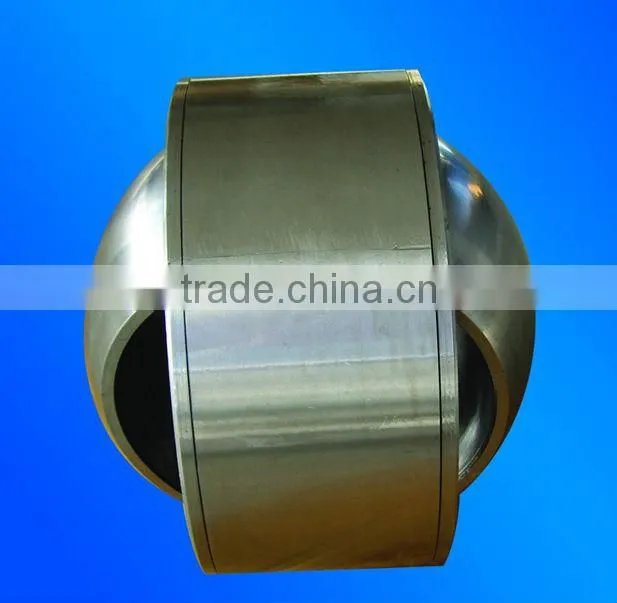

Radial spherical plain bearings
1, SF (radial bearings, inch )
Size: 12.7mm - 600mm diameter
Typical application: mining equipment, construction equipment, hydraulic / pneumatic transmission device
Extended options: Seal
2, FS (radial bearings, metric)
angular contact spherical plain bearing
SBT ( angular contact bearings, inch )
3, TTSP ( with a retainer thrust bearing )
Inside Diameter: 16.129 to 147.637 mm
Outside Diameter: 41.275 to 177.800 mm

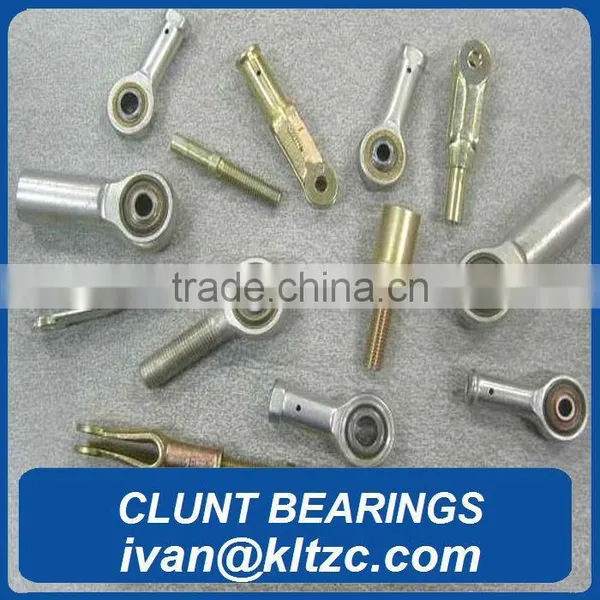

A rod end bearing, also known as a heim joint (N. America) or rose joint (U.K. and elsewhere), is a mechanical articulating joint. Such joints are used on the ends of control rods, steering links, tie rods, or anywhere a precision articulating joint is required. A ball swivel with an opening through which a bolt or other attaching hardware may pass is pressed into a circular casing with a threaded shaft attached. The threaded portion may be either male or female.
Details:
Our PHS series ball joint rod ends bearings are in standard, precision and high capacity designs, which help them with extremely low friction, misalignment capability and high performance.
Applications:
Our rod ends bearing can ease in mounting and adjustment of position in installations such as mechanisms, linkages, and control rods.
These bearings also provide a compact, lightweight, economical design alternative to a conventional housing installation.
rod end bearings catalogue
| Pillo...Ball PHS | Dimensions (mm) | |||||||||
| d | Threads | D | B | B1 | d1 | L | L1 | L2 | W | |
| PHS 5 | 5 | M5× 0.8 | 16 | 6 | 8 | 7.7 | 35 | 27 | 14 | 9 |
| PHS 6 | 6 | M6× 1 | 18 | 6.75 | 9 | 9 | 39 | 30 | 14 | 11 |
| PHS 8 | 8 | M8× 1.25 | 22 | 9 | 12 | 10.4 | 47 | 36 | 17 | 14 |
| PHS 10 | 10 | M10× 1.5 | 26 | 10.5 | 14 | 12.9 | 56 | 43 | 21 | 17 |
| PHS 10 | 10 | M10× 1.25 | 26 | 10.5 | 14 | 12.9 | 56 | 43 | 21 | 17 |
| PHS 12 | 12 | M12× 1.75 | 30 | 12 | 16 | 15.4 | 65 | 50 | 24 | 19 |
| PHS 12 | 12 | M12× 1.50 | 30 | 12 | 16 | 15.4 | 65 | 50 | 24 | 19 |
| PHS 12 | 12 | M12× 1.25 | 30 | 12 | 16 | 15.4 | 65 | 50 | 24 | 19 |
| PHS 14 | 14 | M14× 2 | 34 | 13.5 | 19 | 16.9 | 74 | 57 | 27 | 22 |
| PHS 14 | 14 | M14× 1.50 | 34 | 13.5 | 19 | 16.9 | 74 | 57 | 27 | 22 |
| PHS 14 | 14 | M14× 1.25 | 34 | 13.5 | 19 | 16.9 | 74 | 57 | 27 | 22 |
| PHS 16 | 16 | M16× 2 | 38 | 15 | 21 | 19.4 | 83 | 64 | 33 | 22 |
| PHS 16 | 16 | M16× 1.5 | 38 | 15 | 21 | 19.4 | 83 | 64 | 33 | 22 |
| PHS 18 | 18 | M18× 1.5 | 42 | 16.5 | 23 | 21.9 | 92 | 71 | 36 | 27 |
| PHS 20 | 20 | M20× 1.5 | 46 | 18 | 25 | 24.4 | 100 | 77 | 40 | 30 |
| PHS 20 | 20 | M20× 2.5 | 46 | 18 | 25 | 24.4 | 100 | 77 | 40 | 30 |
| PHS 22 | 22 | M22× 1.5 | 50 | 20 | 28 | 25.8 | 109 | 84 | 43 | 32 |
about our company
jinankelunte bearing company mainly devotes to the world-famous bearing brand promotion. Our products are widely applied in machinery,mine,steel and iron,electric power papermaking,auto mobile.The company has won the general customer’s support and the faith by the reasonable commodity price,the quick physical distribution delivers,the high quality service,as well as the formidable technical force..Our company realized the company and the customer win-win truly.”The customer’s request,will be our pursue”,our company will insist throughout the brand-new idea that “humanist,serve for customer,keep pace with the times,the development innovation”.We sincerely anticipate with more customers and friends hand in hand together and creat tomorrow.Welcome field man of insight to send a telegram or come to our company do discuss the cooperation!
