Specifications
Wind power generator slweing bearing 113.25.7101.Gcr15 material
2.High loads
3.Use in machinery
4.ISO:9001:2000

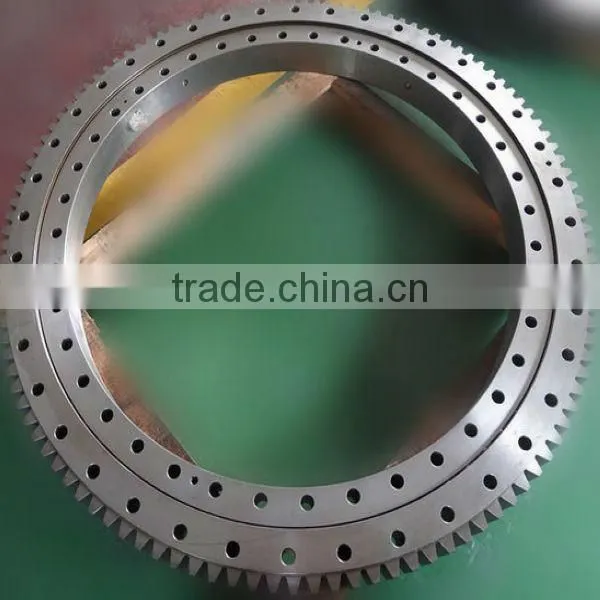

Wind power generator slweing bearing 113.25.710
Descriptions of Wind power generator slweing bearing 113.25.710
Slewing ring bearings can take moment load and radial load, besides take thrust loads;There are ball bearing, roller bearing and ball-roller bearing at type;There are single-row, double-row and three-row at structure.With teeth and without teeth on conduction(outer or inner ring); At dustproof and leak grease proof type,with airproof and without airproof. At mounting with flanged(outer or inner ring), with bolt hole and without flanged.
Crossed Cylindrical Roller Slewing Ring Bearings are extensively applied in such industries as metallurgy, vessel, oil, chemistry, mine, coal, hydroelectric power, port machinery, heavy machinery and aerospace or some other fields.
Slewing bearings can bear large axial load, radial load and overturning moment,comprehensive load of large bearings.These bearings are generally with the mounting holes,lubrication holes,seals, internal gear or external gear, and thus can host a compact, easy rotation,easy to install and easy to maintain. wheel bearings without gear, external gear and the internal gear of the four-point contact ball bearings, Double angular contact thrust ball bearings, crossed cylindrical roller bearings, crossed tapered rolling bearings and three-row cylindrical roller bearings and other structural types. four-point contact ball bearings with high static load capacity, cross-cylindrical roller bearings with high dynamic load capacity, cross-tapered roller bearings with greater rigidity and high rotational accuracy support.

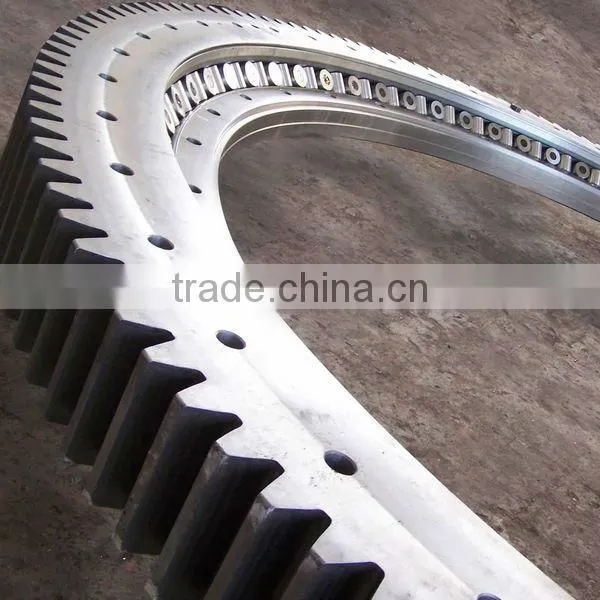

The single-row crossed roller slewing ring is composed of two seat-rings.It features compact in design,light in weight,high precision and small fitting clearance.
As the rollers are 1:1cross aranged,it is suitable for high precision mounting and capable to bear axial force,rsultant moment and considerable large radial force.
The single-row crossed roller slewing rings are widely used for hoisting,transporting,engineering machines as well as for military products.
1) Single-row four-point contact ball slewing bearing
2) Single-row four-point contact ball slewing bearing(with flange)

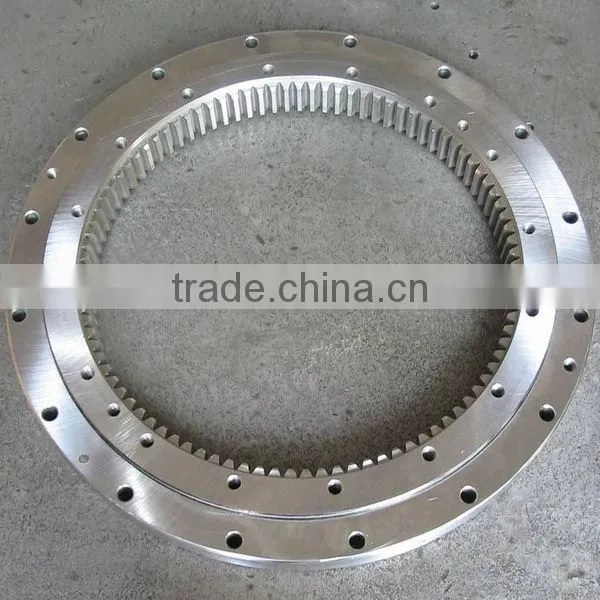

3) Single-row four-point contact ball slewing bearing(with internal gear)
4) Single-row four-point contact ball slewing bearing(with external gear)
5) Ball-roller type slewing bearing(with gear teeth)
6) Triple-row cylindrical roller slewing bearings(with gear teeth)

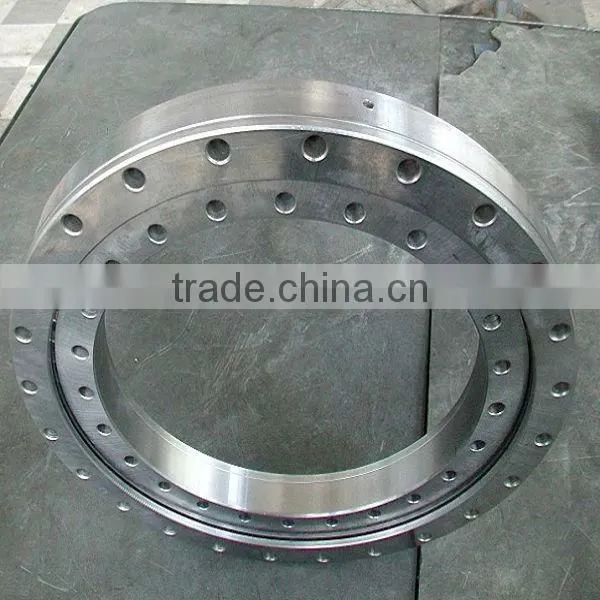

7) Four-Point Contact Ball Slewing Bearing(without teeth)
8) Double row four point contact roller slewing bearing
9) Cross roller slewing bearing
10) Cross roller slewing bearing(with gear teeth on inner ring)
11) Cross roller slewing bearing(with gear teeth on outer ring)
Details of Wind power generator slweing bearing 113.25.710
Type |
Slewing Bearing |
Brand Name |
CLUNT |
Bore Size |
608mm |
Outside Diameter |
812 mm |
Model Number |
Wind power generator slweing bearing 113.25.710 |
Feature |
Cross Roller |
Gear Options |
External Gear Only |
Seals Type |
Double sealed |
Place of Origin |
Jinan, China (Mainland) |
Height |
75mm |
weight |
110kg |
Material |
42CrMo;50Mn;ect |
Features of Wind power generator slweing bearing 113.25.710
1) High load-carrying capability
2) Ability to accept the combined loads;axial ,radial and tilting moments
3) Flexibility with product design.
4) 42CrMo/50Mn material be used to make slewing ring bearing
Slewing Ring Bearing Specification
1) Bearing Dimensions rang from OD300 mm to OD 5000 mm
2) Can be provided with gearless,internal gear or external gear
3) Can be proveded with internal /external flange.
4) Ball or crossed roller slewing ring bearing design.
5) Single row, double-row,trip-row slewing ring bearing design
6) Lubrication holes
7) Preload options are available as well as variations in clearance
Application
Mine machine, port hoisting machine, port oil transfer equipment, onshore and offshore crane, excavator, concrete machine, paper machine, plastic and rubber machine, weave machine, steel plant, electronic power plant, wind power generator, other construction and industry machines or equipment.
Characteristics slewing bearing
1. Four-point contact ball slewing bearings
are of high static load capacity, which are able to bear radial load, axial load
and overturning moment
2. Cross-cylindrical roller slewing bearings
mainly bear larger axial load and also carry overturning moment. Crossed
cylindrical roller bearings are of dynamic load capacity
3. Cross-tapered roller bearings'
pre-interference can can support a greater rigidity and rotary accuracy.
4. Double-row different diameter ball slewing bearings
are able to bear greater overturning moment, which bear load mainly at axial.
5. Three-row cylindrical roller bearings
increase the carrying capacity and can bear a more heavy load,because forces
are beared by diffenrent raceway. So three-row cylindrical rollerbearing is a
high carrying capacity of slewing bearings.In the same force cases, because
the diameter of the bearing can be greatly reduced.Hence the characteristics
of the host is more compact
Model numbers of slewing bearing
| Bearing type | Dimentions(mm) | Gear Parameters | External Gearparameters | Internal gear parameters | |||||||
| nongeared | external gear | internal gear | D | d | T | b | m | da | z | da | z |
| 110.25.500 | 111.25.500 | 113.25.500 | 602 | 398 | 75 | 60 | 5 | 629 | 123 | 367 | 74 |
| 112.25.500 | 114.25.500 | 602 | 398 | 75 | 60 | 6 | 628.8 | 102 | 368.4 | 62 | |
| 110.25.560 | 111.25.560 | 113.25.560 | 662 | 458 | 75 | 60 | 5 | 689 | 135 | 427 | 86 |
| 112.25.560 | 114.25.560 | 662 | 458 | 75 | 60 | 6 | 688.8 | 112 | 428.4 | 72 | |
| 110.25.630 | 111.25.630 | 113.25.630 | 732 | 528 | 75 | 60 | 6 | 772.8 | 126 | 494.4 | 83 |
| 112.25.630 | 114.25.630 | 732 | 528 | 75 | 60 | 8 | 774.4 | 94 | 491.2 | 62 | |
| 110.25.710 | 111.25.710 | 113.25.710 | 812 | 608 | 75 | 60 | 6 | 850.8 | 139 | 572.4 | 96 |
| 112.25.710 | 114.25.710 | 812 | 608 | 75 | 60 | 8 | 854.4 | 104 | 571.2 | 72 | |
110(no gear) 111.112(external gear) 113.114(internal gear)
HJN(no gear) HJB(external gear) HJW(internal gear)
Double-row ball slewing ring:
020(no gear) 021.022(external gear) 023.024(internal gear)
Three-row roller slewing ring:
130(no gear) 131.132(external gear) 133.134(internal gear)
Three-Row Roller Slewing
External toothed
131.25.500, 132.25.500, 131.25.560, 132.25.560, 131.25.630, 132.25.630, 131.25.710, 132.25.710, 131.32.800, 132.32.800, 131.32.900, 132.32.900131.32.1000, 131.32.1120, 132.32.1120, 131.40.1250, 132.40.1250, 131.40.1400, 32.40.1400, 131.40.1600, 132.40.1600, 131.40.1800, 132.40.1800131.25.200, 0, 131.45.2000, 131.45.2000132.45.2000, 131.45.2240, 131.45.2500
131.45.2500, 132.45.2500, 131.45.2800132.45.2800, 132.45.2800, 132.45.2800, 131.50.3150, 132.50.3150131.30.3150, 131.50.3150, 132.50.3150132.50.3150, 131.50.3550, 132.50.3550, 132.50.3550, 132.50.3550, 131.50.4000132.50.4000, 131.50.4000, 132.50.4000, 131.50.4500, 132.50.4500131.50.4500, 132.50.4500
Internal toothed
133.25.500, 134.25.500, 133.25.560, 134.25.560, 133.25.630, 134.25.630, 133.25.710, 134.25.710, 133.32.800, 134.32.800, 133.32.900
134.32.900, 133.32.1000, 133.32.1120, 134.32.1120, 133.40.1250, 134.40.1250, 133.40.1400, 134.40.1400, 133.40.1600, 134.40.1600, 133.40.1800, 134.40.1800, 133.45.2000, 134.45.2000, 133.45.2240
134.45.2240, 133.45.2500, 134.45.2500, 133.45.2800, 134.45.2800
, 133.50.3150, 134.50.3150, 133.50.3150, 133.50.3550, 134.50.3550, 133.50.4000, 134.50.4000, 133.50.4500, 134.50.4500
Crossed Roller Slewing Bearing
External toothed
111.25.500, 112.25.500, 111.25.560, 112.25.560, 111.25.630, 112.25.630111.25.710, 112.25.710, 111.28.800, 112.28.800, 111.28.900, 112.28.900, 111.28.1000, 112.28.1000, 111.28.1120, 112.28.1120, 111.32.1250, 112.32.12501, 1.32.1400, 112.32.1400, 111.32.1600, 112.32.1600, 111.32.1800112.32.1800, 111.40.2000, 112.40.2000, 111.40.2240, 112.40.2240, 111.40.2500, 112.40.2500, 111.40.2800, 111.40.2800, 111.50.3150, 112.50.3150, 111.50.3550, 112.50.3550, 111.50.4000, 112.50.4000, 111.50.4500, 112.50.4500
Internal toothed
113.25.500, 114.25.500, 113.25.560, 114.25.560, 113.25.630, 114.25.630, 113.25.710, 114.25.710, 113.28.800, 114.28.800, 113.28.900, 114.28.900, 113.28.1000, 114.28.1000, 113.28.1120, 114.28.1120, 113.32.1250, 114.32.1250113.32.1400, 114.32.1400, 113.32.1600, 114.32.1600, 113.32.1800, 114.32.1800, 113.40.2000, 114.40.2000, 113.40.2240, 114.40.2240, 113.40.2500, 114.40.2500, 113.40.2800, 113.40.2800, 113.50.3150, 114.50.3150, 113.50.3550, 114.50.3550, 113.50.4000, 114.50.4000, 113.50.4500, 114.50.4500
