Spiral Roller Bearing VLA200744-N in China

Spiral Roller Bearing VLA200744-N in China thumbnail-1
Spiral Roller Bearing VLA200744-N in China photo-1
US$ 921.13 - 921.13 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
CLUNT
Bore Size:
634,
Outside Diameter:
838.1,
Contact Supplier Request Quote Chat Now
Jinan Kelunte Bearing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name CLUNT
Bore Size 634,
Outside Diameter 838.1,
Model Number VLA200744-N
Precision Rating ABEC 1 3 5 7 9
Seals Type open
Number of Row Single Row
Place of Origin Shandong, China

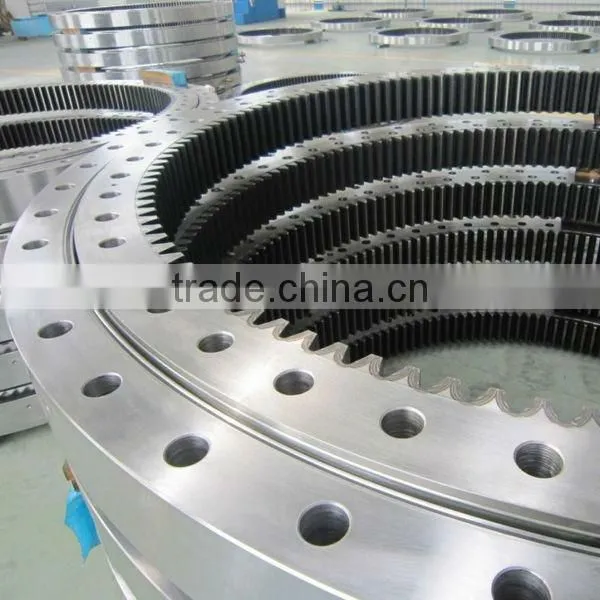

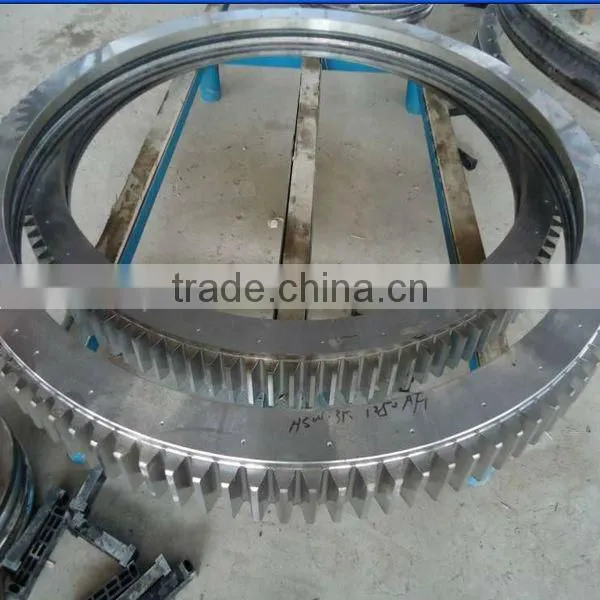

Spiral roller bearing VLA200744-N in China

Specifications of  spiral roller bearing VLA200744-N



di 634  mm
  Tolerance: +0,6
Da 838,1  mm


Di 745,5  mm
  Tolerance: +0,6
Di ZT 747  mm
  Valid for bearings with centring (suffix ZT)
Centring lengths (T, t) (see dimension drawing)
Tolerance: +IT8
d0 828  mm

da 742,5  mm
  Tolerance: -0,6
di ZT 636  mm
  Valid for bearings with centring (suffix ZT)
Centring lengths (T, t) (see dimension drawing)
Tolerance: +IT8
H 56  mm

La 785  mm

Li 662  mm

m 6  mm
  Tooth modulus
na 18
  Number of fixing holes in outer ring
ni 16
  Number of fixing holes in inner ring
z 138
  Number of teeth

m 54,5  kg
  Mass
Fr per 74300  N
  Maximum permissible radial load against friction lock
Fz norm 21300  N
  Maximum permissible tooth force (dedendum fatigue strength)
Fz max 31500  N
  Max. permissible tooth force against tooth fracture in dedendum
Ca 211000  N
  Basic dynamic load rating, axial
C0a 530000  N
  Basic static load rating, axial
Cr 138000  N
  Basic dynamic load rating, radial
C0r 198000  N
  Basic static load rating, radial

  4 taper type lubrication nipples, DIN 71412-A S8x1, spaced uniformly on circumference

  Bearings are also available without holes in the bearing rings.





1.Description of spiral roller bearing VLA200744-N

Slewing ring bearing, also called slewing bearing, is a bearing that can bear large axial load, radial load and overturning moment. Slewing bearings generally have installation holes, inner teeth, outside teeth, lubricants holes and sealing devices, which enable the main frame structural compact, guide reliable, and easy to maintain.







Slewing bearings are divided into various specifications including single-row ball slewing bearings with outer teeth or inner teeth, or without teeth, single-row cross roller slewing bearings, double-row different diameter balls slewing bearings, and three-row roller slewing bearings etc, of which, single-row ball slewing bearings have higher static load capacity; while single-row cross roller slewing bearings have higher dynamic load capacity.







Slewing bearings are widely used for lifting machinery, excavating machinery, construction machinery, port machinery and ship machinery, as well as other larger rotary devices, such as high-precision radar and missile launchers.





1. Product  Series   1. Single-row  Four-point  Contact  Slewing  Bearing
  2. Single-row  Crossed  Roller  Slewing  bearing
  3. Double-row  Four-point  Contact  Slewing  bearing
  4. Three-row  Roller  Slewing  Bearing
  5. Light  type  slewing  bearing
2. Size  range   Outside  Diameter:     300mm--5000mm
3. Material   42  CrMo,     50Mn
4. Minimum  order   1  piece
5. Package   Moisture-proof  Antirust  and  Oil-proof  packing  with  plywood  box
6. Feature   Low  noise  and  low  vibration
7. Certificates   ISO9001:     2008.
8. Durability   Perfect
9. Delivery  time   30days  --  45  days
10. Payment  terms   L/C, T/T
11. Shipment  terms   FOB, CIF, CFR
12. Inner  structure   Roller  &     Ball
13. Custom  design   Available









2,stype :







1.single-row ball style,



2.double –row ball style,



3.three-row roller type,



4.cross-roller-type,



5.double row ball,



6.the ball-roller joint type of six series of slewing ring ceremony.







3,application




Wind turbine, the port's maritime cranes, marine cranes, mobilecranes, ferris wheel, heap reclaimer shipping loaders, construction machinery ,ladle turret,shielding ,such as welding machines.



Hot Model:

Model Size
RE4010 40 x 65 x 10
RU228X 160 x 295 x 35
RU124G 80 x 165 x 22
CRBH20025A 200 x 260 x 25
CRBH5013A 50 x 80 x 13
CRB60040 600 x 700 x 40
CRB20035 200 x 295 x 35
RKS.20.0411 304 x 518 x 56
RKS.23.0541 434 x 648 x 56
RKS.23.0641 534 x 748 x 56
RKS.23 .0741 634 x 848 x 56
RKS.23.0841 734 x 948 x 56
RKS.23.0941 834 x 1048 x 56
RKS.23.1091 984 x 1198 x 56
RKS.21.0411 495 x 503.3 x 56
