Home > Industrial Equipment & Components > Bearing > Slewing Bearing > YRT Series Rotary Machine Bearing YRT1200

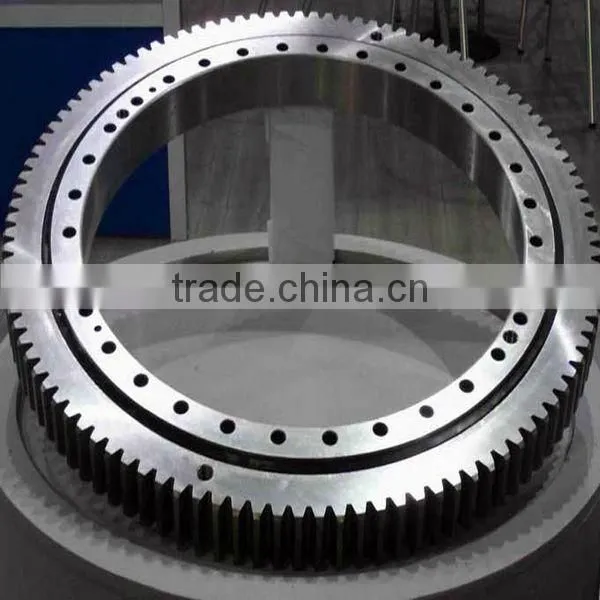

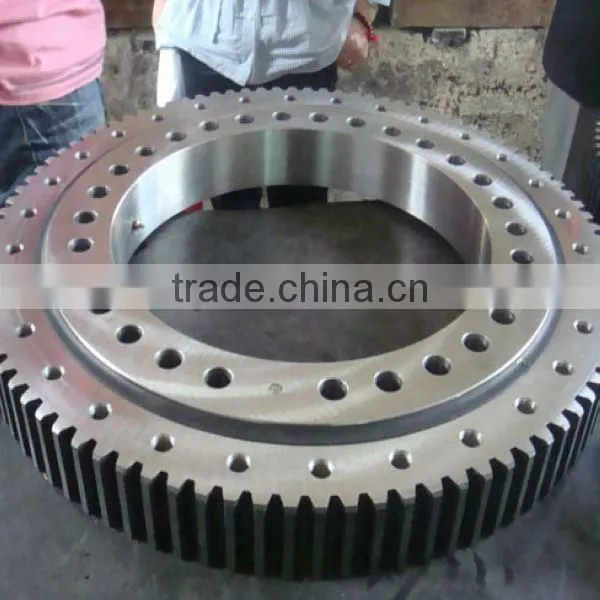

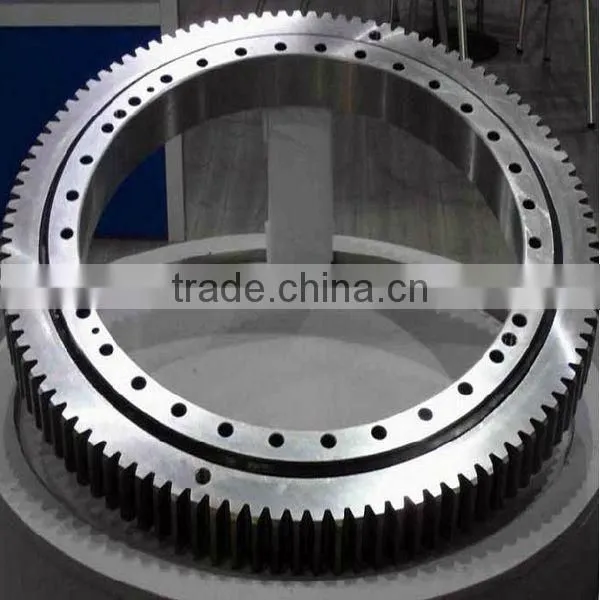

YRT Series Rotary Machine Bearing YRT1200

Name: YRT Series Rotary Machine Bearing YRT1200
Brand: CLUNT
SKU: 139932027
Availability: InStock

YRT Series Rotary Machine Bearing YRT1200 thumbnail-1

YRT Series Rotary Machine Bearing YRT1200 photo-1

US$ 50 - 50 MOQ: 10 Sets

Key Specifications

Get Latest Price

Brand Name:

CLUNT

Bore Size:

120,

Outside Diameter:

210,

Contact Supplier Request Quote Chat Now

Jinan Kelunte Bearing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name CLUNT

Bore Size 120,

Outside Diameter 210,

Model Number YRT120

Feature Cross Roller

Gear Options External Gear Only

Seals Type OPEN

Place of Origin Shandong, China

Specifications

rotary machine bearing
1.High quality
2.ISO9001:2000
3.Quick delivery.
4.long service life

YRT series rotary machine bearing YRT120

inner ring:120mm outer ring:210mm
width:40mm weight:5.3Kg

YRT series:
YRT50,YRT80,YRT100,YRT120,YRT150,YRT180,YRT200,YRT260,YRT325,YRT460,

YRT580,YRT650,YRT850,YRT950,YRT1030

Bearing Code	YRT120
d mm	120
D mm	210
H mm	40
H1 mm	26
C mm	12
D₁max mm	184
J mm	135
J1 mm	195
d1 mm	7
d2 mm	11
a mm	6.2
Quantity	22
d3 mm	7
Quantity	21

YRT bearing consists of thrust/radial housing washer,a thrust/radial shaft,two Axial needle roller and cage assemblies and a group of radial cylindrical roller.Housing washer and shaft washer have equally sspaced fitting bolt.This kind of bearings have high axial load and radial load,and high tilting rigidity and high precision.This bearing can be used to the machine tool and other high precision machinery of the rotary table or sub-set,and also can be used for chuck,measuring instruments and test equipment and rotary table configuration.This bearing requires higher quality or the parts to match it.You must control screw tightening torque when install it.

Bearing features:
1.   High precision: precision at P4, P2.
2.   High rigidity: YRT series bearings are with preload.
3.   High load capacity: bearings can support axial load, radial load and tilting load.
4.   High speed: YRTS series bearings can be applied in the high speed working condition.

The type of YRT rotary table YRT series are as below:

YRT50,YRT80,YRT100,YRT120,YRT150,YRT180,YRT200,YRT260,YRT325,YRT460,

YRT580,YRT650,YRT850,YRT950,YRT1030

YRTS series:

YRTS50,YRTS80,YRTS100,YRTS120,YRTS150,YRTS180,YRTS200,YRTS260,YRTS325,YRTS460,YRTS580,YRTS650,YRTS850,YRTS950,YRTS1030

ZKLDF series:

ZKLDF100, ZKLDF120, ZKLDF150, ZKLDF200, ZKLDF260, ZKLDF325, ZKLDF395, ZKLDF460

YRTM series:

YRTM50,YRTM80,YRTM100,YRTM120,YRTM150,YRTM180,YRTM200,YRTM260,YRTM325,YRTM460,YRTM580,YRTM650,YRTM850,YRTM950,YRTM1030

Features:

Component	YRT bearing consist of a thrust/radial housing washer, a thrust/radial shaft washer, a thrust washer, two axial needle roller and cage assemblies and a group of radial cylindrical roller
Details	Housing washer and shaft washer have bolt holes for install equally spacer. This kind of bearing has high axial load and radial load, and high tilting rigidity and high precision. This bearing request higher quality of the parts matches it. You must control screw tightening torque when install it.
Application	This bearing can be used to the machine tool or other high precision machinery of the rotary table or sub-set, and also can be used for chuck, measuring instruments and test equipment and rotary table configuration.
Packing	First lubricated, Second circled with plastic film/Kraft paper/blue belt, and then packaged in plywood case, last gathered in Wooden pallet
Delivery time	1-35 days after prepayment

Technical data:

Bearing No.	Principal dimension(mm)								Weight (kg)
Bearing No.	d	D	H	H1	C	d 1	dn	dm	Weight (kg)
YRT50	50	126	30	20	10	105	63	116	1.6
YRT80	80	146	35	23.35	12	130	92	138	2.4
YRT100	100	185	38	25	12	160	112	170	4.1
YRT120	120	210	40	26	12	184	135	195	5.3
YRT150	150	240	40	26	12	214	165	225	6.2
YRT180	180	280	43	29	15	244	194	260	7.7
YRT200	200	300	45	30	15	274	215	285	9.7
YRT260	260	385	55	36.5	18	345	280	365	18.3
YRT325	325	450	60	40	20	415	342	430	25
YRT395	395	525	65	42.5	20	486	415	505	33
YRT460	460	600	70	46	22	560	482	580	45
YRT580	580	750	90	60	30	700	610	720	89
YRT650	650	870	122	78	34	800	680	830	170
YRT850	850	1095	124	80.5	37	1018	890	1055	253
YRT950	950	1200	132	86	40	1130	990	1160	312
