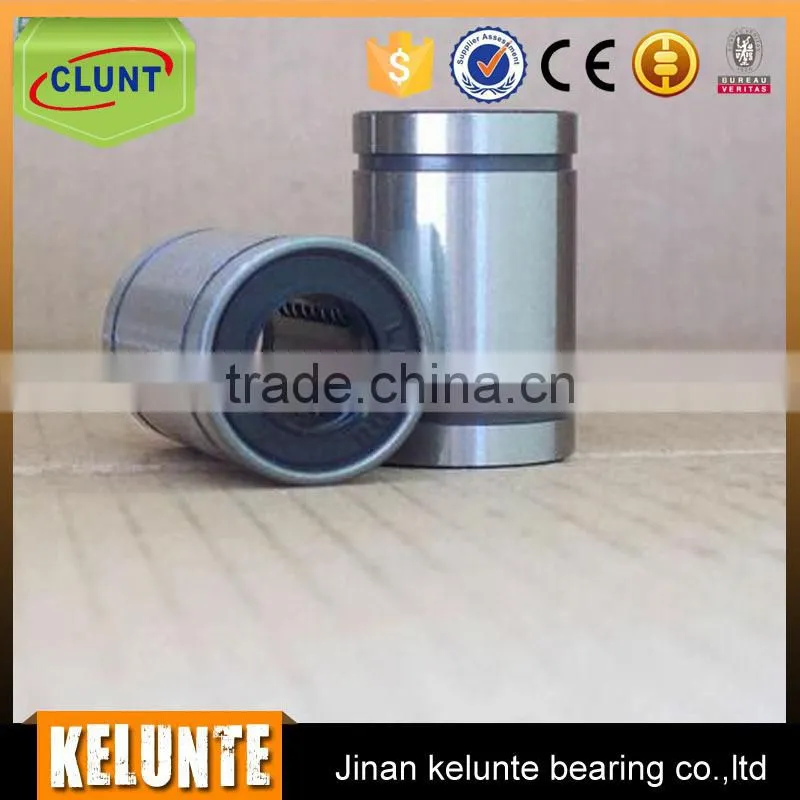

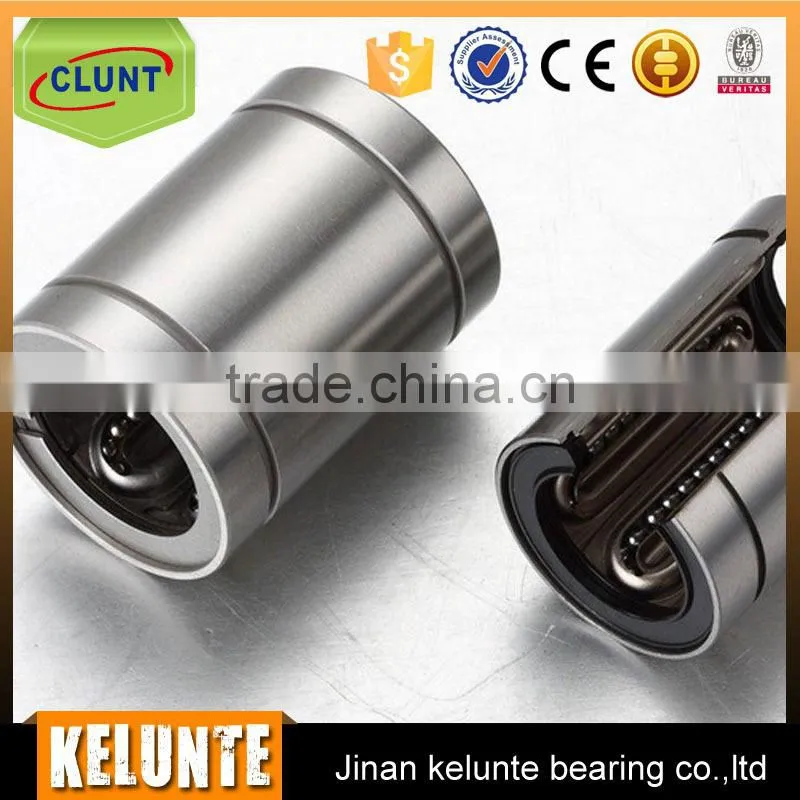

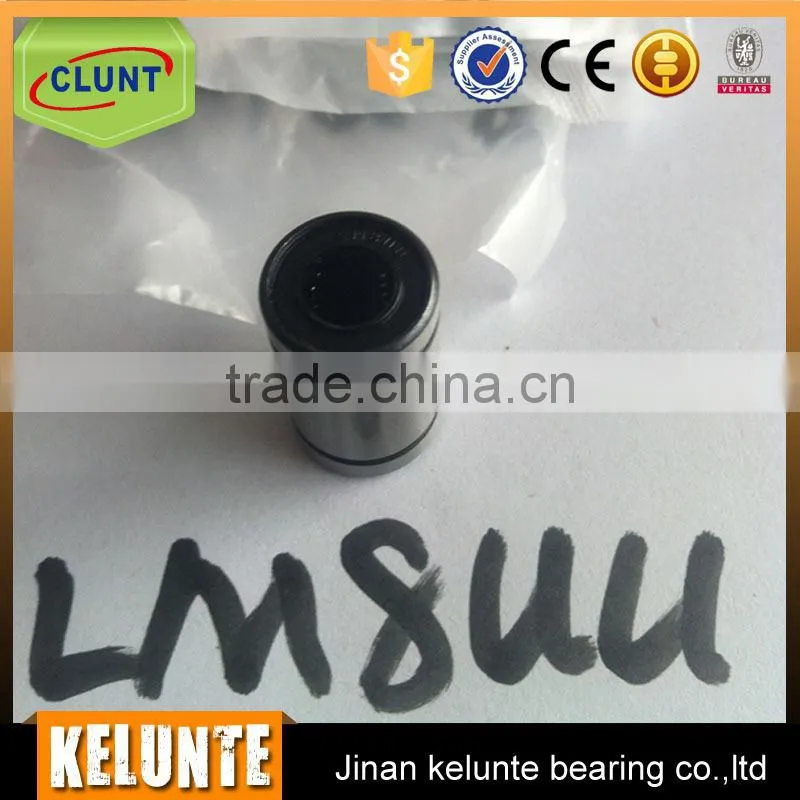

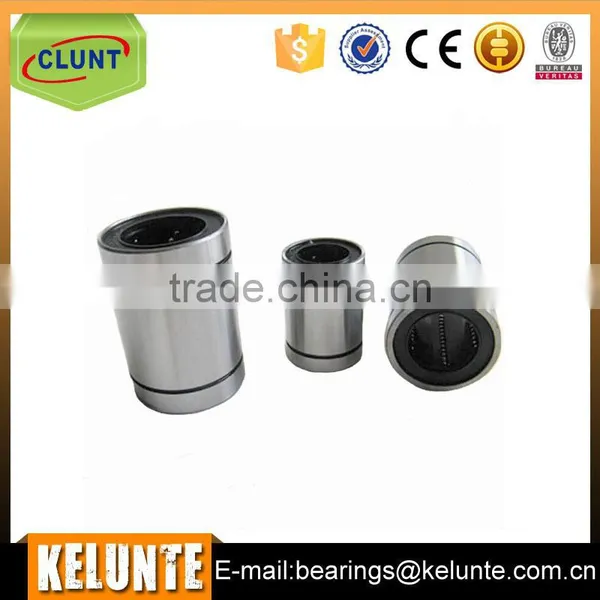

Help Center3D Printer High Qulity Linear Bearing LM6UU
Related Products
-
3D Printer High Qulity Linear Bearing LM8UU BearingUS$ 0.48 - 0.48MOQ: 100 Pieces -
AST Linear Motion Bearing LM10UU BearingUS$ 0.6 - 0.6MOQ: 10 Sets
-
Linear Motion Bearing LM12UU Bearing With Motorized Linear StagesUS$ 0.6 - 0.6MOQ: 10 Sets
-
Linear Motion Bearing LM13UU For Adjustable Clearance BearingUS$ 0.6 - 0.6MOQ: 10 Sets
-
Linear Motion Bearing LM20UU Bearing LM20UU-OPUS$ 0.6 - 0.6MOQ: 10 Sets
| Linear Bearing Made In China |
|
classification
(1) standard, gather linear bearing clearance, open rack linear bearings, linear bearings, linear bearing commonality lengthened (2) the flange linear bearing can be divided into: round flange type, method type, elliptical flange type, guided round flange, guiding method, guide the elliptical flange type, extended round flange type.
According to the specification standard points: Divided into two series of LM and LME series. Its code LM series used in Asia, southeast Asia, Japan, South Korea, China, etc. On the basis of metric size, with straight axis diameter tolerance is usually h7. LME series used in Europe, the United States, Germany, Italy and other regions. On the basis of inch size. Also have metric size, with the straight axis diameter tolerance is usually g6. Two big series structure characteristics, in addition to different sizes, different pore size tolerance, its structure is roughly the same.
Case 1: LM 203242 UU OP The first set of standard LM said straight line 203242 said size structure of aperture diameter length UU said double seal structure OP said open rack Example 2: the LME 203245 UU AJ The LME said linear second series standard 203245 said size structure of aperture diameter length UU said double seal structure AJ said clearance is adjustable Plastic linear bearing can be divided into two major series with LIN LIN - 11-12 series, the code LIN - 11 represents the European standard plastic linear bearing, and LIN - 12 series is narrow type design, mainly in order to save installation space and design;
Distinguishes between two major series, LIN - 11 series is using circlip limit installation, and LIN - 12 series is directly adopted its installed outside diameter and hole a tight fit. LIN - 11 European standard plastic linear bearing LIN - 11 European standard plastic linear bearing Example 3: LIN - 11 r - 30 LIN - 11 on behalf of the European standard size series plastic linear bearing R is for belt retainer outside 30 representative bearing inner hole diameter of 30 mm Example 4: LIN - 12-30 r LIN - 12 representative narrow design dimension series of plastic linear bearing R is for belt retainer outside 30 representative bearing inner hole diameter of 30 mm LIN - 12 narrow plastic linear bearing design LIN - 12 narrow plastic linear bearing design

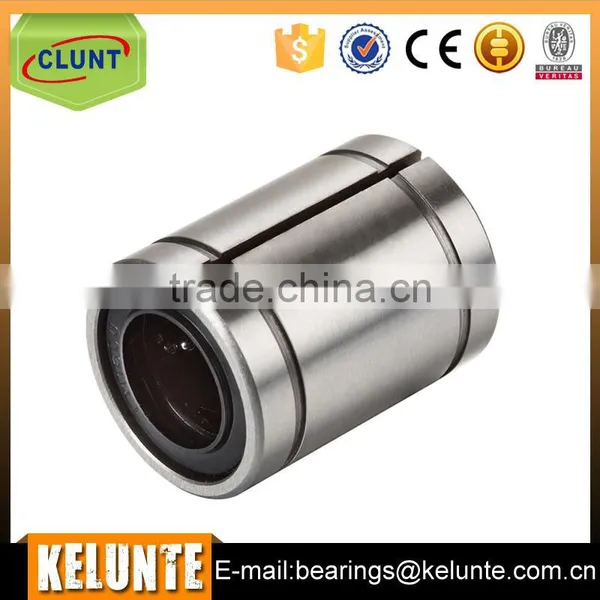

According to the shape of points: Type 1: straight (shapes such as cylinders, spring is commonly used in installation, for special occasions requiring small installation size) Type 2: flange (end or intermediate flange, with installation can use screw to install, general component is circular flange, square and trimming type three) 3: open your mouth (shape, such as straight, appearance has axial slitting, used to need clearance adjustment, large openings and small openings)
According to the performance points: 1: normal (generally use of performance requirements) Type 2: super (long life and large load performance requirements)
Application Linear bearing is more and more widely applied to electronic equipment, food machinery, packaging machinery, medical machinery, printing machinery, textile machinery, machinery, instrument, robots, machine tools, CNC machine tools, automobile and digital 3 d coordinate measuring equipment such as precision equipment or special machinery industry. |
| Model Code of Linear Bearings |
| MODEL NO. | |
| LM linear bearing | LM 3UU, LM 4UU, LM 5UU, LM 6UU, LM 8UU, LM 10UU, LM 12UU, LM 13UU, LM 16UU, LM 20UU, LM 25UU, LM 30UU, LM 35UU, LM 40UU, LM 50UU, LM 60UU, LM 80UU, LM 100UU, LM 120UU, LM 150UU |
| LM Open Series | LM 10OPUU, LM 12OPUU, LM 13OPUU, LM 16OPUU, LM 20OPUU, LM 25OPUU, |
| linear bearing | LM 30OPU, LM 35OPUU, LM 40OPUU, LM 50OPUU, LM60OPUU, LM 80OPUU, LM 100OPUU, LM 120OPUU, LM150OPUU |
| LB linear bearing | LB 6UU, LB 8UU, LB 10UU, LB 12UU, LB13 UU, LB16UU, LB 20UU, LB25UU, |
| LB 30UU, LB 35UU, LB 40UU, LB 50UU, LB 60UU, LB 80UU, LB 100UU, LB120UU, LB 150UU | |
| LM E Linear bearing | LME 5UU, LME 8UU, LME 12UU, LME 16UU, LME 20UU, LME 25UU, LME 30UU, LME 40UU, LME 50UU, LME 60UU, LME 80UU |
| LM L linear bearing | LM 6LUU, LM 8LUU, LM 10LUU, LM 12LUU, LM 13LUU, LM 16LUU, LM 20LUU, LM 25LUU, LM 30LUU, LM 35LUU, LM 40LUU, LM 50LUU, LM 60LUU |
| KH type linear bearing | KH 0622PP,KH 0824PP, KH 1026PP, KH 1228PP, KH 1630PP, KH 2030PP, |
| KH 2540PP, KH 3050PP, KH 4060PP, KH5070PP | |
| Stell Cage | LM 12GA, LM 16GA, LM 20GA, LM 25GA, LM 30GA, |
| Linear Bearing | LM 12M, LM 16M, LM 20M, LM 25M, LM30M |
| SDM series Stell cage linear bearing(As same as Ease SDM series) | SDM 16, SDM 20, SDM 25, SDM 30, SDM 35, SDM 40, SDM 50, SDM 60, SDM 80, SDM 100, SDM120, SDM150 |
| SK Linear bearing | SK 10, SK 12, SK 13, SK 16, SK 20, SK 25, SK 30, SK 35, SK 40 |
| SHF Linear bearing | SHF 10, SHF 12, SHF 13, SHF 16, SHF 20, SHF 25, SHF 30, SHF 35, SHF 40 |
| Flange type | LMF6UU, LMF8UU, LMF10UU, LMF12UU, LMF13UU, LMF16UU, LMF20UU, LMF25UU, LMF30UU, LMF35UU, LMF40UU, LMF50UU, LMF60UU, LMF80UU, LMF100UU |
| linear bearing | LMK6UU, LMK8UU, LMK10UU, LMK12UU, LMK13UU, LMK16UU, LMK20UU, LMK25UU, LMK30UU, LMK35UU, LMK40UU, LMK50UU, LMK60UU, LMK80UU, LMK100UU |
sizes of liner bearings
| Sizes of Liner Bearings Model |
| Bearing Code | Ball | Weight | Inner size(dr) | Outer size(D) | Length(L) |
| LM6UU | 4 rows | 8g | 6mm | 12mm | 19mm |
| LM8UU | 4 rows | 17g | 8mm | 15mm | 24mm |
| LM10UU | 4 rows | 30g | 10mm | 19mm | 29mm |
| LM12UU | 5 rows | 31.5g | 12mm | 21mm | 30mm |
| LM13UU | 5 rows | 43g | 13mm | 23mm | 32mm |
| LM16UU | 5 rows | 69g | 16mm | 28mm | 37mm |
| LM20UU | 5 rows | 87g | 20mm | 32mm | 42mm |
| LM25UU | 6 rows | 220g | 25mm | 40mm | 59mm |
| LM30UU | 6 rows | 250g | 30mm | 45mm | 64mm |
| LM35UU | 6 rows | 390g | 35mm | 52mm | 70mm |
| LM40UU | 6 rows | 585g | 40mm | 60mm | 80mm |
| LM50UU | 6 rows | 1580g | 50mm | 80mm | 100mm |
| LM60UU | 6 rows | 2000g | 60mm | 90mm | 110mm |
| LM80UU | 6 rows | 4520g | 80mm | 120mm | 140mm |
My company equipment is advanced, leading the management level, the warehouse clean and orderly, mount guard after qualified staff skill training, greatly improve the quality of our products and reduce the production cost, follow up competitiveness in the bearing industry.Our company pays attention to technology innovation the technological innovation enables enterprises to form core competitiveness, and to keep a competitive strength.
1: Germany equipment,
2: dust-free workshop,
3: smokeless workshop,
4:5 s management system,
5: ERP warehouse outbound,
Welcome to visit our factory, and promote the communication and learning, and go further in the bearing industry .
Our company quality first gained international certification
International certification:
1: ISO9001:2000,
2: BV,
3: CC,
Inland certification:
1: Shandong star enterprise ,
2: Domestic well-known brand,
3: Five years gold supplier in Alibaba,
4: The key enterprises of "Jinan 11th Five-Year Plan"
Packaging
A: barreled package+outer carton+pallets
B: single box+outer carton+pallets
C: tube package+middle box+outer carton+pallets
D: According to your requirement
