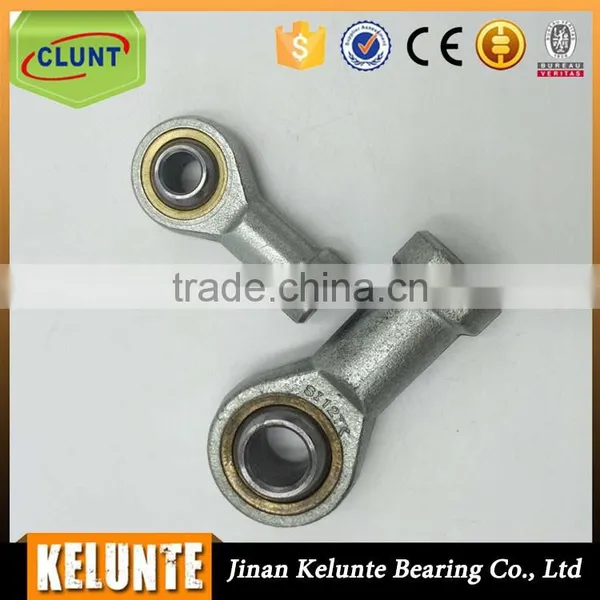

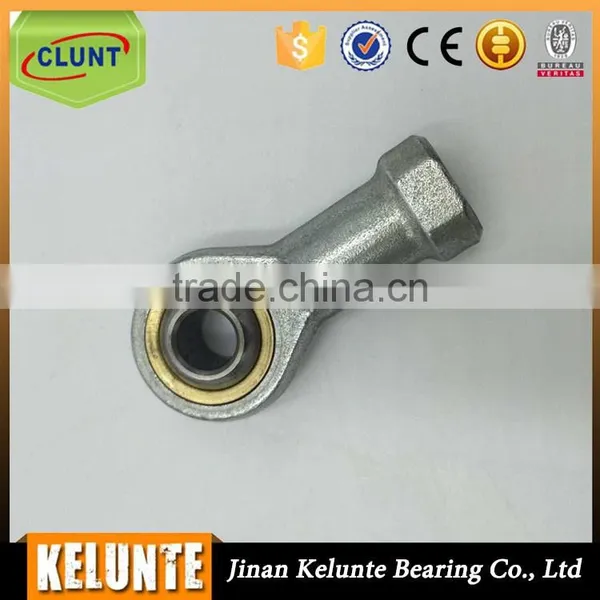

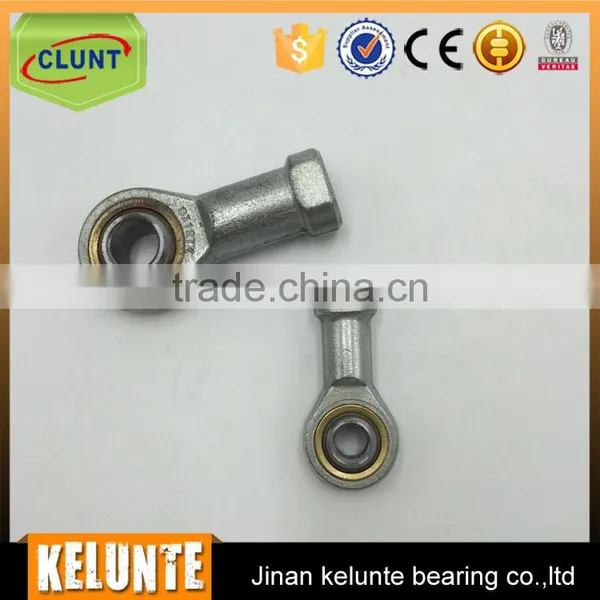

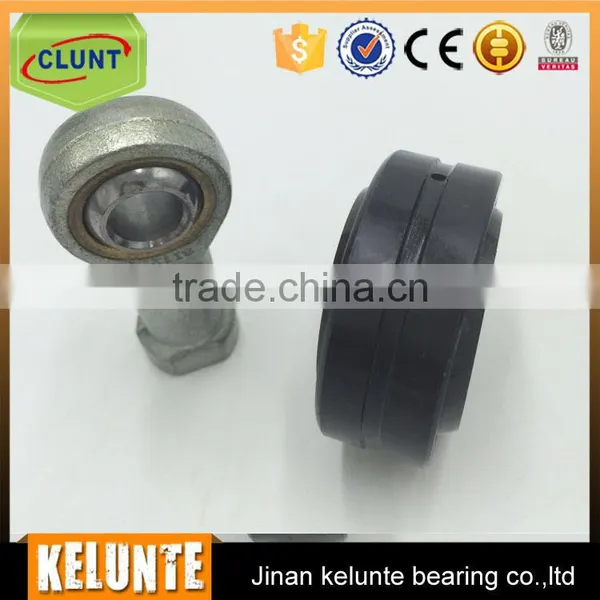

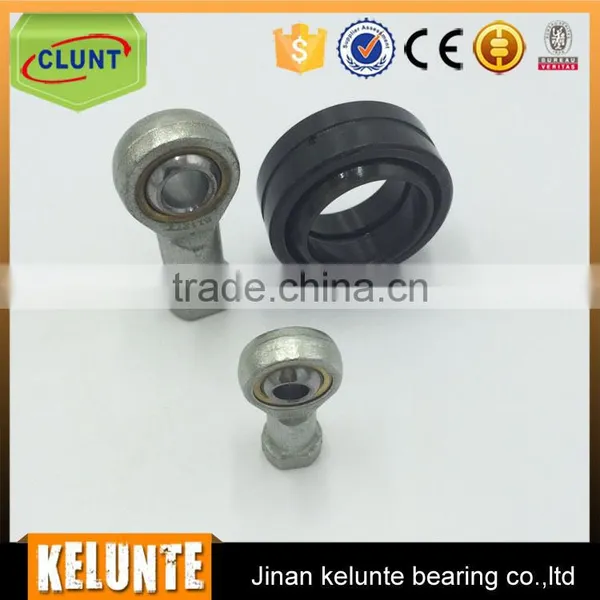

SI8T/K embroidery machine bearings & stainless steel ball joint bearings SI8T/K
Descriptions of SI8T/K bearings

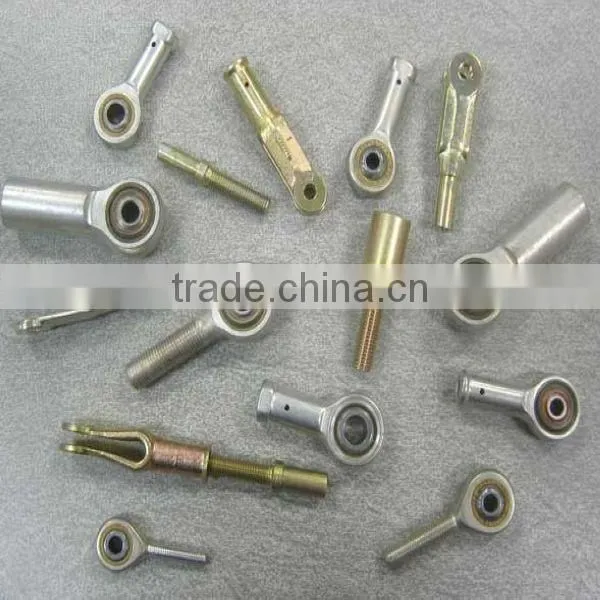

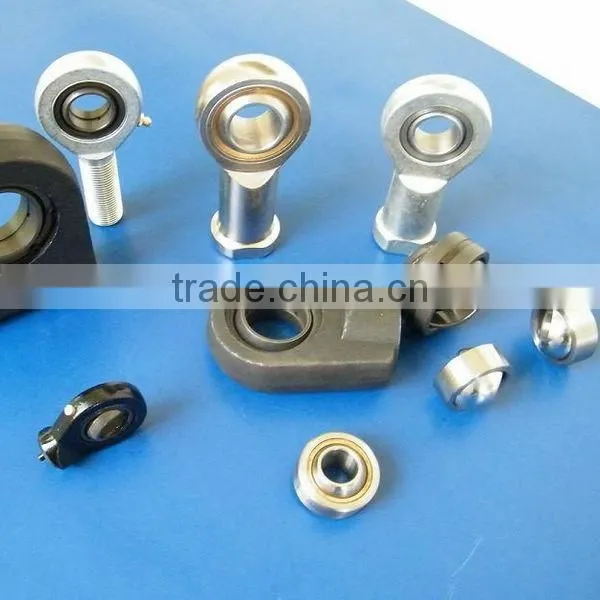

Rod End Bearings offered as self-lubricating with TFE liners for reduced friction. Also can be
supplied as metal to metal types. They are recommended for applications requiring considerable
oscillation and misalignment under very heavy loads and where frequent lubrication is undesirable
or impossible. Suited for hydraulic actuators, many aircraft landing gear door applications,
vibration dampening devices, hinge and actuation link bearings for control surfaces,sliding
guide bearings for flaps and leading edge slats, and power control system drive link bearings.
Many othersnot mentioned. Numerous options available for special applications based on specific
conditions,such as temperature, load, misalignment and load strength factors.
Products |
knuckle bearings/rod end bearings |
Quality standard |
ISO 9001:2008 standard, GJB9001A-2001, TS16949-2002 |
Precision Rating |
P0(ABEC-1),P6(ABEC-3),P5(ABEC-5),P4(ABEC-7),P2(ABEC-9) |
Package Details |
1.standard export packing (carton, wooden box, pipe packing) 2. Or packed as customer's request. |
Lubrication |
oil or grease. As you requirement, such as SRL, PS2, Alvania R12 and so on. |
Ring Material |
Chrome Steel ,Carbon steel, Stainless steel, Ceramic etc. |
Specifications of SI8T/K bearings
| d | 8 |
| d3 | M8 |
| W | 14 |
| B | 12 |
| CL | 9 |
| h1 | 36 |
| d2 | 24 |
| I4 | 48 |
| I5 | 5 |
| d4 | 12.5 |
| d5 | 16 |
| I3 | 12 |
| dk | 15.875 |
| α°≈ | 14 |
| CR | 7.2 |
| Cor | 11.6 |
| Bearing No | SI8T/K |
| Mass weight | 0.047 |
Application of SI8T/K bearings
Joint bearing is widely used in engineering hydraulic cylinder, forging machine tools, engineering machinery, automation equipment, automobile shock absorber, water conservancy machinery industries.

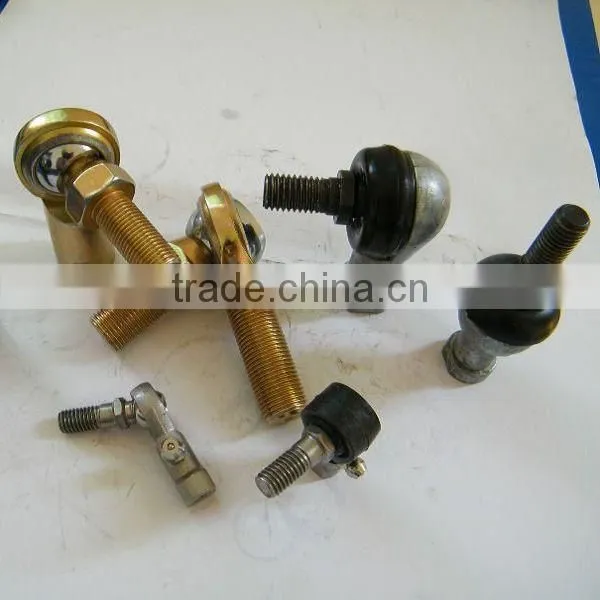

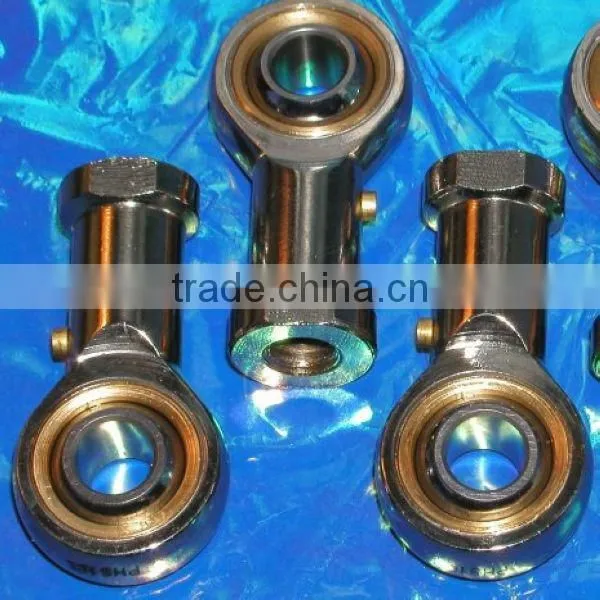

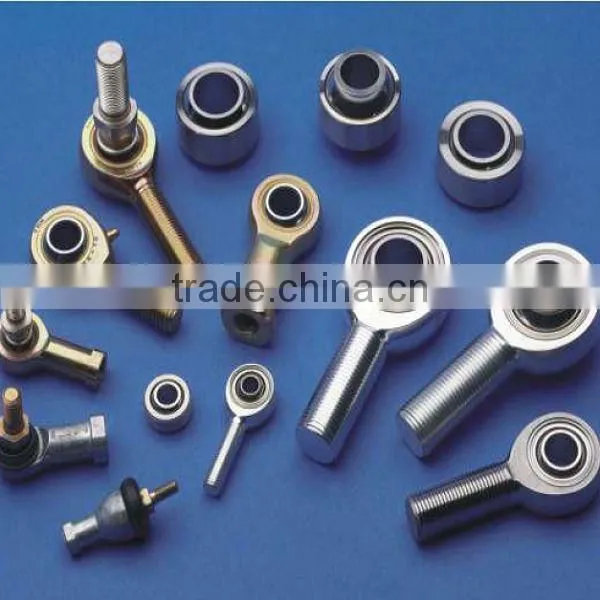

Models of rod end bearings
| Part No. | Dimeinsions (mm) | Load ratings | Weight kg |
||||||||||||||
| d | d3 6H |
B | C1 | W | h1 | d2 | L4 | L5 | d4 | d5 | dk | L3 min |
α ≈ |
dyn C |
stat. C0 |
||
| SI 5 T/K | 5 | M5X0.8 | 8 | 6 | 9 | 27 | 18 | 36 | 4 | 8.5 | 11 | 11.11 | 10 | 13 | 5.70 | 6.00 | 0.016 |
| SI 6 T/K | 6 | M6X1.0 | 9 | 6.75 | 11 | 30 | 20 | 40 | 5 | 10 | 13 | 12.70 | 12 | 13 | 7.20 | 7.65 | 0.022 |
| SI 8 T/K | 8 | M8X1.25 | 12 | 9 | 14 | 36 | 24 | 48 | 5 | 12.5 | 16 | 15.875 | 16 | 14 | 11.6 | 12.9 | 0.047 |
| SI 10 T/K | 10 | M10X1.5 | 14 | 10.5 | 17 | 43 | 28 | 57 | 6.5 | 15 | 19 | 19.05 | 20 | 13 | 14.5 | 18.0 | 0.077 |
| SI 10-1 T/K | 10 | M10X1.25 | 14 | 10.5 | 17 | 43 | 28 | 57 | 6.5 | 15 | 19 | 19.05 | 20 | 13 | 14.5 | 18.0 | 0.077 |
| SI 12 T/K | 12 | M12X1.75 | 16 | 12 | 19 | 50 | 32 | 66 | 6.5 | 17.5 | 22 | 22.225 | 22 | 13 | 17.0 | 24.0 | 0.100 |
| S I12-1 T/K | 12 | M12X1.25 | 16 | 12 | 19 | 50 | 32 | 66 | 6.5 | 17.5 | 22 | 22.225 | 22 | 13 | 17.0 | 24.0 | 0.100 |
| SI 14 T/K | 14 | M14X2.0 | 19 | 13.5 | 22 | 57 | 36 | 75 | 8 | 20 | 25 | 25.40 | 25 | 16 | 24.0 | 31.0 | 0.160 |
| SI 14-1 T/K | 14 | M14X1.5 | 19 | 13.5 | 22 | 57 | 36 | 75 | 8 | 20 | 25 | 25.40 | 25 | 16 | 24.0 | 31.0 | 0.160 |
| SI 16 T/K | 16 | M16X2.0 | 21 | 15 | 22 | 64 | 42 | 85 | 8 | 22 | 27 | 28.575 | 28 | 15 | 28.5 | 39.0 | 0.220 |
| SI 16-1T/K | 16 | M16X1.5 | 21 | 15 | 22 | 64 | 42 | 85 | 8 | 22 | 27 | 28.575 | 28 | 15 | 28.5 | 39.0 | 0.220 |
