US$ 0.69 - 0.85 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Brand Name:
CLUNT
Bore Size:
12,
Model Number:
Spherical Plain Bearing
Contact Supplier Request Quote Chat Now
Jinan Kelunte Bearing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shenzhen Shanghai Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name CLUNT
Bore Size 12,
Model Number Spherical Plain Bearing
Place of Origin Shandong, China
Precision Rating P0 P6 P5 P4 P2

 GE series bearings Spherical Plain Bearing GE12C GE12E

GE series bearings Radial Spherical Plain Bearing GE12C GE12E

Product Description

 GE series bearings Radial Spherical Plain Bearing GE12C GE12E

China Factory Joint Bearings
Plain Bearing simple structure than the rolling bearing, which is mainly composed of an inner and outer sphere within a spherical outer ring. Bearings are generally used for lower-speed swing motion (ie angular motion), the sliding surface of the spherical shape, but also for the tilt angle within a certain range of motion (ie, aligning movement), the support shaft misalignment and shaft housing bore large degree, still work.
our serives

Products name

rod end bearing

Brand  name

Imported brand  or customized to the customer's brand

Series

PHS,SI.POS GE, grease nipple type , standard grease nipple ,

ball joint male thread , copper threaded rod, threaded rod internal thread

ID  size

18-23mm

Cage  material

rubber , steel

Precision

PO  P6

Sealing

Open

Quality standard

ISO9001:2000 standard

Service

OEM &ODM service

Delivery  date

5-20 days

Paymentterms

A:TT

B:PayPal

C:Western union

Application

Auto, tractor ,machine tool, electric machine, water pump, agricultural machinery and textile machinery

Packing

Industrial packing  or according to buyers’ requirement

BRAND

CLUNT

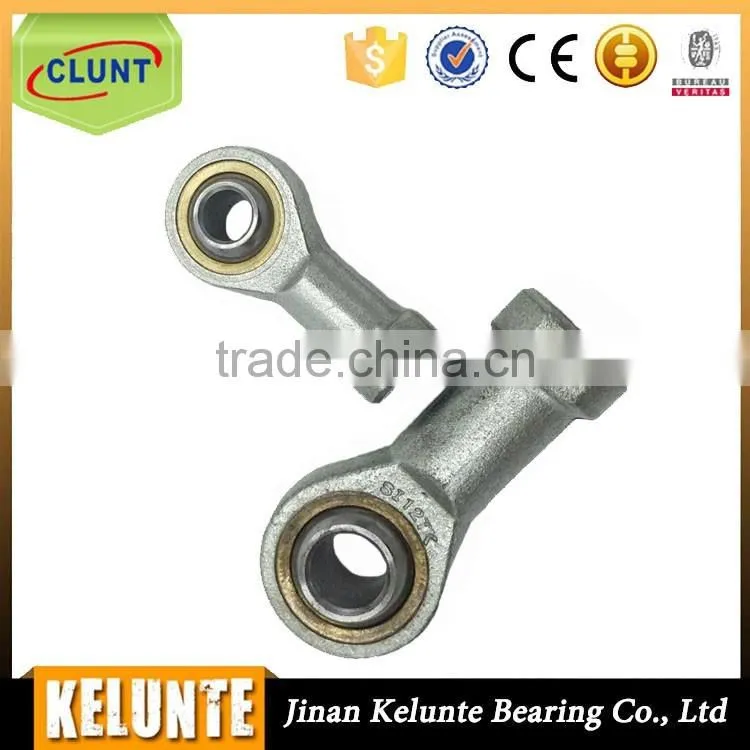

PHS series roe end bearing

type  Dimensions(mm) a

weight

  (g )
d d3 d2 d5 S     B L5 C1  h1 L3 d4  L4
PHSA5 5 M5x0.8 18 12.5 10 8 4 6 27 10 9 36 13 25
PHSA6 6 M6x1 20 13 11 9 5 6.75 30 12 10 45 13 27
pHSA8 8 M8x1.25 24 16 14 12 5 9 36 16 12.5 48 13 46
PHSA10 10 M10x1.5 28 19 17 14 6.5 10.5 43 20 15 57 13 76
PHSA12 12 M12x1.75 32 22 19 16 6.5 12 50 22 17.5 66 13 115
PHSA14 14 M14x2 36 25 55 19 8 13.5 57 25 20 75 13 170
PHSA16 16 M16x2 42 27 25 21 8 15 64 28 22 84 13 230
PHSA18 18 M18x1.5 46 31 27 23 10 16.5 71 32 25 94 13 320
PHSA20 20 M20x1.5 50 34 30 25 10 18 77 33 27.5 102 13 420
PHSA22 22 M22x1.5 54 37 32 28 12 20 84 37 30 111 13 540
PHSA25 25 M24x2 60 42 30 31 12 22 94 42 33.5 124 13 750
PHSA28 28 M27x2 66 46 41 35 14 24 103 41 37 136 13 820
PHSA30 30 M30x2 70 50 41 37 15 25 110 51 40 145 13 1300







POS series roe end bearing

type  Dimensions(mm) a  weight(g )
d d3 d2  B C1  h L1 L2
POSA5 5 M5x0.8 18 8 6 33 19 42 13 20
POSA6 6 M6x1 20 9 6.75 36 22 46 13 21
POSA8 8 M8x1.25 24 12 9 42 25 54 13 34
POSA10 10 M10x1.5 28 14 10.5 48 29 62 13 58
POSA12 12 M12x1.75 32 16 12 54 33 70 13 92
POSA14 14 M14x2 36 19 13.5 60 26 77 13 153
POSA16 16 M16x2 42 21 15 66 40 86 13 205
POSA18 18 M18x1.5 46 23 16.5 72 44 95 13 280
POSA20 20 M20x1.5 50 25 18 78 47 103 13 370
POSA22 22 M22x1.5 54 28 20 84 51 111 13 475
POSA25 25 M24x2 60 31 22 94 57 124 13 650
POSA28 28 M27x2 66 35 24 103 62 136 13 800
POSA30 30 M30x2 70 37 25 110 66 145 13

1070

Other code of spherical plain bearing
 GE series bearings Radial Spherical Plain Bearing GE12C GE12E

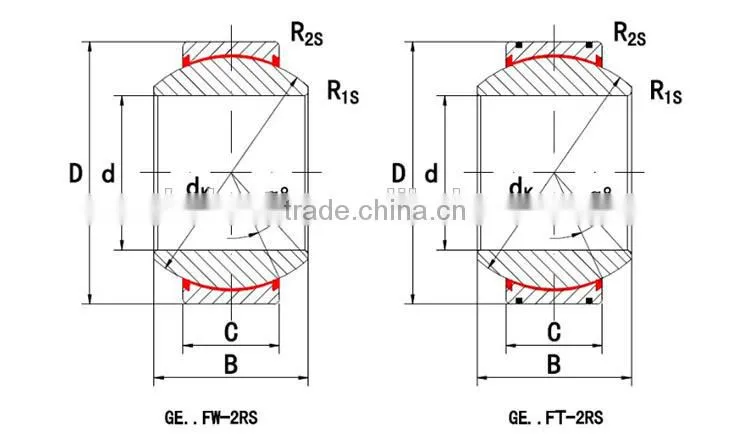

Type
 Dimension(mm) Load(KN) Weight(kg)
  d D B C dk R1s R2s α Dynamic Static
            min min ≈ C C0
GE15FW2RS 15 30 16 10 25 0.3 0.3 16 22.4 56 0.046
GE17FW2RS 17 35 20 12 29 0.3 0.3 19 31.5 78 0.078
GE20FW2RS 20 42 25 16 35.5 0.6 0.6 17 51 127 0.15
GE25FW2RS 25 47 28 18 40.7 0.6 0.6 17 65.5 166 0.19
GE30FW2RS 30 55 32 20 47 0.6 1 17 210 350 0.29
GE35FW2RS 35 62 35 22 53 0.6 1 16 277 462 0.39
GE40FW2RS 40 68 40 25 60 0.6 1 17 360 600 0.52
GE45FW2RS 45 75 43 28 66 0.6 1 15 442 737 0.68
GE50FW2RS 50 90 56 36 80 0.6 1 17 690 1150 1.4
GE60FW2RS 60 105 63 40 92 1 1 17 885 1475 2
GE70FW2RS 70 120 70 45 105 1 1 16 1125 1875 2.9
GE80FW2RS 80 130 75 50 115 1 1 14 1380 2300 3.5
GE90FW2RS 90 150 85 55 130 1 1 15 1717 2862 5.4
GE100FW2RS 100 160 85 55 140 1 1 14 1845 3075 6
GE110FW2RS 110 180 100 70 160 1 1 12 2685 4475 9.7
GE120FW2RS 120 210 115 70 180 1 1 16 3015 5025 14
GE140FW2RS 140 230 130 80 200 1 1 16 3840 6400 19
GE160FW2RS 160 260 135 80 225 1.1 1.1 16 4320 7200 24.7
GE180FW2RS 180 290 155 100 250 1.1 1.1 14 6000 10000 35.9
GE200FW2RS 200 320 165 100 275 1.1 1.1 15 6600 11000 45.3
GE220FW2RS 220 340 175 100 300 1.1 1.1 16 7200 12000 51.1
GE240FW2RS 240 370 190 110 325 1.1 1.1 15 8550 14250 65.1
GE260FW2RS 260 400 205 120 350 1.1 1.1 15 10050 16750 82.4
GE280FW2RS 280 430 210 120 375 1.1 1.1 15 10800 18000 97.2





Features:

  1. Operating Temperature Range: -30 Deg C to + 80 Deg C long term short term up to +120 Deg C
  2. Materials: Ball material Gcr15 hardened Chrome steel ball (58-64 HRC) ,
  3. Housing: s45c (54-60 HRC)
  4. Uses: They are suitable for rotary, oscillating and linear movements and are light weight.
  5. Tolerances: They are manufactured in accordance to DIN ISO 12240
  6. Benefits: Corrosion and chemical resistant, lightweight, stiff, dry operation, maintenance free

Product Picture



GE series bearings Radial Spherical Plain Bearing GE12C GE12EGE series bearings Radial Spherical Plain Bearing GE12C GE12EGE series bearings Radial Spherical Plain Bearing GE12C GE12EGE series bearings Radial Spherical Plain Bearing GE12C GE12E







company information

GE series bearings Radial Spherical Plain Bearing GE12C GE12EGE series bearings Radial Spherical Plain Bearing GE12C GE12EGE series bearings Radial Spherical Plain Bearing GE12C GE12EGE series bearings Radial Spherical Plain Bearing GE12C GE12E



package & shipping

GE series bearings Radial Spherical Plain Bearing GE12C GE12EGE series bearings Radial Spherical Plain Bearing GE12C GE12E



FAQ

GE series bearings Radial Spherical Plain Bearing GE12C GE12E

 GE series bearings Radial Spherical Plain Bearing GE12C GE12E
