Help Center4mm Stainless Steel Ball Bearigs 4mm Inner Diameter Bearings
Related Products
-
Cheap Double Seal Deep Groove Ball Bearing 6308 Used in Chery Car PartsUS$ 2.78 - 2.78MOQ: 100 Pieces -
Air Conditioner Bearing Agents 6410US$ 2 - 2MOQ: 10 Sets
-
6006 2rs Bearing Manufacturer 6006 2rs c3 Bearing 6006-2rs Stainless SteelUS$ 0.85 - 1.11MOQ: 1 Piece
-
Chinese Thin Section Chrome Stell ABEC-5 Deep Groove Ball Bearings 6001-ZZUS$ 0.82 - 0.82MOQ: 200 Pieces
-
608-2rs/608 2rs Ball Bearing 608rs Ball Bearing 608 rs Deep Groove Ball BearingUS$ 0.036 - 0.036MOQ: 1 Piece
What is the specifications of Deep groove ball bearings?
| Model Number | Bearing series 6000 6200 6300 6800 6900 16000 series Bearings |
| Type | Ball Bearing |
| Inner size range | 1-500 mm |
| Outer size range | 3-800mm |
| Cage and material | TH glass fiber reinforced phenolic resin/ Pressed Steel & Brass |
| Row number | Single row & Double row |
| Bearing material | Chrome steel(bearing steel), Gcr15, Stainless steel, Ceramic, Plastic are all available |
| Raceway | Deep Groove Raceway |
| Usage | These deep groove ball bearing products are widely used in metallurgy, power, petrochemical, construction machinery, railway, steel, papermaking, cement, mining and other industries. They are widely used of vehicles, motorcycles, home electrical appliances, electric tools and mineral machineries. With adequate supply, large stock and convenient transportation, we warmly welcome new customers to visit us. |
| Features |
Deep Groove ball bearings are the most popular of all the ball bearing types because they are available in a wide variety of seal, shield and snap-ring arrangements.The bearing ring grooves are circular arcs made slightly larger than the radius of the ball. The balls make point contact with the raceways (elliptical contact when loaded). The inner ring shoulders are of equal height (as the outer ring shoulders). Deep Groove ball bearings can sustain radial, axial, or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. Standard ball retainers (cages) are made from pressed steel. Machined cages are used in bearing operation at very high speed or for large diameter bearings. |

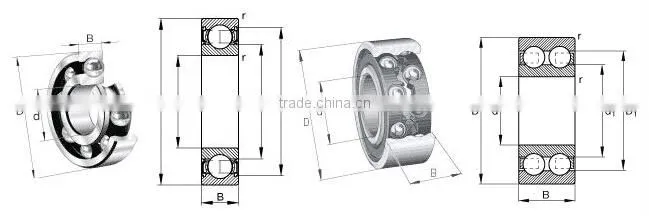

| Deep groove ball bearing types |
1, single row deep groove ball bearings 2, single row deep groove ball bearings with dust cover |
6000 series deep groove ball bearings
| N0. | Bore |
O.D | Width | Chamfer | Load Rating | Maximuum Seed | Weight | ||
mm |
mm | mm | mm |
Dynamic Cr |
Static Cor |
Grease r/min |
Oil r/min |
Kg/pcs | |
| 604 | 4 | 12 | 4 | 0.2 | 0.97 | 0.36 | 36000 | 44000 | 0.0021 |
| 605 | 5 | 14 | 5 | 0.2 | 1.33 | 0.505 | 32000 | 40000 | 0.0035 |
| 606 | 6 | 17 | 6 | 0.3 | 2.19 | 0.865 | 30000 | 38000 | 0.006 |
| 607 | 7 | 19 | 6 | 0.3 | 2.24 | 0.91 | 28000 | 36000 | 0.008 |
| 608 | 8 | 22 | 7 | 0.3 | 3.35 | 1.4 | 26000 | 34000 | 0.012 |
| 609 | 9 | 24 | 7 | 0.3 | 3.4 | 1.45 | 24000 | 32000 | 0.014 |
| 6000 | 10 | 26 | 8 | 0.3 | 4.55 | 1.96 | 22000 | 30000 | 0.019 |
| 6001 | 12 | 28 | 8 | 0.3 | 5.1 | 2.39 | 19000 | 26000 | 0.021 |
| 6002 | 15 | 32 | 9 | 0.3 | 5.6 | 2.83 | 18000 | 24000 | 0.03 |
| 6003 | 17 | 35 | 10 | 0.3 | 6.8 | 3.35 | 17000 | 22000 | 0.039 |
| 6004 | 20 | 42 | 12 | 0.6 | 9.4 | 5.05 | 15000 | 19000 | 0.069 |
| 6005 | 25 | 47 | 12 | 0.6 | 10.1 | 5.85 | 14000 | 18000 | 0.08 |
| 6006 | 30 | 55 | 13 | 0.6 | 13.2 | 8.3 | 12000 | 15000 | 0.116 |
| 6007 | 35 | 62 | 14 | 1.0 | 16 | 10.3 | 10000 | 14000 | 0.115 |
| 6008 | 40 | 68 | 15 | 1.0 | 16.8 | 11.5 | 8000 | 11000 | 0.19 |
6200 Series Miniature Deep Groove Ball Bearing
| N0. | Bore |
O.D | Width | Chamfer | Load Rating | Maximuum Seed | Weight | ||
mm |
mm | mm | mm |
Dynamic Cr |
Static Cor |
Grease r/min |
Oil r/min |
Kg/pcs | |
| 624 | 4 | 13 | 5 | 0.2 | 1.15 | 0.4 | 36000 | 45000 | 0.0032 |
| 625 | 5 | 16 | 5 | 0.3 | 1.76 | 0.680 | 32000 | 40000 | 0.0050 |
| 626 | 6 | 19 | 6 | 0.3 | 2.34 | 0.885 | 28000 | 36000 | 0.0080 |
| 627 | 7 | 22 | 7 | 0.3 | 3.35 | 1.400 | 26000 | 34000 | 0.0130 |
| 628 | 8 | 24 | 8 | 0.3 | 4.00 | 1.590 | 24000 | 32000 | 0.0170 |
| 629 | 9 | 26 | 8 | 0.3 | 4.55 | 1.960 | 22000 | 30000 | 0.0190 |
| 6200 | 10 | 30 | 9 | 0.6 | 5.10 | 2.390 | 19000 | 26000 | 0.0300 |
| 6201 | 12 | 32 | 10 | 0.6 | 6.10 | 2.750 | 18000 | 24000 | 0.0360 |
| 6202 | 15 | 35 | 11 | 0.6 | 7.75 | 3.600 | 17000 | 22000 | 0.0460 |
| 6203 | 17 | 40 | 12 | 0.6 | 9.60 | 4.600 | 16000 | 20000 | 0.0650 |
| 6204 | 20 | 47 | 14 | 1.0 | 12.80 | 6.650 | 14000 | 18000 | 0.1070 |
| 6205 | 25 | 52 | 15 | 1.0 | 14.00 | 7.850 | 12000 | 16000 | 0.1250 |
| 6206 | 30 | 62 | 16 | 1.0 | 19.50 | 11.300 | 10000 | 13000 | 0.2010 |
6300 Series Miniature Deep Groove Ball Bearing
| N0. | Bore |
O.D | Width | Chamfer | Load Rating | Maximuum Seed | Weight | ||
mm |
mm | mm | mm |
Dynamic Cr |
Static Cor |
Grease r/min |
Oil r/min |
Kg/pcs | |
| 6300 | 10 |
35 | 11 | 0.6 | 8.2 |
3.5 |
18000 |
24000 |
0.053 |
| 6301 | 12 | 37 | 12 | 1.0 | 9.7 | 4.2 | 17000 | 22000 | 0.06 |
| 6302 | 15 | 42 | 13 | 1.0 | 11.4 | 5.45 | 16000 | 20000 | 0.082 |
| 6303 | 17 | 47 | 14 | 1.0 | 13.5 | 6.55 | 15000 | 19000 | 0.115 |
| 6304 | 20 | 52 | 15 | 1.1 | 15.9 | 7.9 | 14000 | 17000 | 0.144 |
6800 Series Miniature Deep Groove Ball Bearing
| N0.
|
Bore |
O.D | Width | Chamfer | Load Rating | Maximuum Seed | Weight | ||
mm |
mm | mm | mm |
Dynamic Cr |
Static Cor |
Grease r/min |
Oil r/min |
Kg/pcs | |
| 685 | 5 |
11 | 3 | 0.15 | 0.715 |
0.282 |
35000 |
45000 |
0.0011 |
| 686 | 6 | 13 | 3.5 | 0.15 | 1.08 | 0.44 | 33000 | 42000 | 0.0019 |
| 687 | 7 | 14 | 3.5 | 0.15 | 1.17 | 0.505 | 31000 | 40000 | 0.0021 |
| 688 | 8 | 16 | 4 | 0.2 | 1.61 | 0.715 | 29000 | 38000 | 0.0031 |
| 689 | 9 | 17 | 4 | 0.2 | 1.72 | 0.82 | 28000 | 36000 | 0.0032 |
| 6800 | 10 | 19 | 5 | 0.3 | 1.83 | 0.925 | 26000 | 34000 | 0.005 |
| 6801 | 12 | 21 | 5 | 0.3 | 1.92 | 1.04 | 22000 | 30000 | 0.006 |
| 6802 | 15 | 24 | 5 | 0.3 | 2.08 | 1.26 | 20000 | 28000 | 0.007 |
| 6803 | 17 | 26 | 5 | 0.3 | 2.23 | 1.46 | 19000 | 26000 | 0.008 |
| 6804 | 20 | 32 | 7 | 0.3 | 4 | 2.47 | 17000 | 22000 | 0.019 |
| 6805 | 25 | 37 | 7 | 0.3 | 4.3 | 2.95 | 15000 | 19000 | 0.022 |
| 6806 | 30 | 42 | 7 | 0.3 | 4.7 | 3.65 | 13000 | 17000 | 0.026 |
| 6807 | 35 | 47 | 7 | 0.3 | 4.9 | 4.05 | 11000 | 15000 | 0.029 |
6900 Series Deep Groove Ball Bearing
| N0.
|
Bore |
O.D | Width | Chamfer | Load Rating | Maximuum Seed | Weight | ||
mm |
mm | mm | mm |
Dynamic Cr |
Static Cor |
Grease r/min |
Oil r/min |
Kg/pcs | |
| 693 | 3 |
8 | 3 | 0.15 | 0.56 |
0.18 |
44000 |
52000 |
0.0006 |
| 694 | 4 | 11 | 4 | 0.15 | 0.715 | 0.276 | 38000 | 47000 | 0.0018 |
| 695 | 5 | 13 | 4 | 0.2 | 1.08 | 0.43 | 34000 | 43000 | 0.0024 |
| 696 | 6 | 15 | 5 | 0.2 | 1.35 | 0.53 | 32000 | 40000 | 0.0038 |
| 697 | 7 | 17 | 5 | 0.3 | 1.61 | 0.715 | 30000 | 38000 | 0.0052 |
| 698 | 8 | 19 | 6 | 0.3 | 1.99 | 0.865 | 28000 | 36000 | 0.0073 |
| 690 | 9 | 20 | 6 | 0.3 | 2.48 | 1.09 | 27000 | 34000 | 0.0082 |
| 6900 | 10 | 22 | 6 | 0.3 | 2.7 | 1.27 | 25000 | 32000 | 0.009 |
| 6901 | 12 | 24 | 6 | 0.3 | 2.89 | 1.46 | 20000 | 28000 | 0.011 |
| 6902 | 15 | 28 | 7 | 0.3 | 3.65 | 2 | 19000 | 26000 | 0.016 |
| 6903 | 17 | 30 | 7 | 0.3 | 4.65 | 2.58 | 18000 | 24000 | 0.018 |
| 6904 | 20 | 37 | 9 | 0.3 | 6.4 | 3.7 | 17000 | 22000 | 0.036 |
| 6905 | 25 | 42 | 9 | 0.3 | 7.05 | 4.55 | 14000 | 18000 | 0.042 |
| 6906 | 30 | 47 | 9 | 0.3 | 7.25 | 5 | 12000 | 16000 | 0.048 |
| 6907 | 35 | 55 | 10 | 0.3 | 9.55 | 6.85 | 10000 | 14000 | 0.074 |
China bearing manufacturer deep groove ball bearings

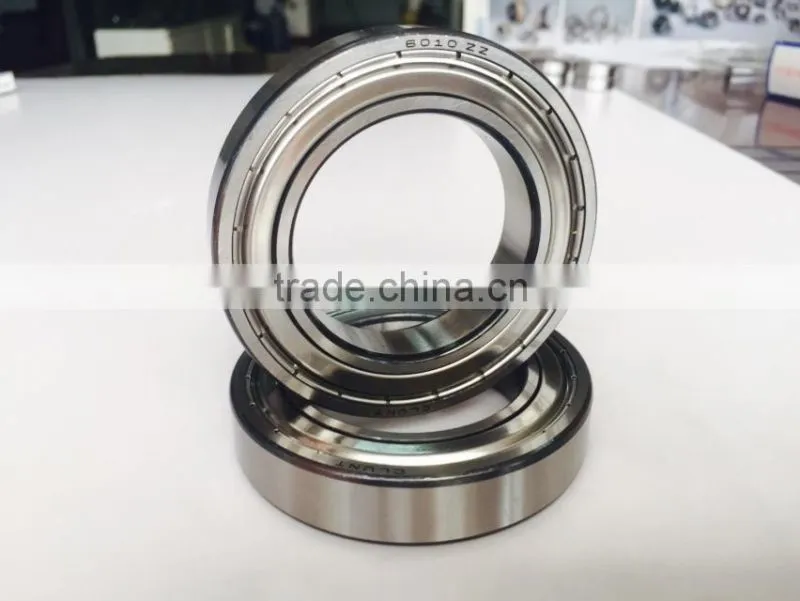

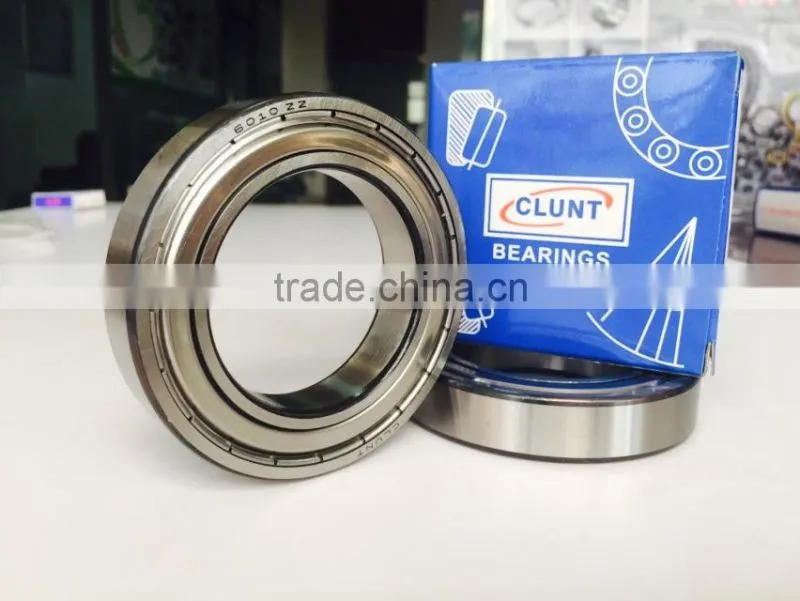

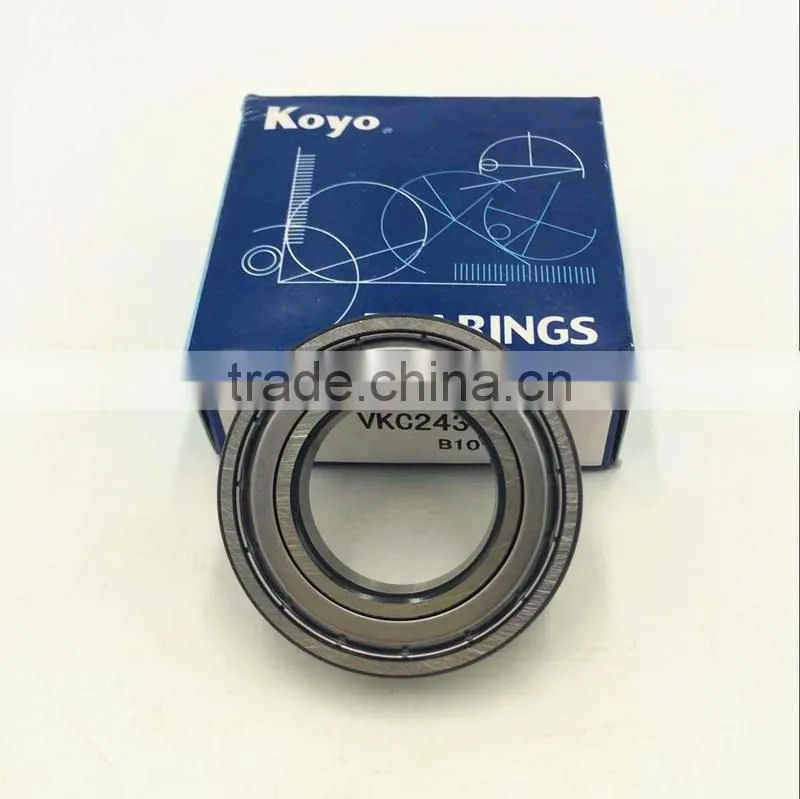

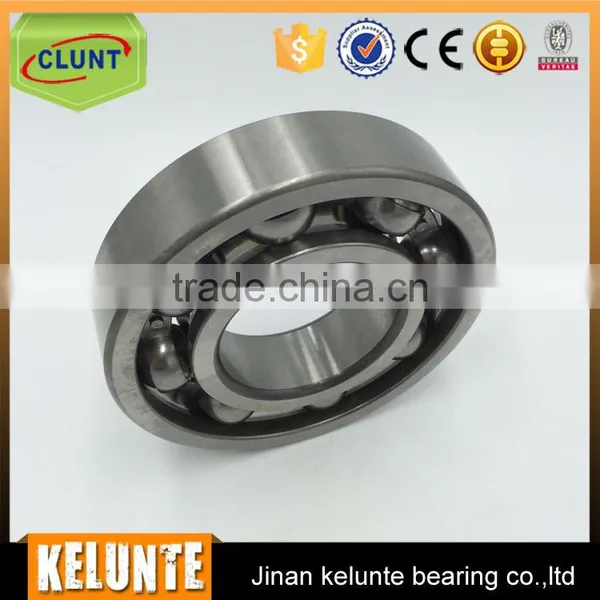

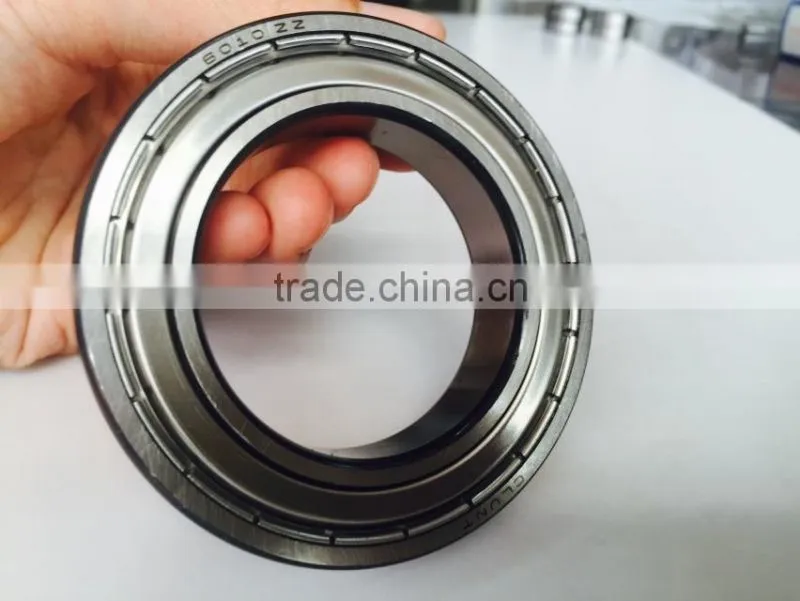

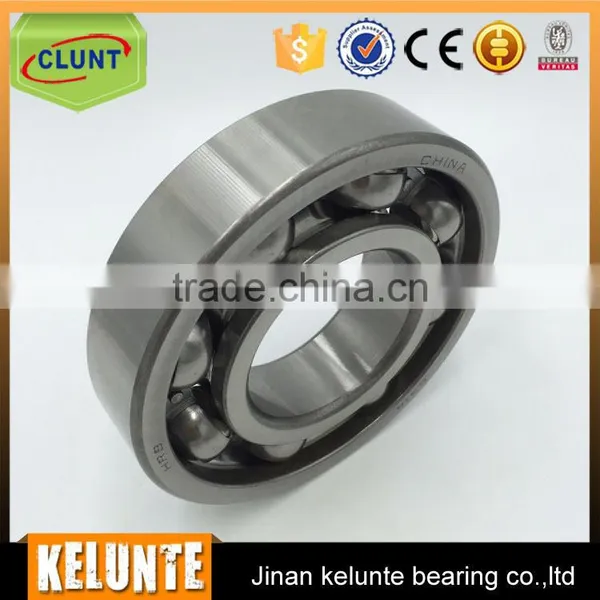

Bearing Pictures
My company equipment is advanced, leading the management level, the warehouse clean and orderly, mount guard after qualified staff skill training, greatly improve the quality of our products and reduce the production cost, follow up competitiveness in the bearing industry.Our company pays attention to technology innovation the technological innovation enables enterprises to form core competitiveness, and to keep a competitive strength.
1: Germany equipment,
2: dust-free workshop,
3: smokeless workshop,
4:5 s management system,
5: ERP warehouse outbound,
Welcome to visit our factory, and promote the communication and learning, and go further in the bearing industry .
Our company quality first gained international certification
International certification:
1: ISO9001:2000,
2: BV,
3: CC,
Inland certification:
1: Shandong star enterprise ,
2: Domestic well-known brand,
3: Five years gold supplier in Alibaba,
4: The key enterprises of "Jinan 11th Five-Year Plan"
China bearing manufacturer deep groove ball bearings
