Specifications
chrome steel6001-ZZ deep groove ball bearings1.Gcr15 material
2.Suitable for machinery
3.High speed
4.ISO:9001:2000

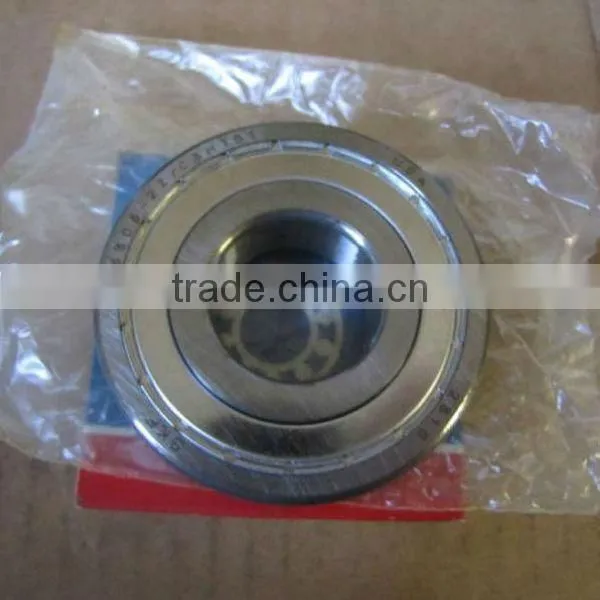

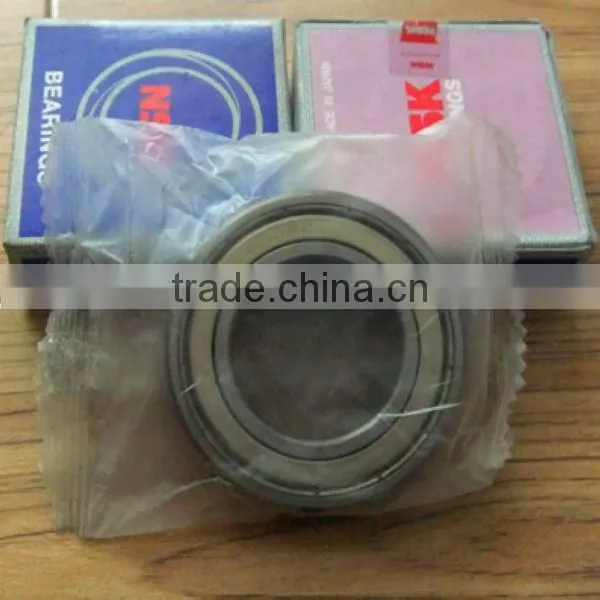

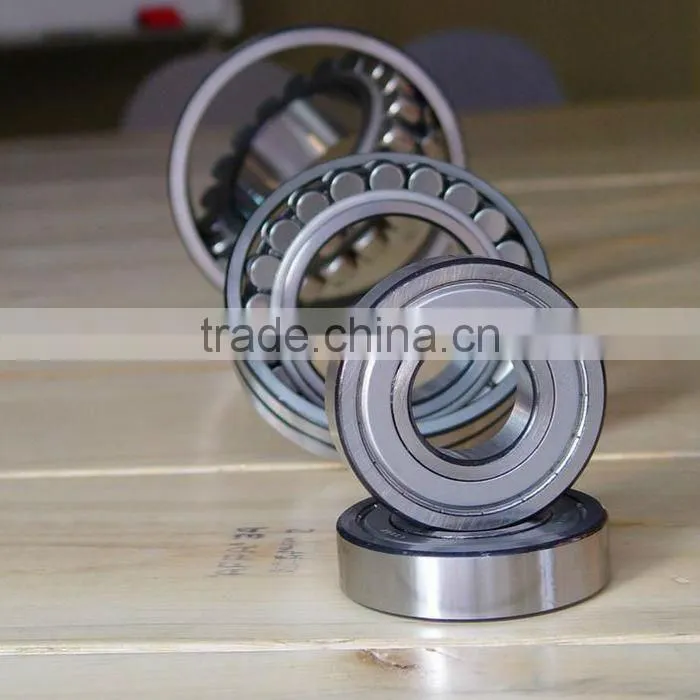

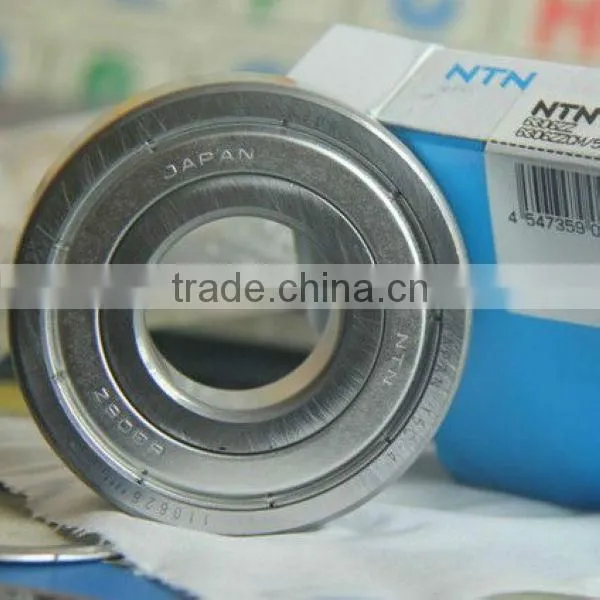

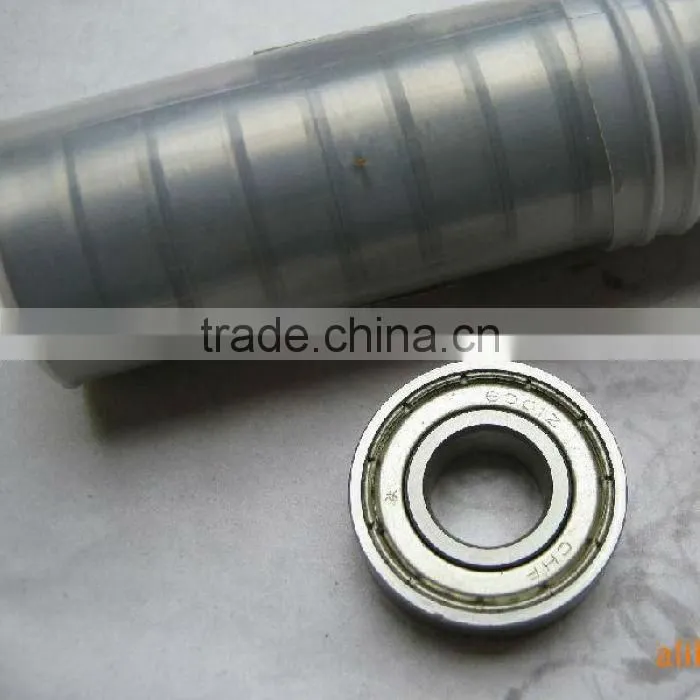

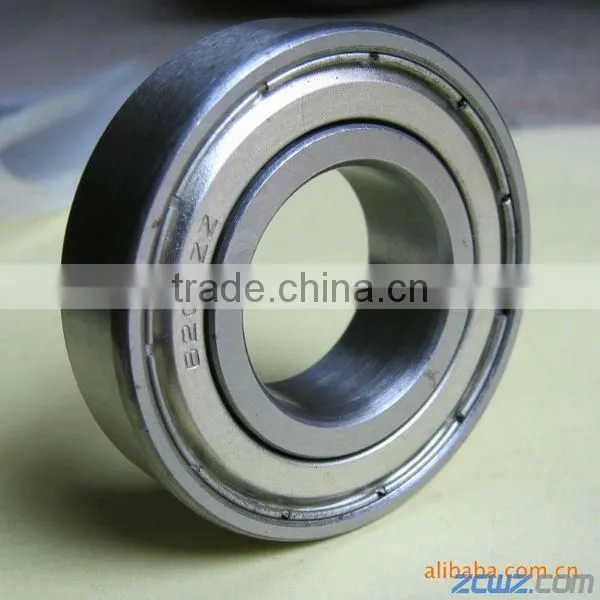

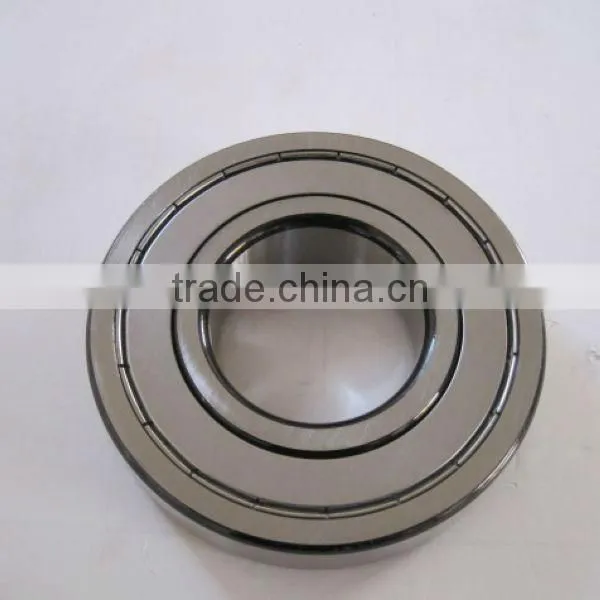

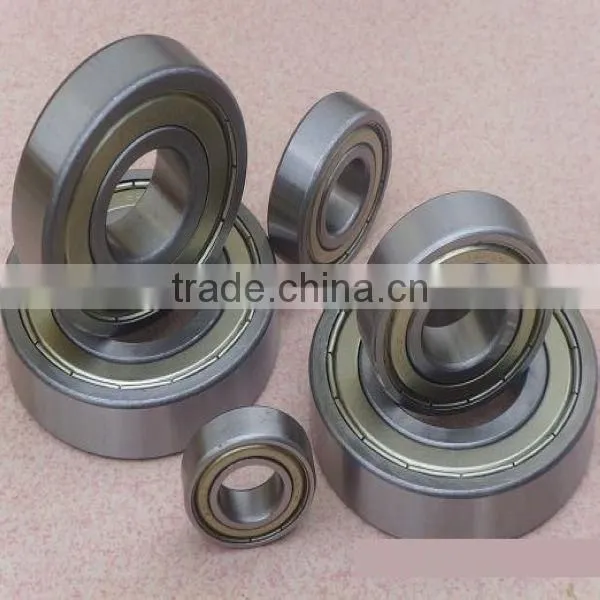

Chinese thin section chrome stell ABEC-5 deep groove ball bearings 6001-ZZ
1. Abstract of chrome steel 6001-ZZ deep groove ball bearings
Deep groove ball bearing is inseparable bearing; it can be subjected to radial load and some axial load. This kind of bearing has the characters of low friction, high limit speed, wide range of size and more structures, etc. It is one also the most common used bearings in mechanical industry
Deep groove ball bearings are non-separable and require little attention or maintenance in service, capable of operating at high speeds and are widely used radial bearings. The inner and outer ring of single row deep groove ball bearings have a deep groove raceway, the bearings are mainly used to carry radial loads and a part of axial loads in two directions. This kind of bearing can carry much heavy axial loads after the increase of radial clearance, thus, it can take the place of high speed angular contact ball bearings.
2.Specifications of chrome steel 6001-ZZ deep groove ball bearings
| Bearing Designation Open Seals |
6001 ZZ |
| d | 12 |
| D | 28 |
| B | 8 |
| r1 | 0.3 |
| Cr | 5.1 |
| Cor | 2.4 |
| Grease | 27000 |
| Oil | 32000 |
| da | 14 |
| Da | 26 |
| Mass(kg) | 0.022 |
3. Features of chrome steel 6001-ZZ deep groove ball bearings
Deep groove ball bearings are simple and quite easy to use. It has the largest production volume. It is mainly used for a bear radial load, but also bear certain axial load.
4.Applications of chrome steel 6001-ZZ deep groove ball bearings
Generally it can be used in the installation, seal, with no special requirements of the parts. It also can be used in the cars' rear, transmission, electrical device and so on like such instrument, what's more for internal combustion engines and parts, construction machinery, railway vehicles, loading/unloading machinery, agricultural machinery, and other various industrial machinery.
Advantages of chrome steel 6001-ZZ deep groove ball bearings 6001ZZ 6001-2RS 6001-Z 6001-RS
1. High accuracy, High speed.
2. ISO 9001:2008, CAS&UKAS.
3. According to customers special requirements.
4. standard and non-standard deep groove ball bearings.
5. competitive price.
6. Technology: low vibration, low noise, high precision and durability.
7. JINB exquisite packaging.
8. Material:GCr15
We not only supply with the highest quality goods at reasonable price but also provide good after-sales service."

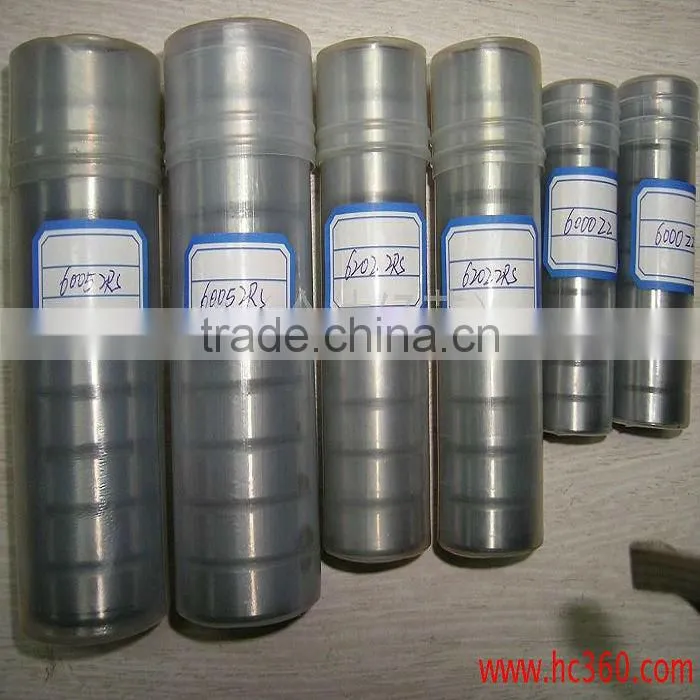

Packaging:
"Tube packing, antirust paper, Single box packing, cartons, wooden pallets.
The users who have any requirements in packing may write them down in the contract. "
"We have Open ,Z,ZZ,RS,2RS,RZ,2RZ,N,NZ,
The grades of our products are P0,P6,P5, P4,
The Vibrating grades are divided into Z1V1,Z2V2,Z3V3,
We produce 6000, 6200, 6300, 6800 and 6900 series,"
Model numbers of bearing
| Bearing No. | Main Dimension(mm) | Load Rating(KN) | Ball Complement | Max Runout Speed | Weight Kg | ||||||
| Bore B mm | Outer Diameter D mm | Width B mm | Radius Rsmin mm | Dynamic | Static | No. | Size mm | Grease r/m | Oil r/m | ||
| 6000 | 10 | 26 | 8 | 0.3 | 3.52 | 1.95 | 7 | 4.763 | 22000 | 30000 | 0.019 |
| 6001 | 12 | 28 | 8 | 0.3 | 3.93 | 2.23 | 8 | 4.763 | 19000 | 26000 | 0.021 |
| 6002 | 15 | 32 | 9 | 0.3 | 5.6 | 2.84 | 9 | 4.763 | 22000 | 26000 | 0.03 |
| 6003 | 17 | 35 | 10 | 0.3 | 6.8 | 3.35 | 10 | 4.763 | 22000 | 26000 | 0.039 |
| 6200 | 10 | 30 | 9 | 0.6 | 3.93 | 2.23 | 8 | 4.763 | 19000 | 26000 | 0.032 |
| 6201 | 12 | 32 | 10 | 0.6 | 6.1 | 2.75 | 7 | 5.953 | 22000 | 30000 | 0.037 |
| 6202 | 15 | 35 | 11 | 0.6 | 7.75 | 3.6 | 8 | 5.953 | 19000 | 26000 | 0.045 |
| 6203 | 17 | 40 | 12 | 0.6 | 9.6 | 4.6 | 8 | 6.747 | 18000 | 23000 | 0.066 |
