Cheap Double Seal Deep Groove Ball Bearing 6308 Used in Chery Car Parts

Cheap Double Seal Deep Groove Ball Bearing 6308 Used in Chery Car Parts thumbnail-1
Cheap Double Seal Deep Groove Ball Bearing 6308 Used in Chery Car Parts photo-1
US$ 2.78 - 2.78 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Brand Name:
CLUNT
Bore Size:
40,
Outside Diameter:
90,
Contact Supplier Request Quote Chat Now
Jinan Kelunte Bearing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name CLUNT
Bore Size 40,
Outside Diameter 90,
Model Number 6308
Precision Rating P0 P6 P5 P4 P2
Seals Type OPEN RS 2RS Z ZZ
Number of Row Single Row
Place of Origin Shandong, China

Specifications

cheap double seal ball bearing 6308
1.High loads capacity
2.Little maintenance
3.Non separable
4.ISO:9001:2000

Cheap double seal deep groove ball bearing 6308 used in chery car parts

Description of cheap double seal ball bearing 6308
Deep groove ball bearings are manufactured in a varied range, both of standard design and various constructive versions.
Deep groove ball bearings can take double direction radial and axial loads and also allow good operation at high speeds.

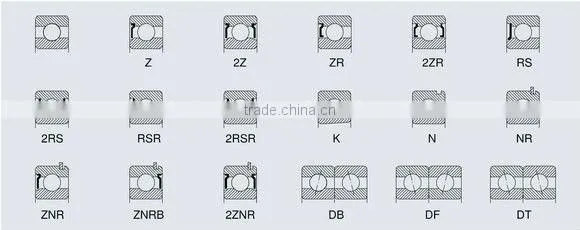

For these reasons, they can be widely used. Therefor, single row deep groove ball bearings are manufactured in many constructive versions as shown below.
Cheap double seal deep groove ball bearing 6308 used in chery car parts
Deep groove ball bearings are non-separable and require little attention or maintenance in service, capable of operating at high speeds and are widely used radial bearings. The inner and outer ring of single row deep groove ball bearings have a deep groove raceway, the bearings are mainly used to carry radial loads and a part of axial loads in two directions. This kind of bearing can carry much heavy axial loads after the increase of radial clearance, thus, it can take the place of high speed angular contact ball bearings.   Deep groove ball bearing have various types in structure, beside open type bearings, shield or seals at both side can also be provided

Cheap double seal deep groove ball bearing 6308 used in chery car parts

Cheap double seal deep groove ball bearing 6308 used in chery car parts

cheap double seal ball bearing 6308 Specifications




Ball Bearings 6308-2RS
40 x 90 x 23




6308-2RS Ball Bearings, the 6308RS inner diameter is 40 mm, 6308-2RS outer diameter is 90 mm and the 6308RS width is 23mm, 6308RS is a popular size that could be used in many applications, 6308RS Bearings are made of Chrome Steel,6308-2RS can rotate up to 5300 rpm,6308-2RS bearing has 2 Blue Rubber Seals to protect the bearing from dust or any possible contamination,6308-2RS bearings are pre-lubricated with grease.

  • Item: 6308-2RS Chrome Steel - Radial Deep Groove Ball Bearings
  • Size: 40mm x 90mm x 23mm 6308-2RS
  • Dimensions: 40*90*23 mm/Metric
  • Dynamic load rating Cr: 40,500 N
  • Static load rating Cor: 24,100 N
  • Limiting Speed:ID (inner diameter)/Bore=40mm
    • Grease Lubrication: 5,300 RPM
  • OD (outer diameter)=90mm
  • Width/Height/thickness=23mm
  • Equal: 6308-2RS1 & 6308-2RZ
  • 6308RS Type: Deep groove ball bearings
  • Closures: 2 Rubber Seals 6308RS
  • 6308-2RS Lubrication: Self Lubricated (Grease)
  • Quantity: One 6308RS
  • MARKING: 6308RS
  • Equal: 6308RS1, 63082RS



cheap double seal ball bearing 6308 Features

Deep groove ball bearings are versatile, self-retaining bearings with

solid outer rings, inner rings and ball and cage assemblies. They are of a simple design, robust in operation and easy to maintain.They are available in open and sealed designs. Due to the raceway geometry and the use of balls, deep groove ball bearings can support axial forces in both directions as well as radial forces.Deep groove ball bearings were specially developed in relation to low noise levels and low frictional torque. They are particularly suitable, for example, for use in electrical machinery, ventilators, washing machines and power tools.

 Items as follows

item

ID

OD

Width

chamfer

LOADING(KN)

BALL

RUN SPEED

WEIGHT

Dynamic

Static

No.

Size

Grease

Oil

KG

Cr

Cor

mm

r/min

r/min

6000

10

26

8

0.3

4.55

1.95

7

4.763

29000

34000

0.019

6001

12

28

8

0.3

5.1

2.39

8

4.763

26000

30000

0.021

6002

15

32

9

0.3

5.6

2.84

9

4.763

22000

26000

0.035

6003

17

35

10

0.3

6.8

3.35

10

4.763

20000

24000

0.04

6004

20

42

12

0.6

9.4

5.05

9

6.35

18000

21000

0.068

6005

25

47

12

0.6

10.1

5.85

10

6.35

15000

18000

0.079

6006

30

55

13

1

13.2

8.3

11

7.144

13000

15000

0.113

6007

35

62

14

1

16

10.3

11

7.938

12000

14000

0.149

6008

40

68

15

1

16.8

11.5

12

7.938

10000

12000

0.185

6009

45

75

16

1

21

15.1

12

8.731

9200

11000

0.231

 Cheap double seal deep groove ball bearing 6308 used in chery car partsCheap double seal deep groove ball bearing 6308 used in chery car partsCheap double seal deep groove ball bearing 6308 used in chery car partsCheap double seal deep groove ball bearing 6308 used in chery car parts

Cheap double seal deep groove ball bearing 6308 used in chery car parts





Cheap double seal deep groove ball bearing 6308 used in chery car parts

Cheap double seal deep groove ball bearing 6308 used in chery car partsCheap double seal deep groove ball bearing 6308 used in chery car partsCheap double seal deep groove ball bearing 6308 used in chery car partsCheap double seal deep groove ball bearing 6308 used in chery car partsCheap double seal deep groove ball bearing 6308 used in chery car parts

 Cheap double seal deep groove ball bearing 6308 used in chery car parts
