KOYO Combined Bearing / Needle Roller / Angular Contact Ball Bearing NKIB5919

KOYO Combined Bearing / Needle Roller / Angular Contact Ball Bearing NKIB5919 thumbnail-1
KOYO Combined Bearing / Needle Roller / Angular Contact Ball Bearing NKIB5919 thumbnail-2
KOYO Combined Bearing / Needle Roller / Angular Contact Ball Bearing NKIB5919 thumbnail-3
KOYO Combined Bearing / Needle Roller / Angular Contact Ball Bearing NKIB5919 thumbnail-4
KOYO Combined Bearing / Needle Roller / Angular Contact Ball Bearing NKIB5919 thumbnail-5
KOYO Combined Bearing / Needle Roller / Angular Contact Ball Bearing NKIB5919 thumbnail-6
KOYO Combined Bearing / Needle Roller / Angular Contact Ball Bearing NKIB5919 photo-1
KOYO Combined Bearing / Needle Roller / Angular Contact Ball Bearing NKIB5919 photo-2
KOYO Combined Bearing / Needle Roller / Angular Contact Ball Bearing NKIB5919 photo-3
KOYO Combined Bearing / Needle Roller / Angular Contact Ball Bearing NKIB5919 photo-4
KOYO Combined Bearing / Needle Roller / Angular Contact Ball Bearing NKIB5919 photo-5
KOYO Combined Bearing / Needle Roller / Angular Contact Ball Bearing NKIB5919 photo-6
US$ 28 - 43 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Brand Name:
KOYO
Bore Size:
45,
Outside Diameter:
68,
Contact Supplier Request Quote Chat Now
Jinan Kelunte Bearing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name KOYO
Bore Size 45,
Outside Diameter 68,
Model Number NKIB5909
Precision Rating P0 P6 P5 P4
Seals Type OPEN
Number of Row Single Row
Place of Origin Shandong, China

KOYO combined bearing / needle roller / angular contact ball bearing NKIB5919

Product Description

KOYO combined bearing / needle roller / angular contact ball bearing NKIB5919

Needle Roller Bearing overview

 Needle roller bearings have a high load carrying capacity in addition to their low cross-section and stiffness. They are especially suitable for bearing arrangements where radial space is limited. Because needle roller bearings only carry pure radial load and can not limit the axial displacement of shaft relative to the housing. It is important to ensure that inner ring axis and outer ring axis must be aligned during mounting the bearings





Characteristics and use of combination bearing





With the development of science and technology, in order to save materials and space, reduce the design, manufacturing, installation and commissioning of the workload, improve accuracy, reduce the cost, shorten the production cycle, bearing positive combination bearing (some fixed with bearing as a whole combination of bearings, such as combined needle roller and thrust roller bearing and bearing unit direction)





Specifications of  needle bearing NKIB5909



d 45  mm
D 68  mm
B 34  mm

C 30  mm
F 52  mm
rmin 0,6  mm

m 150  g  Mass
Cr 51000  N  Basic dynamic load rating, radial
C0r 73000  N  Basic static load rating, radial
Ca 9600  N  Basic dynamic load rating, axial
C0a 21400  N  Basic dynamic load rating, axial
Cur 12600  N  Fatigue limit load, radial
Cua 950  N  Fatigue limit load, axial
nG 8700  1/min  Limiting speed
nB 7000  1/min  Reference speed



Main products

Light series needle roller bearings (NK,NKI,NKS,NKIS)
Heavy series needle roller bearings (NA,RNA,RNA-RS,RNA-2RS)
Curve needle rollers (KR,CF,CR,CNBH)
Strut needle rollers (NART,NUTR,CCYR,STO,RSTO,NAST-ZZ)
Not obstructs side needle roller bearings(NAO,RNAO)
Needle roller-thrust ball bearings (NX,NX-Z,NKX,NKX-Z)
Needle roller-thrust cylindrical bearings (NKXR,NKXR-Z)
Radial needle roller-thrust cylindrical needle roller bearings (ZARN)
Thrust-cylindrical needle roller bearings (811,812,WS,GS)
Needle rollers and cages (K,KR,KS,KBK,KZK)
Drawn cup needle roller clutches and assemblies (HF,HFL)



Numbers of needl roller bearings



Combined needle roller/angular contact ball bearings-NKIA, NKIB
Bearing Dimension (mm)     Redial load (N)     Limiting speed Mass
No. d F D B Cr Cor Ca Co rpm (g)
NKIA 5901 12 16 24 16 5047 6352 2010 1620 23000 40
NKIA 5902 15 20 28 18 8400 9600 2140 2070 21000 50
NKIA 5903 17 22 30 18 8800 10600 2340 2370 20000 56
NKIA 5904 20 25 37 23 18000 21000 3140 3900 17000 103
NKIA 59/22 22 28 39 23 19500 25500 3550 4200 15000 118
NKIA 5905 25 30 42 23 20500 27000 3600 4800 14000 130
NKIA 5906 30 35 47 23 22500 31500 4050 5400 13000 147
NKIA 5907 35 42 55 27 28000 46000 5700 7500 11000 243
NKIA 5908 40 48 62 30 39000 55050 6000 8900 9000 315
NKIA 5909 X 45 52 68 30 40500 68900 6300 10500 8500 375
NKIA 5910 X 50 58 72 30 42500 75000 6890 11800 8000 380
NKIA 5911 55 63 80 34 50800 96000 8050 14500 7000 550
NKIA 5912 60 68 85 34 56400 98000 9500 15800 6500 590
NKIA 5913 X 65 72 90 34 57500 106000 9800 17000 6500 635
NKIA 5914 70 80 100 40 79050 152000 11800 22500 5500 980
NKIB 5901 12 16 24 16 7600 8300 2160 1940 23000 43
NKIB 5902 15 20 28 18 10600 13600 2340 2370 21000 52
NKIB 5903 17 22 30 18 11000 14600 2500 2750 20000 58
NKIB 5904 20 25 37 23 21000 25500 3950 4200 17000 107
NKIB 59/22 22 28 39 23 22800 29500 4250 4850 15000 122
NKIB 5905 25 30 42 23 23600 31500 4350 5200 14000 134
NKIB 5906 30 35 47 23 25000 35500 4750 6300 13000 151
NKIB 5907 35 42 55 27 31500 50000 6000 8400 11000 247
NKIB 5908 40 48 62 30 43000 67000 7400 10900 9000 320
NKIB 5909 X 45 52 68 30 45000 73000 7700 12000 8500 380
NKIB 5910 X 50 58 72 30 47000 80000 8100 13700 8000 385
NKIB 5911 55 63 80 34 58000 100000 9700 16600 7000 555
NKIB 5912 60 68 85 34 60000 108000 10000 17900 6500 595
NKIB 5913 X 65 72 90 34 61000 112000 10300 19300 6500 640
NKIB 5914
 70 80 100 40 84000 156000 13500 25000

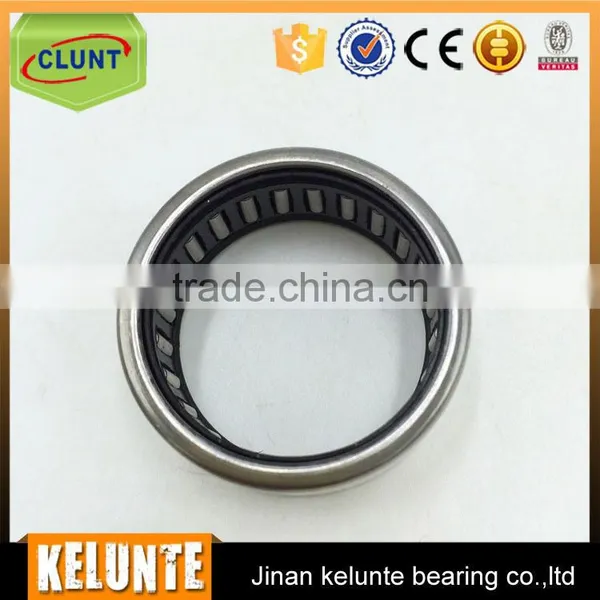

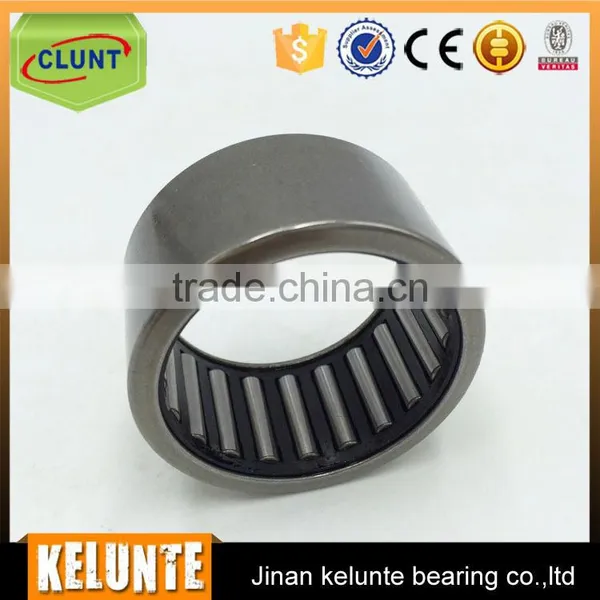

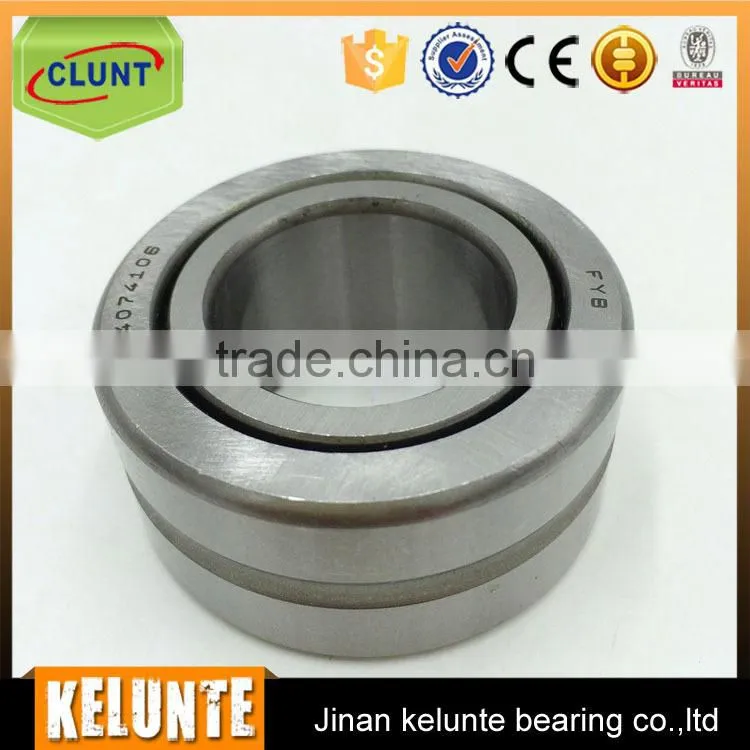

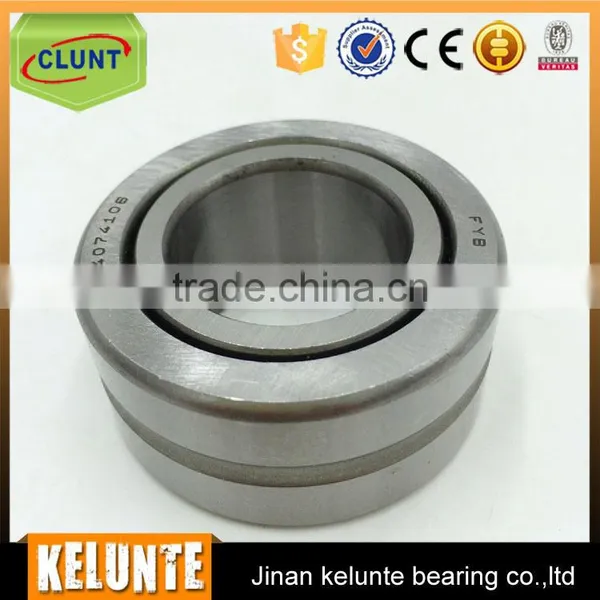

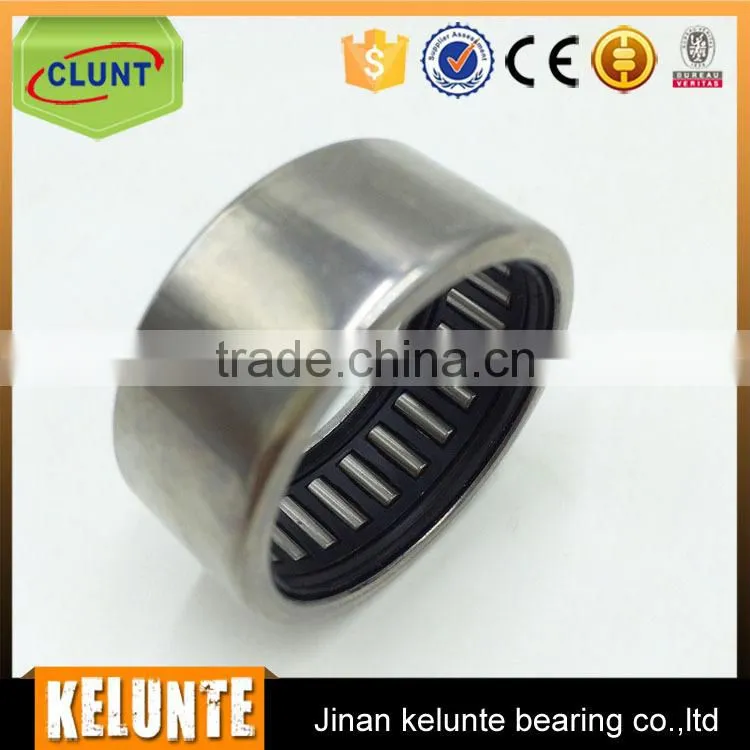

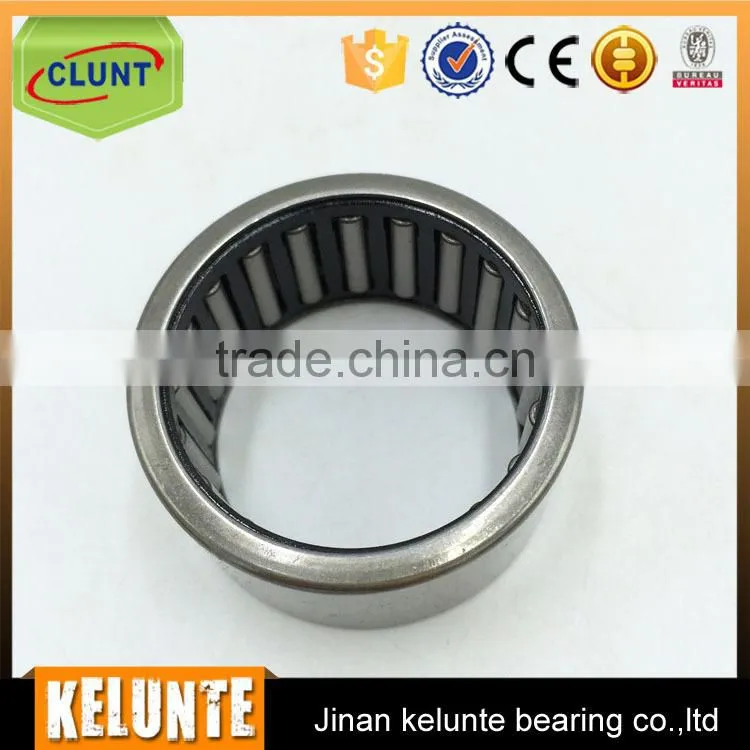

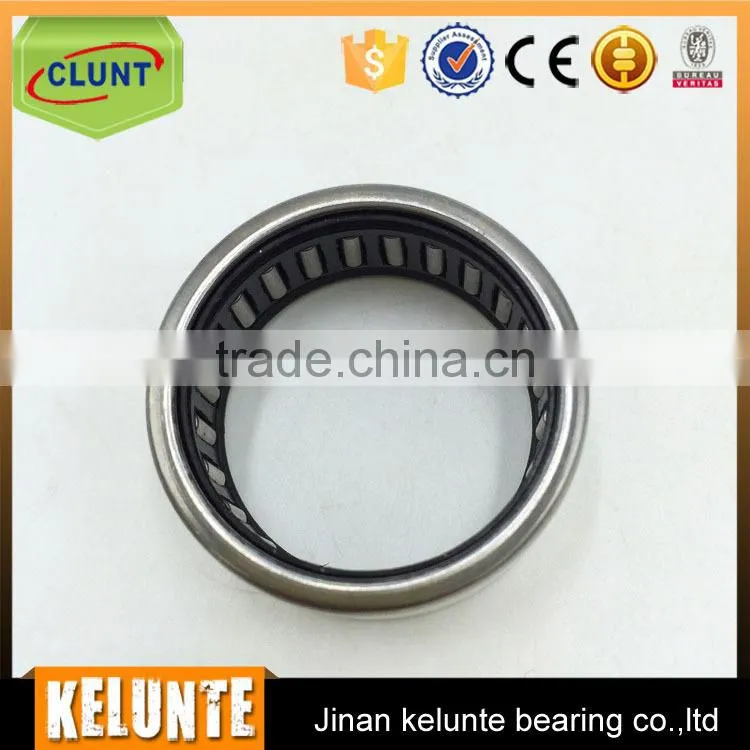

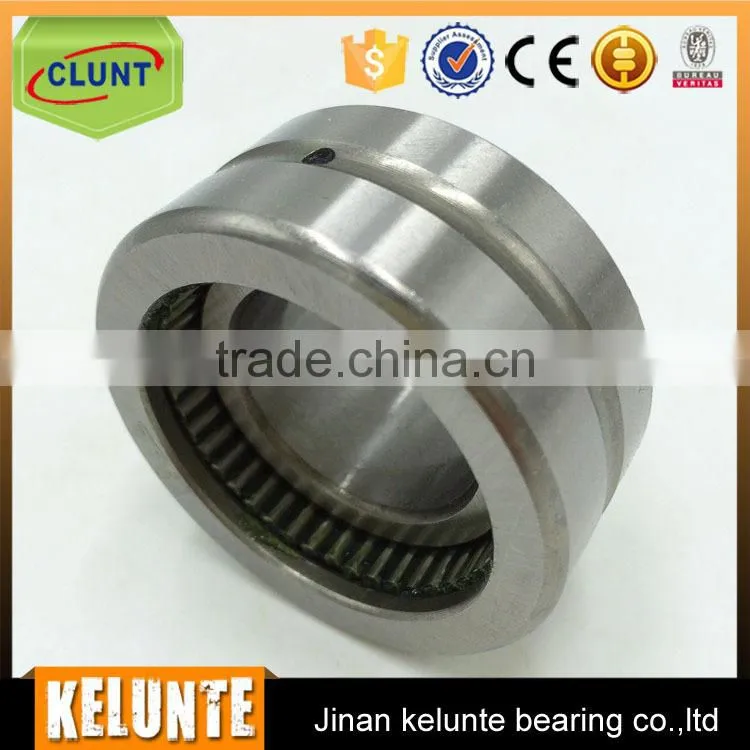

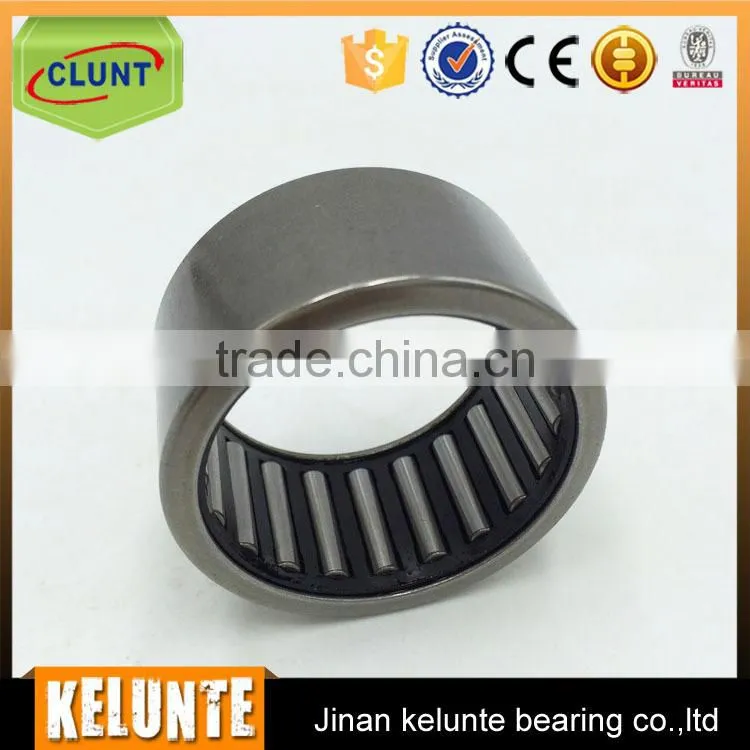

Pictures of product

 KOYO combined bearing / needle roller / angular contact ball bearing NKIB5919KOYO combined bearing / needle roller / angular contact ball bearing NKIB5919KOYO combined bearing / needle roller / angular contact ball bearing NKIB5919KOYO combined bearing / needle roller / angular contact ball bearing NKIB5919KOYO combined bearing / needle roller / angular contact ball bearing NKIB5919KOYO combined bearing / needle roller / angular contact ball bearing NKIB5919

Company Information

KOYO combined bearing / needle roller / angular contact ball bearing NKIB5919KOYO combined bearing / needle roller / angular contact ball bearing NKIB5919KOYO combined bearing / needle roller / angular contact ball bearing NKIB5919

Packaging & Shipping

KOYO combined bearing / needle roller / angular contact ball bearing NKIB5919

Our Services
We are 100% manufacture. We can supply you technical support.
We have strict quality control processes. We supply high quality bearings with fair price.
We accept small quantity.
We may supply other globle brand bearings and offer buyer labels.
We can manufacture any bearings according to customer's drawings
