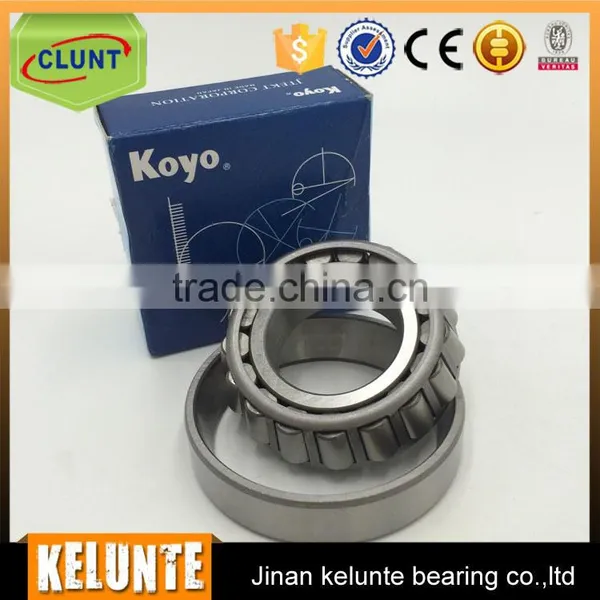

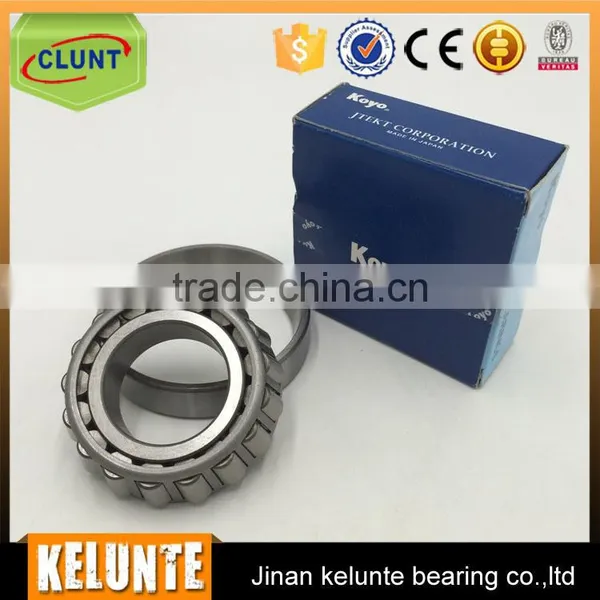

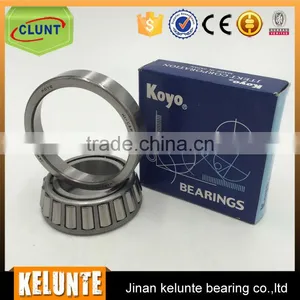

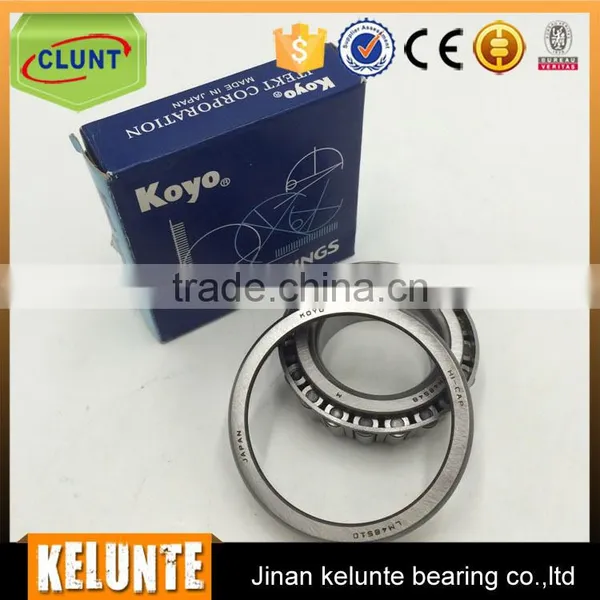

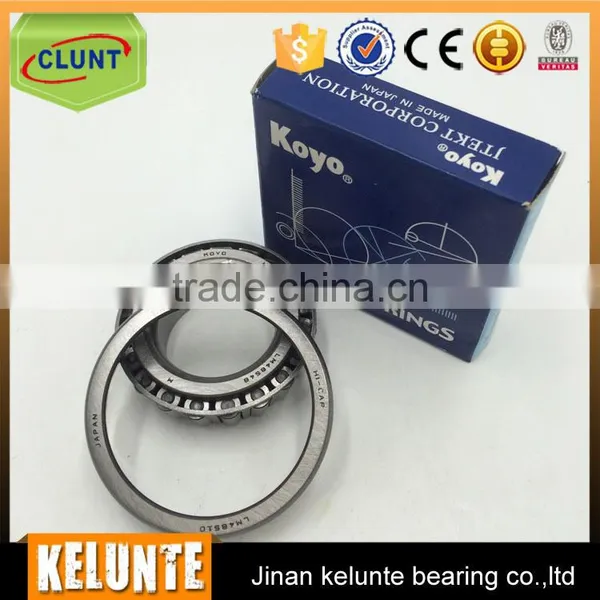

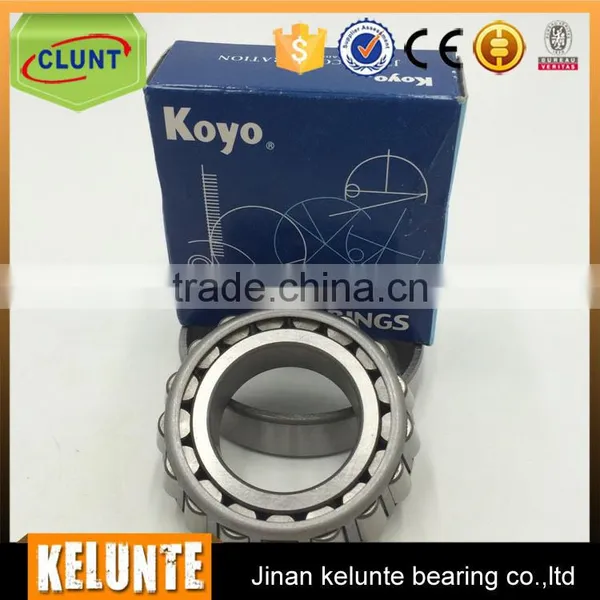

Help CenterKoyo 31318 Taper Roller Bearing 31318 Bearing
Related Products
-
KOYO Combined Bearing / Needle Roller / Angular Contact Ball Bearing NKIB5919US$ 28 - 43MOQ: 50 Pieces -
Original Koyo Needle Roller Bearings Imported From Japan / Precision Needle Bearing HK3012US$ 0.5 - 1.4MOQ: 100 Pieces
-
KOYO Rollway Cylindrical Roller Bearing NU2314E With 70X150X51MMUS$ 25 - 30MOQ: 20 Pieces
-
Koyo Sealed Wheel Bearing 6324 Deep Groove Ball Bearing With Oil SealsUS$ 45 - 45MOQ: 20 Pieces
-
KOYO Double Row Spherical Roller Bearing 22208 22208KUS$ 15 - 25MOQ: 50 Pieces
Tapered Roller Bearing has a conical inner and outer ring raceway, Tapered Roller arranged in between, all conical surface projection lines in the bearing axis to meet the same point, this design enables Tapered Roller Bearing particularly suited to bear composite (radial and axial) loads. Tapered Roller Bearings can best way to stress distribution in the Roller Raceway contact with the surface, thereby enhancing the reliability and affordability of error of perspective. LHB provides a wide range of sizes series of Tapered Roller Bearings, single row, matching single, double row, and four Tapered Roller Bearings can meet a wide range of applications.
Specifications of KOYO taper roller bearing 31318
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

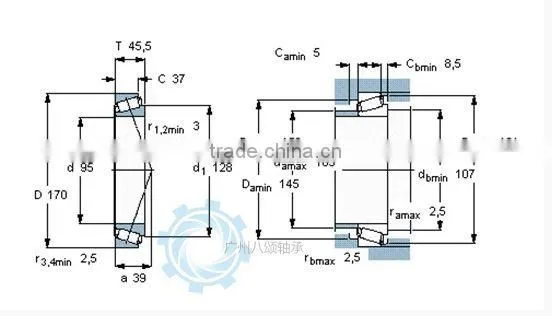

Drawings
Numbers of taper roller bearings
Single-row Taper Roller Bearings | |||||||||
Bearing numbers |
Boundary dimensions(mm) |
Basic load ratings(KN) |
Mass |
||||||
|
d |
D |
T |
B |
C |
rsmin |
Cr |
Cor |
kg |
30210 |
50 |
90 |
21.75 |
20 |
17 |
1.5 |
77 |
93 |
0.563 |
32010 |
50 |
80 |
20 |
20 |
15.5 |
1 |
62.5 |
88 |
0.366 |
30310 |
50 |
110 |
29.25 |
27 |
23 |
2.5 |
133 |
152 |
1.31 |
32210 |
50 |
90 |
24.75 |
23 |
19 |
1.5 |
87.5 |
109 |
0.648 |
32310 |
50 |
110 |
42.25 |
40 |
33 |
2.5 |
184 |
232 |
1.92 |
33010 |
50 |
80 |
24 |
24 |
19 |
1 |
69.5 |
103 |
0.433 |
33110 |
50 |
85 |
26 |
36 |
20 |
1.5 |
86.5 |
121 |
0.58 |
33210 |
50 |
90 |
32 |
32 |
24.5 |
1.5 |
115 |
158 |
0.852 |
31310 |
50 |
110 |
29.25 |
27 |
19 |
2.5 |
108 |
128 |
1.21 |
|
|
|
|
|
|
|
|
|
|
30211 |
55 |
100 |
22.75 |
21 |
18 |
2 |
93 |
111 |
0.74 |
30311 |
55 |
120 |
31.5 |
29 |
25 |
2.5 |
155 |
179 |
1.66 |
32011 |
55 |
90 |
23 |
23 |
17.5 |
1.5 |
80.5 |
118 |
0.563 |
32211 |
55 |
100 |
26.75 |
25 |
21 |
2 |
108 |
134 |
0.876 |
32311 |
55 |
120 |
45.5 |
43 |
35 |
2.5 |
215 |
275 |
2.44 |
33011 |
55 |
90 |
27 |
27 |
21 |
1.5 |
91.5 |
138 |
0.643 |
33111 |
55 |
95 |
30 |
30 |
23 |
1.5 |
111 |
155 |
0.846 |
33211 |
55 |
100 |
35 |
35 |
27 |
2 |
138 |
188 |
1.15 |
31311 |
55 |
120 |
31.5 |
29 |
21 |
2.5 |
130 |
158 |
1.56 |
Jinan Kelunte Bearing Co., Ltd. is a professional deep groove ball bearing manufacturer and is engaged in the imported bearings.Our company is engaged in the imported bearings,company's main imported Roller Bearing,Ball Bearing,deep groove ball bearings,taper roller bearings,angular contact ball bearings,Pillow Block Bearing etc.
main bearing products
Deep groove ball bearing: 6000series, 6100series, 6200series, 6300series, 6400 series, 6800 series,6900 series, etc.
Angular contact ball bearing: 7100series, 7200series, 7300series, 7400series, etc.
Taper roller bearing: 30000series, 31000series, 32000series, 33000 series.
Spherical roller bearing: 20000series, 21000series, 22000series, 23000series.
Cylindrical roller bearing: N series, NU series, NJ series, etc.
Pillow block bearing: UC series, UCP series, UCF series, UCFL series.
Self aligning ball bearing: 1200series, 1300series, 2200series, 2300series.
Needle Roller Bearing
Sliding bearing
Slewing Bearing
Rod End Joint Bearing
Ceramic Bearing
Bearing Accessories
As a bearings manufacturer,we bear quality responsibility!
********************************************************************************
Annice Cui
Company: Jinan Kelunte Bearing Co., Ltd.
Tel: +8618264133628
Skype: annice666
Wechat: Annice0601
WhatsApp: +8618264133628
Send Inquiry to This Supplier
