Product Details
| Place of Origin: | Anhui, China | Brand Name: | CZDM | Model Number: | AE180 |
| Condition: | New | Moving Type: | Crawler Excavator | Operating Weight: | 20000kg |
| Bucket capacity: | 0.4m3 | Maximum Digging Height: | 10500mm | Maximum Digging Depth: | 5770mm |
| Machine Weight: | 19800kg | Max Digging Radius: | 9910mm | Certification: | CE |
Product Description
Specifications
1.ISUZU4BG1 engine2.Bucket 0.4m3
3.Kawasaki hydraulic system
4.ESS electronic control system
on swamp/soft areas

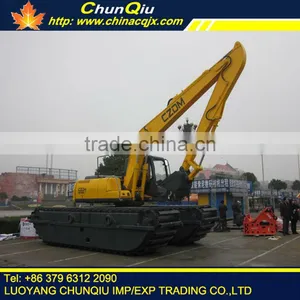

Chinese imported components amphibious excavator AE180
CZDM amphibious excavator/Swamp buggy/Marsh buggy can travel and work on swamp and soft areas due to its excellent structure design.
1. Advanced ESS electronic control system
2. Reliable and efficient Kawasaki hydraulic system
3. Powerful ISUZU engine
CZDM amphibious excavator has been widely used in following situations:
1. Dredging
2. Cleaning fish pond, managing waste ponds, nature preservation project
3. Cleaning and building shorelines-lakes, seas and canals
4. Wetland reclamation & development
Main technological parameters:
Model | AE180 |
Operating Weight | 20000kg |
Bucket Capacity | 0.4m3 |
Boom length | 6100mm |
Bucket rod length | 3900mm |
Track chain | 2Row |
Model | Isuzu4BG1 |
Form | The intercooled Turbo |
Power | 89.3kw/2200rpm |
Maximum torque | 449Nm/1800rpm |
Cylinder number | 4 |
Exhaust volume | 4.3L |
Main pump | |
Form | Variable plunger pump |
Maximum displacement | 2×63cm3/r |
Maximum flow | 20L/min |
Working pressure | 30MPa |
Hydraulic motor | |
Rotary speed | Plunger fixed |
Walk | Plunger variable |
Rotary speed | 13.6rpm |
Minimum turning radius | 3011mm |
Maximum walking speed high / low | 3/2.1km/h |
Climbing ability | 70% |
Traction force | 157.5kN |
Bucket maximum digging force | 72kN |
Bucket rod maximum digging force | 51kN |
Ground pressure | 0.14kg/cm3 |
Fuel tank capacity | 217L |
Hydraulic tank volume | 217L |
Dimensions |
|
Item | Standard(mm) |
Model | AE180 |
Length of pontoon | 6900 |
Overall length | 10375 |
Cab height | 3510 |
Counterweight clearance | 1720 |
Boom transport weight | 3510 |
Min. ground clearance | 1000 |
Width of pontoon | 1400 |
Overall width | 4200 |
Upperstructure width | 2500 |
Height of pontoon | 1600 |
Working ranges |
|
Item | Standard(mm) |
Model | AE180 |
Max. digging reach | 9910 |
Max. digging depth | 5770 |
Max.cutting height | 10500 |
Max. dumping height | 7680 |
Min.front slew radius | 3450 |
