SAE J844 Air Brake Hose for Truck Brake System

Negotiable MOQ: 5000 Meters (Price negotiable depending on order volume and customization)

Key Specifications

Material:

PA12

Size:

12x9mm

Type:

Brake Hose

Ningbo Kailiang Automobile Parts Co.,ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO or SHANGHAI

Delivery Detail:

20 days

Material PA12

Size 12x9mm

Type Brake Hose

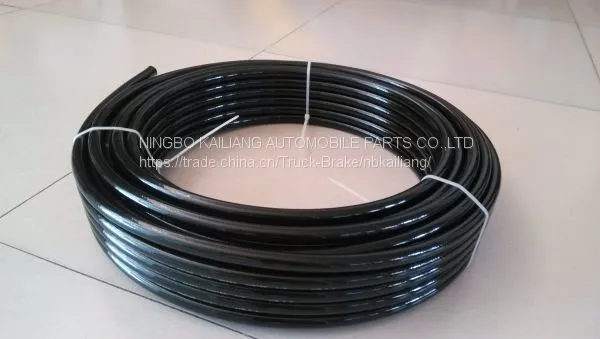

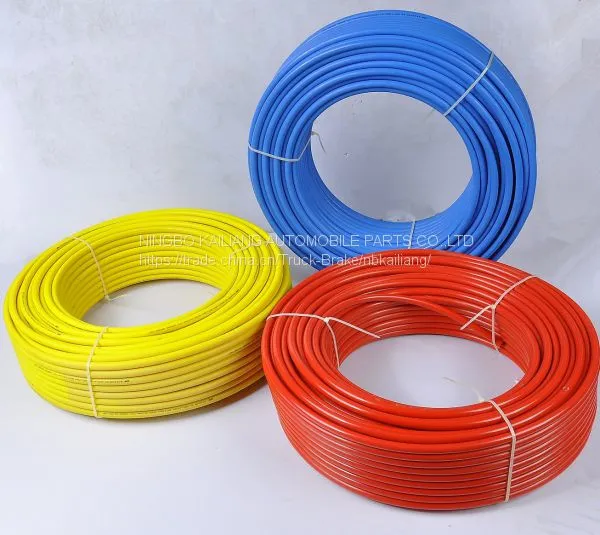

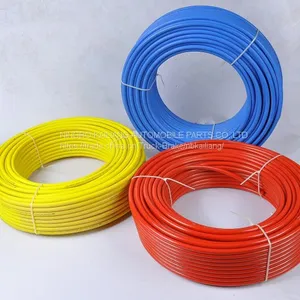

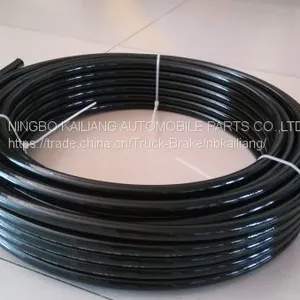

NYLON TUBING

1. Good wear ability, smooth surface, low resistance, anti-rustiness and anti-scaling

2. Flexible, easy to be bended into all kinds of shapes , easy to install

3. High chemical and hydrolysis resistance, stable dimension,little penetration, can be used more than ten years.

4. High and low temperature resistance(-40°C~120°C),can transfer compressed air, water,oil, chemical liquid and so on.

5. It is widely used in Light trucks, car hydraulic brake system,power steering tube, forkliftsand and so on.

Mode No.	Size(O.D×Wall)	O.D.(mm)	Thickness(mm)	Work pressure(Mpa) BurstPressure(Mpa)
NT-1	Φ3×0.5	3	0.5	3.0	4.5
NT-2	Φ4×0.75	4	0.75	3.1	5.5
NT-3	Φ4×1	4	1	4.5	6.8
NT-4	Φ5×1	5	1	3.4	6.5
NT-5	Φ6×1	6	1	3.2	6.3
NT-6	Φ8×1	8	1	2.6	5.7
NT-7	Φ10×1	10	1	2.7	4.5
NT-8	Φ10×1.25	10	1.25	2.8	5.6
NT-9	Φ12×1.5	12	1.5	3.2	5.7
NT-10	Φ14×1.5	14	1.5	2.2	5.6
NT-11	Φ15×1.5	15	1.5	2.0	5.4
NT-12	Φ16×2	16	2	2.8	5.4
NT-13	Φ18×1.5	18	1.5	2.3	3.6
NT-14	Φ23×2	23	2	2.1	3.3
NT-15	3/16”	4.72	0.75	3.3	6.3
NT-16	5/16”	7.9	1	2.5	5.6
NT-17	1/4”	6.35	1	2.7	5.3
NT-18	3/8”	9.5	1.5	2.8	6.1
NT-19	1/2”	12.7	1.5	3.0	5.5
NT-20	5/8”	15.8	1.5	2.7	5.0
