High-strength 60Si2MnA spring steel flat bar for leaf spring
- 4000 Metric Ton / Metric Tons per Month
- Tianjin
- T/T D/P D/A Credit Card
- 51CrV4 hot rolled spring steel flat bar
- 51CrV4 spring steel flat bars made in China
- High-strength 60Si2Mn spring steel flat bar for leaf spring
- Sup9 5-32mm thickness 45-130mm width spring steel flat bar manufacturer
- High-strength 65Mn spring steel flat bar for leaf spring
- High-strength 5160 spring steel flat bar for leaf spring
Product Details
Grade: | Sup6/Sup7Sup9/SUP9A/Sup10 | Standard: | AISI, ASTM, BS, DIN, GB, JIS | Thickness: | 6mm-40mm |
Width: | 40mm-150mm | Length: | 5800mm(Normally) | Place of Origin: | Tianjin, China |
Brand Name: | Qiangbang | Model Number: | 60Si2MnA alloy round edge | Application: | Leaf Springs, Cultivator Blades, Garden Tools, Knifes etc. |
Technique: | Hot Rolled | Special Use: | Mold Steel |
Packaging Details
DIN55Cr3 alloy round edge flat steel bar for Katana pack in bundles: 1.All bundles tied with wire/strapping at 3/4 places.
2.Approximate bundle weight: 1.0 to 2.0 MT
3.Grade No. Identification: by painted color code written on each bundle
Product Description

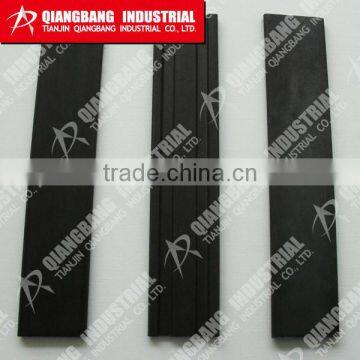

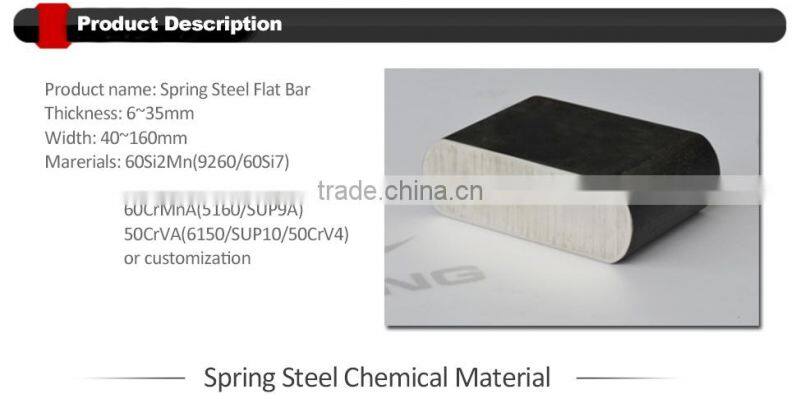

High-strength 60Si2MnA spring steel plate
Product Chemical Composition (%) | ||||||||||
STANDARD | C | Si | Mn | Cr | V | P | S | |||
GB | SAE | JIS | DIN | ≤ | ||||||
65Mn | 1066 | 0.62-0.70 | 0.17-0.37 | 0.90-1.20 | ≤0.25 | 0.035 | 0.035 | |||
60Si2Mn | 9260 | SUP6 | 60Si7 | 0.56-0.64 | 1.50-2.00 | 0.60-0.90 | ≤0.35 | 0.035 | 0.035 | |
60Si2MnA | 9260 | SUP7 | 60Si7 | 0.56-0.64 | 1.60-2.00 | 0.60-0.90 | ≤0.35 | 0.025 | 0.025 | |
55CrMnA | 5155 | SUP9 | 55Cr3 | 0.52-0.60 | 0.17-0.37 | 0.65-0.95 | 0.65-0.95 | 0.025 | 0.025 | |
60CrMnA | 5160/h | SUP9A | 0.56-0.64 | 0.17-0.37 | 0.70-1.00 | 0.70-1.00 | 0.025 | 0.025 | ||
50CrVA | 6150 | SUP10 | 51CrV4 | 0.46-0.54 | 0.17-0.37 | 0.50-0.80 | 0.80-1.10 | 0.10-0.20 | 0.025 | 0.025 |
30CrMnB5 | 0.27-0.31 | 0.15-0.30 | 1.1-1.4 | 0.35-0.40 | 0.035 |
Product Mechanical Property(%) | |||||||||
STANDARD | Heat Treatment | Mechanical Property [≥] | |||||||
GB | SAE | JIS | DIN | Quenching Temprature°C | Quenchant | Temper Stressing °C | Tensile Strength Rm/[N/mm2] | Yield Strength ReL/[N/mm2] | HBW≤ |
65Mn | 1066 | 830 | Oil | 540 | 980 | 785 | 302 | ||
60Si2Mn | 9260 | SUP6 | 60Si7 | 870 | 480 | 1275 | 1180 | 321 | |
60Si2MnA | 9260 | SUP7 | 60Si7 | 870 | 440 | 1570 | 1375 | 321 | |
55CrMnA | 5155 | SUP9 | 55Cr3 | 830-860 | 460-510 | 1225 | 1080(Rpo 2) | 321 | |
60CrMnA | 5160/h | SUP9A | 830-860 | 460-520 | 1225 | 1080(Rpo 2) | 321 | ||
50CrVA | 6150 | SUP10 | 51CrV4 | 850 | 500 | 1275 | 1130 | 321 |
SIZE CHART (Width*Thickness: mm) | |||||||
40-50 | 57-63 | 63.5-69.9 | 70-75 | 76-79 | 80-89 | 90-100 | 101.6-127 |
40x6 | 57.15x6.35 | 63.5x6 | 70x6 | 76.2x74 | 80x7 | 90x10 | 101.6x9.5 |
42.27x7.94 | 57.15x6.65 | 63.5x6.35 | 70x7 | 76.2x8.2 | 80x7.4 | 90x11 | 101.6x9.52 |
44.45x4.76 | 57.15x7.4 | 63.5x6.65 | 70x7.4 | 76.2x9.14 | 80x8 | 90x12 | 101.6x10.2 |
44.45x6 | 57.15x9.14 | 63.5x7.4 | 70x8 | 76.2x10.2 | 80x9 | 90x13 | 101.6x10.7 |
44.45x6.35 | 57.15x9.52 | 63.5x8 | 70x9 | 76.2x11.1 | 80x10 | 90x14 | 101.6x11.1 |
44.45x6.65 | 57.15x10.2 | 63.5x8.2 | 70x10 | 76.2x11.35 | 80x11 | 90x15 | 101.6x11.35 |
44.45x8.2 | 57.2x10.2 | 63.5x8.66 | 70x11 | 76.2x12.67 | 80x12 | 90x22 | 101.6x12.67 |
44.5x6 | 59x6 | 63.5x9.1 | 70x12 | 76.2x12.7 | 80x13 | 90x26 | 101.6x12.7 |
44.5x9 | 60x6 | 63.5x9.14 | 70x13 | 76.2x12.88 | 80x14 | 90x30 | 101.6x14.2 |
45x6 | 60x7 | 63.5x11.35 | 70x14 | 76.2x16.8 | 80x15 | 99x11.5 | 101.6x20 |
45x7 | 60x8 | 63.5x12.7 | 70x15 | 76.2x19.05 | 80x16 | 100x8 | 101.6x20.02 |
45x9 | 60x9 | 63.5x15.88 | 70x20 | 76.2x20 | 80x22 | 100x10 | 102x9.2 |
49x7 | 60x10 | 64x8.2 | 70x21 | 76.2x20.6 | 80x23 | 100x14 | 102x14.2 |
50x6 | 60x11 | 65x7 | 70x25 | 76.2x25.4 | 80x25 | 100x18 | 105x8 |
50x7 | 60x12 | 65x12 | 75x5.8 | 76.2x28 | 80x31 | 100x23 | 110x12 |
50x12 | 60x13 | 69.9x11 | 75x6 | 79x10.5 | 80x35 | 100x25 | 110x23 |
50.8x6 | 60x14 | 75x8 | 88.9x9.52 | 100x30 | 120x20 | ||
50.8x7.4 | 60x15 | 75x9 | 89x20 | 100x40 | 120x25 | ||
50.8x8.2 | 60x16.5 | 75x10 | 100x43 | 127x20 | |||
50.8x9 | 60x22 | 75x11 | 127x25.4 | ||||
50.8x10.2 | 63x9 | 75x13 |
Tianjin QIANGBANG Industrial Co., Ltd. has dedicated in steel industry
for almost 15 years.With rigorous quality control, advanced equipment,
skilled workers, we supply you with our high quality products and best service
Company Profile
Tianjin Qiangbang Industrial Co., Ltd., wholly owned subsidiary of Tianjin DaQiang Steel Co., has dedicated in steel industry for almost 20 years. With the philosophy "Customers and Credibility above all, people -oriented and community-serving", the company has developed into a large comprehensive enterprise capable of steel smelting, rolling and making. Products include Spring steel flat bars, Leaf springs, Rotary Blades, and Construction material Prestressed Concrete steel strand, PC steel wires. National inspection-free. OEM services available.
