High efficiency eps pre-expander machine

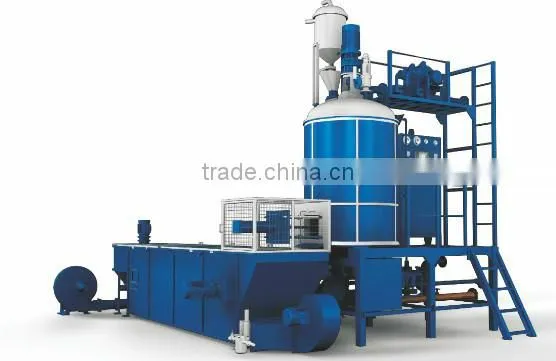

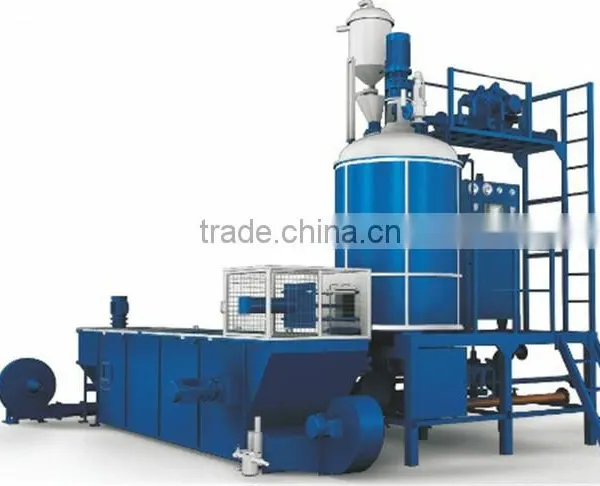

1.Pictures of Products
2.Features of Products
1.precision computer control system, can be a sensitive operation, high degree of automation;
2.high-precision measurement system to ensure accurate feed;
3.high-quality foam enclosed constant pressure, high thermal efficiency, than the continuous foaming machine energy savings of about 50%;
4.the use of imported high-precision valves, electrical components, pneumatic components are based on well-known brands, thus ensuring the stability of the machine operation, reliability, and long life;
5.the use of stainless steel wire cutting vapor grooves (0.4mm) photoelectric control material level, material volume control foaming, the foamed beads of uniform density;
6.high-quality enclosed hot air drying system;
7.automatic discharge using the fan blowing material, thereby increasing the speed of the material;
8.A drying system according to the user selects purchased separately
3.Technical Data of Products
| Specifications | ||||
| Item | Unit | CH-YF-1100 | ||
| L*W*H | mm | 3220* 1780 * 3500 | ||
| Weight | kg | ≈2000 | ||
| Steam Consumption | kg/cycle | 10-17 | ||
| Air Consumption | m3/cycle | 1.2-2.5 | ||
| Power Consumption | kw | 9.6 | ||
| Chamber | Diameter | mm | φ1100 | |
| Height | mm | 1500 | ||
| Volume | m3 | 1.525 | ||
| Steam | Entry | mm | φ50 | |
| Entry Pressure | mpa | 0.4-0.8 | ||
| Compressed Air | Entry | mm | φ40 | |
| Entry Pressure | mpa | 0.4-0.8 | ||
| Drainage | Motor | mm | Φ80 | |
| Drainage | mm | Φ80 | ||
| Density Calculation | -- | Density Calculation | ||
| Density Tolerance | -- | <±3% | ||
| Spinning Motor | kw | 4 | ||
| Functioning | Expansion Rate | 10-50g/l | ||
| Productivity | 10g/l | 300kg/h | ||
| 12 g/l | 400 kg/h | |||
| 18 g/l | 580 kg/h | |||
| 20 g/l | 670kg/h | |||
| 30 g/l | 780kg/h | |||
| 50g/l | 850kg/h | |||
| Note: this information is for reference only, further details to be confirmed with the company | ||||

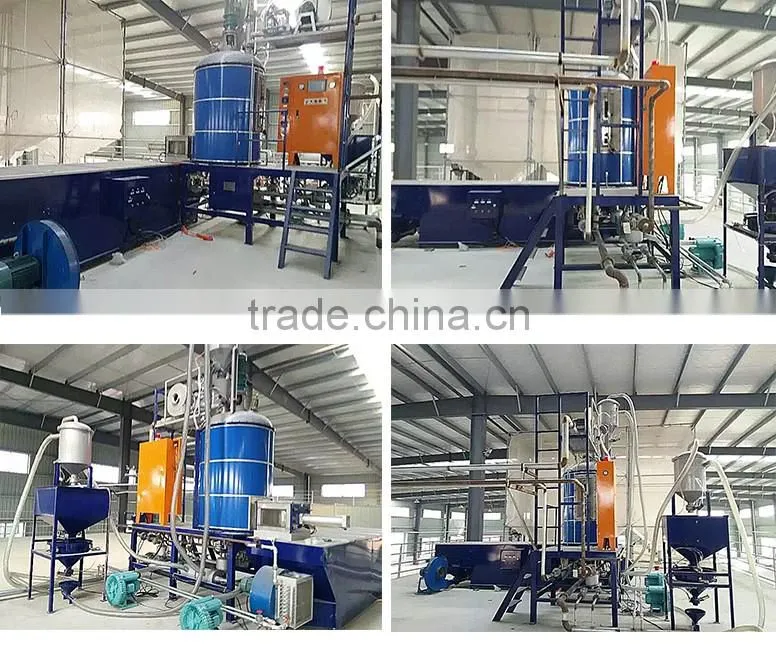

4.Application of Products

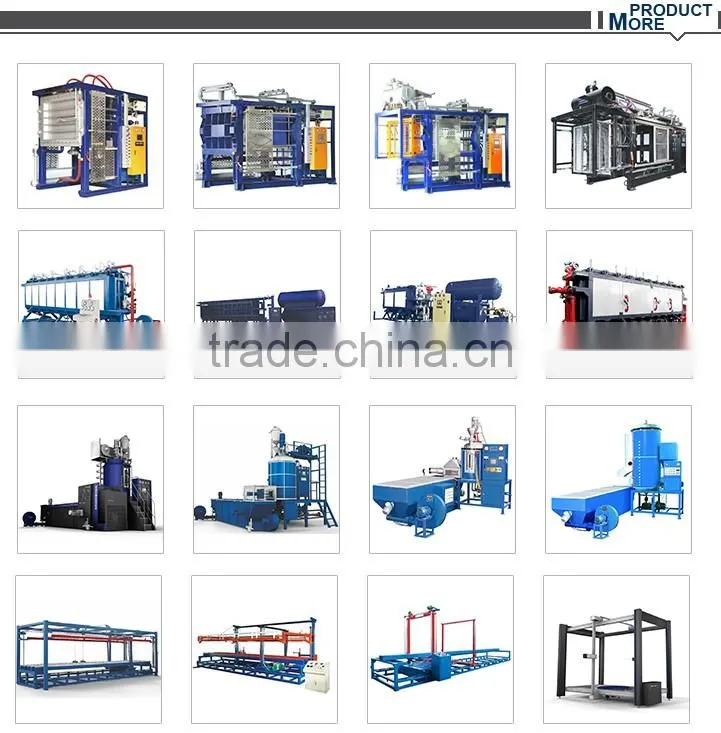

5.More product to choose
6.Packing and Shipping
Packing: standard exporting package
Shipping port: shanghai/ningbo
7.EPS raw material quotation
Please click on more data
1.Company information
2.Why choose us?
1. Automatic product, High thermal efficiency, Low moisture content.
2. Little noise, Clamping force, High strength.
3. High production efficiency, High efficiency heat conduction.
4. High tensile strength, Long service life, High penetrating power.
5. Good adhesion, Use less gas, Rapid prototyping.
