Product Details
Type: | Water Source Heat Pump | Installation: | Freestanding | Storage / Tankless: | Instant / Tankless |
Housing Material: | Other, coated plate | Use: | Other, bathroom, spa, salon | Certification: | CB, CE, EMC, Other, CB, CE, EMC, RoHS, ISO9001 |
Place of Origin: | Guangdong, China | Brand Name: | Hotsong or OEM brand | Model Number: | HS-27W/S |
Product Description

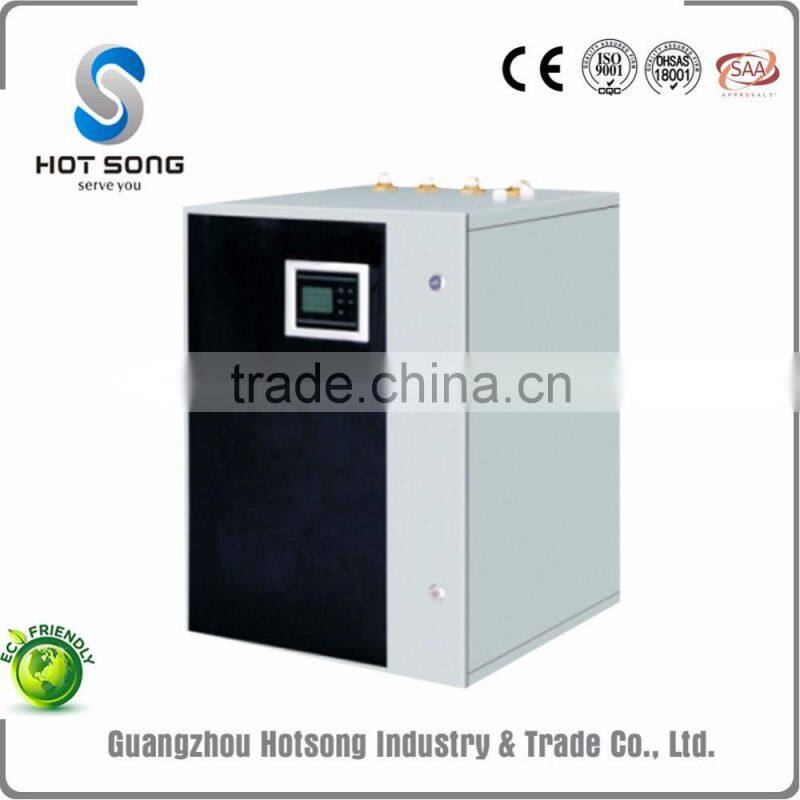

Hotsong- Water/Geothermal/Ground Source Heat Pump Water Heater
Product Description:

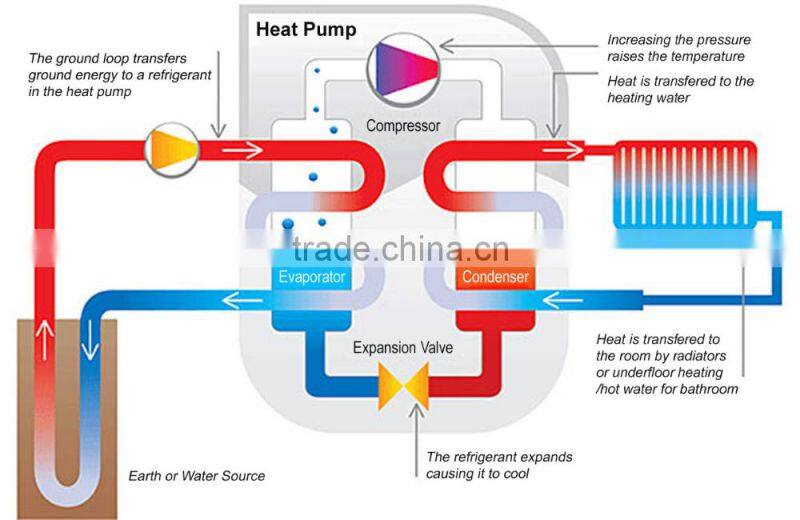

Working Principle:
Feature:
1> Safety: Eliminated the problems of tradtional normal water generator.
2> Reliable: Lifespan reaches 15 years, low maintenance cost.
3> All weather operation: Running without being effected any extreme weather, even stormy snow or rainstorm.
4> Environment protection: no pollution and waste needs to be discharged in entire working cycle.
5> Economy: the running costs of a heat punp can be less than those of a traditional gas boiler system.
6> The working fluid transfer the heat energy from water (ground or lake or river water) into water to where it is needed.
7> Stable water flow switch.
8> Adjustable defrosting according to different weather conditions.
9> Modular design: We can add on more units according to user's requirement.
Specifications:
Brine To Water Units (Close Loop)
Model | HS-27W/S | HS-36W/S | HS-46W/S | HS-52W/S | HS-75W/S | HS-92W/S | HS-105W/S | |
Power Supply | V/Ph/Hz | 380/3/50 220/1/50 | 380/3/50 220/1/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50( | 380/3/50 |
1)Heating Capacity | KW | 11.5 | 16 | 20 | 23 | 32 | 40 | 45 |
BTU | 39238 | 54592 | 68240 | 78476 | 109184 | 13648 | 153540 | |
Rated Power Input | KW | 2.7 | 3.6 | 4.6 | 5.2 | 7.5 | 9.2 | 11 |
2)Heating Capacity | KW | 10.5 | 14.8 | 18.5 | 22 | 28.5 | 37.5 | 40 |
BTU | 35826 | 50498 | 63122 | 75064 | 97242 | 127950 | 136480 | |
Rated Power Input | KW | 2.2 | 3 | 3.7 | 4.5 | 5.8 | 7.2 | 7.8 |
3)Heating Capacity | KW | 9 | 12 | 15 | 18 | 24 | 30 | 33 |
BTU | 30708 | 40944 | 51180 | 61416 | 81888 | 102360 | 112596 | |
Rated Power Input | KW | 2.1 | 2.8 | 3.6 | 4.2 | 5.7 | 7.1 | 10 |
Refrigerant | R410A | R410A | R410A | R410A | R410A | R410A | R410A | |
Compressor | Type | Scroll | Scroll | Scroll | Scorll | Scroll | Scroll | Scroll |
Required Hot Water Flow Rate | m3/hr. | 2.2 | 3.2 | 4 | 5 | 7 | 8 | 9.5 |
Required Water Source Flow Rate | m3/hr. | 1.8 | 2.45 | 3.2 | 4 | 5.6 | 6.4 | 7.6 |
Water Connection | G1" | G1" | G1" | G1" | G1-1/4" | G1-1/4" | G1-1/4" | |
Noise | dB(A) | ≤40 | ≤40 | ≤42 | ≤42 | ≤44 | ≤44 | ≤44 |
Max. Current | A | 7.5 | 10 | 13 | 15 | 21 | 25 | 29 |
Max. Water Output Temp. | °C | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
Water Source Temp. Range | °C | 5~35 | 5~35 | 5~35 | 5~35 | 5~35 | 5~35 | 5~35 |
Net Weight | Kg | 80 | 100 | 120 | 140 | 220 | 250 | 250 |
Net Size (L/W/H) | mm | 600*620*840 | 700*620*850 | 700*620*850 | 700*620*850 | 700*720*1290 | 700*720*1290 | 780*700*1370 |
1>Heating by Ground/Brine Source Temp.In: 0°C and water temp.(In/Out):30°C/35°C; 2>Heating by Ground/Brine Source Temp. In: 0°C and water temp. (In/Out): 40°C/45°C; | ||||||||
3>Heating by Ground/Brine Source Temp.In: 0°C and water temp.(In/Out):50°C/55°C; 4>Heating by Ground/Brine Source Temp. In:-5°C and water temp. (In/out): 50°C/55°C; | ||||||||
All above information just for your reference, please subject to the nameplate on the unit. Refrigerant is optional. |

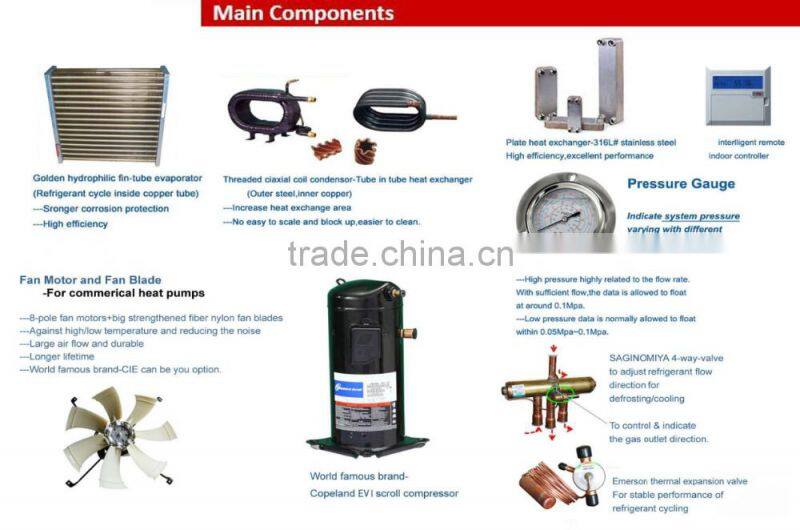

Main Components:

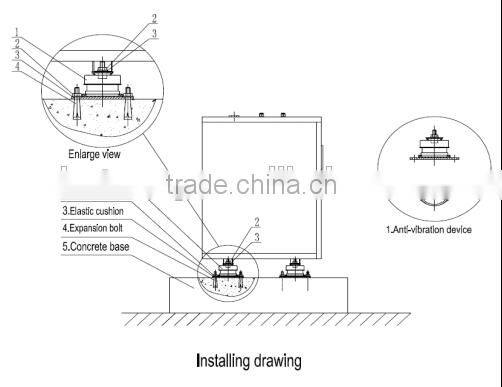

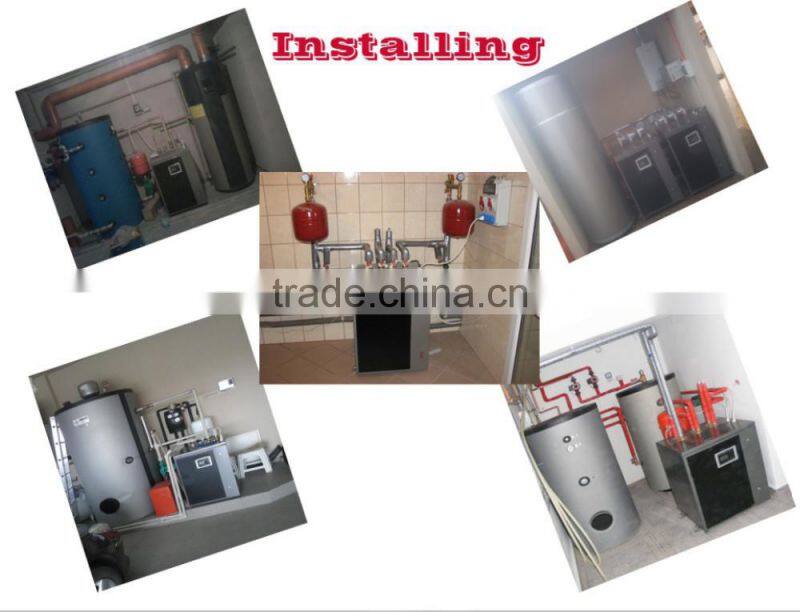

Installation:
In normal circumstance, the heat pump unit should be securely mounted on the stable and strong ground, for installation in other ways, please contact our dealer, or contact us directly, so as to avoid improper installation and the inconvenience caused thereof.

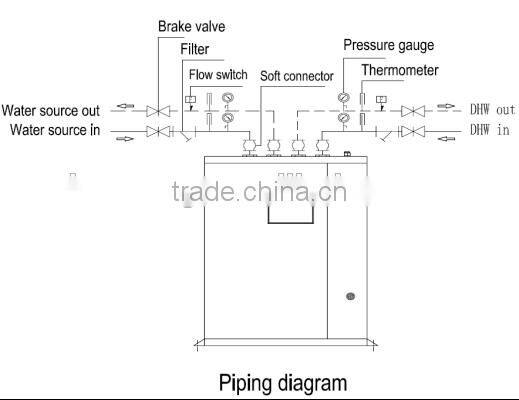

Whether the water system of the heat pump is properly installed or not will directly influence the functions and performance of the heat pump unit. It is advised that a professional construction team be employed for installation of pipes of the water system.
| |

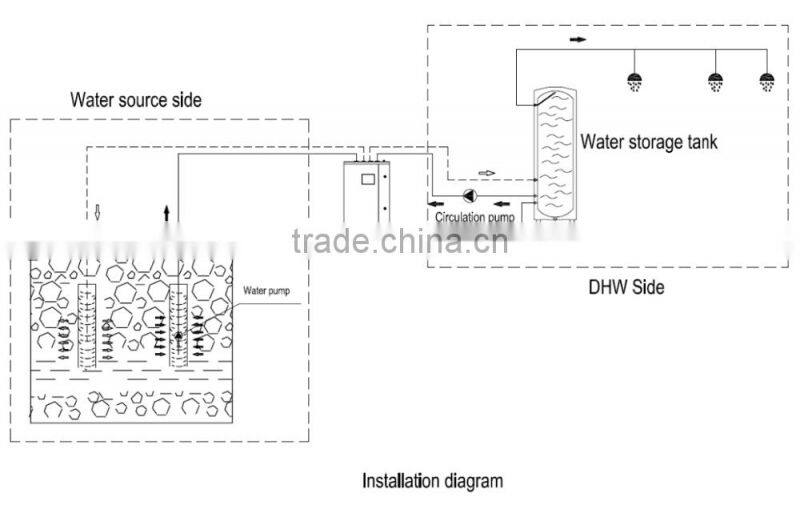

Installation of hot water storage tank
View the diagram (only as a reference) Stop valve, Y-filter and check valve must be installed onto the water feed pipe before water flows into the tank.
| |
Packaging & Shipping:
Standard package: carton, plywood case with pallet.
Service:
While you are considering
We provide free consolation on the model of heat pump system, system design, and cost estimation that can be suit fo your requirements.
Satisfying guarantee
18- months-guarantee is promised for HOTSONG water/geothermal/ground heat pump.
---Energy-saving & environmental
Reduce energy cost and greenhouse gas emission
---Safe
Water and electricity isolation technology and comprehensive protection, like anti-freezing protection, water flow protection, high/low
pressure protection, phase sequence portection, etc.
---Convinent & economic
Modern heat pump water heaters, replacing for solar panels and electric/gas water heaters.
Be installed where solar roof collectors are not suitable, and looks beautiful.
Less electricity and running cost, an ideal upgrade from the traditional water heaters.
---Strictly quality control
ISO industry standards
Standarded & strict manufacturing process
Every product must be tested and double checked before package
---Eligible for trade and distribution
CE, CB, CCC, WATERMARK,SAA, AUSTRALIA STANDARD, etc.
---Customer-oriented
HOTSONG provides you optimized solutions and product customization as well as globalized
customer services.
