daikin scroll compressor dc swimming pool heat pump capacity 39kw
- 100 Piece / Pieces per Month
- Guangzhou
- T/T L/C D/P D/A Credit Card PayPal
- Customized 50liter stainless steel household square heat heat pump thermal storage buffer water tank
- Gas Shortage Remedies 50 liter luftwarmepumpen heat pump hot water buffer tank no coil for house floor heating
- Customized Commercial Domestic Heat Pump Water Heater 100L 200L 300L Hot Water Tank Storage Heat Pump Water Tank For House
- Economical Energy Conservation Domestic Hot Water Combined Tank For Heat Pump System Water Heater 300l Tank 316 Stainless Steel
- Economical Energy Conservation Domestic Hot Water Combined Tank For Heat Pump System Water Heater 300l Tank 316 Stainless Steel
- Air source heat pump water heater swimming pool heat pump
Product Details
Type: | Air Source Heat Pump | Installation: | Freestanding | Storage / Tankless: | Storage |
Housing Material: | Other, coated plate/stainless steel | Use: | Swimming Pool Heater | Certification: | CB, CE, EMC, Other, CB, CE, EMC, ISO9001 |
Place of Origin: | Guangdong, China | Brand Name: | Hotsong or OEM brand | Model Number: | HS-92W/DY |
Product Description

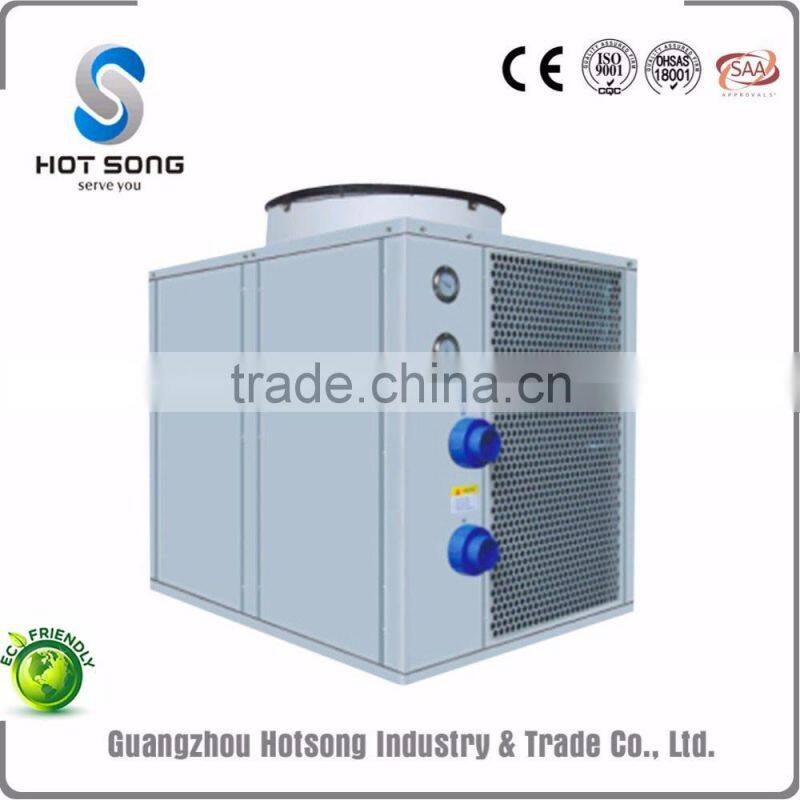

HOTSONG Swimming Pool Heat Pump
Product Description:
Feature:
1> Operation range: -10°C~45°C ambient temperature. Running without being effected by weather, even stormy
rain or stormy snow.
2> Power supply: 220V/1ph/50(60)HZ or 380V/3ph/50(60)HZ

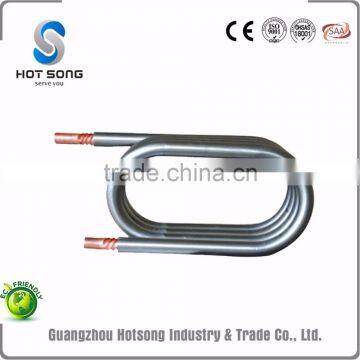

3> The 100% titanium heat exchanger use seamless pure titanium tube as heat conductor, can ensure the
titanium heat exchanger used for a long time without any cost in the after-sale services.

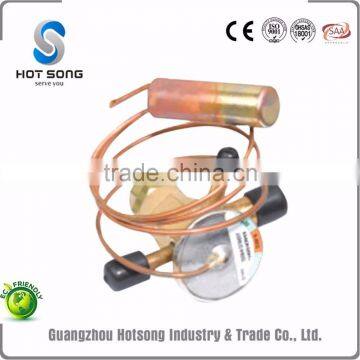

4> The well-known brand throtting device- Emerson expansion valve are included, it can control the refrigerant
flow accurately.

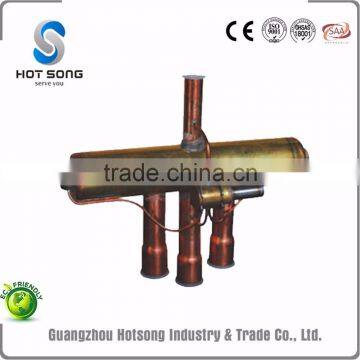

5> Adjustable defrosting according to different weather conditions (with 4-way valve inside).
6> Water flow switch is optional.

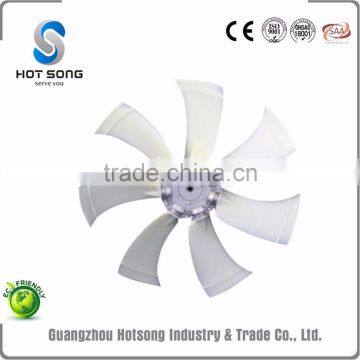

7> Special design for the fan shroud, with accurate and equal distance between the fan blades and the fan
shroud, low vibration, and low noise when running.
8> Compact design and accurate workmanship for fixing the case with bolts and nuts, no damage to the case
coating, avoiding corrosion and rust to the case.
9> Multiple protections to protect the compressor and the heat exchanger, like anti-freezing protection, water
flow protection, over high pressure protection, over low pressure protection insufficient water flow protection,
etc.
10> General testing and operational test carried out for every unit to ensure the superior quality and feature
before well package at factory.
11> Modular and diversifying design: we can add on more units or design heat pumps according to customer's
requirements.

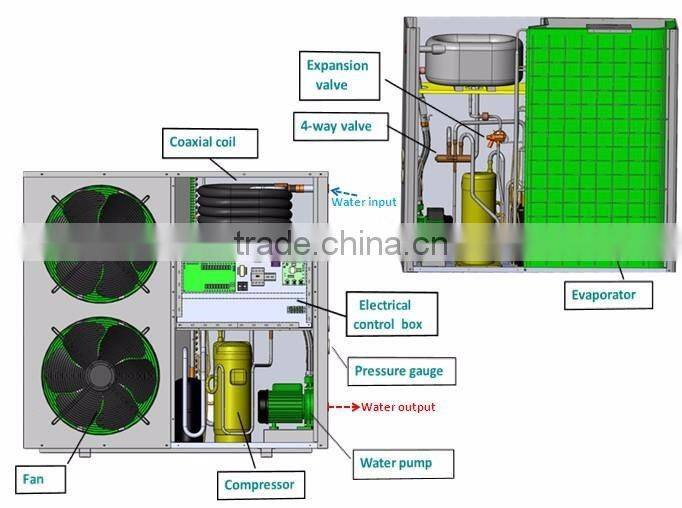

Working Principle:
Specifications:
Model | HS-13W/CY | HS-18W/CY | HS-27W/CY | HS-27W/DY | HS-36W/CY | HS-46W/CY HS-46W/DY | HS-52W/CY HS-52W/DY | HS-75W/DY | HS-92W/DY | HS-105W/DY | HS-150W/DY | HS-180W/DY | |
Power Supply | V/Ph/Hz | 220/1/50 | 220/1/50 | 220/1/50 | 220/1/50 | 380/3/50 220/1/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 | 380/3/50 |
Heating Capacity | KW | 4.8 | 7.1 | 11 | 11.5 | 14.5 | 18 | 20 | 30 | 39 | 46.5 | 55 | 76 |
BTU | 16378 | 24225 | 37532 | 39238 | 49474 | 61416 | 68240 | 102360 | 133068 | 158658 | 187660 | 259312 | |
Power Input By Heating | KW | 1.1 | 1.5 | 2.3 | 2.4 | 3.1 | 3.8 | 4.4 | 6.2 | 8 | 9.6 | 11.4 | 15.8 |
Cooling Capacity | KW | 3.7 | 5.3 | 7.5 | 7.8 | 10.5 | 13.5 | 14 | 22 | 26 | 29.8 | 40 | 55 |
BTU | 12624 | 18084 | 25590 | 26614 | 35826 | 46062 | 47768 | 75064 | 88712 | 101678 | 136480 | 187660 | |
Power Input By Cooling | KW | 1.4 | 1.9 | 2.8 | 2.9 | 3.9 | 4.8 | 5.1 | 7.6 | 9.8 | 10.5 | 15 | 20 |
Refrigerant | R410A | R410A | R410A | R410A | R410A | R410A | R410A | R410A | R410A | R410A | R410A | R410A | |
Compressor | Type | Rotary | Rotary | Rotary | Rotary | Rotary | Rotary | Rotary | Rotary | Rotary | Rotary | Rotary | Rotary |
Fan | Qty | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 1 | 1 | 1 | 3 | 2 |
Required Hot Water Flow Rate | m3/hr. | 2 | 3 | 4.5 | 4.5 | 6 | 7.5 | 9 | 12 | 15 | 15 | 25 | 30 |
Water Connection Diameter | mm | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 63 | 63 | 63 | 75 | 75 |
Noise | dB(A) | ≤48 | ≤48 | ≤48 | ≤ 56 | ≤50 | ≤52 | ≤58 | ≤60 | ≤60 | ≤60 | ≤62 | ≤64 |
Max. Current | A | 9.5 | 13 | 7.2 | 7.5 | 10 | 13 | 15 | 21 | 25 | 30 | 40 | 50 |
Max. Water Temp. | °C | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 |
Water Source Temp. Range | °C | -10~45 | -10~45 | -10~45 | -10~45 | -10~45 | -10~45 | -10~45 | -10~45 | -10~45 | -10~45 | -10~45 | -10~45 |
Net Weight | Kg | 58 | 67 | 84 | 90 | 95 | 110 | 110 | 250 | 250 | 290 | 465 | 622 |
Net Size (L/W/H) | mm | 1005*305*620 | 1005*305*620 | 1115*425*715 | 690*690*800 | 1235*390*715 | 1345*425*1260 800*800*1125 | 1345*350*1260 800*800*1125 | 1200*920*1225 | 1200*920*1225 | 1200*970*1425 | 2080*1300*1680 | 2200*1315*2150 |
Heating by Ambient Temp. (DB/WB):20°C/15°C and Water Temp. (In/Out): 15°C/28°C; | |||||||||||||
Cooling by Ambient Temp. (DB/WB): 35°C/24°C and Water Temp. In 28°C; | |||||||||||||
All above information just for your reference, please subject to the nameplate on the unit. Refrigerant is optional. |

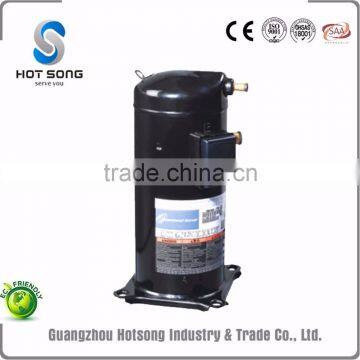

Main Componets:
Dimension:

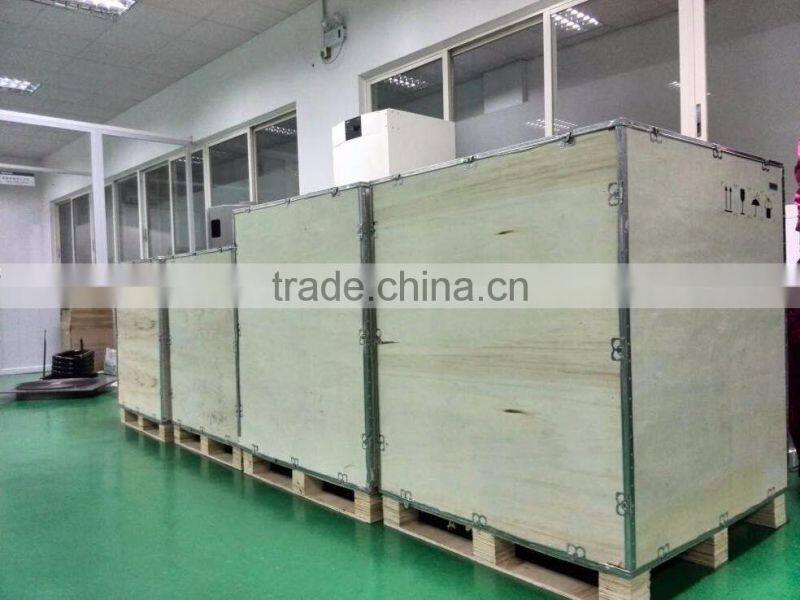

Packaging & Shipping:
Standard package: carton, plywood case with pallet.
Installation Views:
Our services:
While you are considering
We provide free consolation on the model of heat hump system, system design, and cost estimation that
can suit for your requirements.
Satisfying guarantee
There is an 24 months warranty for the swimming pool heat pump.
---High energy efficiency & low emission
Reduce energy cost and greenhouse gas emission.
---Safety
Water and electricity isolation technology and comprehensive protection, like anti-freezing protection,
water flow protection, high/low pressure protection, phase sequence protection, etc.
---Convenience & economical
Modern heat pump water heaters, replacing for solar panels and electric/gas water heaters.
Can be installed where solar roof collectors are not suitable, and looks beautiful.
Less electricity and running cost, an ideal upgrade from the tradional water heaters.
---Strict quality control
ISO industry standards.
Standarded & strict manufacturing process.
Every product must be tested and double checked before package.
---Eligible for trade & distribution
CE,CB,CCC, WATERMARK,SAA, AUSTRALIA STANDARD, etc.
---Customer Orientation
HOTSONG provides you optimized solutions and product customization as well as globalized customer
services.
