Low Price QT8-15C Full Automatic and Hydraulic Porous Block Machine

Low Price QT8-15C Full Automatic and Hydraulic Porous Block Machine photo-1
Low Price QT8-15C Full Automatic and Hydraulic Porous Block Machine photo-2
Low Price QT8-15C Full Automatic and Hydraulic Porous Block Machine photo-3
Low Price QT8-15C Full Automatic and Hydraulic Porous Block Machine photo-4
Low Price QT8-15C Full Automatic and Hydraulic Porous Block Machine photo-5
Low Price QT8-15C Full Automatic and Hydraulic Porous Block Machine photo-6
US$ 28,000 - 52,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Hollow Block Making Machine
Brick Raw Material:
Cement
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Hollow Block Making Machine
Brick Raw Material Cement
Processing Brick Production Line
Method Hydraulic Pressure
Automatic Yes
Capacity 1800pcs/hour(390*190*190mm)
Place of Origin Shandong, China
Brand Name Hongfa
Model Number QT8-15C
Voltage according to customers requirement
Power 55.5kw
Dimension(L*W*H) 7800*1950*2950mm
Certification CE ISO SGS BV TUV
Warranty 1 YEAR
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1)high capacity
2)Multi-function
3)Full automatic porous block machine
4)Fault diagnosis PLC Controll
5)Germany tech.

FULL-Automatic Block Machine

Our company produce all kinds of block making machine(fully- automatic block making machine, small size block making machine, mobile block making machine), concrete batching plant machine, tile making machine, pipe making machine, AAC block making line machine, color paver forming machine, hydraulic forming machine.



Best Seller high quality QT8-15B block machine

1)Multi-function
2)ISO/CE/SGS/BV certificated
3)Fully-auto, PLC
and diagnosis fault

4)Easy operate
4)High capacity

5)Hydraulic

6)Bottom price

7)Best quality in China





1)Main technical parameter



Overall Dimension

7800×1950×2900(mm)

Rated pressure

21MPa

Main vibration form

Platform vibration

Acceleration of vibration

15-20g

Exciting force

680kN

Cycle Time

15-25 seconds

Vibrating Frequency

2800-4500 rolls/minute

Overall weight

10800KG

Motors Power

43.3KW

Pallet Size

950*900(mm)

Raw Materials

crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, expanded perlite, and other industrial wastes.

Applied Products

concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc.





2)Brief introduction

1.The machine can serve several purposes and can produce pavement bricks, riverside bricks, revetment bricks ,square bricks ,grassed bricks and so on with different moulds.

2.Low frequency in feeding material, high frequency vibration. Platform vibrating works together with mould, So that the concrete can be fully fluidified and exhausted in two or three seconds to reach the high density.

3.The advanced technique of hydraulic-controlled proportion can handle the oil press and amount of the system freely,therefore ,different materials can be able to produce the high quality products.

4.All the procedures are operated by PLC and equipment with out and in date device to realize person-machine conversation. Control system also including the advanced safe logical system and fault diagnosis system.



 3)Productivity





Size mm

Cycle molding

QTY/Mould

Per hour

Hollow brick

400*200*200

15--25S

8

1650~1800pcs

400*150*200

16--20S

19

2700~3600pcs

Procous brick

240*115*90

15--25s

21

4200~5000pcs

Standard block

240*115*53

15-25s

26

5200~6800pcs

Clour brick

225*112.5*60

25~30s

38

5400~7200pcs







Low price QT8-15C full automatic and hydraulic porous block machine

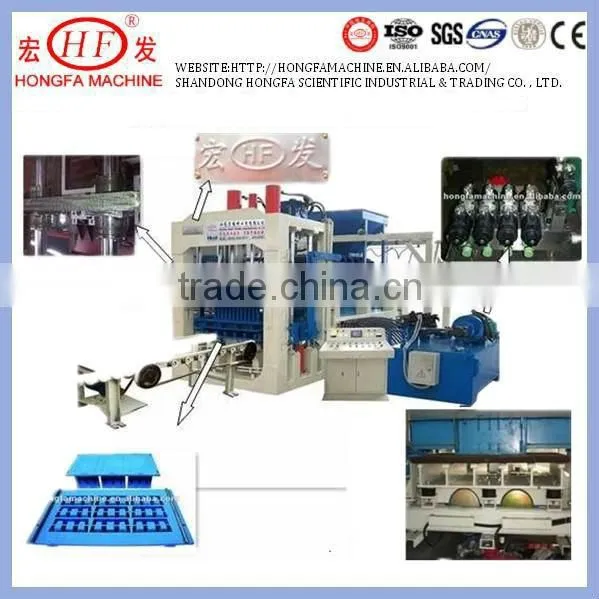

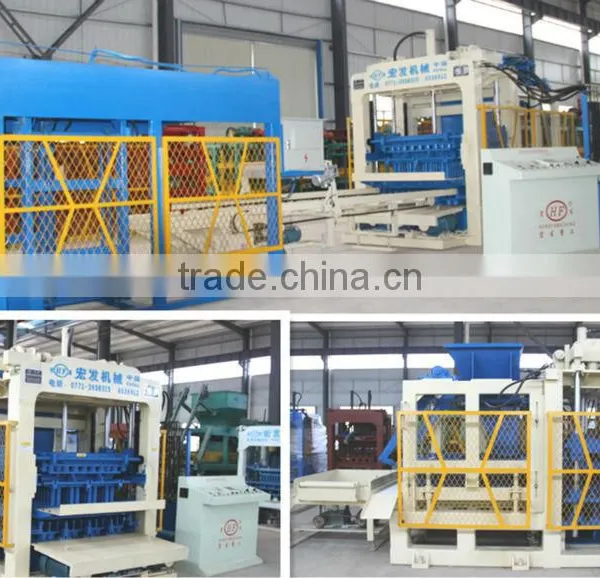

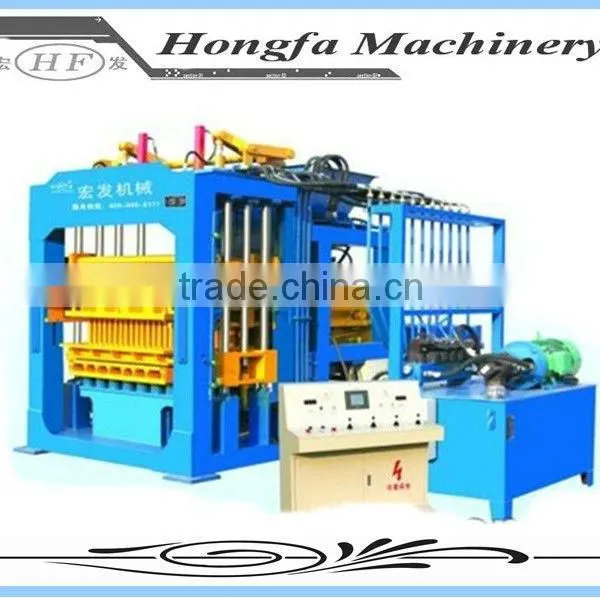

1) Photos of main machine with details

Low price QT8-15C full automatic and hydraulic porous block machine

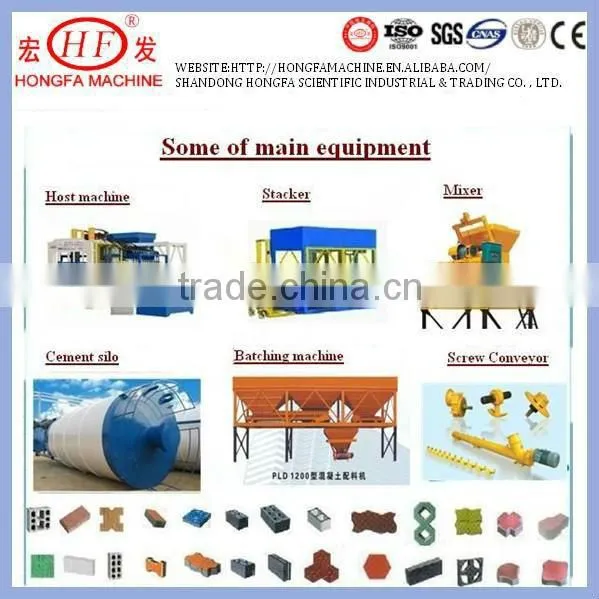

2) Some of main equipments for production line

Low price QT8-15C full automatic and hydraulic porous block machine

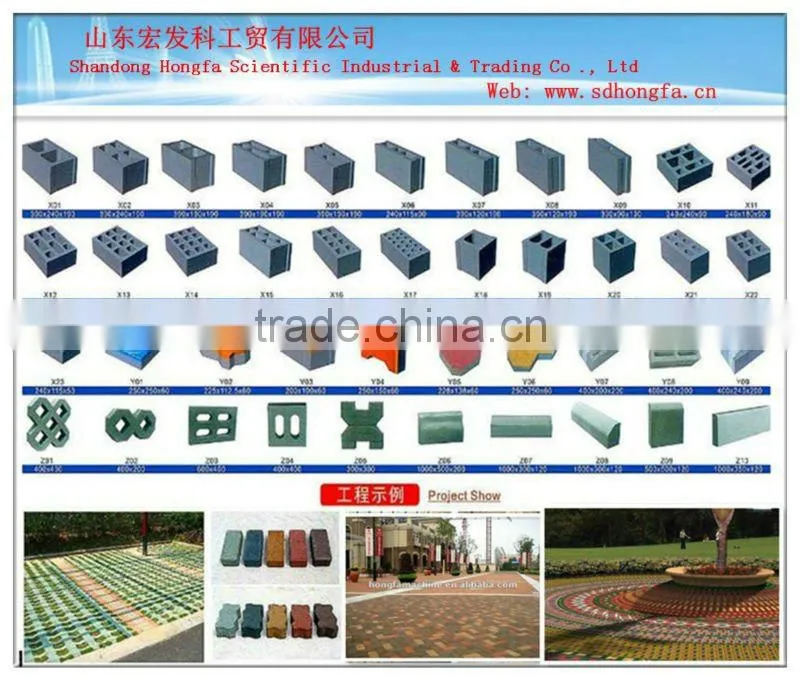

 3) This machine can make all kinds of blocks by changing mould

Low price QT8-15C full automatic and hydraulic porous block machine

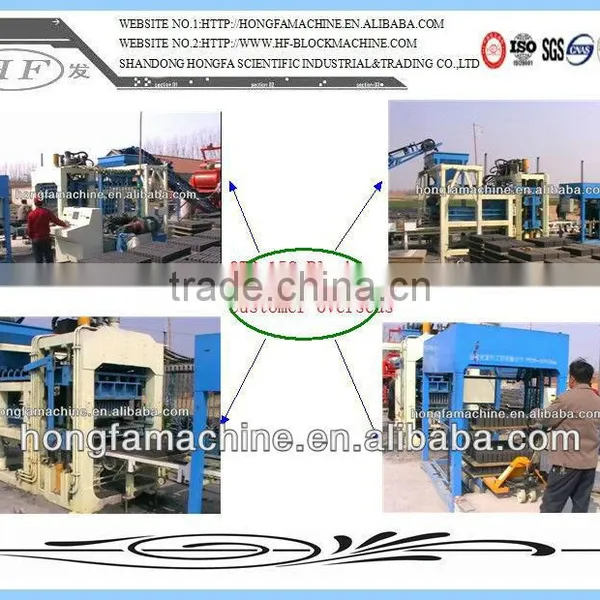

 4) Customers from all over the world Low price QT8-15C full automatic and hydraulic porous block machine

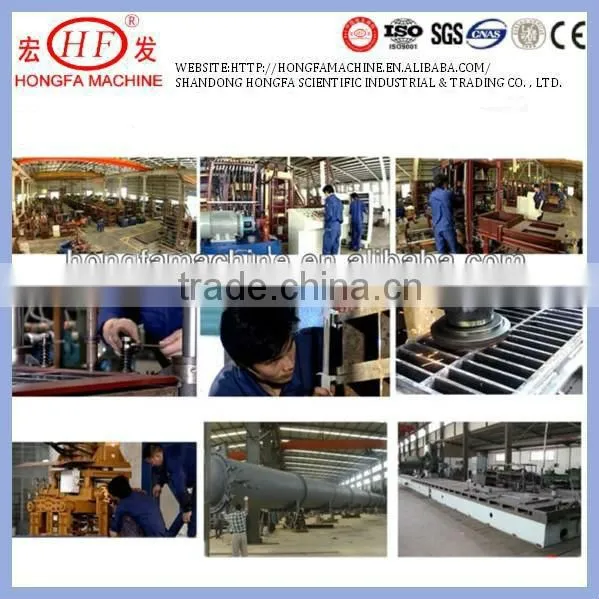

5) Exquisite techniques with reliable quality assurance



Low price QT8-15C full automatic and hydraulic porous block machine

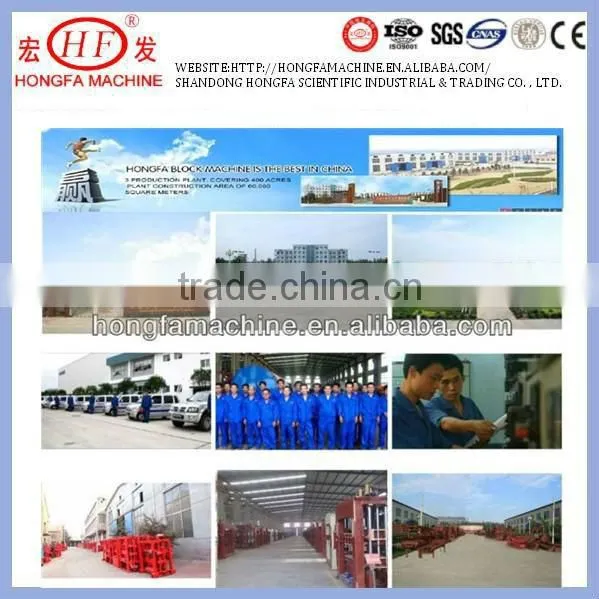

6)Three factories assure mass production of timely shipment capacity and excellent after-sales service



Low price QT8-15C full automatic and hydraulic porous block machine



 7)International Certification: ISO, SGS, BV, CE

Low price QT8-15C full automatic and hydraulic porous block machine

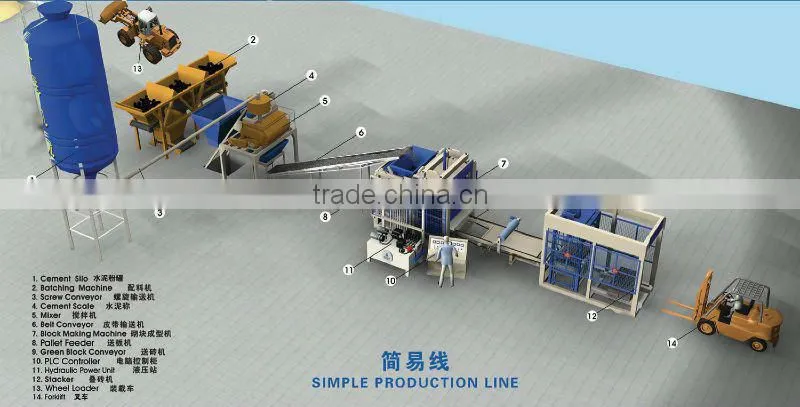

Option A: Simple Production Line:

Low price QT8-15C full automatic and hydraulic porous block machine

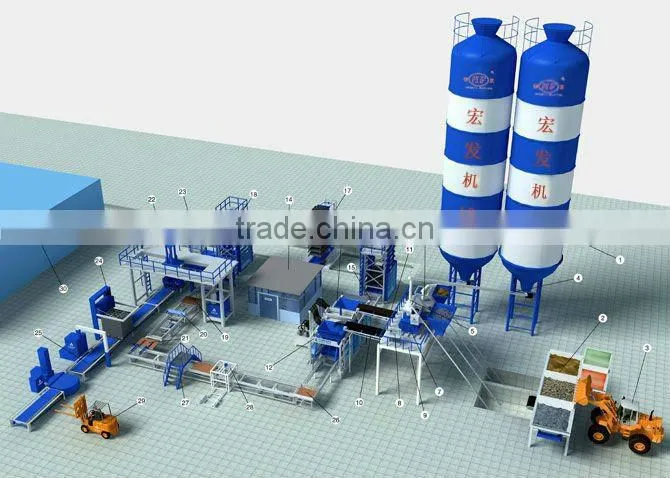

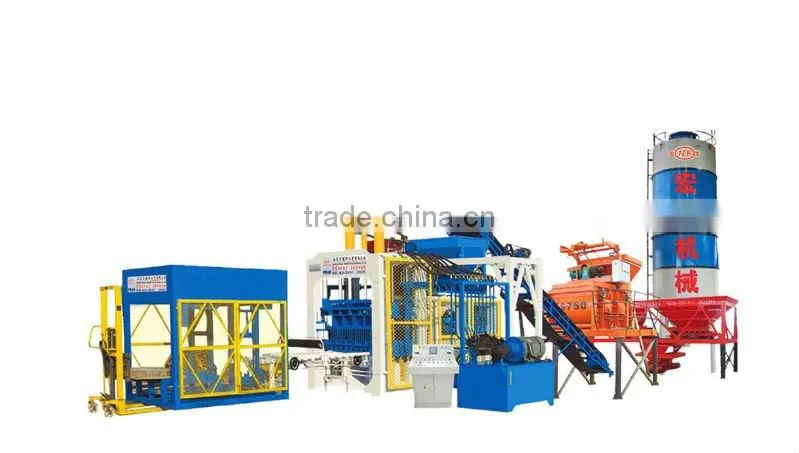

Option B: Full-automatic Production Line

Low price QT8-15C full automatic and hydraulic porous block machine
