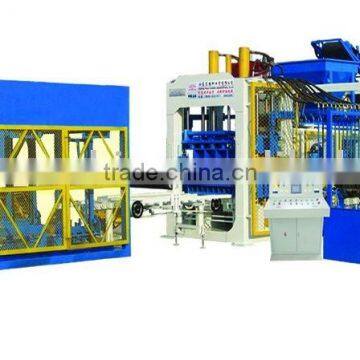

QT10-15 Automatic fly ash Hollow Brick Making Machinery

Specifications

QT10-15 Automatic fly ash Hollow Brick Making Machinery 1PLC intelligent control2synchronization vibration3strong quality4ISO,CE

  QT10-15 Automatic fly ash Hollow Brick Making Machinery

Strong quality and unbeatable price win the customers

The leader in the line in China for over 20 years

USE Germany  technology

Hongfa experience



Brief intruduction :

Particular storage and discription material system insure the feeding accuracy and          avoiding the effect of exterior material. So the products have high density.

Adopting synchronization vibration insures the products making average. The frequency  can change according to different technics. Low frequency in feeding material, high   frequency vibration makes the different material to have a optimal vibration way.

The computer is of fault diagnosis system. Warning signal is propitious to eliminate the     fault. Combine with long-istance controlling system, it can achieve scrutiny, controlling, diagnosis.



Control system:

 PLC intelligent control. Man-machine interface, control system equipped with complete logic control, production  program, malfunction diagnosis system and remote control function. So it doesn’t need  a professional person but only need a simple trainning to the operator.



Product scope:

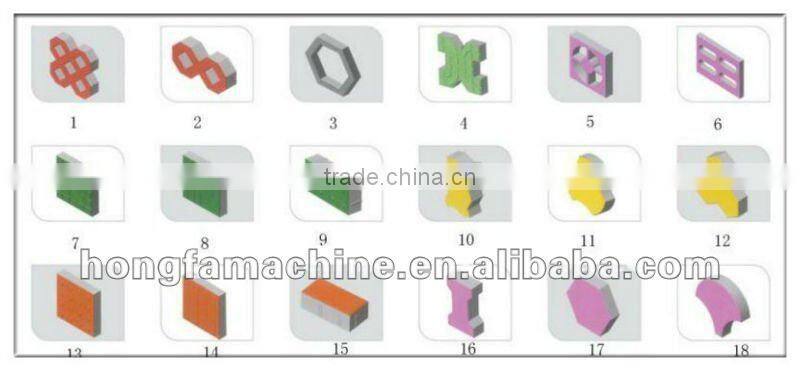

 It produces various bricks/blocks including color-face bricks (layered material feeding),through-body tiles,lock linkage blocks, road curb bricks, hydraulic blocks,hollow blocks, perforated bricks, and standard bricks etc.



 Main Technical Specifications

Main Technical Specifications
Overall Dimension	9350×2320×2950(mm)
Rated pressure	21MPa
Main vibration form	Platform vibration
Cycle Time	15-25 seconds
Vibrating Frequency	2800-4500 rolls/minute
Motors Power	44.58kw
Pallet Size	1100*900(mm)
Raw Materials	crushed stone, sand, cement, dust and coal fly ash, cinder,  slag, gangue, gravel, perlite, and other industrial wastes.
Applied Products	concrete blocks, solid/hollow/cellular masonry products,  paving stones with or without face mix, garden and  landscaping products, slabs, edgers, kerbstones, grass  blocks, slope blocks, interlocking blocks, etc.



 Productivity of QT10-15 block making machine

BLOCKS AFTER FIRST MATERIAL FEEDING

BLOCKS AFTER SECOND COLOUR MATERIAL FEEDING

Concrete Block simple production line Sketch

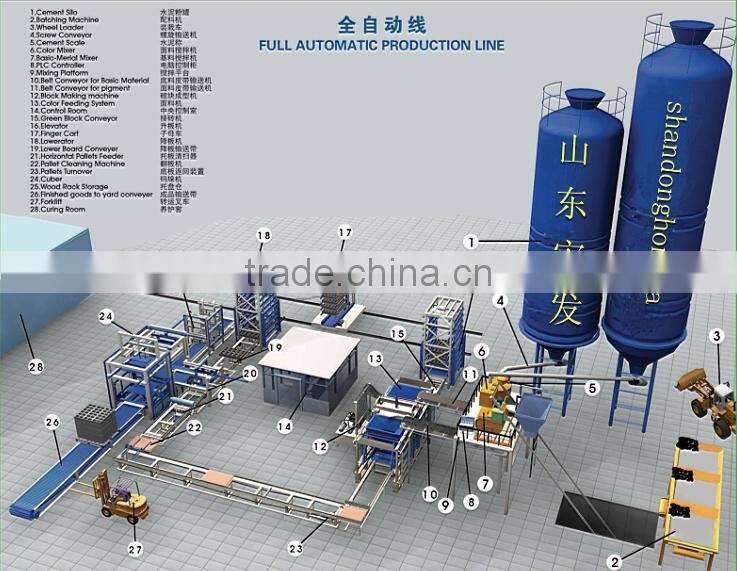

Concrete Block fully automatic production line Sketch
