Specifications
concrete brick making machine instruction and hollow brick making machinery output information 1,ISO CE SGS 2,strong qualityconcrete brick making machine instruction and hollow brick making machinery output information
Concrete brick making machine can serve various of raw material like :
crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes.
It can produce:
concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products,
slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc.
Here i introduce one type to you :
QT8-15D type :

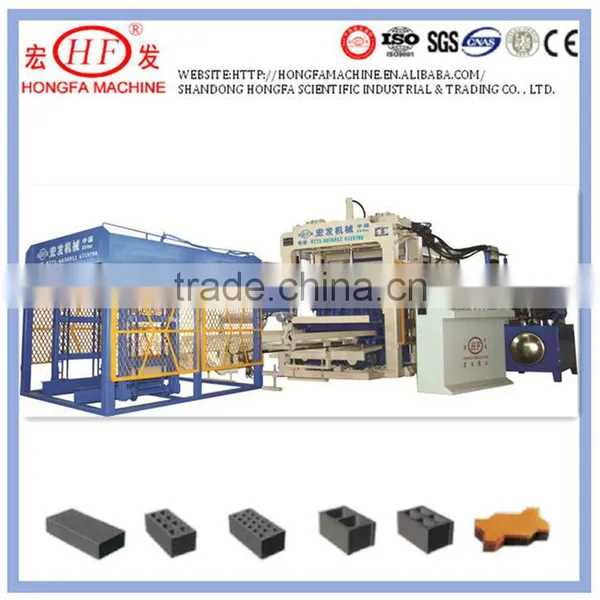

QT8-15Dconcrete brick making machine and hollow brick making machinery
Breif information
1.The machine can serve several purposes and can produce pavement bricks, riverside bricks, revetment bricks ,square bricks ,grassed bricks and so on with different moulds.

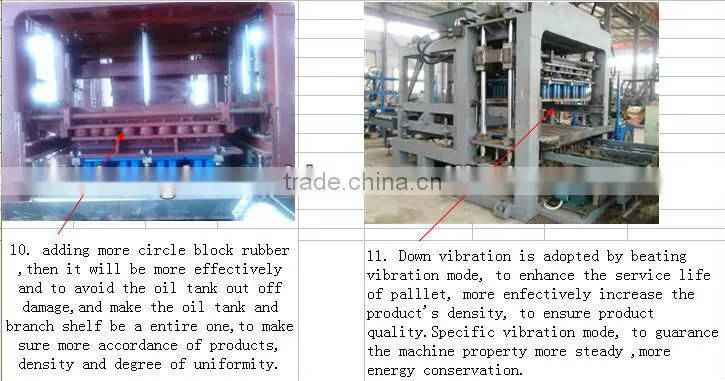

2.Low frequency in feeding material, high frequency vibration. Platform vibrating works together with mould, So that the concrete can be fully fluidified and exhausted in two or three seconds to reach the high density.
3.The advanced technique of hydraulic-controlled proportion can handle the oil press and amount of the system freely,therefore ,different materials can be able to produce the high quality products.
4.All the procedures are operated by PLC and equipment with out and in date device to realize person-machine conversation. Control system also including the advanced safe logical system and fault diagnosis system.
QT8-15Dconcrete brick making machine and hollow brick making machinery
Technical parameters | ||||||||
|
Exciting force(KN) |
Vibration frequency(HZ) |
Molding method |
control mode |
Molding cycle(s) |
Dimension (mm) |
Netweight of host machine |
Pallet |
Total power(kw) |
| 80 | 0-60 |
automatic charging, vibrating and pressing |
Full automatic PLC control |
15-20 | 7500*2100*3020 | 9T | 1020*900*20 | 41 |
| Productivity | ||||||||
| Item | block size(mm) | Qty per mold |
Molding cycle |
Qty per hour | ||||
| Hollow block | 4000*200*200 | 8pcs | 15-20s | 1440-1920pcs | ||||
| Porous block | 240*115*90 | 18pcs | 15-20s | 3240-4320pcs | ||||
| Solid brick | 240*115*53 | 45pcs | 15-17s | 8100-10800pcs | ||||

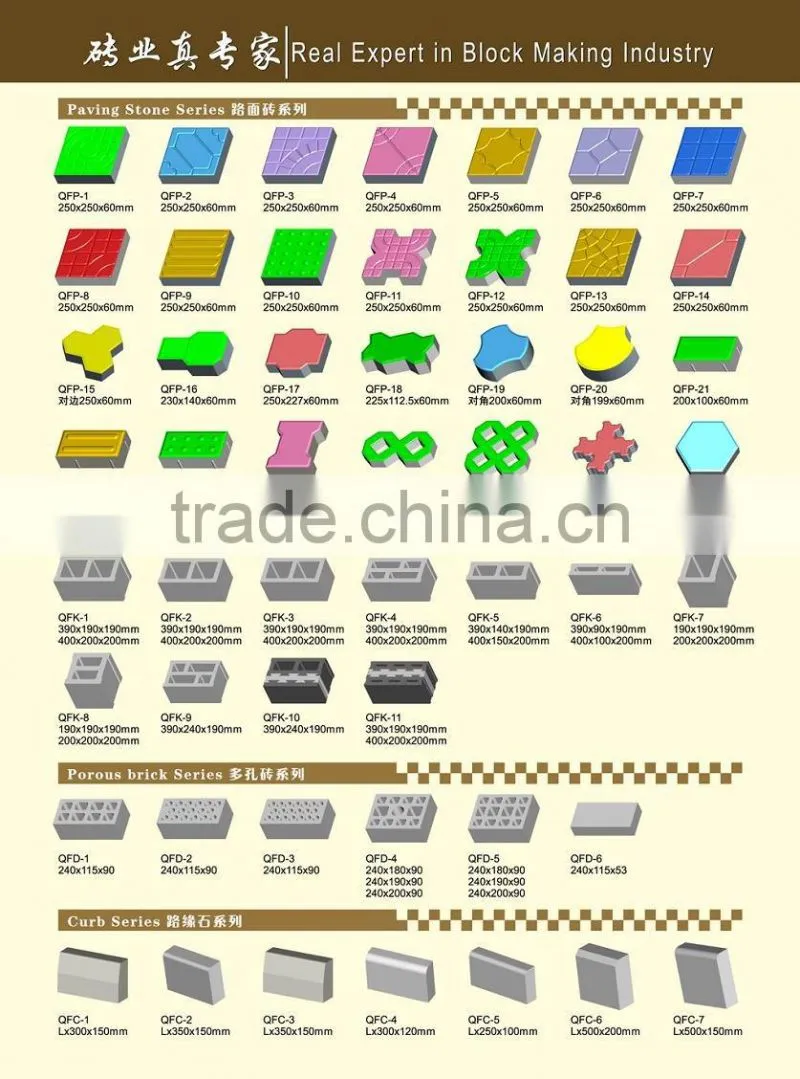

Brick samples :

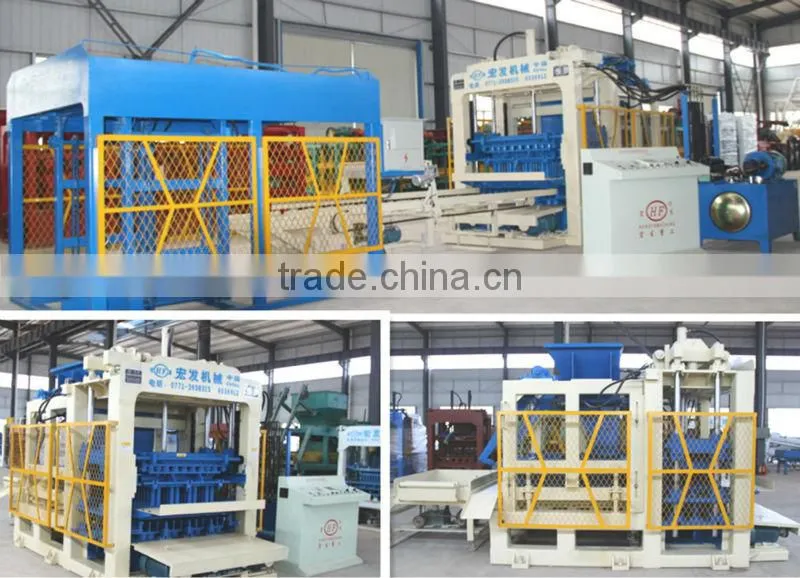

QT8-15Dconcrete brick making machine and hollow brick making machinery
producing line need :
Needs 5-6 labour from mixing and transfering finished blocks , the working aera needs 200m2 , the raw material store and finised blocks store depends on the local situation .
After sale service :
We can give one year warranty time for free service , in the period , we can send our engineer to customers place for installaion and training . For any help in the machine whole using life , you can feel free to contact with our after sale deparment for 24 hours . We have set up many sale offices and after-sale offices around the world .
QT8-15Dconcrete brick making machine and hollow brick making machinery "Details achieve strong quality body !"
Shandong Hongfa as the top manufacturer for aerated autoclaved concrete block making machine (AAC) , concrete bricks&blocks making machine with over 20 years experience has four branches in China , We win customers at home and abroad by strong quality and unbeatable service with competitive price , we have exported our products to over 70 countries .
Thanks for your time !
It is our pleasure to be of service to you my friend .Your enquiry is a great help for us !
Sale manager : Amy Liu Skype: donghaowen66 MB:0086 1396993506
