Specifications
QT6-15C Type Block Machine*vertical and synchronal vibration
*compulsive feeding technique
*fault diagnosis system

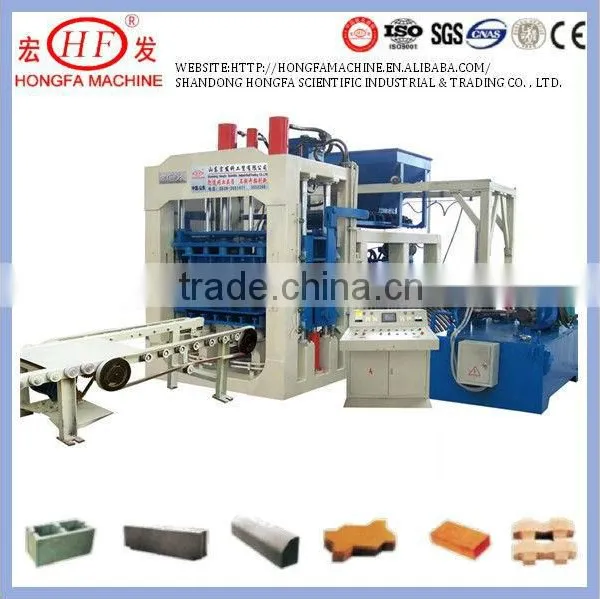

QT6-15C block machine
Vibration system contains platform vibration and mould vibration. The platform vibration was drived by hydraulic oil and program, bringing a vertical and synchronal vibration and achieving low frequency in feeding material, high frequency making. According to different product, we can change the vibration.
The feeding system adopts active compulsive feeding technique .On the affect of feeding tooth, it can feed material average, which is propitious to thin products.
Application of digital control systems and sensor technology, combined with effective and makes all act exactness and trustiness. So that it is the same with different conditions. The adoption of a variety of advanced technology is easy to be operated. The system is of fault diagnosis system.
Main parameter:
- overall demension:8200*1700*2950mm
- rated pressure:21Mpa
- main vibration form:platform vibration
- vibration frequency:2800-4500(r/min)
- pallet size:880*850mm
- molding cycle:15-25s
- overall power:42.6KW
productivity
|
Size |
Quantity/ Mould |
Cycle moulding |
Per hour |
Per day |
Hollow brick |
390*190*190 |
6 |
16-20s |
1080pcs |
10800pcs |
Porous brick |
240*115*90 |
18 |
15-18s |
4050pcs |
40500pcs |
Standard brick |
240*115*53 |
36 |
14-17s |
8640pcs |
86400pcs |
Machine Line Parts Details:
1. Cement silo
Size |
30T |
50T |
100 Ton |
Dimeter(m) |
2.5 |
3 |
3 |
Bin Height(m) |
4.8 |
5.4 |
10 |
Total Height(m) |
11.4 |
12 |
17 |
2. Batching machine (PL1200,3hoppers)
Item |
PLD1200 |
weigh-batching hopper capacity(L) |
1200 |
storage hopper capacity(m3) |
4*2.5 |
Theoretical Productivity(m3/h) |
56 |
Ingredient percision |
±2% |
Min Weigh |
3000 |
Batching species |
2-4 |
Height of Adding Material(mm) |
2.8 |
Belt speed |
1.25 m/s |
Power |
16kw |
Weight |
4500kg |
Dimensions |
9200×2200×3000mm |
This automatically weighs the raw materials as per pre determined program.
3.JS750 concrete mixer
Mixing the raw materials thoroughly and discharges for the Host machine.
4.Belt conveyor machine: 8 meters, 2.2kw
This conveys the raw materials to the host machine hopper.
5, Host machine
6. PLC control system
PLC intelligent control.Manmachine interface, control system equipped with complete logic control, production program, malfunction diagnosis system and remote control function. So it doesn’t need a professional person but only need a simple trainning to the operator.
7. Hydraulic station
Electric system and hydraulic system work together with the machine. Changing the vibration form, it can realize lower frequency in feeding material and high frequency in vibration. so provide the product with one height in a pallet.
8.Pallets feeding machine
9. Brick conveyor machine
It can clean up the top surface of the bricks.
10 , Stacker
It can stack the pallets of block automatically.
11. Molds
It can be designed according to the customer's requirements.
12. Finished products
13 certificate
14. Customers
15. Afte-sale service
Guarantee for one year and after-sale service for whole life. We provide engineer to your local place, help you install the machine, training your workers how to operate. The cost is free.
Detail service:
1, Design the program of building plant for customers
2, Provide related drawing of program.
3, Onsite installation and debugging ,and training opeators and maintainer of equipment.
4, Free training for workers in our factory.
Welcome you send your offer to me in your free time.
Seller Sherry Skype hongfa710 TEL 008615562182082
