Specifications
QT4-15B Type Brick Making Machine(1)electric and hydraulic system
(2)mold-releasing oil cyclinder
(3)forcing charge syst

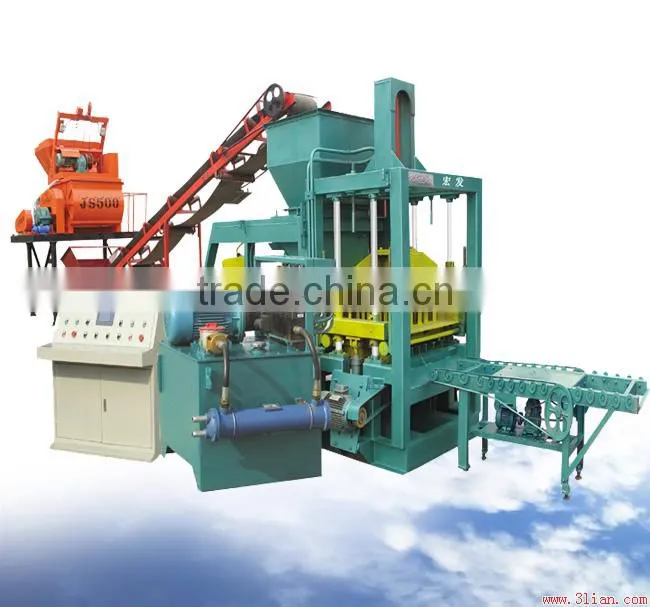

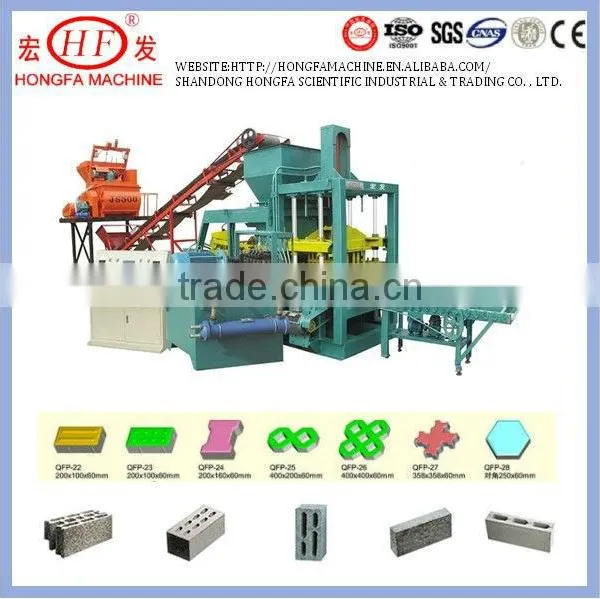

QT4-15B concrete block machine
PLC intelligent control.Main-machine interface, control system equipped with complete logic control, production program, malfunction diagnosis system and remote control function. It doesnt need a professional person but only need a simple trainning to the operator.
Please contact for more details
(1) Productivity
Item |
Specification size |
Quantity per mold |
Cycle mouding |
Per hour |
Per day |
Hollow brick |
400*200*200 |
4pcs |
15-20s |
720-960pcs |
7200-9600pcs/day |
hollow brick |
400*150*200 |
6pcs |
15-20s |
1080-1440pcs |
10800-14400pcs/day |
color brick |
225*112.5*60 |
18pcs |
15-17s |
3240-4320pcs |
32400-43200pcs/day |
(2) Main Technical Parameter
Main Technical Specifications | |
Dimension |
6800*1500*2700mm |
Rated pressure |
16MPa |
Main vibration |
platform |
Vibration frequency |
4600r /min |
Pallet Size |
950*550*40mm |
Molding Cycle |
15-25(s) |
Overall Power |
27.85kw |
Raw Materials |
crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes. |
Applied Products |
concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc. |
Applied Fields |
widely used in buildings, road pavers, squares, gardens, landscaping, city constructions, etc. |
Theoretical workshop area:400-600m*m,need about 3-6 workers,the curing area and stacking area arranged according to your specific situation.
Machine Line Parts Details:
1. Cement silo
Size |
30T |
50T |
100 Ton |
Dimeter(m) |
2.5 |
3 |
2.5 |
Bin Height(m) |
4.8 |
5.4 |
10 |
Total Height(m) |
11.4 |
12 |
17 |

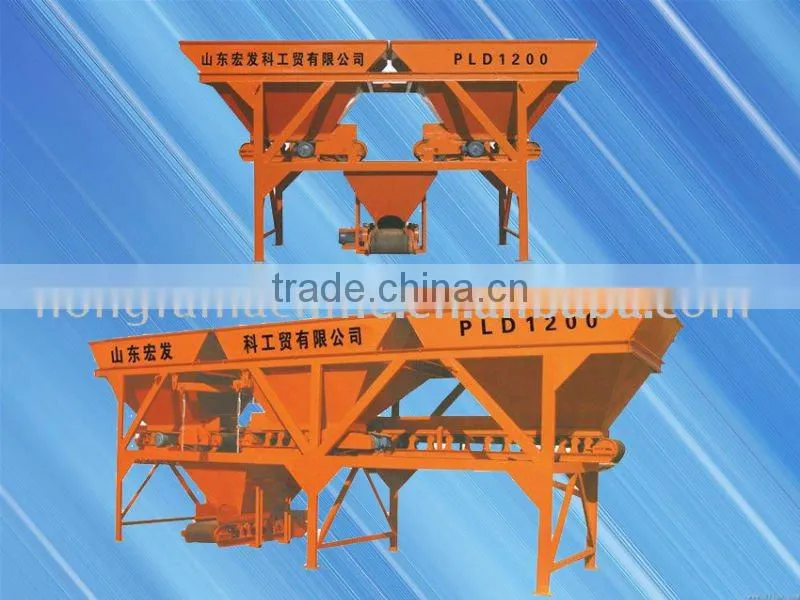

2. Batching machine (PL1200,3hoppers)
Item |
PLD1200 |
weigh-batching hopper capacity(L) |
1200 |
storage hopper capacity(m3) |
4*2.5 |
Theoretical Productivity(m3/h) |
56 |
Ingredient percision |
±2% |
Min Weigh |
3000 |
Batching species |
2-4 |
Height of Adding Material(mm) |
2.8 |
Belt speed |
1.25 m/s |
Power |
16kw |
Weight |
4500kg |
Dimensions |
9200×2200×3000mm |
This automatically weighs the raw materials as per pre determined program.
3.JS750 concrete mixer
Mixing the raw materials thoroughly and discharges for the Host machine.
4.Belt conveyor machine: 8meters, 2.2kw
This conveys the raw materials to the host machine hopper.
5, Host machine
6. PLC control system
PLC intelligent control.Manmachine interface, control system equipped with complete logic control, production program, malfunction diagnosis system and remote control function. So it doesn’t need a professional person but only need a simple trainning to the operator.
7. Hydraulic station
Electric system and hydraulic system work together with the machine. Changing the vibration form, it can realize lower frequency in feeding material and high frequency in vibration. so provide the product with one height in a pallet.
8.Pallets feeding machine
9. Brick conveyor machine
It can clean up the top surface of the bricks.
10 , Stacker
It can stack the pallets of block automatically.
11. Manual forklift
12. Molds
It can be designed according to the customer's requirements.
13. Finished products
14 certificate
