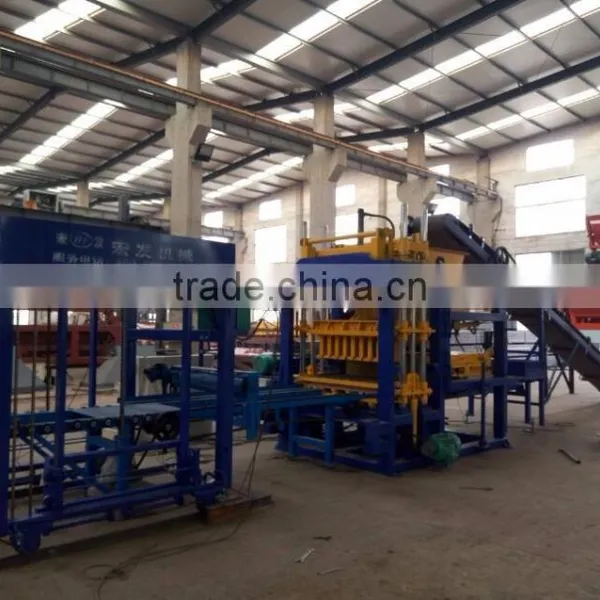

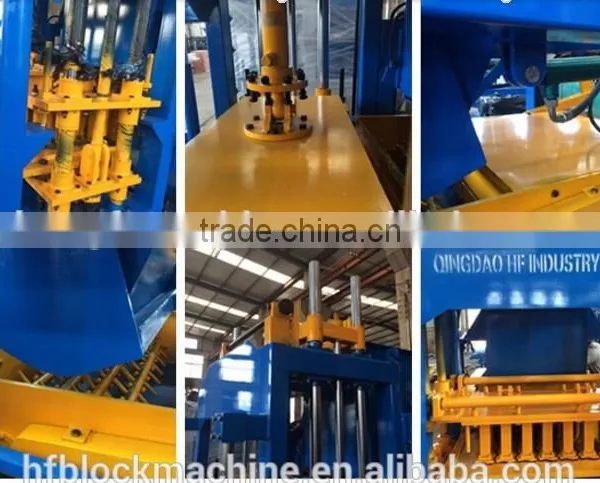

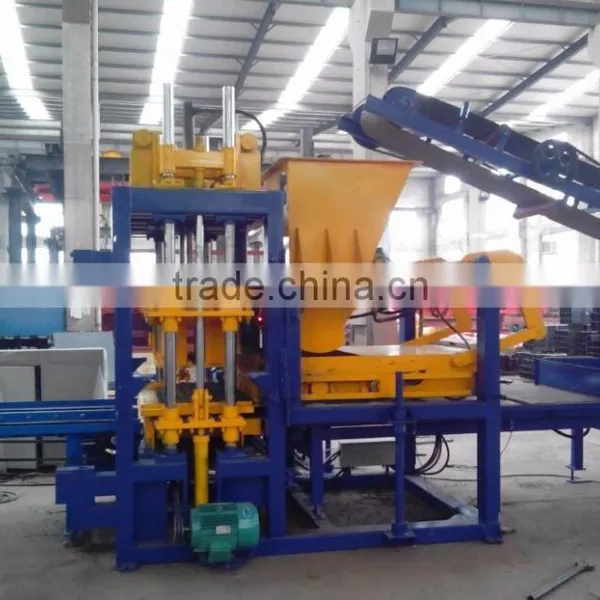

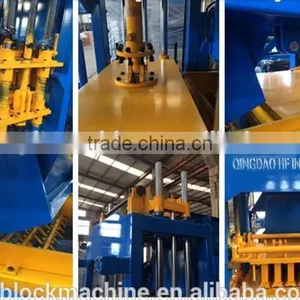

QT5-15 new design EPS insulation hydraulic automatic brick machine
It is a compact machine with electric and hydraulic system, each procedure action locks with each other to guarantee the machine operate safely, easily and dependablely.
- Through mold-releasing oil cyclinder, the mold box was locked into the vibration table with high rigidity to reach the synchronous vibration, so that the concrete can be fluidified and exhausted in two or three seconds to ensure the high-density, especially suitable to produce the standard blocks, which can be piled up immediately so that the pallet investment can be saved directly.
- The unique forcing charge system can make use of various kinds of industrial waster and material such as coal ash, cement, sand, stone, slag, and so on. The machine can severs several purposes and produce various specification standard bricks, concrete blocks, porous blocks, paving bricks etc.
QT5-15 new design EPS insulation hydraulic automatic brick machine productivity
| item | specificaion size(mm) | qty/mould | cycle molding | per hour |
| hollow brick | 4000*200*200 | 5pcs | 16~20s | 1125pcs |
| porous block | 240*115*90 | 16pcs | 15~20s | 2880pcs |
| clor brick | 225*112.5*60 | 28pcs | 15~17s | 7680pcs |
QT5-15 new design EPS insulation hydraulic automatic brick machine main technical parameter
Main Technical Specifications | |
Overall Dimension |
7400×1950×2700(mm) |
Rated pressure |
21MPa |
Main vibration form |
Platform vibration |
Cycle Time |
15-20 seconds |
Vibrating Frequency |
2800-4500rolls/minute |
Motors Power |
26.5KW |
Pallet Size |
1100*550(mm) |
Raw Materials |
crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes. |
Applied Products |
concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc. |
If you are interested in ,pls feel free to contact Linda at whatsapp:0086-13256512899 or add my skype: linda112637

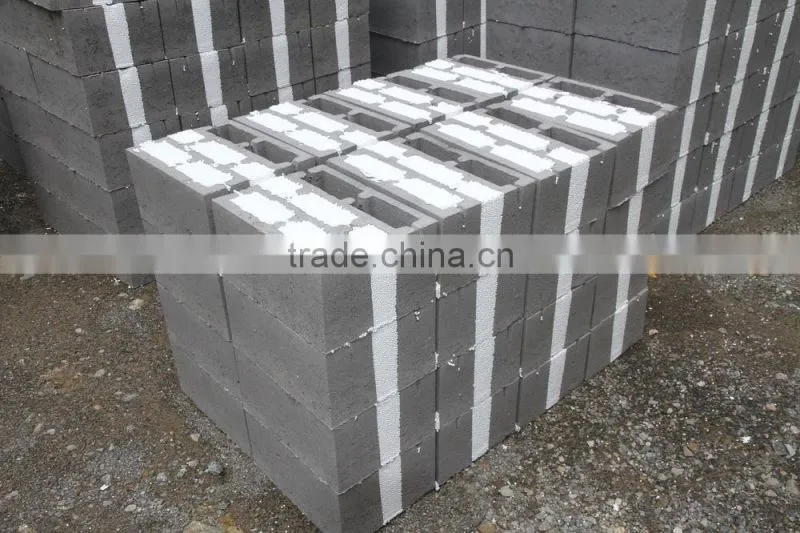

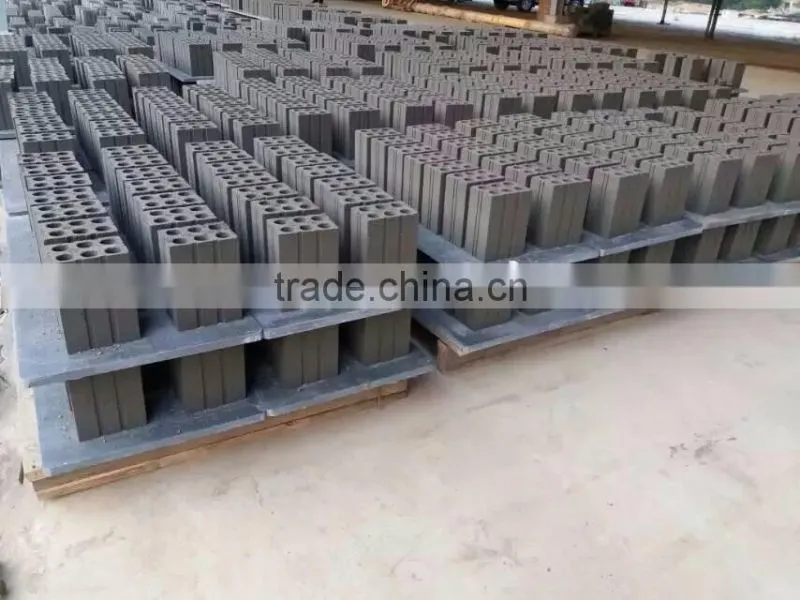

QT5-15 new design EPS insulation hydraulic automatic block machine products samples
