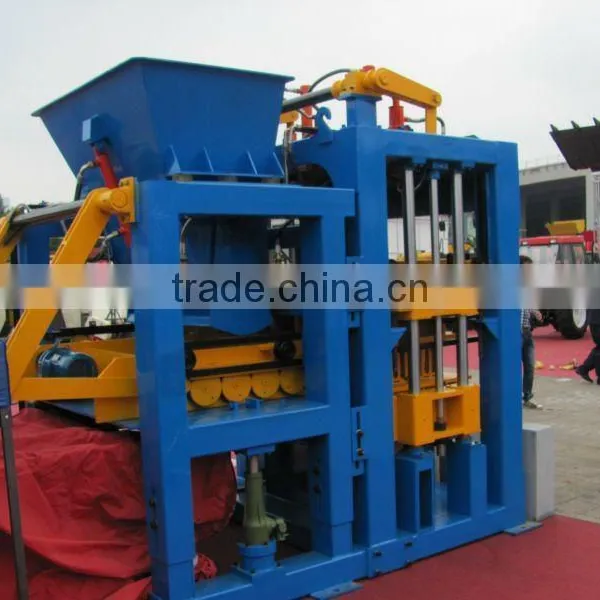

QT8-15C high technical foam block machine
1.The machine can serve several purposes and can produce pavement bricks,riverside bricks,revetment bricks ,qsuare bricks , grassed bricks and so on with different molds.
2.Low frequency in feeding material, high frequency vibration. Platform vibration works together with mold, so that the concrete can be fully fluidified and exhausted in two or three seconds to reach te high density.
3.The advanced technique of hydraulic-controlled proportion can handle the oil press and amount of the system freely, therefore, different materials can be able to produce the high quality products.
4.All the procedures are operated by PLC and equip with out-and-in data device to relize person-machine conversation. Control system also including the advanced safe logical system and fault diagnosis system.
QT8-15C high technical foam block machine productivity
Item |
Specification Size(mm) |
Qty/Mold |
Cycle Molding |
Per hour |
| hollow brick | 390*190*190 | 8pcs | 16~20s | 1800pcs/25.36m3 |
| porous block | 240*115*90 | 21pcs | 15~18s | 5000pcs/12.46m3 |
| standard brick | 240*115*53 | 42pcs | 14~17s | 10000pcs/14.6m3 |
QT8-15C high technical foam block machine main technical parameter
1.overall dimension:8300*1680*3000mm
2.rated pressure:21MPa
3.main vibration form : platform vibration
4.vibration frequency:2800-4500(r/min)
5.pallet size:950*900mm
6.molding cycle:12~25s
7.overall power:55.5kw
| Items of investment: | |||||||
| Component of production line | Quantity | ||||||
| QT8-15C automatic brick makimg machine | 1 | ||||||
| Brick converyor machine | 1 | ||||||
| Pallet feeder | 1 | ||||||
| Conveyer Belt | 1 | ||||||
| JS750 mixer | 1 | ||||||
| Stacker | 1 | ||||||
| Manual cart | 2 | ||||||
| Free mould | 1 | ||||||
If you are interested in ,pls feel free to contact Linda at +86-15264934636

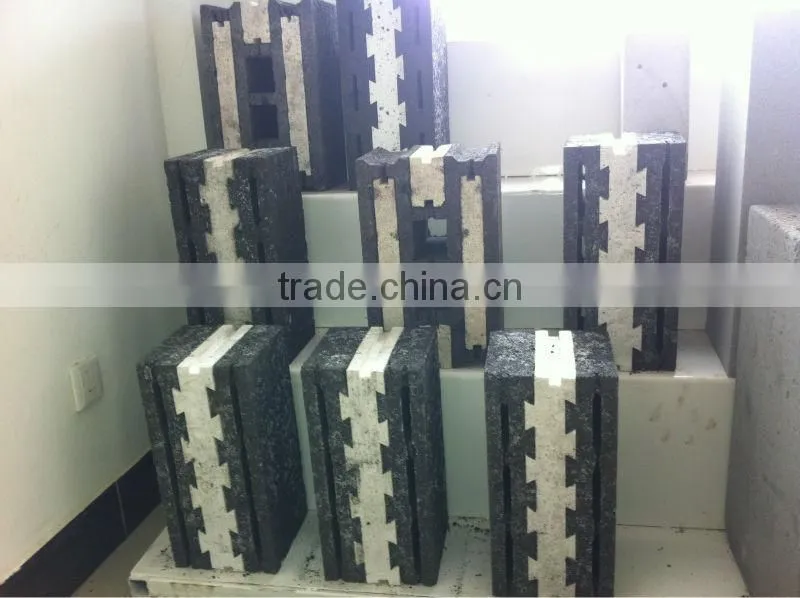

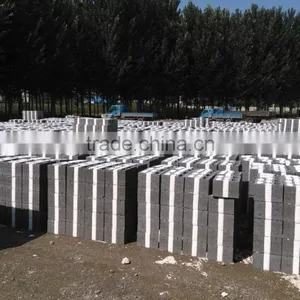

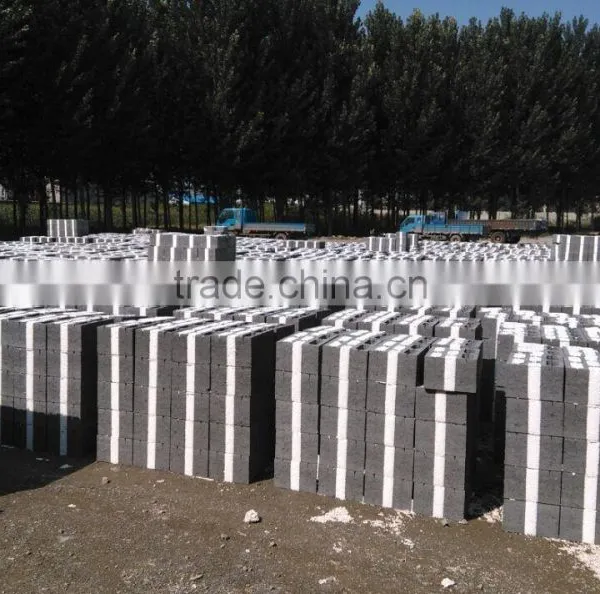

QT8-15C new design fully automatic brick machine products samples
