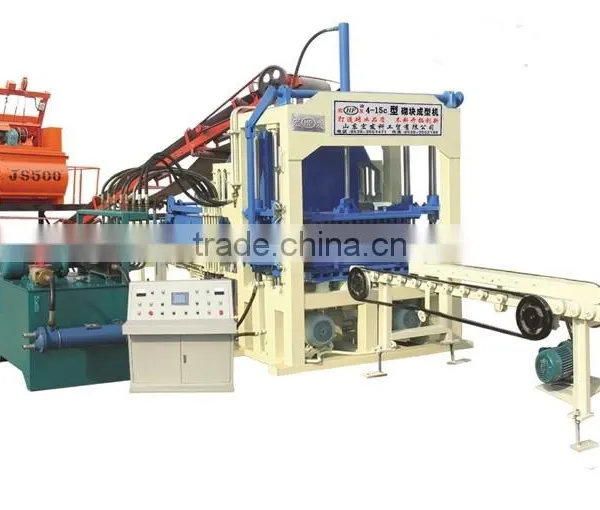

QT4-15C Automatic Insulated foam concrete block machine
a) It is a compact oil hydraulic machine according to the standard of international .Many parts from abroad ensure the quality of machine and take fro the power.
b) The vibration system contains platform vibration and mould vibration so the products is very close grained and produced quickly.
c) The novel feeding system gives material exactly and average and assures the products having a high density.
QT4-15C Automatic Insulated foam concrete block machine productivity
|
Size |
Size mm |
Cycle moulding |
QTY /Mould |
Per hour |
|
Hollow brick
|
|
400*200*200 |
15-20s |
4 |
720pcs |
|
400*150*200 |
15-20s |
5 |
900pcs |
|
Color brick |
|
225*112.5*60
|
15-25s |
14 |
2520pcs |
QT4-15C Automatic Insulated foam concrete block machine main technical parameter
- overall dimension:7100*1600*2610mm
- rated pressure:16Mpa
- mian vibration form: platform virbraiton
- vibration frequency:4600(r/min)
- palllet size:1020*570mm
- molding cycle:15-25s
Raw material for making blocks

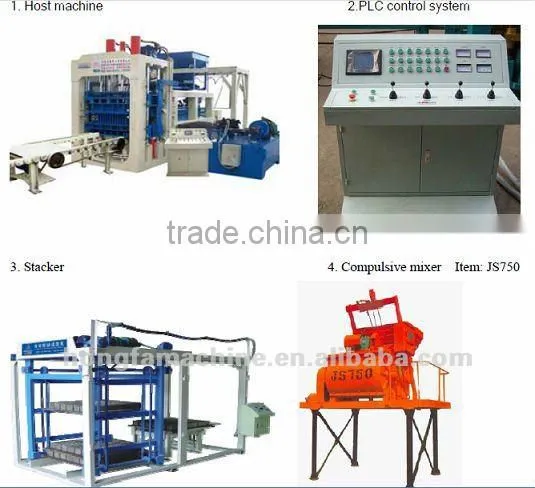

Machine parts
Host machine
JS500 double shafts mixer
8M conveyor belt

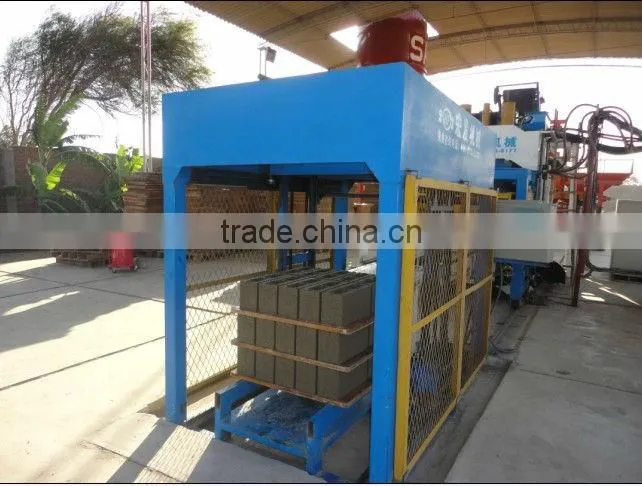

Stacker
One set QT4-15C Automatic Insulated foam concrete block machine include host machine, JS500 mixer , 8M conveyor belt, PLC control , hydraulic system, one set free charge mould ,two sets manual carts
1. Area: Workshop area: 100m2, all factory area 1500m2, the bigger, the better.
2. Workers : five.
3. Ratio of raw material:cement 8%-10% sand 30%-40% stone:50%-60%,about cement :sand : stone is1:4:5.
4.hollow block weight::
(390*190*190) :17KG,(190*140*190):13.5KG,(390*90*190):10KG
5. raw material consumption per day:150-190T
6. water consumption per day:3%-5% of raw material Weight.
If you are interested in ,pls feel free to contact Linda at mob/whatsapp:+86-13256512899 or skype:linda112637
QT4-15C Automatic Insulated foam concrete block machine production samples
