Germany Technology Automatic Block Machine,brick Cutting Machine,color Paver Block Machine,QT12-15 Brick Making Machine

Germany Technology Automatic Block Machine,brick Cutting Machine,color Paver Block Machine,QT12-15 Brick Making Machine thumbnail-1
Germany Technology Automatic Block Machine,brick Cutting Machine,color Paver Block Machine,QT12-15 Brick Making Machine thumbnail-2
Germany Technology Automatic Block Machine,brick Cutting Machine,color Paver Block Machine,QT12-15 Brick Making Machine thumbnail-3
Germany Technology Automatic Block Machine,brick Cutting Machine,color Paver Block Machine,QT12-15 Brick Making Machine thumbnail-4
Germany Technology Automatic Block Machine,brick Cutting Machine,color Paver Block Machine,QT12-15 Brick Making Machine thumbnail-5
Germany Technology Automatic Block Machine,brick Cutting Machine,color Paver Block Machine,QT12-15 Brick Making Machine photo-1
Germany Technology Automatic Block Machine,brick Cutting Machine,color Paver Block Machine,QT12-15 Brick Making Machine photo-2
Germany Technology Automatic Block Machine,brick Cutting Machine,color Paver Block Machine,QT12-15 Brick Making Machine photo-3
Germany Technology Automatic Block Machine,brick Cutting Machine,color Paver Block Machine,QT12-15 Brick Making Machine photo-4
Germany Technology Automatic Block Machine,brick Cutting Machine,color Paver Block Machine,QT12-15 Brick Making Machine photo-5
US$ 67,000 - 79,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Hollow Block Making Machine
Brick Raw Material:
Concrete
Contact Supplier Request Quote Chat Now
Shandong Hongfa Scientific Industrial & Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Hollow Block Making Machine
Brick Raw Material Concrete
Processing Brick Production Line
Method Hydraulic Pressure
Automatic Yes
Capacity 21600PCS/D
Place of Origin Shandong, China
Brand Name hongfa
Model Number QT12-15
Voltage As your local power voltage requests
Power 44KW
Dimension(L*W*H) 9350*2520*2950mm
Certification ISO9001/CE/SGS
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

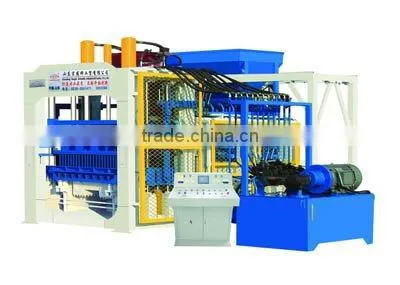

QT12-15 automatic brick making machine



Germany technology automatic block machine,brick cutting machine,color paver block machine,QT12-15 brick making machine



(1) Productivity

Item

Specification size

Quantity per mold

Cycle mouding

Per hour

Per day

Hollow

brick

400*200*200

12pcs

20-25s

2160pcs

21600pcs/day

Hollow brick

400*150*200

16pcs

20-25s

2880pcs

28800pcs/day

Color brick

225*112.5*60

30pcs

15-25s

5400pcs

54000pcs/day



(2) Main Technical Parameter

Main Technical Specifications

Dimension

9350*2520*2950mm

Rated  pressure

21MPa

Main  vibration

platform

Vibration frequency

2800-4500r /min

Pallet Size

1300*900mm

Molding Cycle

15-25(s)

Overall Power

46kw

Raw Materials

crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes.

Applied Products

concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc.

Applied Fields

widely used in buildings, road pavers, squares, gardens, landscaping, city constructions, etc.







Machine Line Parts Details:



1. Cement silo



Size

100 Ton

Dimeter(m)

2.5

Bin Height(m)

10

Total Height(m)

17

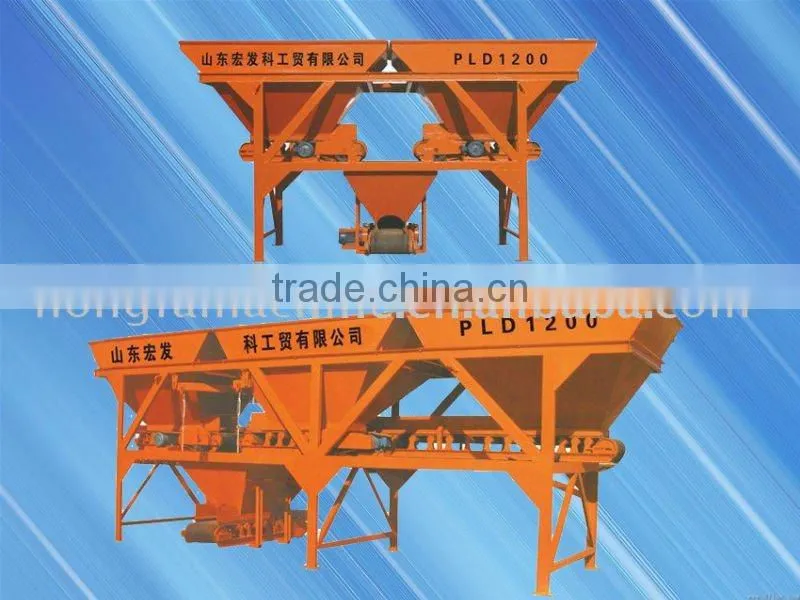

2. Batching machine (PL1200,3hoppers)



Germany technology automatic block machine,brick cutting machine,color paver block machine,QT12-15 brick making machine



Item

PLD1200

weigh-batching hopper capacity(L)

1200

storage hopper capacity(m3)

4*2.5

Theoretical Productivity(m3/h)

56

Ingredient percision

±2%

Min Weigh

3000

Batching species

2-4

Height of Adding Material(mm)

2.8

Belt speed

1.25 m/s

Power

16kw

Weight

4500kg

Dimensions

9200×2200×3000mm







This automatically weighs the raw materials as per pre determined program.

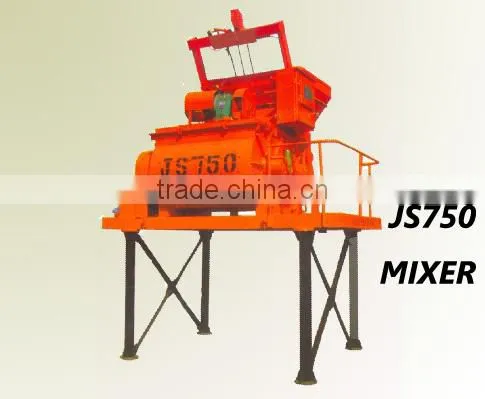

3.JS750 concrete mixer



Germany technology automatic block machine,brick cutting machine,color paver block machine,QT12-15 brick making machine







Mixing the raw materials thoroughly and discharges for the Host machine.

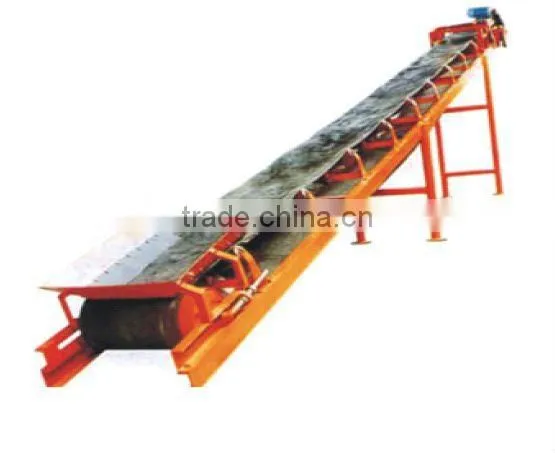

4.Belt conveyor machine: 8 meters, 2.2kw



Germany technology automatic block machine,brick cutting machine,color paver block machine,QT12-15 brick making machine

This conveys the raw materials to the host machine hopper.

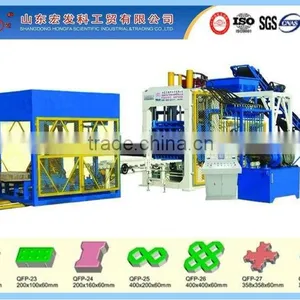

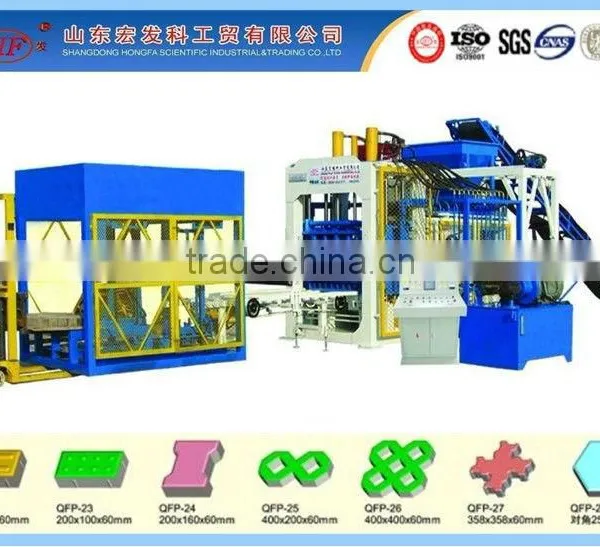

5, Host machine



Germany technology automatic block machine,brick cutting machine,color paver block machine,QT12-15 brick making machine

Main Technical Specifications

Dimension

9350*2520*2950mm

Rated  pressure

21MPa

Main  vibration

platform

Vibration frequency

2800-4500r /min

Pallet Size

1300*900mm

Molding Cycle

15-25(s)

Overall Power

46kw









6. PLC control system

Germany technology automatic block machine,brick cutting machine,color paver block machine,QT12-15 brick making machine



   PLC intelligent control. Man-machine interface, control system equipped with complete logic control, production program, malfunction diagnosis system and remote control function. So it doesn’t need a professional person but only need a simple trainning to the operator.

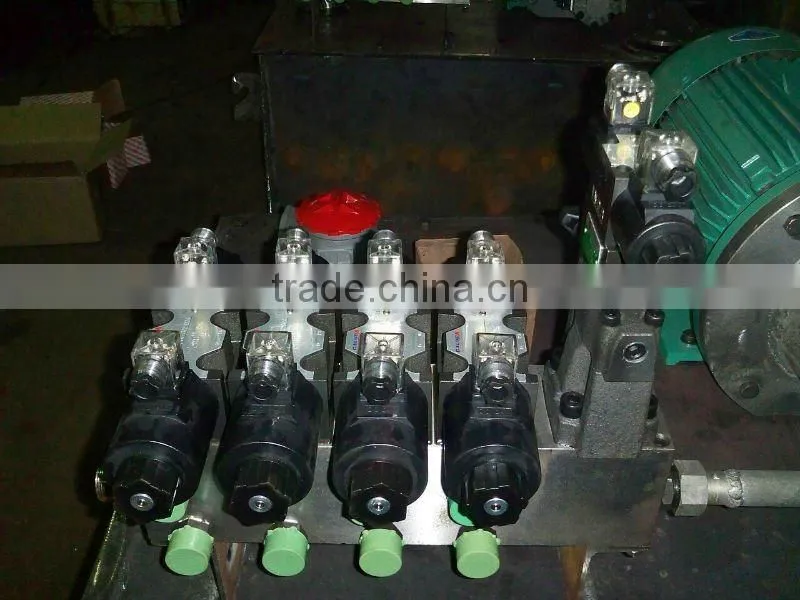

7. Hydraulic station



Electric system and hydraulic system work together with the machine. Changing the vibration form, it can realize lower frequency in feeding material and high frequency in vibration. so provide the product with one height in a pallet.

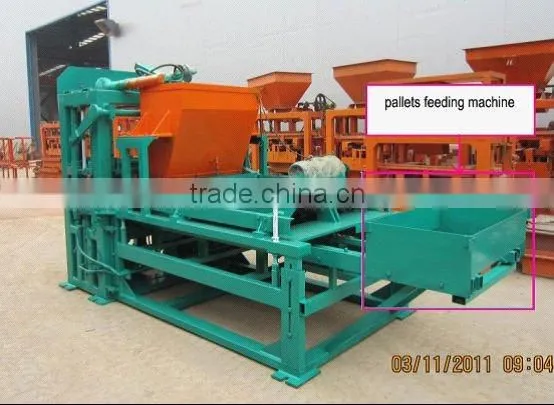

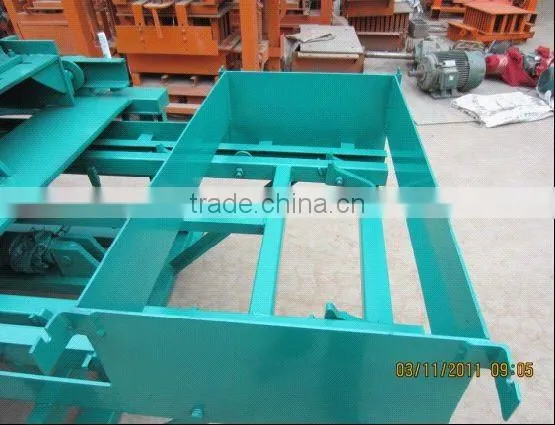

8.Pallets feeding machine





 Germany technology automatic block machine,brick cutting machine,color paver block machine,QT12-15 brick making machine

Germany technology automatic block machine,brick cutting machine,color paver block machine,QT12-15 brick making machine

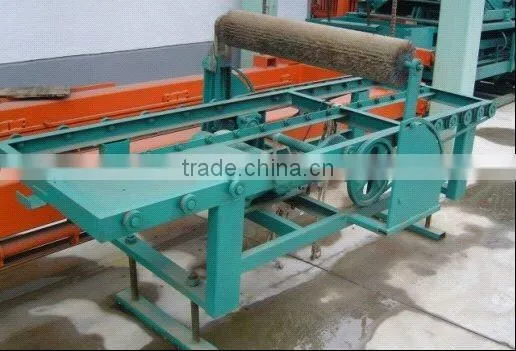

  9. Brick conveyor machine

Germany technology automatic block machine,brick cutting machine,color paver block machine,QT12-15 brick making machine



It can clean up the top surface of the bricks.







10 , Stacker

Germany technology automatic block machine,brick cutting machine,color paver block machine,QT12-15 brick making machine





It can stack the pallets of block automatically.







 11. Manual forklift

 Germany technology automatic block machine,brick cutting machine,color paver block machine,QT12-15 brick making machine









12. Molds

Germany technology automatic block machine,brick cutting machine,color paver block machine,QT12-15 brick making machine

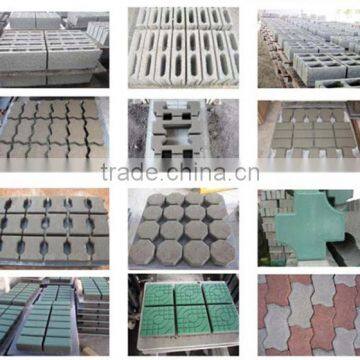

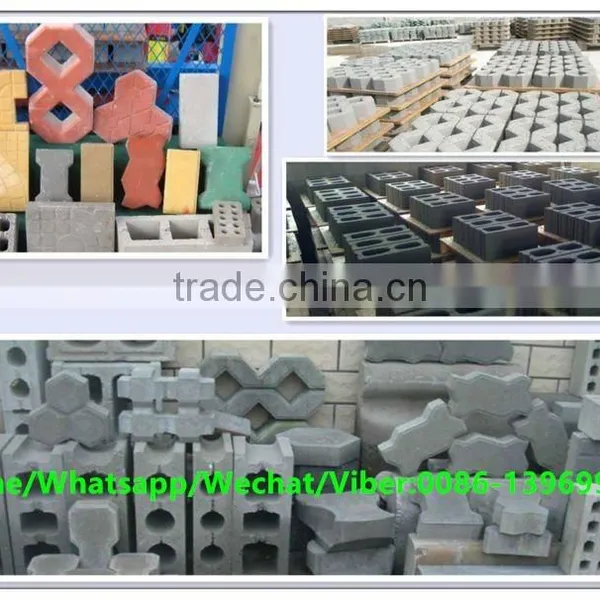

13. Finished products





Germany technology automatic block machine,brick cutting machine,color paver block machine,QT12-15 brick making machine





Welcome you send your offer to me in your free time.



Seller  Sherry          Skype hongfa710



TEL/Whatsapp/wechat/viber: 86-13969965095
