Detailed Product Description:
We are the top leader in China on manufacturing the Autoclaved Aerated Concrete Line(AAC) with 65% market share. We have exported our lines to different countries -- Russia, Thailand, Ukraine, Middle East and so on.
We can supply our customer for designning, production, installation, commissioning, training and good after-sale service.
Capacity: from 50000 cubic meter to 300,000 cubic meters per year.
Equipments: stocking raw materials, mixing, molding, forming, cutting, evaporating and curing, crane cramp, transporting etc.,
1 Product weight is according to 600kg/m3 to control.
2 annual capacity 300,000M3.
3 set raw material proportion: cement 6.5%, raw lime 23%, flyash 68%, gypsum 3%, aluminum paste powder 350g/M3.
4 water and material rate 0.631
5 one mould product 2.88M3
6 Casting slurry cycle time 5-6 minutes, cut cycle time 5 minutes.
7 casting slurry temperature 38-42 degree
8 body quiet stop. Time is 1.5-2.5hours, temperature 50-90 degree, after quiet stop body strength is 0.15-0.18Mpa
9 Steam curing cycle time, come in and out autoclave about 0.5hour, steam curing cycle time about is 6 hours/1.6Mpa, total 6.5 hours.
10. Cement lime fly ash style aerated block raw material proportion
name |
unit |
Cement lime fly ash |
flash |
% |
65-70 |
cement |
% |
6-15 |
lime |
% |
18-25 |
gypsum |
% |
3-5 |
Aluminum powder paste(600kg/m3) |
1/10000 |
8 |
Water & material rate |
|
0.60-0.65 |
Casting system |
OC |
36-40 |
Aluminum mixing time |
S |
30-40 |
11. Cement lime Sand style aerated block raw material proportion
Name |
Unit |
Cement Lime Sand |
Sand |
% |
55-65 |
Cement |
% |
10-20 |
Lime |
% |
20-30 |
Gypsum |
% |
2-3 |
Aluminum powder paste(600kg/m3) |
1/10000 |
8 |
Water & material rate |
|
0.65-0.75 |
Casting system |
OC |
35-38 |
Aluminum mixing time |
S |
30-40 |
Reference: cement is 42.5 Portland or 42.5 common cement
Aluminum power paste calculate to use according to 600kg/m3
Remark: the accurate batching rate is adjustable according to the raw material locally.
Crusher
Model |
Technical Parameters |
Motor Power(Kw) |
Overall Dimensions(mm) |
|||
|
Max Feeding Size(mm) |
Adjusted Ranges(mm) |
Output(m3/h) |
Spindle Speed(r/min) |
|||
PEF250*300 |
165 |
20-70 |
2-8 |
265 |
11 |
1056*1100*1120 |
PEF250*400 |
210 |
20-80 |
5-20 |
310 |
18.5 |
1108*1142*1392 |
PEF250*750 |
290 |
30-55 |
20-50 |
300 |
37 |
1900*1806*1808 |
To make the big lime to be small piece.
Ball mill
To make the lime grain to be powder.
Bucket Elevator

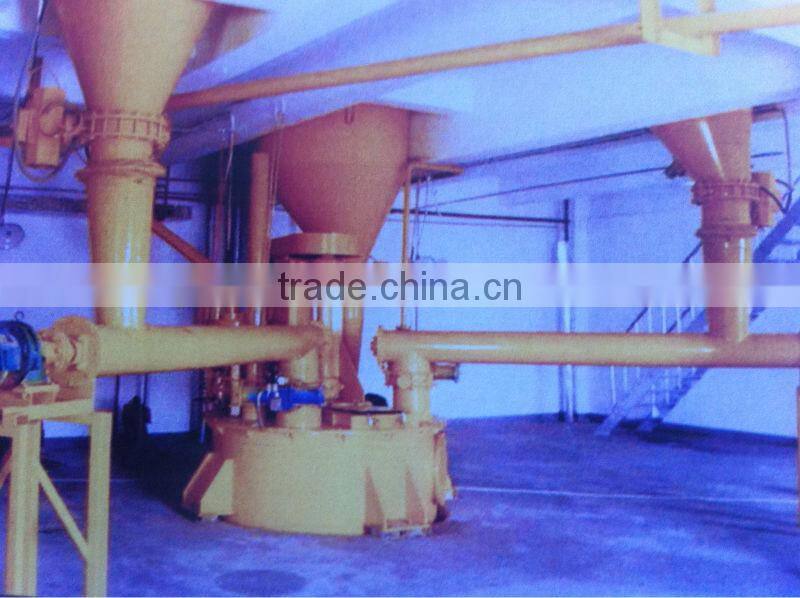

Pouring mixer
Powder Scale System
Slurry Storage Tank

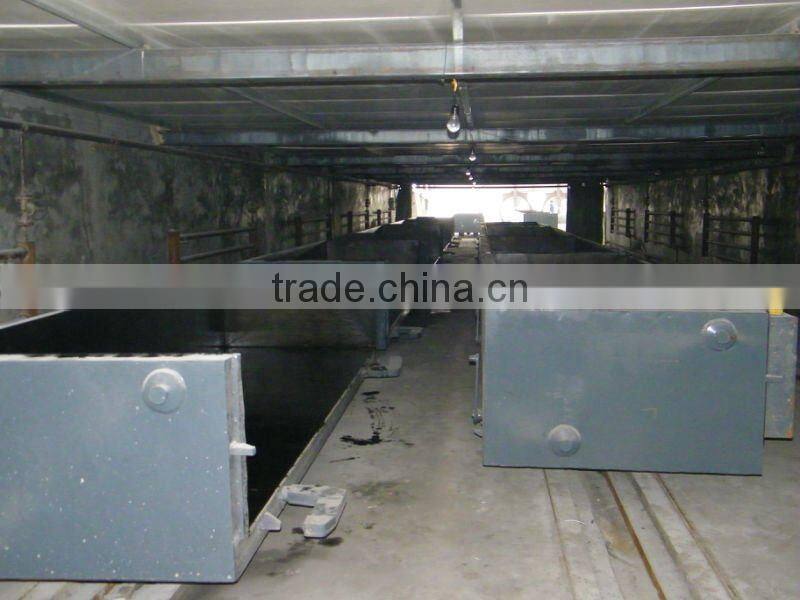

Molds
Cutting machine
Autoclaves
Boiler

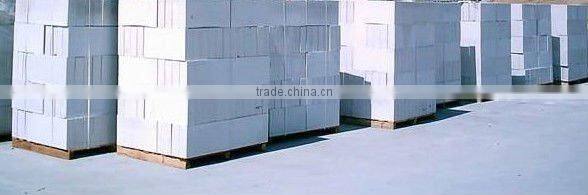

Finished products
AAC Production line
Oversea customers
Warmly welcome you come to visit our company and our AAC working factory.
Our company is in Shangdong province, China.
Seller Sherry Skype hongfa710 TEL 86-15562182082
Sincerely welcome your consultation.
