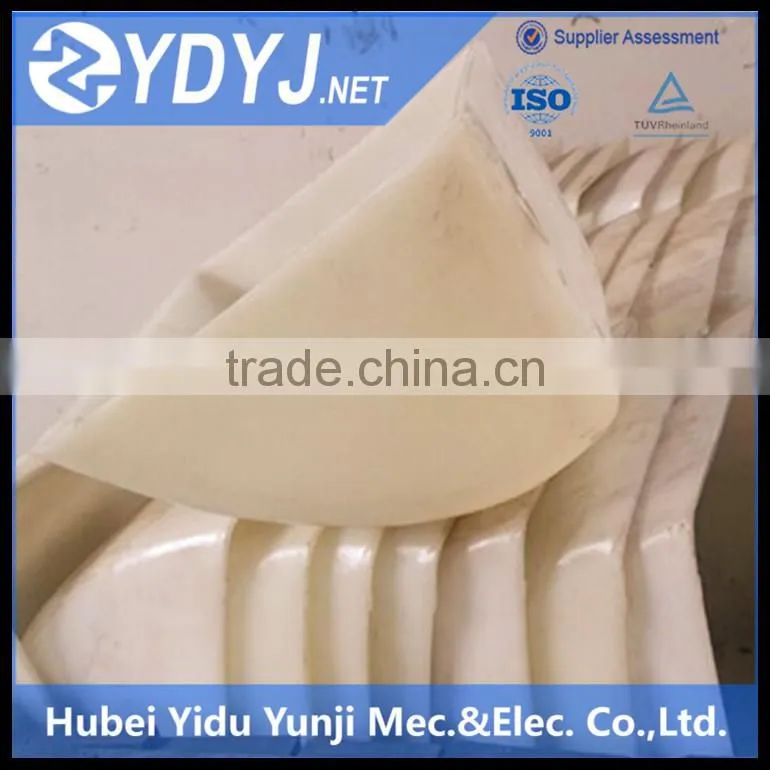

Wear resistance food grade plastic bucket supplier
Food grade plastic bucket performance characteristics:
1, High strength, wear resistance, corrosion resistance, service life is higher than that of steel bucket;
2, Light weight, can prolong the service life of the bucket elevator belt, reduce energy consumption;
3, Flexibility is good, material breakage rate is low.Lifting of raw materials, the damage is only 1 per thousand;
4, Not sparks when working because of friction, to avoid the possibility of dust explosion;
5, Clean discharge, wide temperature range.
Food grade plastic bucket application scope
Food grade plastic bucket is used for the centrifugal type unloading bucket elevator,and the line speed is less than or equal to 2 - 3.3 m / S.
Food grade plastic buckets technical parameters
1. Processing methods: injection molding
2. Bucket connecting hole distance, aperture can be based on user needs free drilling hole distance, aperture (standard Please refer to the specification table).
3. The bucket spacing: bucket spacing is fighting back width;
4. Installation: use ordinary, square neck screw, screw or belt bucket teeth;
5. Health standards, in line with health and safety standards of the state.

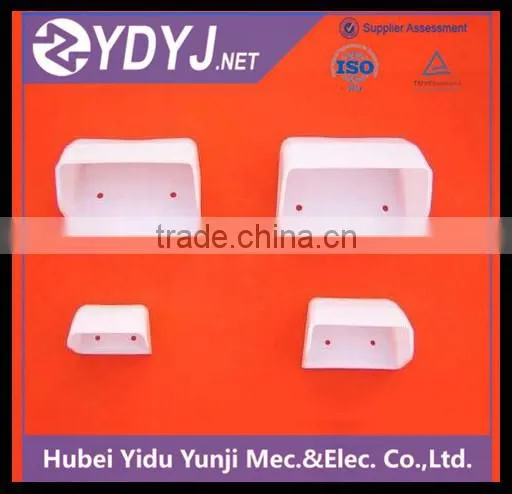

Food grade plastic bucket component
Food grade plastic bucket elevator site picture
Type |
TZD200 |
TZD250 |
TZD300 |
TZD400 |
TZD500 |
TZD650 |
TZD800 |
TZD1000 |
Belt width(mm) |
200 |
250 |
315 |
400 |
500 |
650 |
800 |
1000 |
Bucket Capacity (L) |
1.21 |
2.35 |
3.1 |
6.1 |
11.5 |
2*3.1 |
2*6.1 |
2*11.5 |
Bucket pitch(mm) |
105-300 |
125-150 |
145 |
195 |
255 |
145 |
195 |
255 |
Belt speed (m/s) |
1.76-2.75 |
1.76-3 |
1.93-3.05 |
1.93-3.05 |
1.97-3.1 |
2.2-3.87 |
2.5-3.94 |
2.5-3.94 |
Capacity (t/h) |
10-50 |
30-100 |
50-150 |
80-150 |
100-200 |
150-300 |
200-400 |
400-600 |
Max lifting height (m) |
60 |
60 |
65 |
65 |
65 |
65 |
65 |
65 |
Packaging and shipping
1. Export packing.(Wooden case, carbon cast and pallet).
2. Container (as customer requirements)
3. It is suitable for long distance ocean transportation.
Our service
I. Engineers abailable to service machinery overseas.
2. Provide installation guide, equipment manuals, operation and repair training.
3. Provide random spare parts.
FAQ
Please tell us the following technical datas before ordering:
Q: What 's the material will be lifted?please tell us more material features.
Q:What's the lifting height between the inlet with outlet?
Q:What's the lifting capacity do you want?
Company other informations
Welcome to consult us for more informations.
