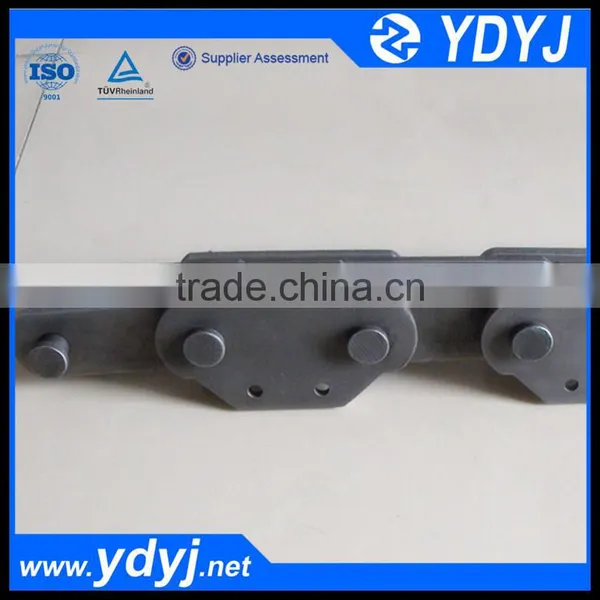

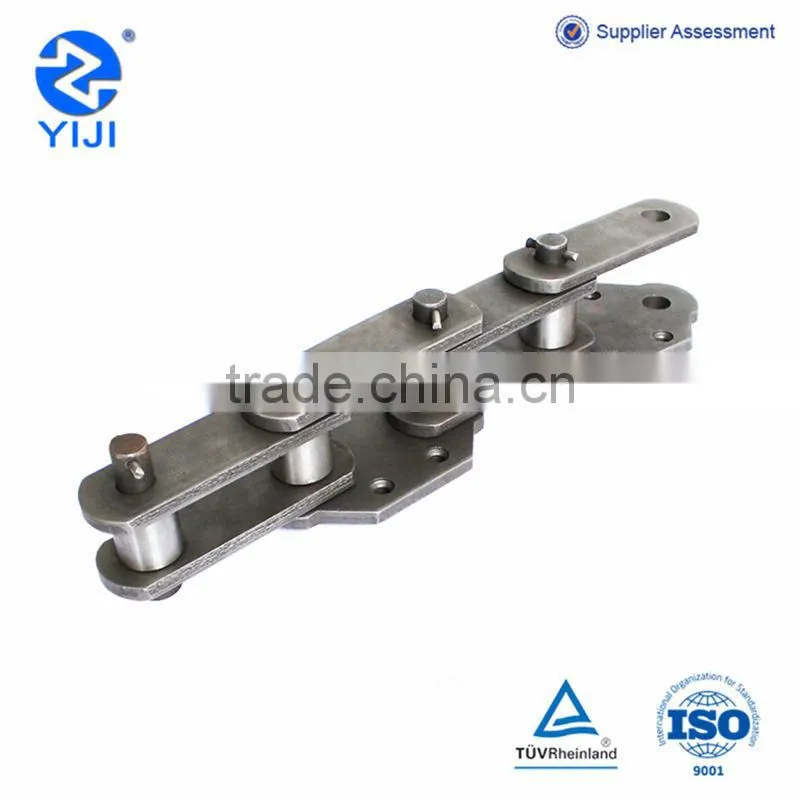

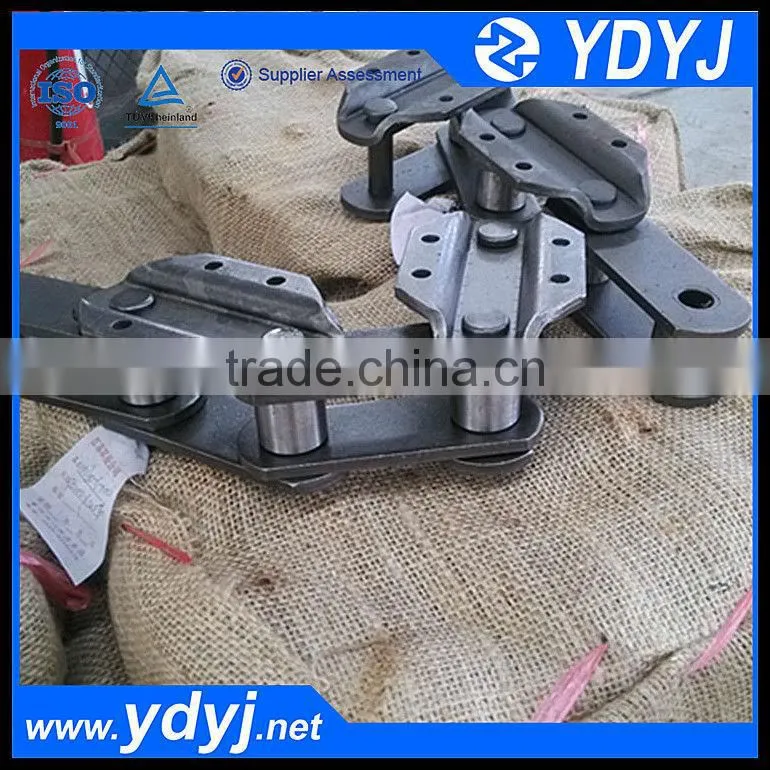

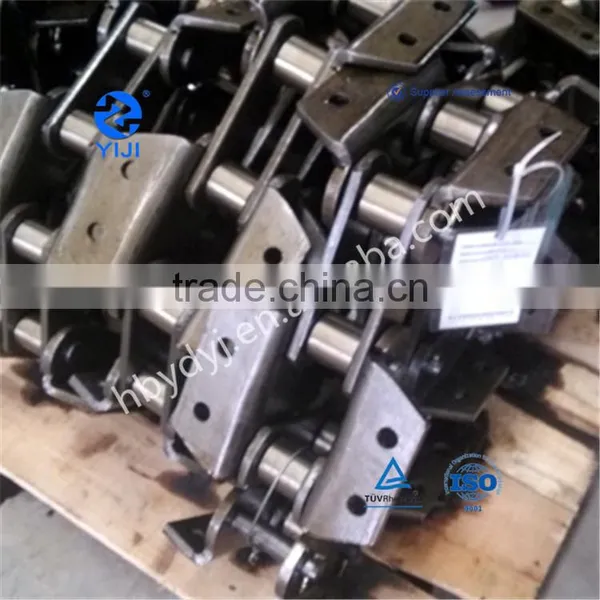

High tensile strength bucket elevator chain price
---Description
1. Wear resistance with alloy steel.
2. Flanged structure and bolt connection between sections.
3. Strong tensile strength.
4.High efficiency.
---Application scope

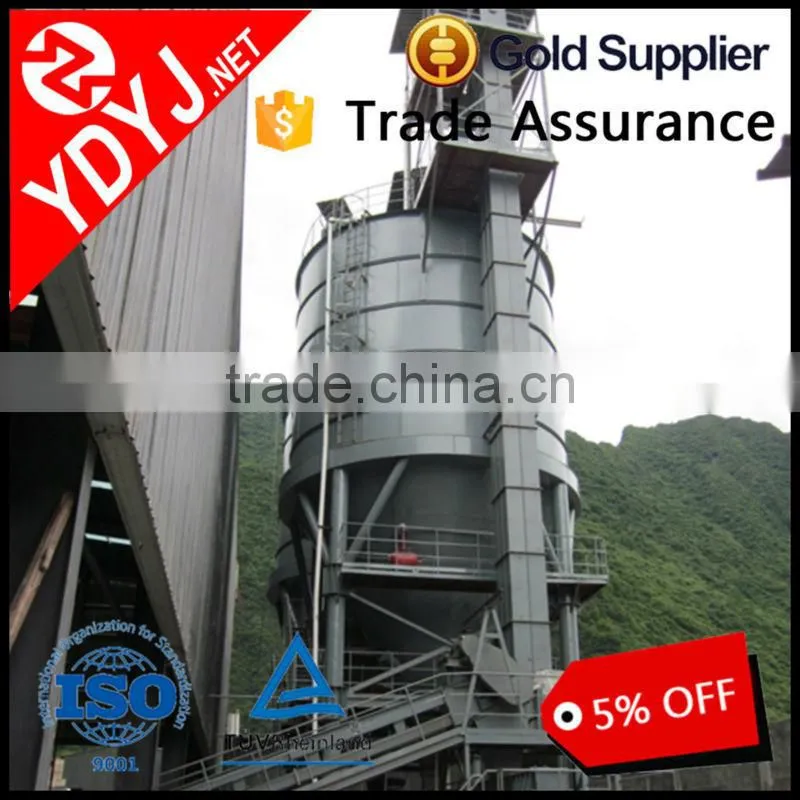

This chain is widely used in power plant, metallurgy, cement, chemical, light industry and so on. It is used for lifting coal cinder ,piece coal, crushed stone, mineral stone, egg stone, dry and bulk and fluidity power, granular and block material and so on.
---Operating principles
When the driving device start working , it drives the puley to make the chains with buckets to do the circular movement from the below of the tail to the top of the head The head section has outlet and the tail section has inlet.
The bucket is filled with material and run to the head section, then the material is thrown out from the outlet under the action of centrifugal force according to the parabolic design.With the running, the empty bucket is back to the below tail section and be filled material from the inlet again,then be lifted up to do parabolic discharge movement . So this cycle finish the vertical transport of materials.

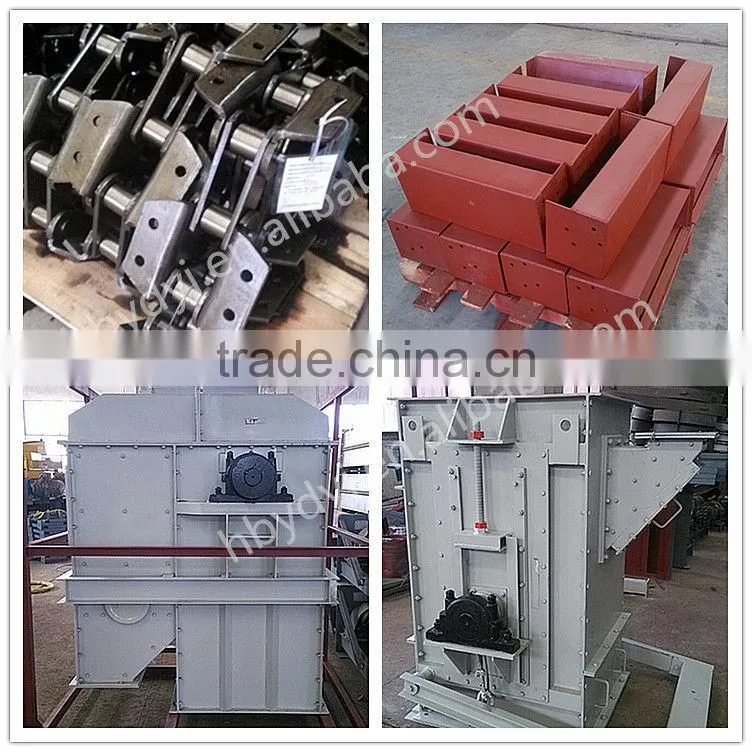

---components
Technical parameters
Equipment Type |
TB-NE250 |
TB-NE315 |
TB-NE400 |
TB-NE500 |
TB-NE630 |
TB-NE800 |
TB-NE1000 |
|||
Bucket type |
J |
T |
||||||||
Capacity(m3/h) |
15-25 |
32-46 |
50-75 |
84-120 |
35-190 |
216-310 |
340-480 |
|||
Bucket |
Width(mm) |
252 |
315 |
400 |
500 |
630 |
800 |
1000 |
||
Capacity (L) |
3 |
6 |
12 |
25 |
50 |
100 |
200 |
|||
|
Bucket distance(mm) |
200 |
250 |
320 |
400 |
500 |
630 |
||||
Chain |
Pitch (mm) |
100 |
125 |
160 |
200 |
250 |
315 |
|||
Number |
1 |
2 |
||||||||
Broken load of chain(KN) |
112/160 |
160/224 |
224/315 |
315/450 |
450/630 |
630/900 |
||||
Diameter of sprocket(mm) |
386.37 |
482.96 |
618.19 |
772.74 |
965.92 |
1217.06 |
|
|||
Bucket speed (m/s) |
0.5 |
|||||||||
driving shaft speed (rpm) |
24.71 |
19.78 |
15.45 |
13.26 |
9.89 |
7.85 |
||||

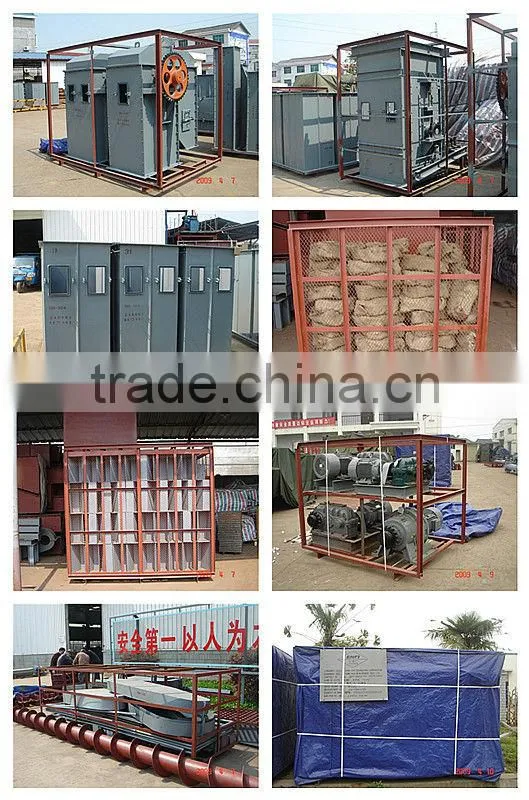

Packaging & Shipping.
1. Export packing.(Wooden case, carbon cast and pallet).
2. Container (as customer requirements).
3. It is suitable for long distance ocean transportation.
Our services
I. Engineers abailable to service machinery overseas.
2. Provide installation guide, equipment manuals, operation and repair training.
3. Provide random spare parts.
FAQ
Q: What 's the material will be lifted?please tell us more material features.
Q:What's the lifting height between the inlet with outlet
Q:What's the lifting capacity do you want?
