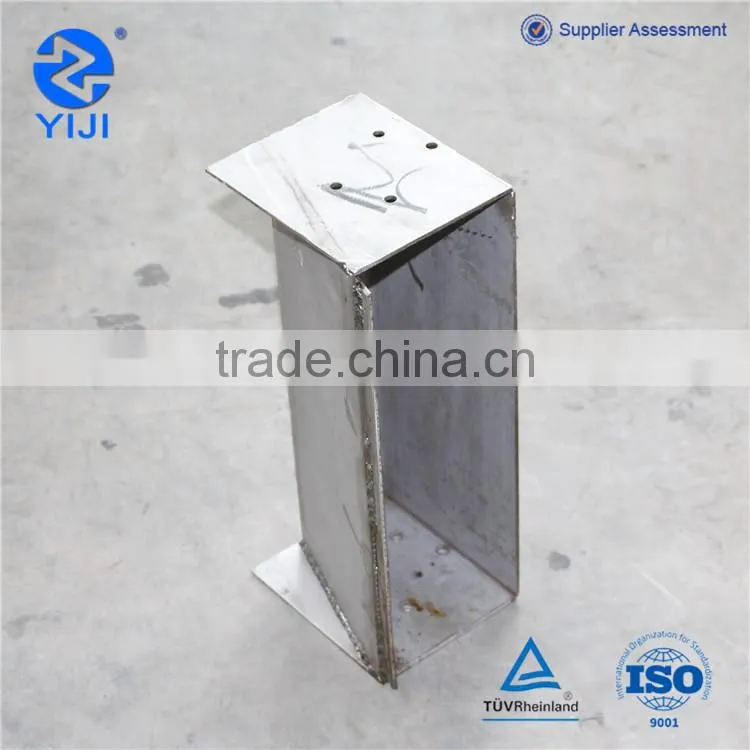

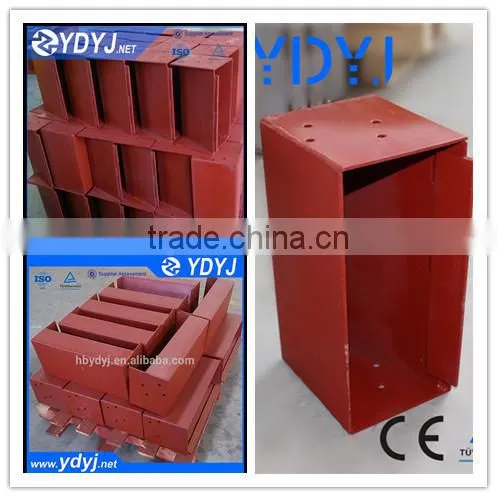

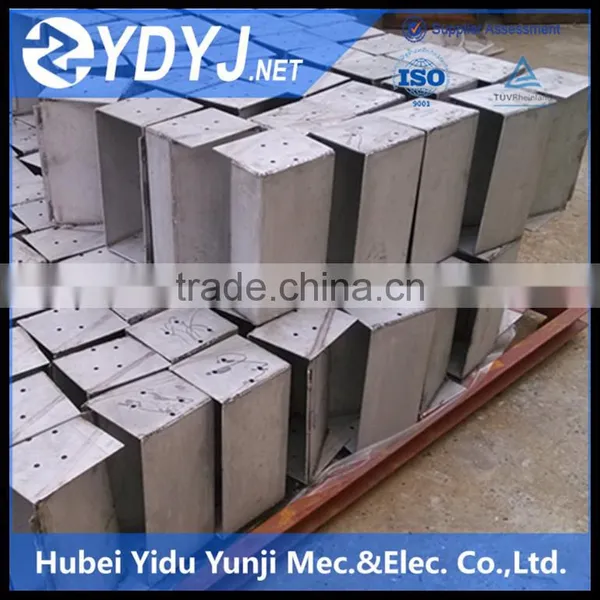

Help CenterNE or TB High Quality Stainless Steel Buckets of Bucket Elevator
Related Products
-
Cast Iron Conveyor Bearing Housing for ExportingUS$ 100 - 700MOQ: 10 Pieces -
High Performance Bearing Housing Seat for Bulk Materials ConveyorUS$ 100 - 700MOQ: 10 Pieces
-
High Quality Connecting Casing for Bucket ElevatorUS$ 120 - 350MOQ: 1 Set
-
Cast Iron Bearing Seat for Conveyor EquipmentsUS$ 100 - 700MOQ: 10 Pieces
-
Professional Plastic Elevator Bucket for Food ElevatorUS$ 20 - 50MOQ: 1 Set
Description
1. Customized material.

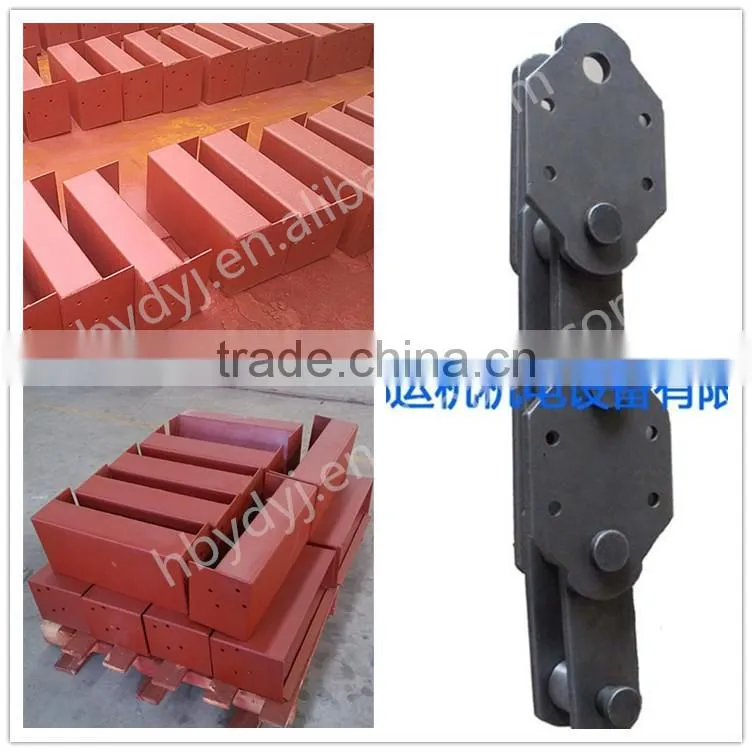

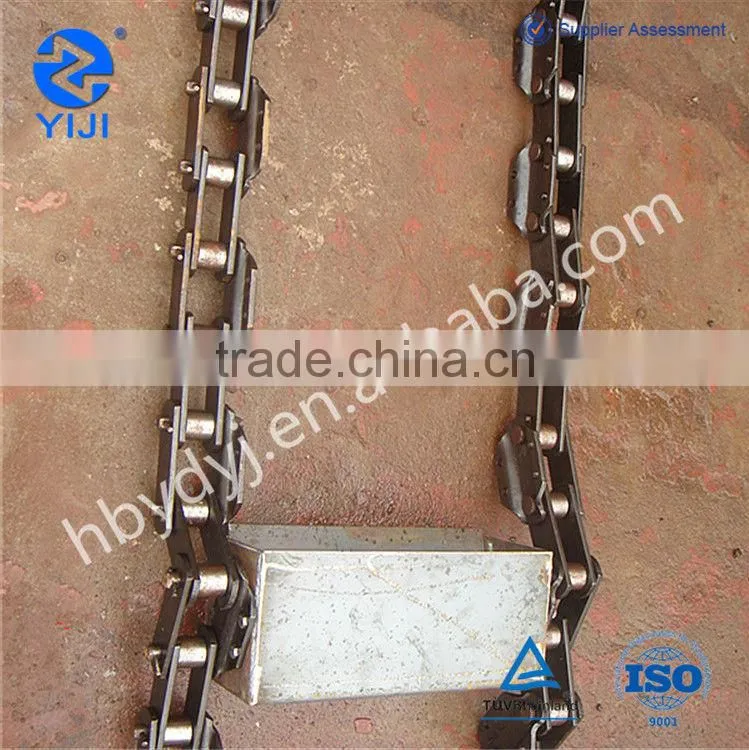

2. Bolt connection with chain.
3. Max lifting ca
4.High efficiency.
Application scope
TB series bucket elevator is widely used in power plant, metallurgy, cement, chemical, light industry and so on. It is used for lifting coal cinder ,piece coal, crushed stone, mineral stone, egg stone, dry and bulk and fluidity power, granular and block material and so on. The material density is not more than 2 t/m3, the site temperature is not more than 2500C.
Operating principle

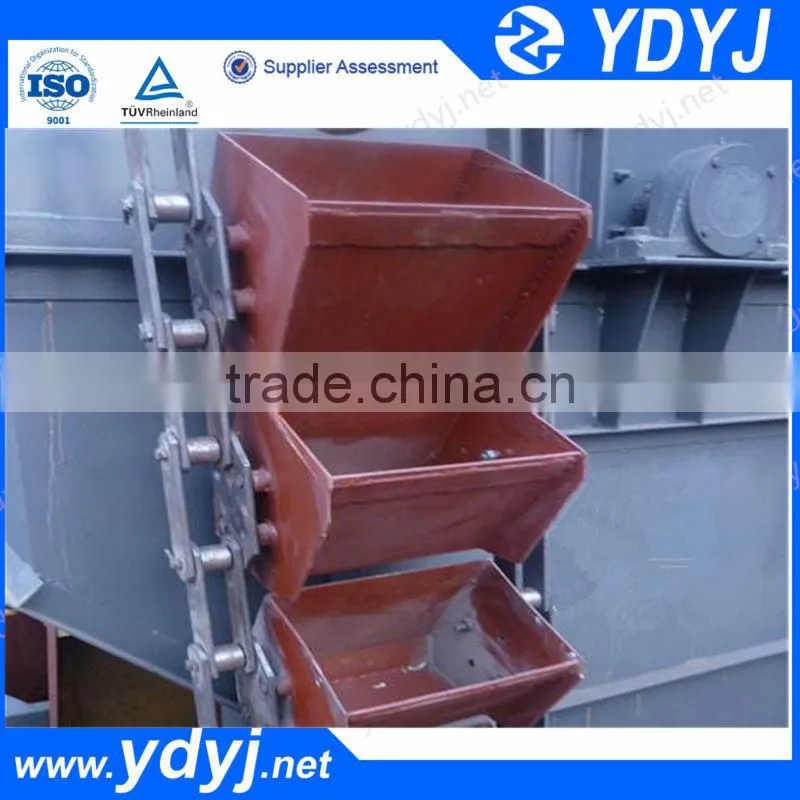

When the driving device start working , it drives the puley to make the chains with buckets to do the circular movement from the below of the tail to the top of the head The head section has outlet and the tail section has inlet.
The bucket is filled with material and run to the head section, then the material is thrown out from the outlet under the action of centrifugal force according to the parabolic design.With the running, the empty bucket is back to the below tail section and be filled material from the inlet again,then be lifted up to do parabolic discharge movement . So this cycle finish the vertical transport of materials.
ComponentS
Technical parameters
Equipment Type |
TB-NE250 |
TB-NE315 |
TB-NE400 |
TB-NE500 |
TB-NE630 |
TB-NE800 |
TB-NE1000 |
|||
Bucket type |
J |
T |
||||||||
Capacity(m3/h) |
15-25 |
32-46 |
50-75 |
84-120 |
35-190 |
216-310 |
340-480 |
|||
Bucket |
Width(mm) |
252 |
315 |
400 |
500 |
630 |
800 |
1000 |
||
Capacity (L) |
3 |
6 |
12 |
25 |
50 |
100 |
200 |
|||
|
Bucket distance(mm) |
200 |
250 |
320 |
400 |
500 |
630 |
||||
Chain |
Pitch (mm) |
100 |
125 |
160 |
200 |
250 |
315 |
|||
Number |
1 |
2 |
||||||||
Broken load of chain(KN) |
112/160 |
160/224 |
224/315 |
315/450 |
450/630 |
630/900 |
||||
Diameter of sprocket(mm) |
386.37 |
482.96 |
618.19 |
772.74 |
965.92 |
1217.06 |
|
|||
Bucket speed (m/s) |
0.5 |
|||||||||
driving shaft speed (rpm) |
24.71 |
19.78 |
15.45 |
13.26 |
9.89 |
7.85 |
||||
Packaging & Shipping.
1. Export packing.(Wooden case, carbon cast and pallet).
2. Container (as customer requirements).
3. It is suitable for long distance ocean transportation.
