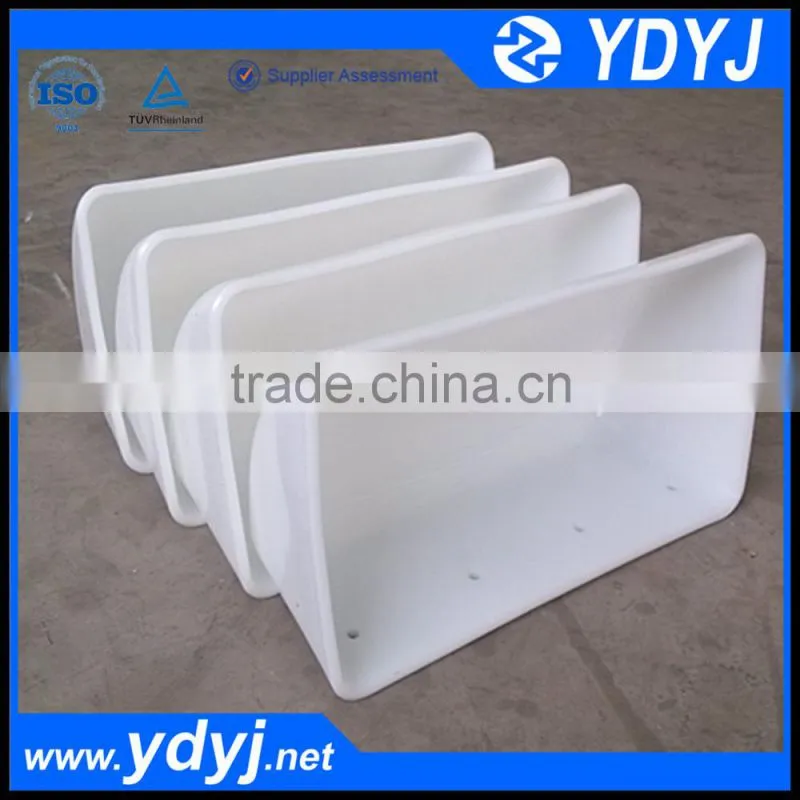

Professional plastic elevator bucket for food elevator
---Specifications
1. Bucket type structure.
2. Bolt connection with belt.
3. ISO,TUV.
4. Strong tension capacity.
Application scope
Plastic elevator bucket is widely used in grain and oil, metallurgy, cement, chemical, light industry and so on. It is used for lifting grain,piece coal, crushed stone, mineral stone, egg stone, dry and bulk and fluidity power, granular and block material and so on.
Operating principles
When the driving device of bucket elevator start working , it drives the puley to make the belt with plastic food buckets to do the circular movement from the below of the tail to the top of the head The head section has outlet and the tail section has inlet.
The bucket is filled with material and run to the head section, then the material is thrown out from the outlet under the action of centrifugal force according to the parabolic design.With the running, the empty bucket is back to the below tail section and be filled material from the inlet again,then be lifted up to do parabolic discharge movement . So this cycle finish the vertical transport of materials.
Plastic elevator bucket components

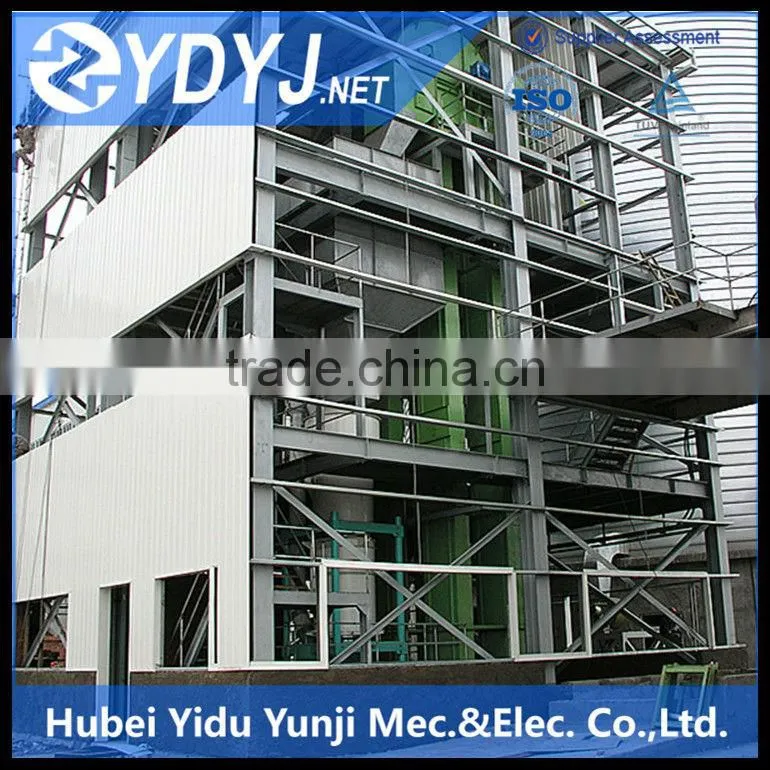

--- site picture
Technical parameters
Type |
TZD200 |
TZD250 |
TZD300 |
TZD400 |
TZD500 |
TZD650 |
TZD800 |
TZD1000 |
Belt width(mm) |
200 |
250 |
315 |
400 |
500 |
650 |
800 |
1000 |
Bucket Capacity (L) |
1.21 |
2.35 |
3.1 |
6.1 |
11.5 |
2*3.1 |
2*6.1 |
2*11.5 |
Bucket pitch(mm) |
105-300 |
125-150 |
145 |
195 |
255 |
145 |
195 |
255 |
Belt speed (m/s) |
1.76-2.75 |
1.76-3 |
1.93-3.05 |
1.93-3.05 |
1.97-3.1 |
2.2-3.87 |
2.5-3.94 |
2.5-3.94 |
Capacity (t/h) |
10-50 |
30-100 |
50-150 |
80-150 |
100-200 |
150-300 |
200-400 |
400-600 |
Max lifting height (m) |
60 |
60 |
65 |
65 |
65 |
65 |
65 |
65 |

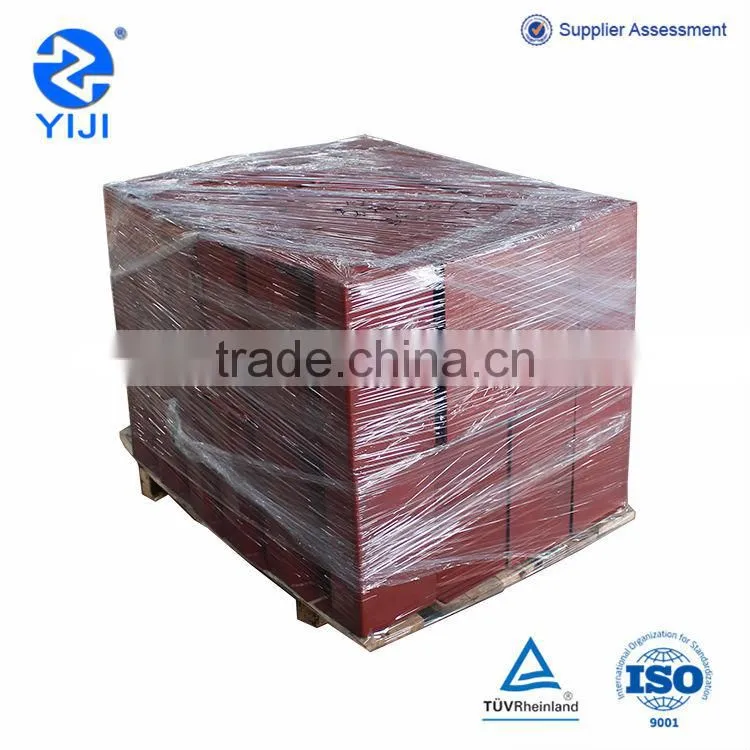

Packaging and shipping
1. Export packing.(Wooden case, carbon cast and pallet).
2. Container (as customer requirements)
3. It is suitable for long distance ocean transportation.
Our service
I. Engineers abailable to service machinery overseas.
2. Provide installation guide, equipment manuals, operation and repair training.
3. Provide random spare parts.
