---Description
1. Rectangular semi closed structure.
2. Bolt connection with chain or belt.
3. Wear resistance material.
4. ISO,TUV.

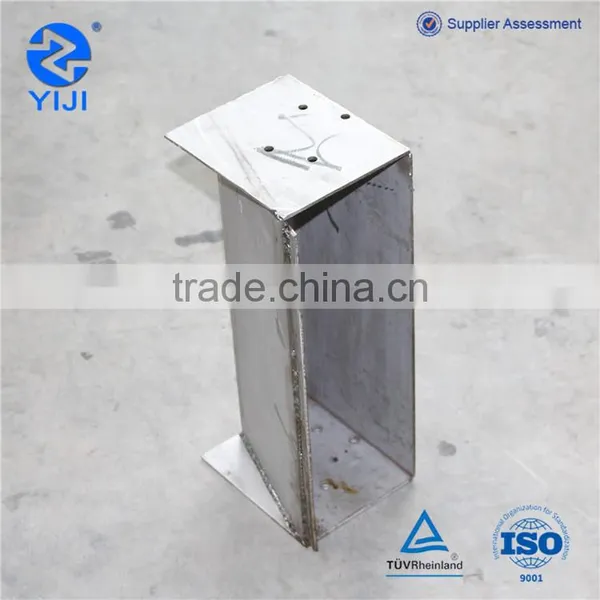

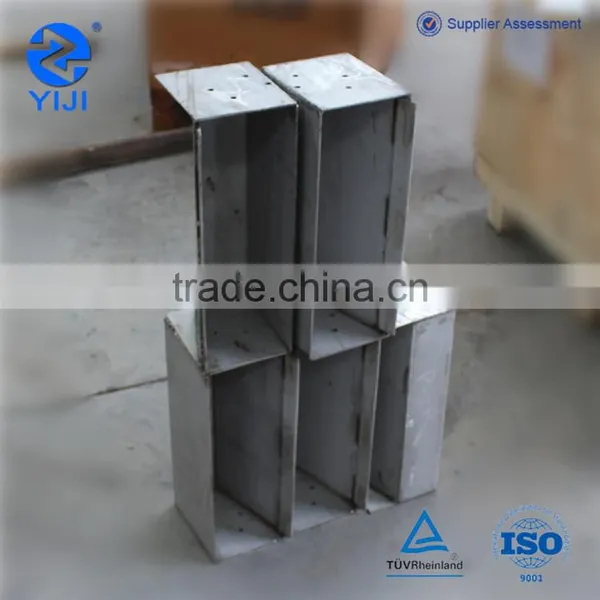

Stainless steel buckets for bucket elevators
Application scope
Stainless steel bucket is widely used in power plant, metallurgy, cement, chemical, light industry and so on. It is used for lifting coal cinder ,piece coal, crushed stone, mineral stone, egg stone, dry and bulk and fluidity power, granular and block material and so on. The material density is not more than 2 t/m3, the site temperature is not more than 2500C.

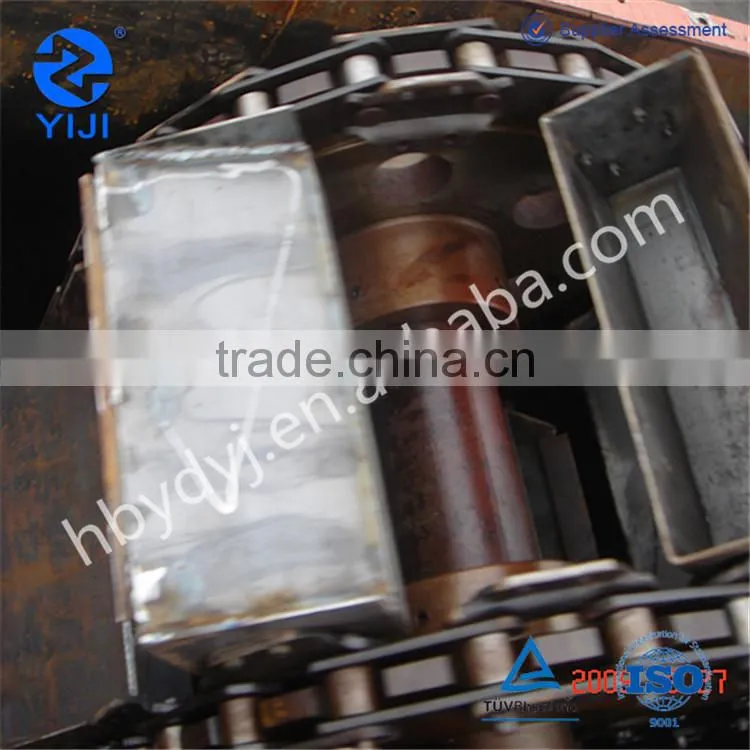

---component

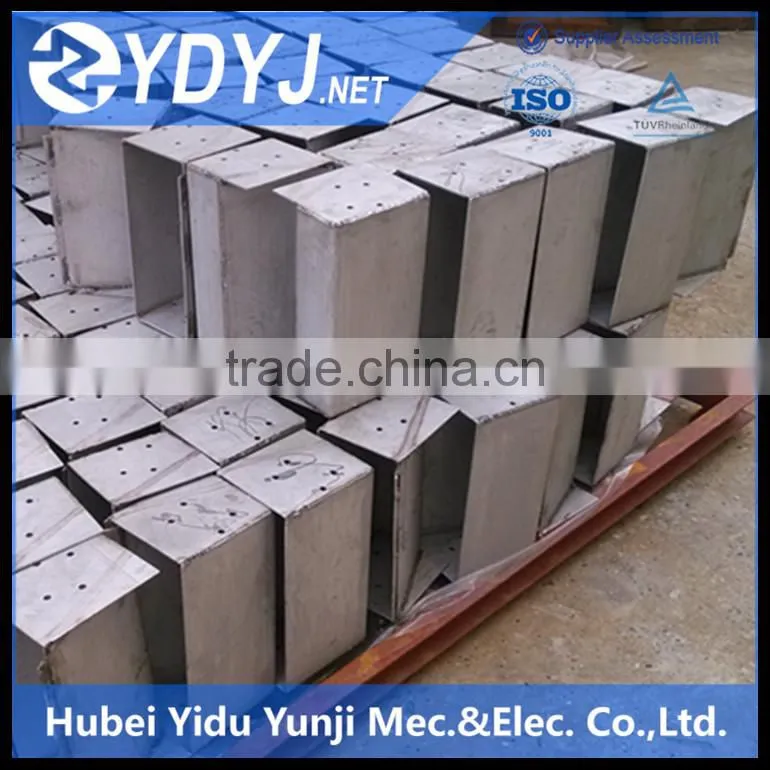

---in producing

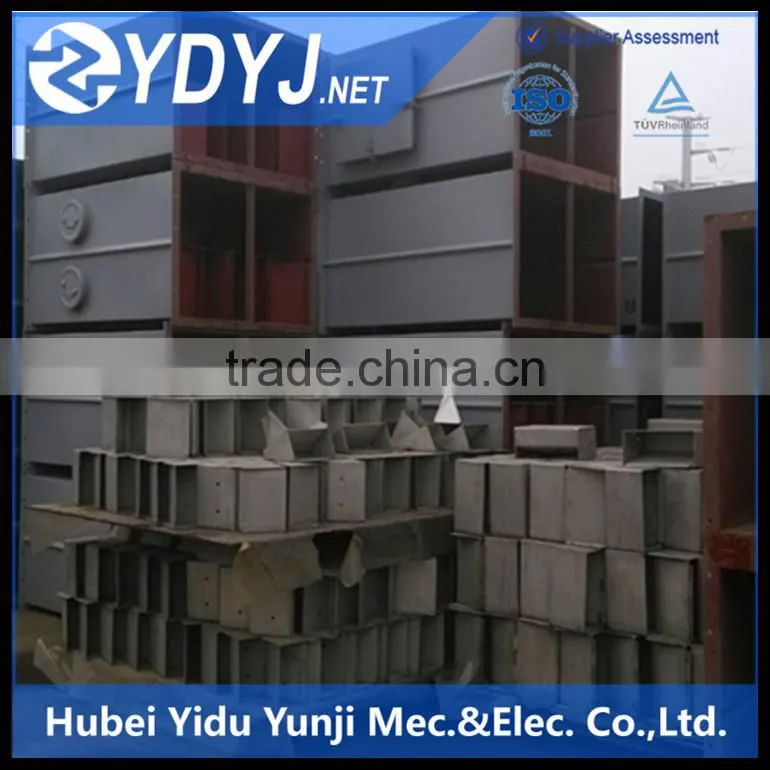

---Site picture
Technical parameters
Equipment Type |
TB-NE250 |
TB-NE315 |
TB-NE400 |
TB-NE500 |
TB-NE630 |
TB-NE800 |
TB-NE1000 |
|||
Bucket type |
J |
T |
||||||||
Capacity(m3/h) |
15-25 |
32-46 |
50-75 |
84-120 |
35-190 |
216-310 |
340-480 |
|||
Bucket |
Width(mm) |
252 |
315 |
400 |
500 |
630 |
800 |
1000 |
||
Capacity (L) |
3 |
6 |
12 |
25 |
50 |
100 |
200 |
|||
|
Bucket distance(mm) |
200 |
250 |
320 |
400 |
500 |
630 |
||||
Chain |
Pitch (mm) |
100 |
125 |
160 |
200 |
250 |
315 |
|||
Number |
1 |
2 |
||||||||
Broken load of chain(KN) |
112/160 |
160/224 |
224/315 |
315/450 |
450/630 |
630/900 |
||||
Diameter of sprocket(mm) |
386.37 |
482.96 |
618.19 |
772.74 |
965.92 |
1217.06 |
|
|||
Bucket speed (m/s) |
0.5 |
|||||||||
driving shaft speed (rpm) |
24.71 |
19.78 |
15.45 |
13.26 |
9.89 |
7.85 |
||||

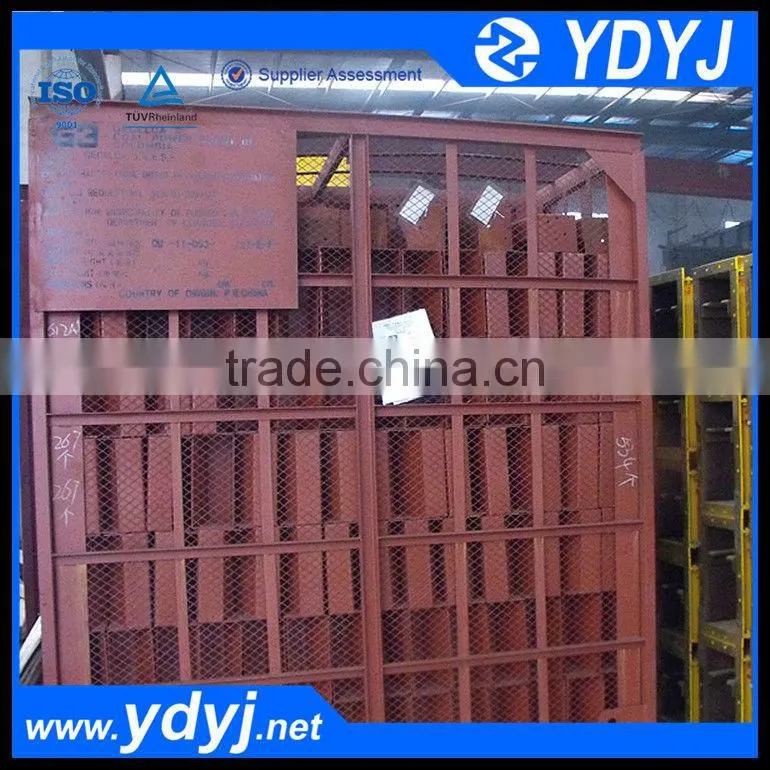

Packaging & Shipping.
1. Export packing.(Wooden case, carbon cast and pallet).
2. Container (as customer requirements).
3. It is suitable for long distance ocean transportation.
Our services
I. Engineers abailable to service machinery overseas.
2. Provide installation guide, equipment manuals, operation and repair training.
3. Provide random spare parts.
FAQ
Q: What 's the material of bucket?
Q:What's the specification of bucket?
Company certificates

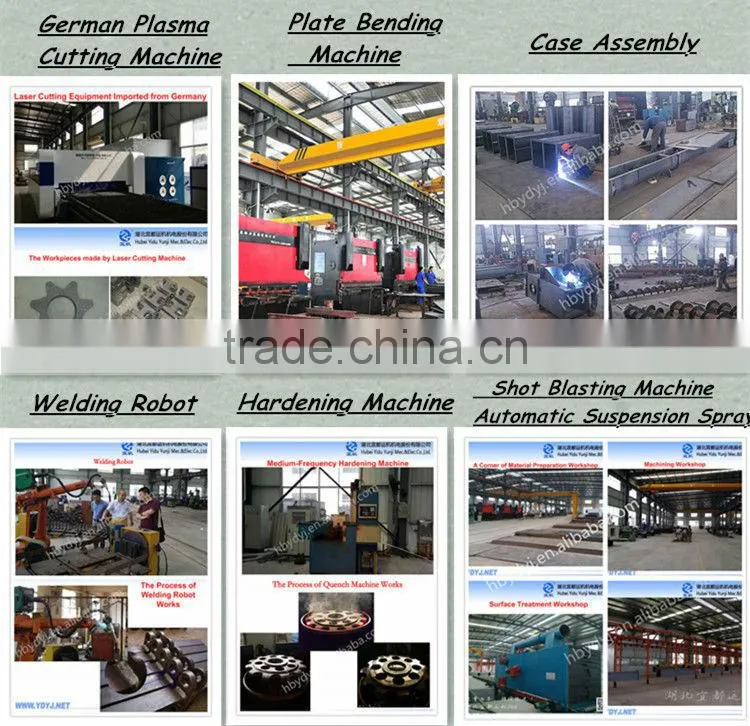

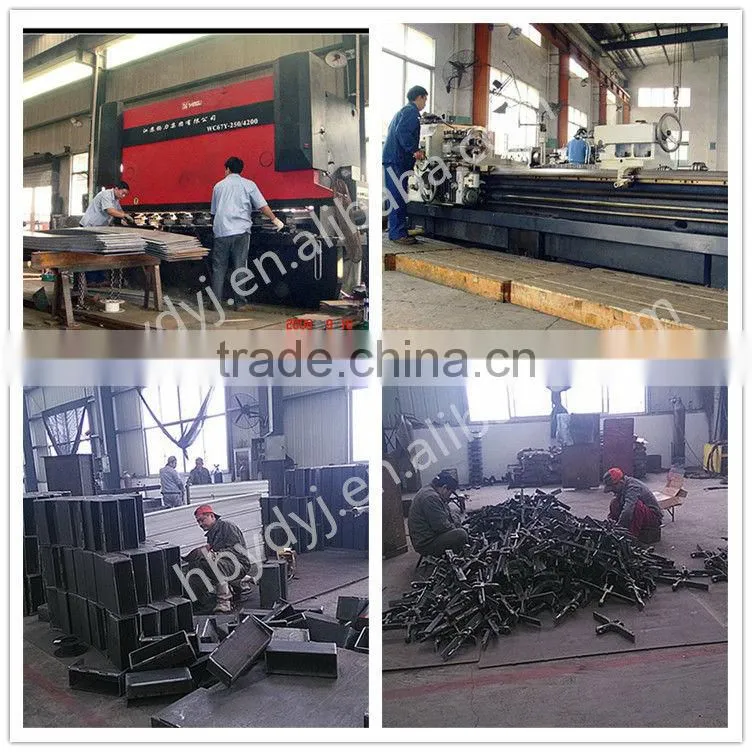

Processing equipment
Other information
Welcome to consult us for more inforamtion.
