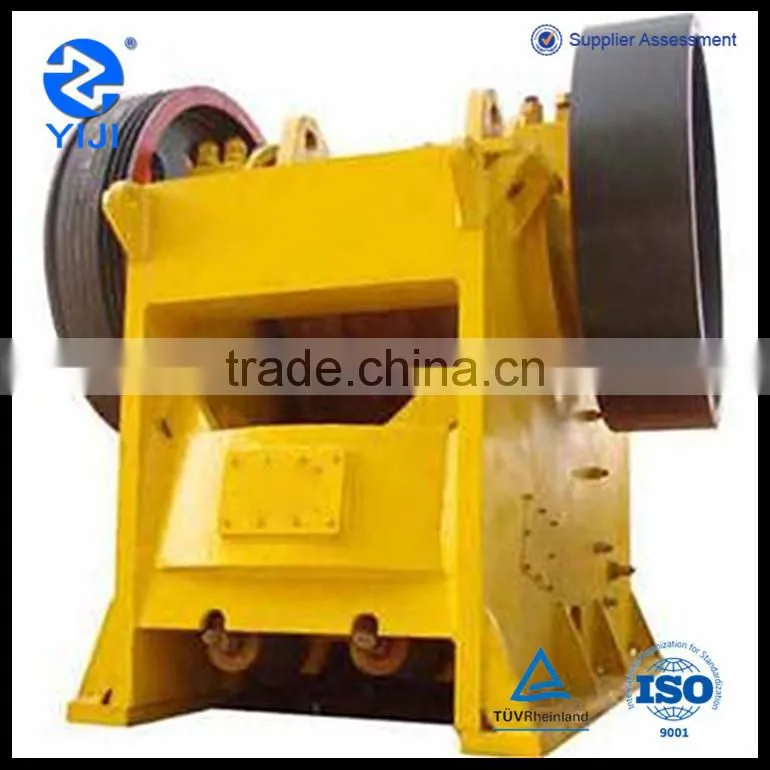

China good quality stone hammer crusher price
I. Specifications
1. mining machinery cusher with Simple structure, reliable work, and low operating costs;
2. Big crushing ratio, uniform product size;
3. The lubrication system is safe and reliable, convenient replacement of parts, maintenance workload is small;
4. Low noise, little dust.
5. The compressive strength of all kinds of ore or rock is not more than 250Mpa.
II. Operating Principles

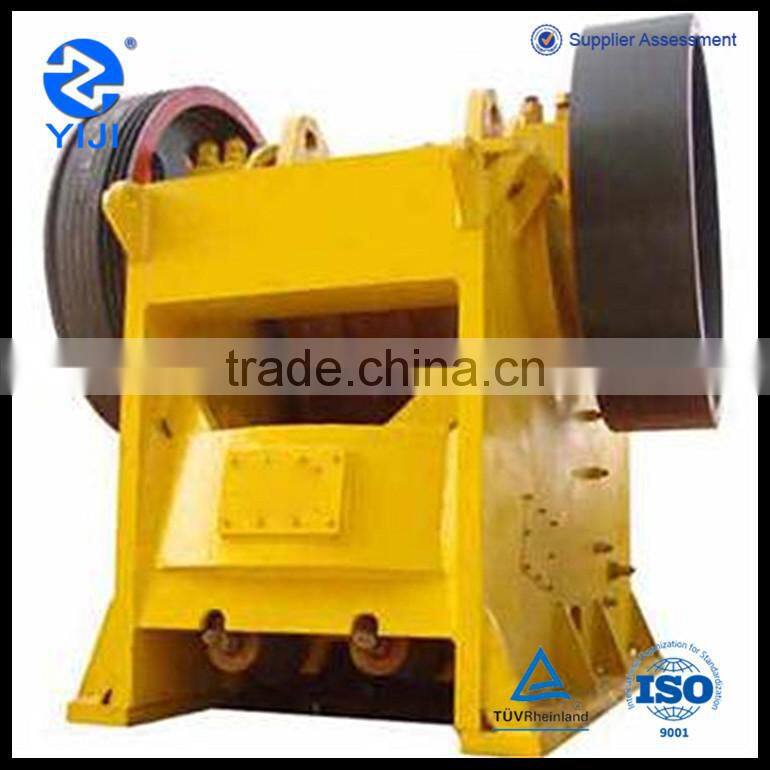

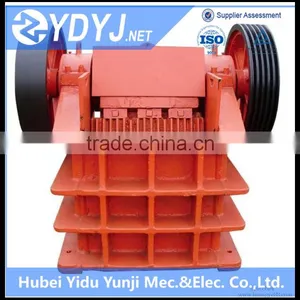

PE series mining machinery crusher is curved extrusion, motor drive belt and pulley, the eccentric shaft so that the movable jaw movement, the material is extruded, rubbing, grinding and other multiple broken, broken materials discharged from the crushing cavity opening, with the continuous rotation of the motor crusher for crushing jaw periodic and discharging, realize batch production.
III. Main Feature
1. The mining machinery crushing cavity is deep and no dead zone, improve the feeding ability and yield;
2. Gasket type discharge port adjusting device is convenient and reliable, large adjusting range, increase the flexibility of the equipment;
3. Energy-saving: single energy-saving 15% ~ 30%, more than double the system energy saving.
4. Discharge port adjusting range is large and it can meet the requirements of different users.
IV. Technical Parameter
Type |
PE150 |
PE250 |
PE400 |
PE500 |
PE600 |
PEX150 |
PEX250 |
Intet size(mm) |
150*250 |
250*400 |
400*600 |
500*750 |
600*900 |
150*750 |
250*750/1000 |
Max material size (mm) |
125 |
220 |
340 |
420 |
560 |
120 |
220 |
Outlet adjust range (rpm) |
10-40 |
20-80 |
40-100 |
50-120 |
65-160 |
10-46 |
15-50 |
Capacity(t/h) |
1-4 |
4-20 |
17-40 |
30-90 |
50-195 |
8-25 |
15-50 |
Eccentric axis speed (rpm) |
300 |
300 |
250 |
270 |
250 |
320 |
250 |
Single weight(kg) |
1120 |
2680 |
6400 |
8500 |
16800 |
3400 |
5100/6350 |
Motor type |
Y132S-6 |
Y180L-6 |
Y250M-8 |
Y280-6 |
Y315-8 |
Y180L-6 |
Y225M-6/Y280S-8 |
Power(kw) |
5.5 |
15 |
30 |
55 |
75 |
15 |
37 |
Figure dimension(mm) |
875*745*935 |
1450*1315*1296 |
1700*1730*1652 |
1870*1950*1765 |
2575*3723*2375 |
1380*1658*1025 |
1530/1420 1658/1920 1380/1380 |
Packaging and shipping
1. Export packing.(Wooden case, carbon cast and pallet).
2. Container (as customer requirements)
3. It is suitable for long distance ocean transportation.
Our services
I. Engineers abailable to service machinery overseas.
2. Provide installation guide, equipment manuals, operation and repair training.
3. Provide random spare parts.
FAQ
Q: What 's the material will be crushed?please tell us more material features.
Q:What's the requirement about the discharge material size?
Q:What's the crush capacity do you want?
