1. Bucket elevator conveyor With rich production and aftersale experience.
2. Rectangular closed flanged structure.
3.Max lifting height 60m
4.ISO,TUV,SEW,FLENDER.
ISO Bucket elevator conveyor with plastic steel bucket
Application scope
Bucket elevator conveyor is widely used in power plant, metallurgy, cement, chemical, light industry and so on. It is used for lifting coal cinder ,piece coal, crushed stone, mineral stone, egg stone, dry and bulk and fluidity power, granular and block material and so on. The material density is not more than 2 t/m3, the site temperature is not more than 2500C.
Operating principle
When the driving device start working , it drives the puley to make the belt with buckets to do the circular movement from the below of the tail to the top of the head The head section has outlet and the tail section has inlet.
The bucket is filled with material and run to the head section, then the material is thrown out from the outlet under the action of centrifugal force according to the parabolic design.With the running, the empty bucket is back to the below tail section and be filled material from the inlet again,then be lifted up to do parabolic discharge movement . So this cycle finish the vertical transport of materials.
Features
1. Bucket elevator conveyor need small installation space and can lift more materials. bucket elevator can convey the power, for example the calcined soda, salmiac, coal powder etc.
2.The transmission capacity is large. Lift the capacity up to 480 m3/h.
3.Long use life.

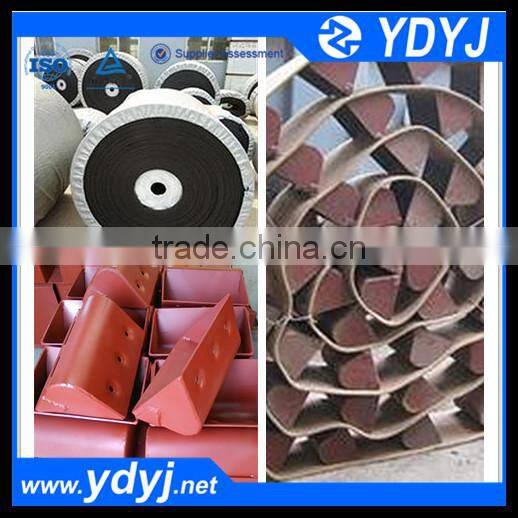

component

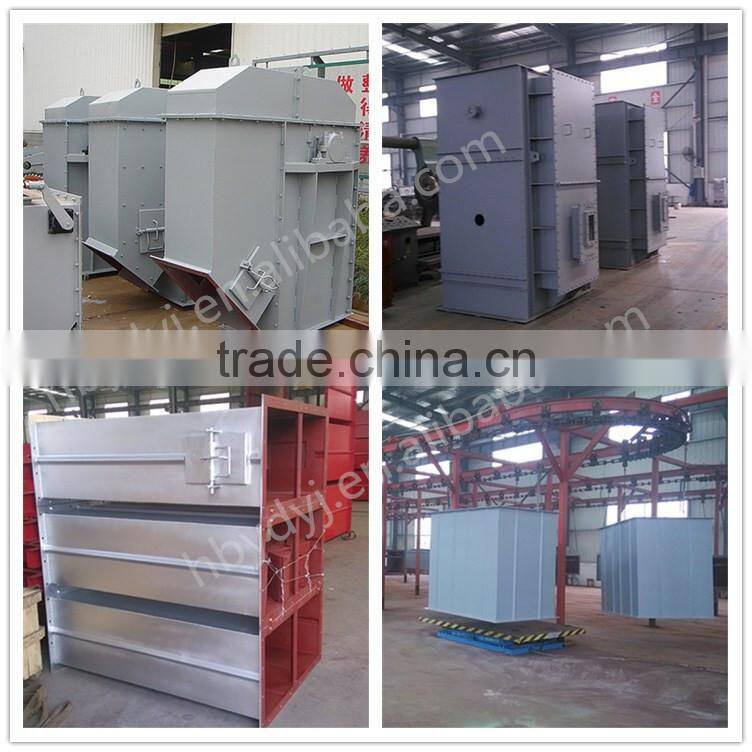

Bucket elevator conveyor in producing.

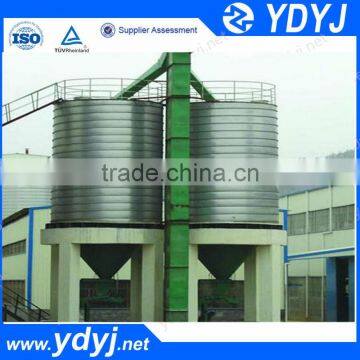

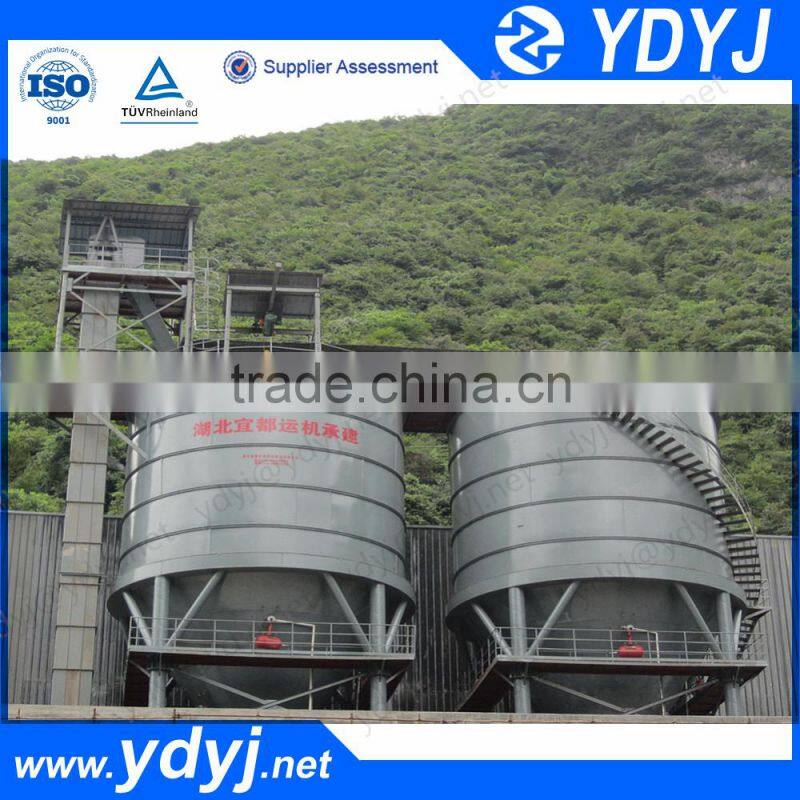

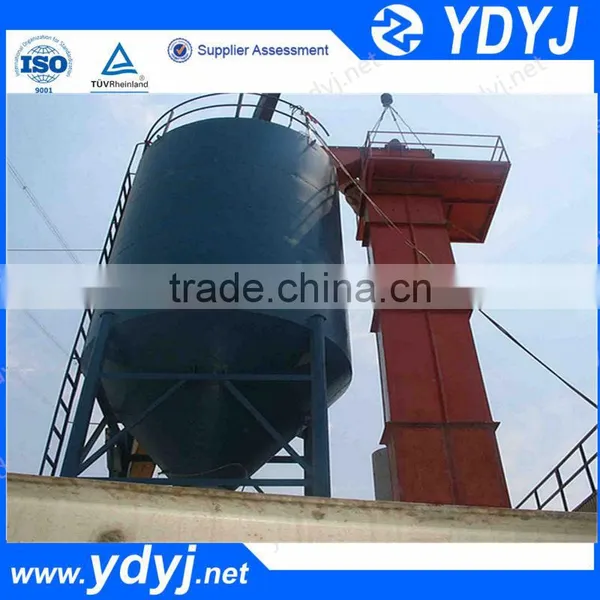

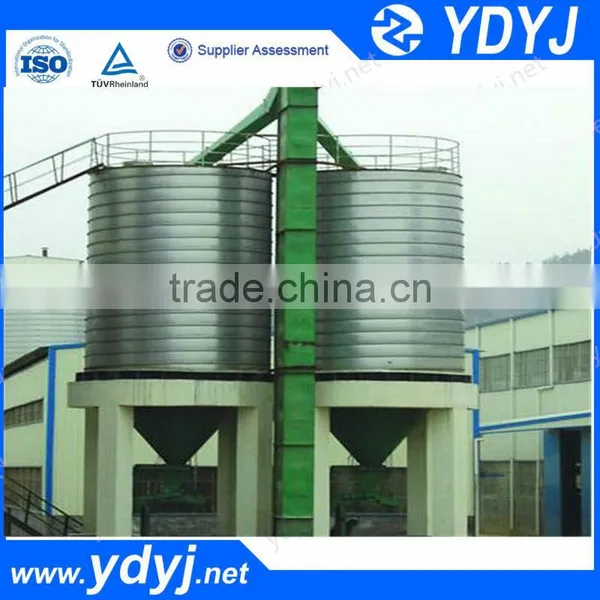

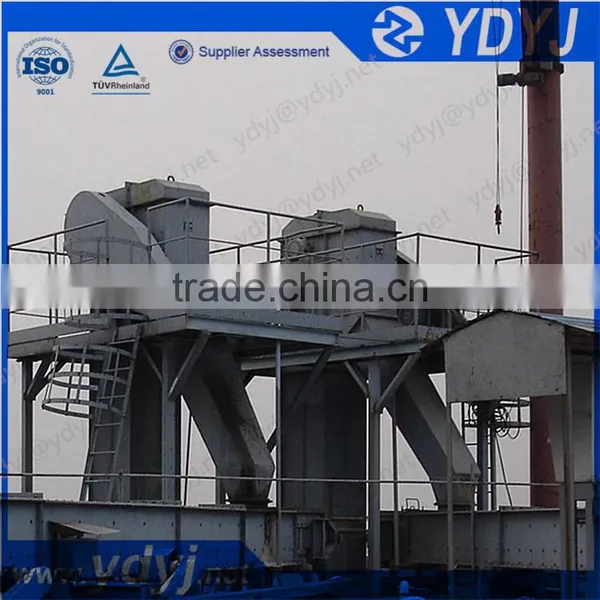

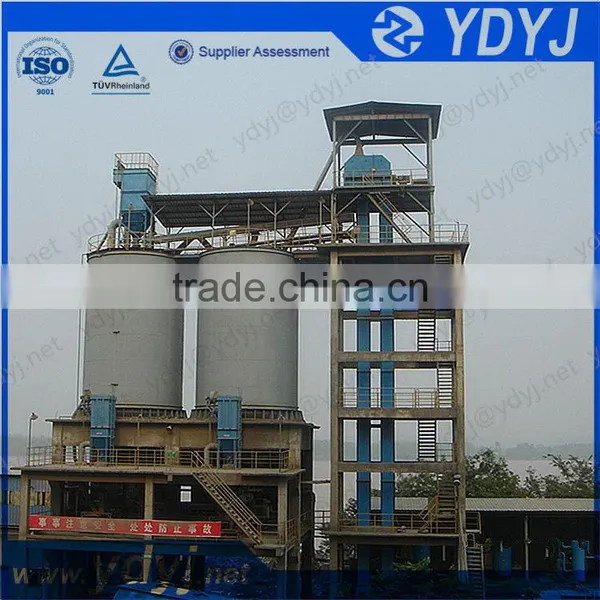

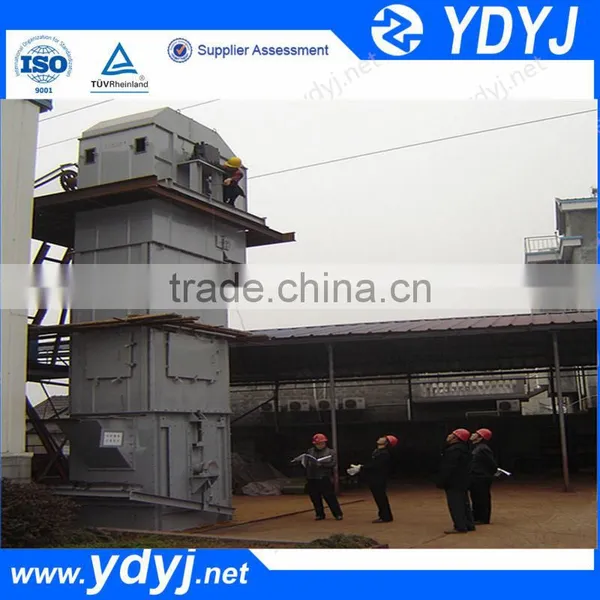

site picture
Technical parameter
Type |
TD100 |
TD160 |
TD250 |
TD315 |
||||||||||||
Bucket type |
Q |
H |
Q |
H |
Zd |
Sd |
Q |
H |
Zd |
Sd |
Q |
H |
Zd |
Sd |
||
Bucket Capacity (L) |
0.15 |
0.3 |
0.49 |
0.9 |
1.2 |
1.9 |
1.22 |
2.44 |
3.0 |
4.6 |
1.95 |
3.55 |
3.75 |
5.8 |
||
Bucket pitch(mm) |
200 |
280 |
350 |
360 |
450 |
400 |
500 |
|||||||||
Capacity |
Centrifugal |
m3/h |
4 |
7.6 |
9 |
16 |
16 |
27 |
20 |
36 |
38 |
59 |
28 |
50 |
42 |
67 |
Composite |
_ |
_ |
_ |
20 |
38 |
32 |
50 |
|||||||||
Belt |
Width |
mm |
150 |
200 |
300 |
400 |
||||||||||
Number |
|
3 |
4 |
|||||||||||||
Speed |
Centrifugal |
m/s |
1.4 |
1.6 |
||||||||||||
Composite |
_ |
_ |
1.2 |
|||||||||||||
|
Centrifugal |
rpm |
67 |
61 |
||||||||||||
Composite |
_ |
_ |
45.8 |
|||||||||||||
Type |
TD400 |
TD500 |
TD630 |
||||||||||||
Bucket type |
Q |
H |
Zd |
Sd |
Q |
H |
Zd |
Sd |
H |
Zd |
Sd |
||||
Bucket Capacity (L) |
3.07 |
5.6 |
5.9 |
9.4 |
4.84 |
9.0 |
9.3 |
14.9 |
14 |
14.6 |
23.5 |
||||
Bucket pitch(mm) |
480 |
560 |
500 |
625 |
710 |
||||||||||
Capacity |
Centrifugal |
m3/h |
40 |
76 |
68 |
110 |
63 |
116 |
96 |
154 |
142 |
148 |
238 |
||
Composite |
32 |
60 |
54 |
85 |
45 |
84 |
70 |
112 |
106 |
110 |
180 |
||||
Belt |
Width |
mm |
500 |
600 |
700 |
||||||||||
Number |
|
5 |
6 |
||||||||||||
Speed |
Centrifugal |
m/s |
1.8 |
2.0 |
|||||||||||
Composite |
1.4 |
1.3 |
1.5 |
||||||||||||
|
Centrifugal |
rpm |
54.6 |
48 |
|||||||||||
Composite |
42.5 |
40 |
36 |
||||||||||||
Packaging & Shipping.
1. Export packing.(Wooden case, carbon cast and pallet).
2. Container (as customer requirements).
3. It is suitable for long distance ocean transportation.
Our services
I. Engineers abailable to service machinery overseas.
2. Provide installation guide, equipment manuals, operation and repair training.
3. Provide random spare parts.
FAQ
Please clear the following technical datas before ordering:
Q: What 's the material will be lifted?please tell us more material features.
A: The material is boiler slay, the density is 0.9t/m3,the particle size is about 5 mm, the temperature is 350 0C.
Q:What's the lifting height between the inlet with outlet?
A:The lifting height is 20.65m.
Q:What's the lifting capacity do you want?
A: The required lifting capacity is 40 t/h.
